Fein WSB 20-230 (50Hz 230V) / 72210600230 Spare Parts

Fein WSB 20-230 ⡐Hz 230V) / 72210600230 Spare Parts

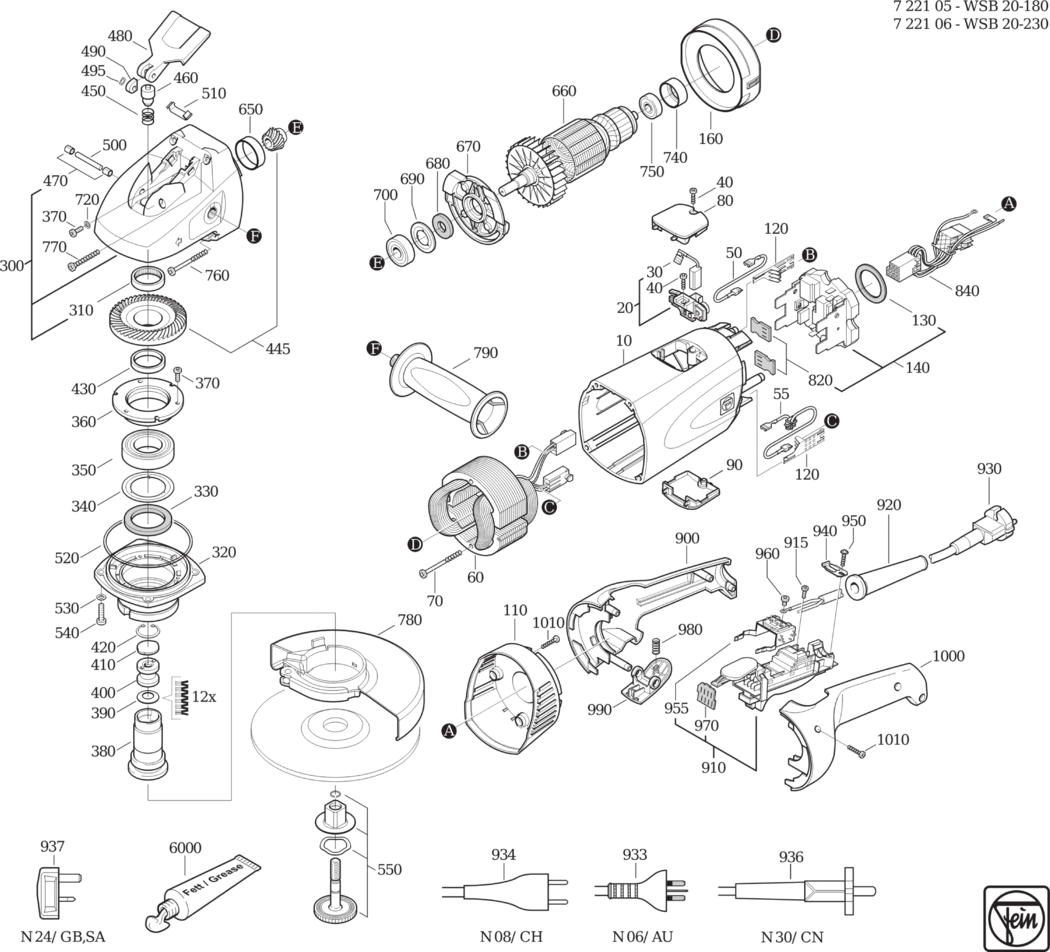

An exploded diagram and spare parts listing for the Fein WSB 20-230 (50Hz 230V) / 72210600230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903214006.A3 31903214006	£37.81	£45.37
20 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A2 30712090019	£23.51	£28.21
30 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A14 30711137006	£14.48	£17.37
40 - SCREW FEI-43070027000.A14 43070027000	-
50 - CONNECTING CABLE FEI-30719556010.A2 30719556010	£1.60	£1.92
55 - RING CORE CHOKE FEI-30764122008.A1 30764122008	£8.28	£9.93
60 - STATOR 50HZ230V FEI-51275002232.A2 51275002232	-
70 - SCREW FEI-43072011008.A10 43072011008	-
80 - COVER FEI-32427117008.A15 32427117008	£4.37	£5.24
90 - COVER FEI-32427118006.A7 32427118006	£4.37	£5.24
110 - HOUSING FEI-31207251008.A8 31207251008	£16.16	£19.39
120 - BASE PLATE FEI-31428144005.A1 31428144005	£1.60	£1.92
140 - ELECTRONICS FEI-30762614990.A4 30762614990	-
160 - AIR GUIDE RING FEI-31428141000.A21 31428141000	£5.95	£7.14
300 - GEARBOX HOUSING FEI-31206113033.A2 31206113033	£93.13	£111.76
310 - NEEDLE SLEEVE FEI-41705036003.A3 41705036003	£9.94	£11.93
320 - BEARING PLATE FEI-32419140000.A0 32419140000	-
330 - FELT RING FEI-30601105004.A12 30601105004	£1.60	£1.92
340 - DISC FEI-32411080005.A12 32411080005	£1.60	£1.92
350 - GROOVED BALL BEARING FEI-41701025023.A22 41701025023	-
360 - PLATE FEI-32416102002.A0 32416102002	£9.73	£11.68
370 - FILLISTER HEAD SCREW FEI-43064002043.A47 43064002043	£1.60	£1.92
380 - SHAFT FEI-33406286006.A3 33406286006	£37.98	£45.58
390 - CUP SPRING PACKAGE FEI-30905073015.A4 30905073015	£15.72	£18.87
400 - PRESSURE PIECE FEI-30220059006.A4 30220059006	£11.40	£13.68
410 - DISC FEI-32414112005.A9 32414112005	£1.60	£1.92
420 - CIRCLIP FEI-42616066001.A11 42616066001	-
430 - RING FEI-32601270000.A5 32601270000	£4.62	£5.54
445 - BEVEL GEAR Z=12/53 FEI-33809230014.A1 33809230014	£82.96	£99.55
450 - SPIRAL SPRING FEI-30901342003.A4 30901342003	£1.60	£1.92
460 - BOLT FEI-30217336008.A6 30217336008	£8.93	£10.72
470 - BUSH FEI-30507200002.A5 30507200002	£2.55	£3.06
480 - LEVER FEI-32805179002.A3 32805179002	£24.87	£29.84
490 - ECCENTRIC RING FEI-32636040002.A6 32636040002	£4.76	£5.71
495 - DISC FEI-42446021000.A3 42446021000	£1.60	£1.92
500 - BOLT FEI-30216138007.A12 30216138007	£1.60	£1.92
510 - LOCKING SPRING FEI-30907055006.A1 30907055006	£4.55	£5.46
520 - DISC FEI-32624118022.A11 32624118022	£2.66	£3.19
530 - CIRCLIP M5 FEI-42443004057.A241 42443004057	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064009054.A7 43064009054	-
550 - CLAMPING UNIT FEI-63802183025.A2 63802183025	£60.72	£72.86
650 - BUSH FEI-30507169007.A8 30507169007	£2.74	£3.29
660 - ARMATURE 50/60H220/230V FEI-53275002234.A8 53275002234	£162.14	£194.57
670 - PLATE FEI-32416106001.A13 32416106001	£9.82	£11.78
680 - FELT RING FEI-30601050002.A33 30601050002	£1.60	£1.92
690 - DISC FEI-32411083001.A13 32411083001	£1.60	£1.92
700 - GROOVED BALL BEARING FEI-41701213096.A31 41701213096	£20.90	£25.08
720 - CIRCLIP M4 FEI-42443003043.A164 42443003043	£1.60	£1.92
740 - BUSH FEI-30507168003.A38 30507168003	£2.74	£3.29
750 - GROOVED BALL BEARING FEI-41701207033.A41 41701207033	£10.15	£12.18
760 - SCREW FEI-43070029002.A17 43070029002	-
770 - SCREW FEI-43070030004.A9 43070030004	-
780 - SAFETY HOOD FEI-31810246020.A3 31810246020	£59.94	£71.93
790 - SIDE HANDLE FEI-32119032002.A30 32119032002	£12.89	£15.47
840 - CONNECTING CABLE FEI-30719594019.A1 30719594019	£22.88	£27.45
900 - HANDLE HALF SHELL FEI-31204167000.A8 31204167000	£13.42	£16.11
910 - SWITCH FEI-30701230023.A1 30701230023	£67.14	£80.57
915 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A137 43041001994	£1.60	£1.92
920 - CABLE GROMMET FEI-31413094007.A54 31413094007	£3.04	£3.65
930 - CABLE WITH PLUG FEI-30707387012.A9 30707387012	£18.18	£21.81
940 - CABLE CLAMPING PIECE FEI-32431042008.A56 32431042008	£1.60	£1.92
950 - SCREW FEI-43070035002.A92 43070035002	£1.60	£1.92
955 - CONNECTING PIECE FEI-30717203014.A11 30717203014	£22.25	£26.70
960 - FILLISTER HEAD SCREW FEI-43041016042.A13 43041016042	-
970 - SEAL FEI-31415090001.A5 31415090001	£1.60	£1.92
980 - SPIRAL SPRING FEI-30901343007.A13 30901343007	-
990 - SWITCH PUSHBUTTON FEI-32816057007.A21 32816057007	£3.17	£3.80
1000 - HANDLE HALF SHELL FEI-31204168008.A19 31204168008	£13.42	£16.11
1010 - SCREW FEI-43070031003.A49 43070031003	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A539 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A302 34130054061	-

Attribute Name	Value
Brand	Fein
