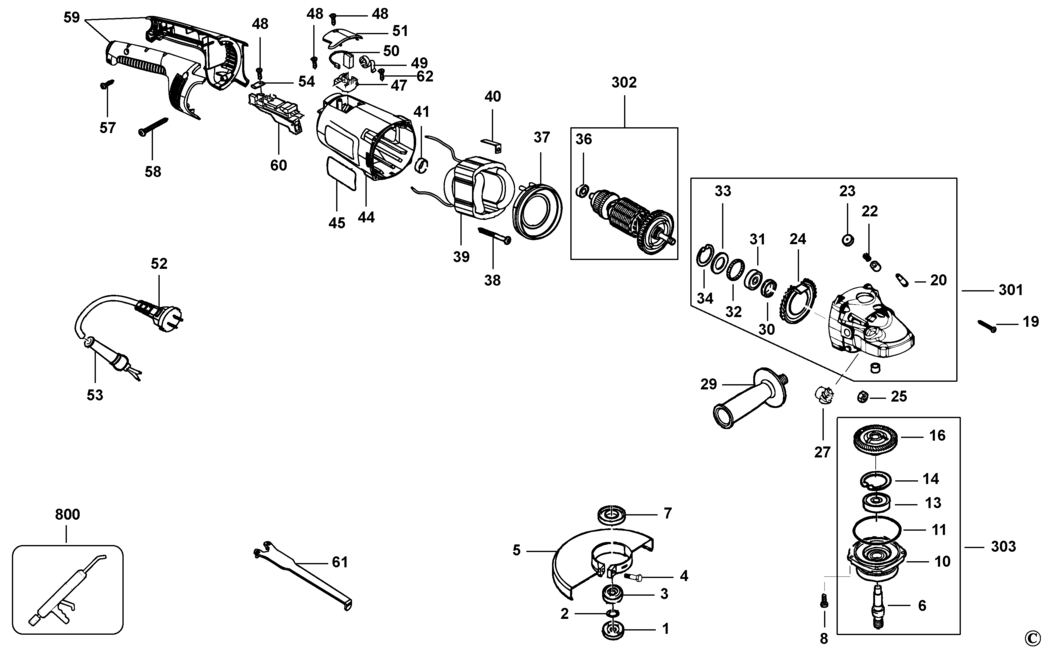

1 - OUTER FLANGE
BDE-4145104008.A0
4145104008
|
£1.66
|
£1.99
|
|
|
2 - O RING
BDE-4240203001.A5
4240203001
|
£1.66
|
£1.99
|
|
|
3 - INNER FLANGE
BDE-4145104002.A20
4145104002
|
£1.66
|
£1.99
|
|
|
4 - SCREW
BDE-49202029.A5
49202029
|
£1.66
|
£1.99
|
|
|
5 - GUARD
BDE-4148004005.A0
4148004005
|
£7.85
|
£9.42
|
|
|
6 - SPINDLE
BDE-4149104606.A2
4149104606
|
£5.88
|
£7.06
|
|
|
6 - SPINDLE & GEAR SA No. 300
BDE-4149150009.A4
4149150009
|
£30.08
|
£36.10
|
|
|
7 - SEAL
BDE-4149101605.A5
4149101605
|
£1.66
|
£1.99
|
|
|
8 - SCREW
BDE-49203009.A8
49203009
|
£1.66
|
£1.99
|
|
|
10 - SPINDLE & GEAR SA No. 300
BDE-4149150009.A1
4149150009
|
£30.08
|
£36.10
|
|
|
11 - O RING
BDE-4148003001.A4
4148003001
|
£1.66
|
£1.99
|
|
|
13 - SPINDLE & GEAR SA No. 300
BDE-4149150009.A2
4149150009
|
£30.08
|
£36.10
|
|
|
14 - SPINDLE & GEAR SA No. 300
BDE-4149150009.A3
4149150009
|
£30.08
|
£36.10
|
|
|
16 - GEAR
BDE-4148010005.A2
4148010005
|
£16.03
|
£19.24
|
|
|
19 - SCREW
BDE-49206048.A1
49206048
|
£1.66
|
£1.99
|
|
|
20 - LOCKING PIN
BDE-4148004007.A4
4148004007
|
£1.66
|
£1.99
|
|
|
22 - SPRING
BDE-4148008003.A1
4148008003
|
£1.66
|
£1.99
|
|
|
23 - CAP
BDE-4149101606.A1
4149101606
|
£1.66
|
£1.99
|
|
|
24 - DEFLECTOR
BDE-4149101607.A5
4149101607
|
£1.66
|
£1.99
|
|
|
25 - NUT
BDE-49205025.A5
49205025
|
£1.66
|
£1.99
|
|
|
27 - PINION
BDE-4148010006.A0
4148010006
|
£7.18
|
£8.62
|
|
|
29 - SIDE HANDLE
BDE-4148001001.A6
4148001001
|
£2.78
|
£3.34
|
|
|
30 - GEARCASE SA No. 301
BDE-4149150008.A18
4149150008
|
£25.70
|
£30.84
|
|
|
31 - GEARCASE SA No. 301
BDE-4149150008.A19
4149150008
|
£25.70
|
£30.84
|
|
|
32 - GEARCASE SA No. 301
BDE-4149150008.A20
4149150008
|
£25.70
|
£30.84
|
|
|
33 - GEARCASE SA No. 301
BDE-4149150008.A21
4149150008
|
£25.70
|
£30.84
|
|
|
34 - GEARCASE SA No. 301
BDE-4149150008.A22
4149150008
|
£25.70
|
£30.84
|
|
|
36 - BEARING
BDE-49111013.A27
49111013
|
£1.66
|
£1.99
|
|
|
37 - DEFLECTOR
BDE-4149101604.A1
4149101604
|
£1.66
|
£1.99
|
|
|
38 - SCREW
BDE-49206041.A4
49206041
|
£1.66
|
£1.99
|
|
|
39 - FIELD SA
BDE-60314065.A3
60314065
|
£55.30
|
£66.36
|
|
|
40 - BRACKET
BDE-4148004003.A2
4148004003
|
£1.66
|
£1.99
|
|
|
41 - COVER BEARING
BDE-4149103601.A4
4149103601
|
£1.66
|
£1.99
|
|
|
44 - HOUSING MOTOR
BDE-4149101601.A0
4149101601
|
£16.03
|
£19.24
|
|
|
47 - BRUSH HOLDER PAIR
BDE-4148007001.A1
4148007001
|
£1.82
|
£2.19
|
|
|
48 - SCREW
BDE-49206019.A4
49206019
|
£1.66
|
£1.99
|
|
|
49 - BRUSH SPRING
BDE-4148008002.A5
4148008002
|
£1.66
|
£1.99
|
|
|
50 - BRUSH PAIR
BDE-4149150011.A3
4149150011
|
£9.41
|
£11.29
|
|
|
51 - BRUSH COVER
BDE-4149101603.A5
4149101603
|
£1.66
|
£1.99
|
|
|
51 - BRUSH COVER
BDE-N512367.A0
N512367
|
£1.66
|
£1.99
|
|
|
53 - CORD PROTECTOR
BDE-49303609.A0
49303609
|
£1.66
|
£1.99
|
|
|
53 - CORD PROTECTOR
BDE-49303012.A5
49303012
|
£1.66
|
£1.99
|
|
|
54 - CORD CLAMP
BDE-4148004011.A2
4148004011
|
£1.66
|
£1.99
|
|
|
57 - SCREW
BDE-49206020.A13
49206020
|
£1.66
|
£1.99
|
|
|
58 - SCREW
BDE-49206004.A4
49206004
|
£1.66
|
£1.99
|
|
|
59 - HOUSING PAIR
BDE-4149101602.A1
4149101602
|
£7.85
|
£9.42
|
|
|
61 - WRENCH SET
BDE-4148004004.A8
4148004004
|
£2.78
|
£3.34
|
|
|
62 - SCREW
BDE-49203006.A9
49203006
|
£1.66
|
£1.99
|
|
|
300 - GEARCASE COVER SA
BDE-4149150007.A0
4149150007
|
-
|
|
|
|
301 - GEARCASE SA
BDE-4149150008.A17
4149150008
|
£25.70
|
£30.84
|
|
|
302 - ARMATURE SA
BDE-4149150003.A2
4149150003
|
£65.52
|
£78.62
|
|
|
303 - SPINDLE & GEAR SA
BDE-4149150006.A2
4149150006
|
£30.08
|
£36.10
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A61
583534-00
|
£144.10
|
£172.92
|
|
|
800 - GREASE 50 GMS 45G
BDE-583534-00.A62
583534-00
|
£144.10
|
£172.92
|
|
