Stanley STGS9125 Type 1 Angle Grinder Spare Parts

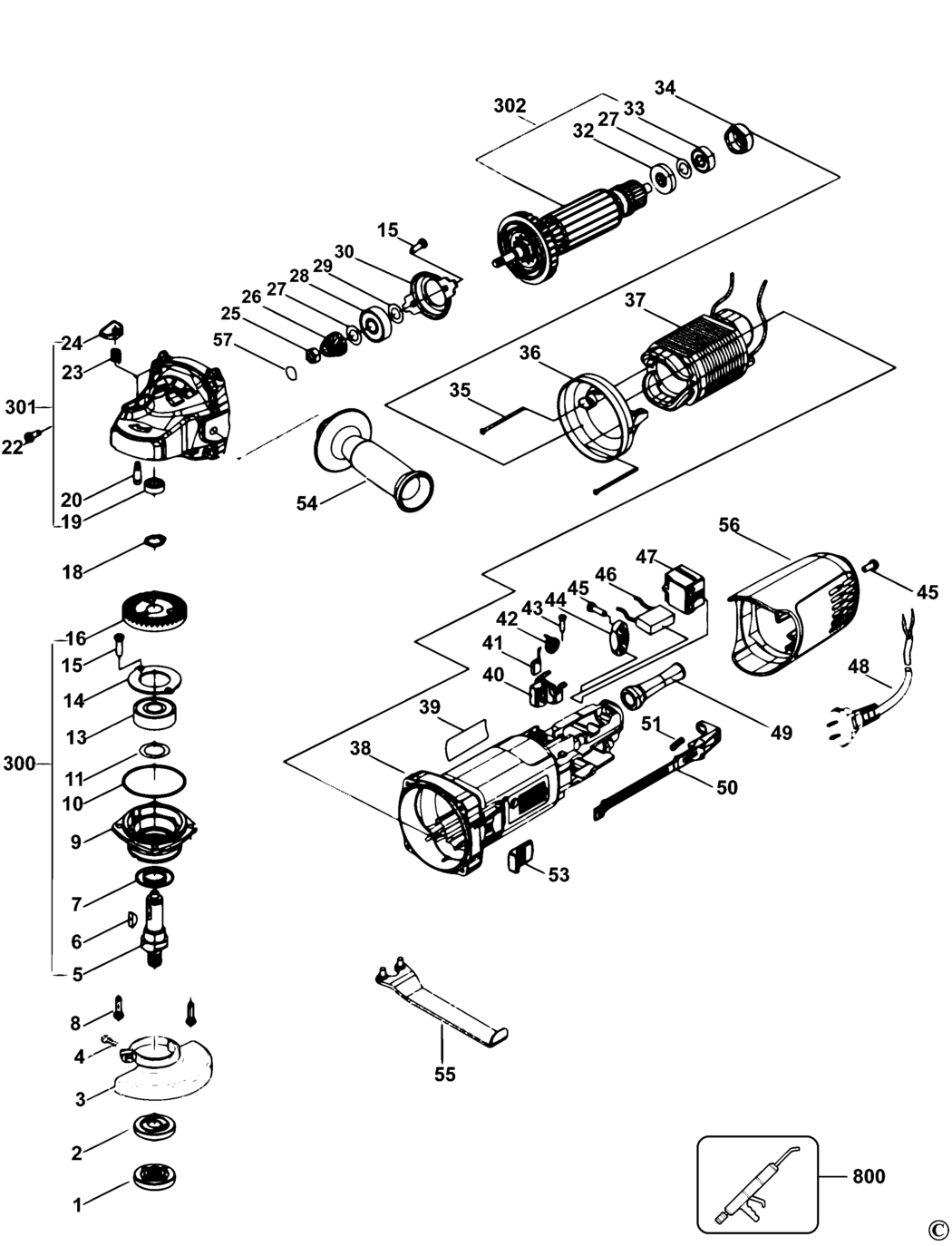

An exploded drawing and spare parts listing for the Stanley STGS9125 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - OUTER FLANGE BDE-4145104008.A5 4145104008	£1.50	£1.80
2 - INNER FLANGE BDE-4145104002.A15 4145104002	£1.50	£1.80
3 - GUARD SA BDE-4142104001.A0 4142104001	£2.78	£3.34
4 - SCREW BDE-49203052.A20 49203052	£1.50	£1.80
5 - SPINDLE BDE-4141404601.A1 4141404601	£2.78	£3.34
6 - LOCK PIN BDE-49208003.A2 49208003	£1.50	£1.80
7 - DUST GUARD BDE-4141004012.A7 4141004012	£1.50	£1.80
8 - SCREW BDE-49203015.A0 49203015	£1.50	£1.80
8 - SCREW BDE-49209042.A19 49209042	£1.50	£1.80
9 - GEARCASE COVER BDE-4141402603.A3 4141402603	£1.82	£2.19
9 - GEARCASE COVER BDE-N569767.A1 N569767	£2.78	£3.34
10 - NO LONGER REQUIRED ON THIS UNIT BDE-000000-11.A19 000000-11	-
10 - NO LONGER AVAILABLE BDE-000000-00.A129637 000000-00	-
11 - WASHER BDE-4140704002.A23 4140704002	£1.50	£1.80
13 - BEARING BDE-49111017.A25 49111017	£2.78	£3.34
14 - BASE PLATE BDE-4141404606.A1 4141404606	£1.50	£1.80
15 - SCREW BDE-49203006.A13 49203006	£1.50	£1.80
16 - GEAR BDE-4141010003.A1 4141010003	£5.88	£7.06
18 - CIRCLIP BDE-49207027.A10 49207027	£1.50	£1.80
19 - BEARING BDE-49111032.A4 49111032	£1.50	£1.80
20 - LOCK PIN BDE-4141004008.A2 4141004008	£1.50	£1.80
22 - SCREW BDE-49206022.A16 49206022	£1.50	£1.80
23 - SPRING BDE-4140308003.A12 4140308003	£1.50	£1.80
24 - BUTTON BDE-4141001005.A7 4141001005	£1.50	£1.80
25 - NUT BDE-49205005.A0 49205005	£1.50	£1.80
26 - PINION BDE-4141010004.A3 4141010004	£3.30	£3.96
27 - WASHER BDE-4141004002.A3 4141004002	£1.50	£1.80
28 - BEARING BDE-49106028.A4 49106028	£3.30	£3.96
29 - NO LONGER AVAILABLE BDE-000000-00.A129638 000000-00	-
29 - NO LONGER REQUIRED ON THIS UNIT BDE-000000-11.A18 000000-11	-
30 - FLANGE BDE-4141304001.A1 4141304001	£1.50	£1.80
32 - WASHER INSULATING BDE-4140901007.A3 4140901007	£1.50	£1.80
33 - BEARING BDE-49106002.A13 49106002	£1.50	£1.80
34 - SLEEVE BEARING BDE-4140703004.A0 4140703004	£1.50	£1.80
35 - SCREW BDE-49206031.A0 49206031	£1.50	£1.80
36 - BAFFLE BDE-4141401603.A5 4141401603	£1.50	£1.80
37 - FIELD SA BDE-60314059.A5 60314059	£19.90	£23.88
38 - FIELDCASE BDE-4141401604.A3 4141401604	£7.85	£9.42
40 - BRUSH HOLDER BDE-4141007001.A2 4141007001	£1.50	£1.80
41 - BRUSH PAIR BDE-N531676.A2 N531676	£5.88	£7.06
41 - BRUSH PAIR BDE-4141406601.A5 4141406601	£2.26	£2.71
42 - BRUSH SPRING BDE-4141008001.A8 4141008001	£1.50	£1.80
43 - SCREW BDE-49206001.A21 49206001	£1.50	£1.80
44 - CORD CLAMP BDE-4240201013.A14 4240201013	£1.50	£1.80
45 - SCREW BDE-49206018.A30 49206018	£1.50	£1.80
47 - SWITCH SA BDE-4140305602.A0 4140305602	-
48 - CORDSET BDE-Z49306009-1.A1 Z49306009-1	£7.85	£9.42
49 - CORD PROTECTOR BDE-49303005.A3 49303005	£1.50	£1.80
50 - LINK BDE-4141401002.A5 4141401002	£1.50	£1.80
51 - SPRING BDE-4141408001.A0 4141408001	£1.50	£1.80
53 - BUTTON BDE-4141401003.A4 4141401003	£1.50	£1.80
54 - HANDLE SIDE SA BDE-4140401001.A11 4140401001	£1.50	£1.80
55 - WRENCH SET BDE-4148004004.A6 4148004004	£2.78	£3.34
56 - END CAP BDE-4141401602.A3 4141401602	£3.30	£3.96
57 - O RING BDE-4240103002.A1 4240103002	£1.50	£1.80
300 - SPINDLE & GEAR SA BDE-4141450004.A1 4141450004	£17.48	£20.97
301 - GEARCASE SA BDE-4141450002.A2 4141450002	£14.19	£17.03
302 - ARMATURE SA BDE-4141450003.A3 4141450003	£24.39	£29.27
800 - GREASE BDE-901181.A10 901181	£74.15	£88.98
800 - GREASE 5g BDE-901181.A11 901181	£74.15	£88.98
