Stanley STEL845 Type 1 Angle Grinder Spare Parts

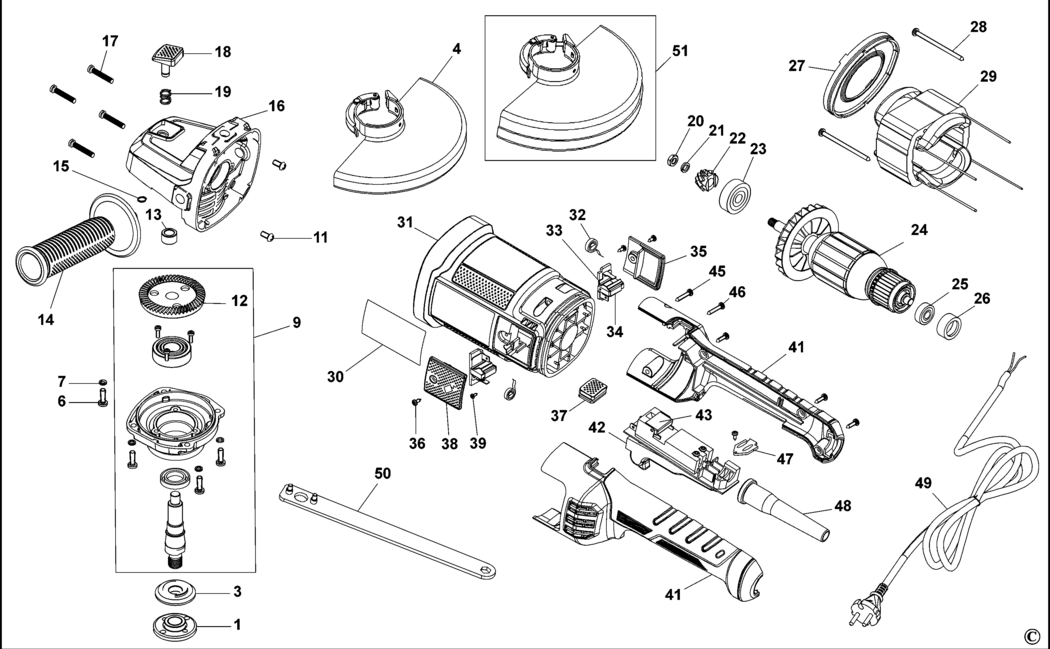

An exploded drawing and spare parts listing for the Stanley STEL845 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - FLANGE BDE-1004684-04.A9 1004684-04	£2.78	£3.34
3 - NUT BDE-1004684-05.A1 1004684-05	£2.78	£3.34
4 - GUARD 9" BDE-1004684-06.A4 1004684-06	£25.70	£30.84
6 - SCREW BDE-1004684-07.A1 1004684-07	£1.50	£1.80
7 - WASHER BDE-1004684-08.A9 1004684-08	£1.50	£1.80
9 - GEARCASE SA BDE-1004684-09.A1 1004684-09	£44.14	£52.97
11 - SCREW BDE-1004684-10.A9 1004684-10	£1.50	£1.80
12 - GEAR BDE-1004684-15.A0 1004684-15	£19.90	£23.88
13 - BEARING BDE-1004684-16.A9 1004684-16	£4.69	£5.63
14 - HANDLE BDE-1004684-58.A7 1004684-58	£9.41	£11.29
15 - RING BDE-1004684-18.A7 1004684-18	£1.50	£1.80
16 - GEARBOX BDE-1004684-19.A3 1004684-19	£30.08	£36.10
17 - SCREW BDE-1004684-20.A7 1004684-20	£1.50	£1.80
18 - LOCK BUTTON BDE-1004684-60.A0 1004684-60	£1.42	£1.70
19 - SPRING BDE-1004684-22.A10 1004684-22	£1.50	£1.80
20 - NUT BDE-1004684-23.A0 1004684-23	£1.50	£1.80
22 - PINION BDE-1004684-25.A2 1004684-25	£16.03	£19.24
23 - BEARING BDE-1004684-26.A6 1004684-26	£10.85	£13.02
24 - ARMATURE BDE-1004684-27.A4 1004684-27	£96.55	£115.86
25 - BEARING BDE-1004684-28.A6 1004684-28	£4.69	£5.63
26 - BEARING SET BDE-1004684-29.A4 1004684-29	£1.50	£1.80
27 - BAFFLE FAN BDE-1004684-30.A6 1004684-30	£1.50	£1.80
28 - SCREW BDE-1004684-31.A4 1004684-31	£1.50	£1.80
29 - STATOR BDE-1004684-32.A3 1004684-32	-
31 - HOUSING BDE-1004684-65.A2 1004684-65	£25.05	£30.06
32 - SPRING BRUSH BDE-1004684-35.A9 1004684-35	£1.50	£1.80
33 - BRUSH HOLDER BDE-1004684-36.A1 1004684-36	£3.80	£4.56
34 - BRUSH PAIR 1 Pair BDE-90601166.A5 90601166	-
35 - BRUSH CAP BDE-1004684-38.A9 1004684-38	£1.50	£1.80
36 - SCREW BDE-1004684-39.A1 1004684-39	£1.50	£1.80
37 - RUBBER BDE-1004684-40.A9 1004684-40	£1.50	£1.80
38 - BRUSH CAP BDE-1004684-41.A1 1004684-41	£1.50	£1.80
39 - SCREW BDE-1004684-42.A9 1004684-42	£1.50	£1.80
41 - HANDLE SA BDE-1004684-66.A1 1004684-66	£18.42	£22.10
42 - SWITCH LOCK OFF BDE-1004684-67.A0 1004684-67	£37.82	£45.38
43 - CAPACITOR BDE-1004684-46.A6 1004684-46	£1.50	£1.80
45 - SCREW BDE-1004684-47.A4 1004684-47	£1.50	£1.80
46 - SCREW BDE-1004684-48.A6 1004684-48	£1.50	£1.80
47 - CORD CLAMP BDE-1004684-49.A4 1004684-49	£1.50	£1.80
48 - CORD PROTECTOR BDE-1004684-50.A6 1004684-50	£1.50	£1.80
50 - WRENCH SPECIAL BDE-1004684-53.A9 1004684-53	£4.69	£5.63
51 - GUARD 9" BDE-1004684-54.A1 1004684-54	£37.35	£44.82

Attribute Name	Value
Brand	Stanley
