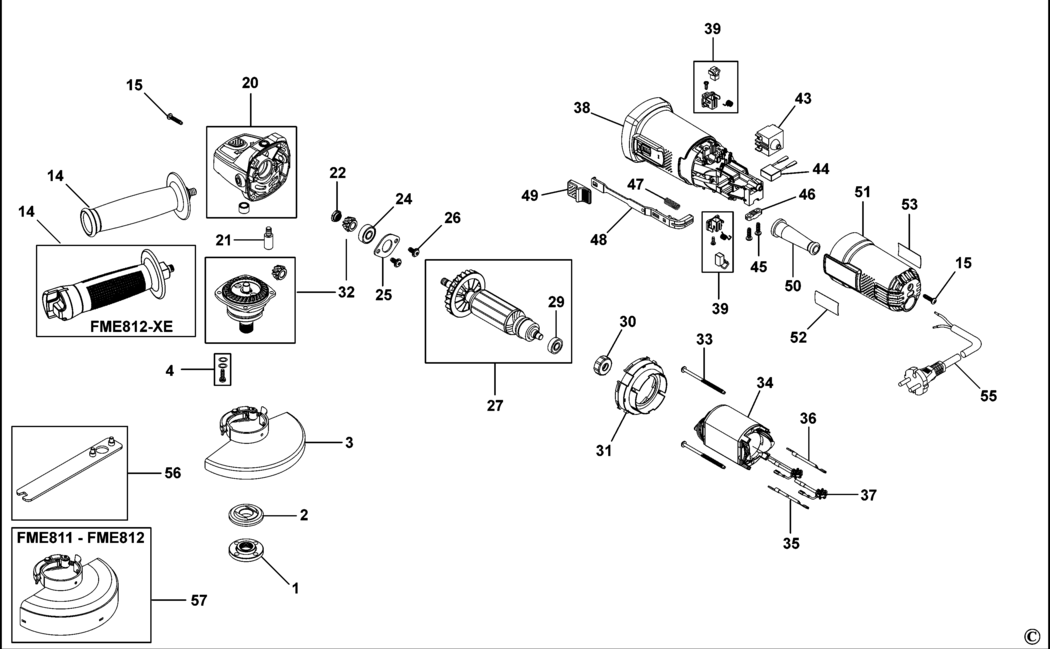

1 - OUTER FLANGE
BDE-569198-00.A13
569198-00
|
£1.66
|
£1.99
|
|
|
2 - INNER FLANGE
BDE-569200-00.A14
569200-00
|
£1.82
|
£2.19
|
|
|
3 - GUARD Type 27
BDE-1004683-27
1004683-27
|
£16.03
|
£19.24
|
|
|
4 - SCREW
BDE-1004525-06.A9
1004525-06
|
£1.66
|
£1.99
|
|
|
14 - SIDE HANDLE GB
BDE-1004683-01.A0
1004683-01
|
£18.42
|
£22.10
|
|
|
15 - SCREW
BDE-569209-00.A15
569209-00
|
£1.66
|
£1.99
|
|
|
20 - GEARCASE SA
BDE-1004683-02.A1
1004683-02
|
£24.39
|
£29.27
|
|
|
21 - SCREW
BDE-1004525-23.A9
1004525-23
|
£1.66
|
£1.99
|
|
|
22 - NUT
BDE-569175-00.A28
569175-00
|
£1.66
|
£1.99
|
|
|
24 - BEARING
BDE-569167-00.A15
569167-00
|
£4.69
|
£5.63
|
|
|
25 - COVERPLATE
BDE-569168-00.A17
569168-00
|
£1.66
|
£1.99
|
|
|
26 - SCREW
BDE-569170-00.A15
569170-00
|
£1.66
|
£1.99
|
|
|
27 - ARMATURE SA
BDE-1004525-26.A3
1004525-26
|
£47.08
|
£56.49
|
|
|
29 - BEARING
BDE-1004525-27.A9
1004525-27
|
£4.69
|
£5.63
|
|
|
30 - BEARING HOLDER
BDE-1004525-28.A15
1004525-28
|
£1.66
|
£1.99
|
|
|
31 - BAFFLE FAN
BDE-1004525-29.A7
1004525-29
|
£1.66
|
£1.99
|
|
|
32 - SPINDLE SA
BDE-1004683-03.A0
1004683-03
|
£41.24
|
£49.49
|
|
|
33 - SCREW
BDE-1004525-32.A9
1004525-32
|
£1.66
|
£1.99
|
|
|
34 - FIELD
BDE-1004525-33.A1
1004525-33
|
£30.08
|
£36.10
|
|
|
35 - LEADWIRE
BDE-1004525-34.A8
1004525-34
|
£1.66
|
£1.99
|
|
|
36 - LEADWIRE
BDE-1004525-35.A2
1004525-35
|
£1.66
|
£1.99
|
|
|
37 - CHOKE
BDE-1004525-36.A8
1004525-36
|
£5.88
|
£7.06
|
|
|
38 - HOUSING
BDE-1004683-04.A1
1004683-04
|
£14.57
|
£17.48
|
|
|
39 - BRUSH HOLDER PAIR
BDE-1004519-17.A3
1004519-17
|
£12.17
|
£14.60
|
|
|
43 - SWITCH
BDE-1004525-42.A0
1004525-42
|
£10.85
|
£13.02
|
|
|
44 - CAPACITOR
BDE-1004525-43.A9
1004525-43
|
£5.88
|
£7.06
|
|
|
45 - SCREW
BDE-596430-00.A9
596430-00
|
£1.66
|
£1.99
|
|
|
46 - CABLE CLAMP
BDE-569195-00.A16
569195-00
|
£1.66
|
£1.99
|
|
|
47 - SPRING
BDE-1004525-45.A19
1004525-45
|
£1.66
|
£1.99
|
|
|
48 - LINKAGE SA
BDE-1004525-46.A1
1004525-46
|
£1.66
|
£1.99
|
|
|
49 - ACTUATOR
BDE-1004683-05.A2
1004683-05
|
£1.66
|
£1.99
|
|
|
50 - CORD PROTECTOR
BDE-1004525-48.A9
1004525-48
|
£1.66
|
£1.99
|
|
|
51 - HOUSING REAR
BDE-1004683-06.A1
1004683-06
|
£16.03
|
£19.24
|
|
|
52 - LABEL GB
BDE-1004683-07.A0
1004683-07
|
£1.66
|
£1.99
|
|
|
53 - RATING PLATE FME812K + FME812KA GB
BDE-1004683-09
1004683-09
|
£1.66
|
£1.99
|
|
|
55 - CORDSET GB
BDE-1004683-11.A0
1004683-11
|
£59.41
|
£71.29
|
|
|
56 - SPANNER
BDE-1004683-12.A1
1004683-12
|
£3.80
|
£4.56
|
|
|
57 - GUARD Type 1
BDE-1004683-29
1004683-29
|
£19.40
|
£23.28
|
|
