Dewalt DWE4246 Type 1 Angle Grinder Spare Parts

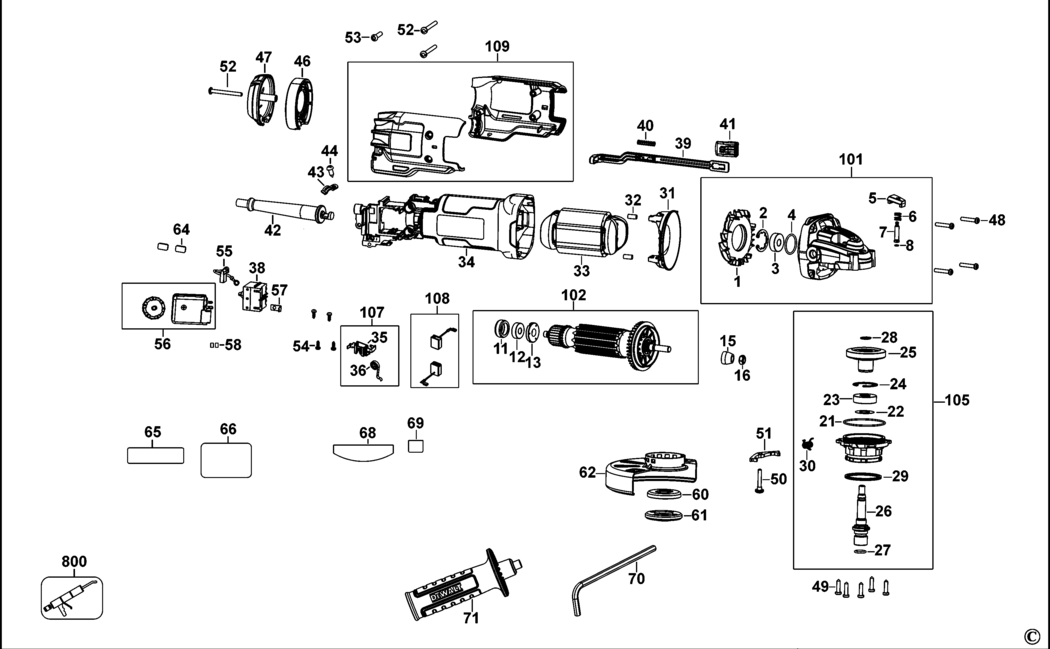

An exploded drawing and spare parts listing for the Dewalt DWE4246 Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - DEFLECTOR BDE-N401958.A31 N401958	£1.50	£1.80
2 - RETAINER BDE-N453031.A10 N453031	£1.50	£1.80
3 - BEARING BDE-N175104.A64 N175104	£3.30	£3.96
4 - O RING BDE-N119639.A87 N119639	£1.50	£1.80
5 - BUTTON BDE-N278899.A2 N278899	£1.50	£1.80
6 - SPRING BDE-N263579.A44 N263579	£1.50	£1.80
7 - LOCK PIN BDE-N481683.A23 N481683	£1.50	£1.80
8 - O RING BDE-N263699.A15 N263699	£1.50	£1.80
11 - SLEEVE BDE-641823-00.A22 641823-00	£1.50	£1.80
12 - BEARING BDE-N130916.A14 N130916	£2.26	£2.71
13 - MAGNET BDE-N449233.A0 N449233	£1.82	£2.19
15 - PINION BDE-N423537.A11 N423537	£5.88	£7.06
16 - NUT BDE-N372039.A37 N372039	£1.50	£1.80
21 - O RING BDE-N307625.A43 N307625	£1.50	£1.80
22 - WASHER BDE-N400478.A10 N400478	£1.50	£1.80
23 - BEARING BDE-605040-24.A93 605040-24	£3.30	£3.96
24 - RETAINER BDE-N481950.A1 N481950	£1.50	£1.80
25 - GEAR BDE-N409481.A36 N409481	£12.17	£14.60
26 - SPINDLE BDE-N461453 N461453	£7.85	£9.42
27 - O RING BDE-N420261.A34 N420261	£1.50	£1.80
28 - CIRCLIP BDE-444793-00.A33 444793-00	£1.50	£1.80
29 - WASHER SPRING BDE-N135116.A17 N135116	£1.50	£1.80
30 - SPRING BDE-N465886.A0 N465886	£1.50	£1.80
31 - BAFFLE FAN BDE-N399419.A0 N399419	£1.50	£1.80
32 - DAMPER BDE-949638-02.A65 949638-02	£1.50	£1.80
34 - FIELDCASE BDE-N444134.A4 N444134	£10.85	£13.02
35 - BRUSHBOX BDE-N335560.A11 N335560	£1.50	£1.80
36 - SPRING BDE-N273780.A33 N273780	£1.50	£1.80
38 - SWITCH BDE-N484918.A3 N484918	£12.17	£14.60
39 - LINK BDE-N447003.A5 N447003	£1.50	£1.80
40 - SPRING BDE-N093410.A40 N093410	£1.50	£1.80
41 - BUTTON BDE-N097844.A32 N097844	£1.50	£1.80
43 - CORD CLAMP BDE-619328-00.A40 619328-00	£1.50	£1.80
44 - SCREW BDE-330065-06.A293 330065-06	£1.50	£1.80
46 - DUST PORT BDE-N401579.A6 N401579	£3.30	£3.96
47 - END CAP BDE-N402946.A1 N402946	£1.50	£1.80
48 - SCREW BDE-N371839.A10 N371839	£1.50	£1.80
49 - SCREW BDE-330045-06.A59 330045-06	£1.50	£1.80
50 - SCREW BDE-N297219.A26 N297219	£1.50	£1.80
51 - LEVER BDE-N637725.A13 N637725	£2.26	£2.71
52 - SCREW BDE-N389438.A47 N389438	£1.50	£1.80
53 - SCREW BDE-330065-09.A26 330065-09	£1.50	£1.80
54 - SCREW BDE-593478-00.A79 593478-00	£1.50	£1.80
55 - LEAD SA BDE-N474450.A2 N474450	£1.50	£1.80
57 - TERMINAL BDE-634599-00.A7 634599-00	£1.50	£1.80
58 - SEAL BDE-633391-00.A20 633391-00	£1.50	£1.80
60 - INNER FLANGE BDE-391969-00.A140 391969-00	£1.82	£2.19
61 - OUTER FLANGE BDE-N457001.A1 N457001	£30.08	£36.10
64 - FOAM BDE-N482414.A3 N482414	£1.50	£1.80
65 - BRAND LABEL BDE-N403730.A23 N403730	£1.50	£1.80
68 - LABEL BDE-N196273.A3 N196273	£1.50	£1.80
69 - LABEL BDE-N465404.A1 N465404	£1.50	£1.80
70 - HEX KEY 6 MM BDE-N107295.A3 N107295	£1.50	£1.80
71 - SIDE HANDLE BDE-N382311.A4 N382311	£12.17	£14.60
101 - GEARCASE SA BDE-N483617.A3 N483617	£24.39	£29.27
105 - GEARCASE COVER SA BDE-N475908 N475908	£34.00	£40.80
107 - BRUSHBOX SA BDE-N413349.A20 N413349	£4.69	£5.63
109 - CLAMSHELL SET BDE-N446402.A1 N446402	£12.17	£14.60
800 - GREASE 50 GMS BDE-583534-00.A157 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
