Dewalt DWE4235 Type 1 Small Angle Grinder Spare Parts

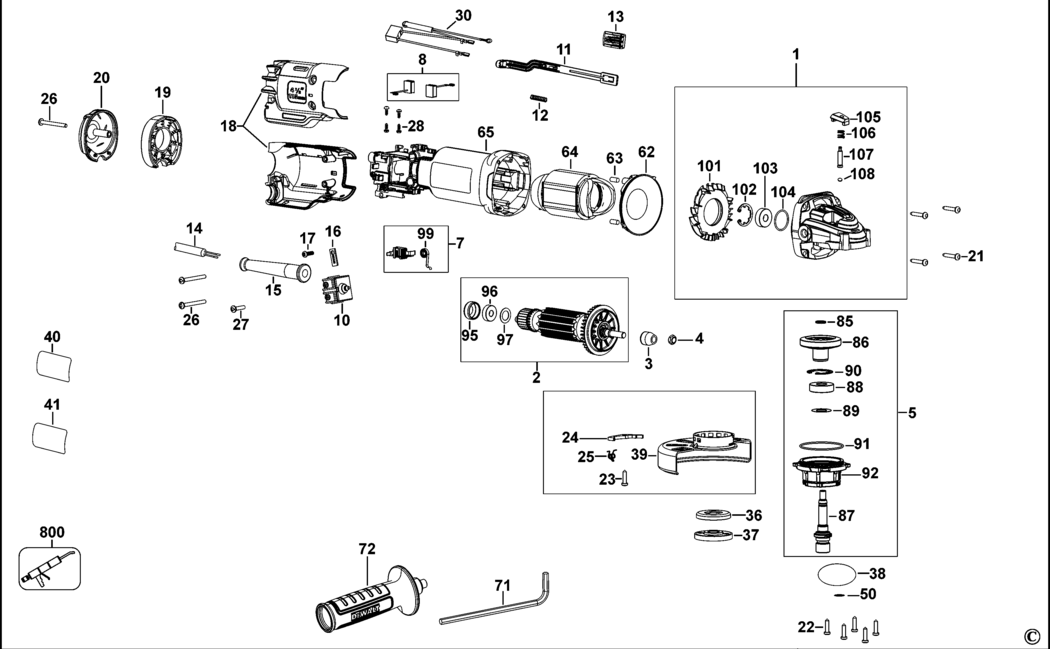

An exploded drawing and spare parts listing for the Dewalt DWE4235 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N413331.A11 N413331	£18.91	£22.69
3 - PINION BDE-N423537.A30 N423537	£5.88	£7.06
4 - NUT BDE-N372039.A27 N372039	£1.50	£1.80
5 - SPINDLE SA BDE-N421526.A10 N421526	£24.39	£29.27
7 - BRUSHBOX SA BDE-N413349.A6 N413349	£4.69	£5.63
10 - SWITCH BDE-N484918.A9 N484918	£12.17	£14.60
11 - LINK BDE-N298583.A14 N298583	£1.51	£1.81
12 - SPRING BDE-N093410.A48 N093410	£1.50	£1.80
13 - BUTTON BDE-N097844.A49 N097844	£1.50	£1.80
15 - CORD PROTECTOR BDE-N542553.A503 N542553	£3.80	£4.56
16 - CORD CLAMP BDE-619328-00.A45 619328-00	£1.50	£1.80
17 - SCREW BDE-330065-06.A266 330065-06	£1.50	£1.80
18 - HOUSING SA BDE-N419604.A2 N419604	£5.88	£7.06
19 - DUST PORT BDE-N401579.A3 N401579	£3.30	£3.96
20 - END CAP BDE-N400902.A6 N400902	£1.50	£1.80
21 - SCREW BDE-N371839.A19 N371839	£1.50	£1.80
22 - SCREW BDE-330045-06.A26 330045-06	£1.50	£1.80
23 - SCREW BDE-N297219.A15 N297219	£1.50	£1.80
24 - LEVER BDE-N136731.A26 N136731	£1.50	£1.80
25 - SPRING BDE-N291619.A10 N291619	£1.50	£1.80
26 - SCREW BDE-N389438.A29 N389438	£1.50	£1.80
27 - SCREW BDE-330065-09.A33 330065-09	£1.50	£1.80
28 - SCREW BDE-593478-00.A60 593478-00	£1.50	£1.80
30 - CAPACITOR SA BDE-N399579.A5 N399579	£4.69	£5.63
36 - INNER FLANGE BDE-391969-00.A101 391969-00	£1.82	£2.19
37 - OUTER FLANGE BDE-N419748.A3 N419748	£5.88	£7.06
38 - O RING BDE-N355619.A14 N355619	£1.50	£1.80
39 - GUARD BDE-N308279.A2 N308279	£7.18	£8.62
40 - BRAND LABEL BDE-N403730.A26 N403730	£1.50	£1.80
50 - O RING BDE-N420261.A29 N420261	£1.50	£1.80
62 - BAFFLE FAN BDE-N399419.A13 N399419	£1.50	£1.80
63 - DAMPER BDE-949638-02.A13 949638-02	£1.50	£1.80
65 - FIELDCASE BDE-N390640.A13 N390640	£7.85	£9.42
71 - HEX KEY 6 MM BDE-N107295.A22 N107295	£1.50	£1.80
72 - SIDE HANDLE BDE-N382311.A16 N382311	£12.17	£14.60
85 - CIRCLIP BDE-444793-00.A15 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A17 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A3 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A62 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A4 N400478	£1.50	£1.80
90 - RING BDE-N389985.A17 N389985	-
91 - O RING BDE-N307625.A23 N307625	£1.50	£1.80
92 - GEARCASE COVER BDE-N269901.A0 N269901	£7.18	£8.62
95 - SLEEVE BDE-641823-00.A117 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A31 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A41 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A37 N273780	£1.50	£1.80
101 - DEFLECTOR BDE-N401958.A48 N401958	£1.50	£1.80
102 - CIRCLIP BDE-N398877.A13 N398877	£1.50	£1.80
103 - BEARING BDE-N175104.A44 N175104	£3.30	£3.96
104 - O RING BDE-N119639.A60 N119639	£1.50	£1.80
105 - BUTTON BDE-N278899.A15 N278899	£1.50	£1.80
106 - SPRING BDE-N263579.A33 N263579	£1.50	£1.80
107 - LOCK PIN BDE-N481683.A36 N481683	£1.50	£1.80
108 - O RING BDE-N263699.A6 N263699	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A68 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
