Dewalt DWE4233 Type 1 Small Angle Grinder Spare Parts

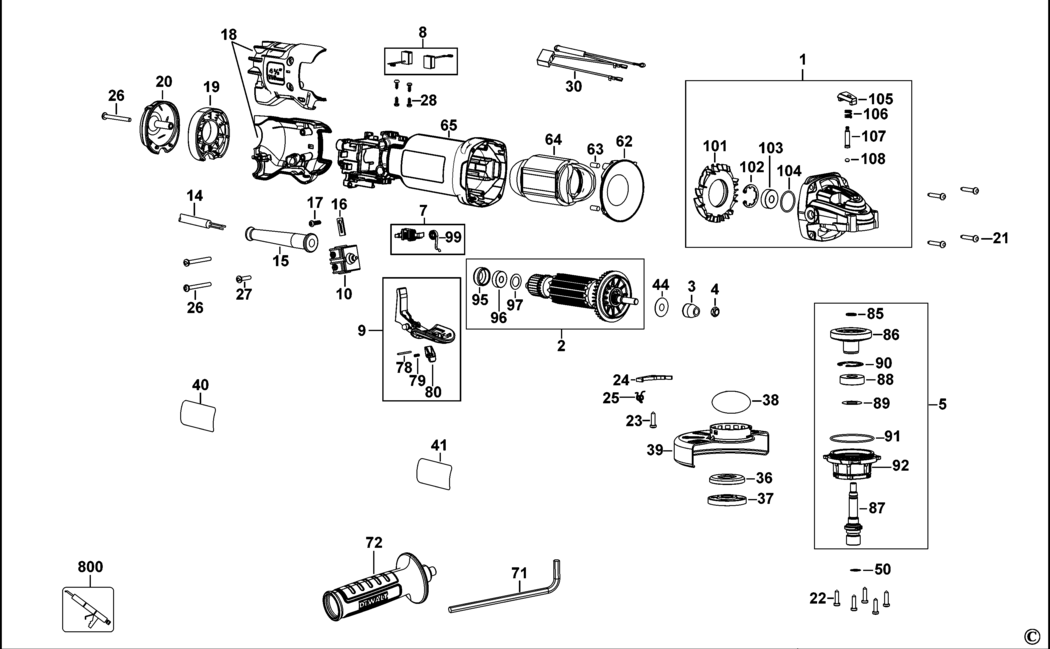

An exploded drawing and spare parts listing for the Dewalt DWE4233 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N413331.A0 N413331	£18.91	£22.69
3 - PINION BDE-N423537.A6 N423537	£5.88	£7.06
4 - NUT BDE-N372039.A7 N372039	£1.50	£1.80
5 - SPINDLE SA BDE-N421526.A2 N421526	£24.39	£29.27
7 - BRUSHBOX SA BDE-N413349.A38 N413349	£4.69	£5.63
9 - PADDLE BDE-N413352.A4 N413352	£3.30	£3.96
16 - CORD CLAMP BDE-619328-00.A19 619328-00	£1.50	£1.80
17 - SCREW BDE-330065-06.A72 330065-06	£1.50	£1.80
18 - HANDLE SA BDE-N419584.A0 N419584	-
19 - DUST PORT BDE-N401671.A11 N401671	£2.78	£3.34
20 - END CAP BDE-N400902.A18 N400902	£1.50	£1.80
21 - SCREW BDE-N371839.A27 N371839	£1.50	£1.80
22 - SCREW BDE-330045-06.A105 330045-06	£1.50	£1.80
23 - SCREW BDE-N297219.A10 N297219	£1.50	£1.80
24 - LEVER BDE-N136731.A14 N136731	£1.50	£1.80
25 - SPRING BDE-N291619.A2 N291619	£1.50	£1.80
26 - SCREW BDE-N389438.A22 N389438	£1.50	£1.80
27 - SCREW BDE-330065-08.A88 330065-08	£1.50	£1.80
28 - SCREW BDE-593478-00.A39 593478-00	£1.50	£1.80
30 - CAPACITOR BDE-N349959.A4 N349959	£3.30	£3.96
36 - INNER FLANGE BDE-391969-00.A53 391969-00	£1.82	£2.19
37 - OUTER FLANGE BDE-N419748.A22 N419748	£5.88	£7.06
38 - O RING BDE-N355619.A2 N355619	£1.50	£1.80
39 - GUARD BDE-N308279.A0 N308279	£7.18	£8.62
40 - BRAND LABEL BDE-N403730.A12 N403730	£1.50	£1.80
44 - WASHER BDE-N213812.A45 N213812	£1.50	£1.80
50 - O RING BDE-N420261.A22 N420261	£1.50	£1.80
62 - BAFFLE BDE-N265479.A3 N265479	£1.50	£1.80
63 - DAMPER BDE-949638-02.A124 949638-02	£1.50	£1.80
65 - FIELDCASE BDE-N369341.A3 N369341	£7.85	£9.42
71 - HEX KEY 6 MM BDE-N107295.A38 N107295	£1.50	£1.80
72 - SIDE HANDLE BDE-N382311.A31 N382311	£12.17	£14.60
78 - ROLL PIN BDE-099204-14.A10 099204-14	£1.50	£1.80
79 - SPRING BDE-150264-01.A10 150264-01	£1.50	£1.80
80 - LEVER LOCK-OFF BDE-397657-00.A17 397657-00	£1.50	£1.80
85 - CIRCLIP BDE-444793-00.A79 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A5 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A38 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A16 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A44 N400478	£1.50	£1.80
90 - RING BDE-N389985.A0 N389985	-
91 - O RING BDE-N307625.A13 N307625	£1.50	£1.80
92 - GEARCASE COVER BDE-N269901.A3 N269901	£7.18	£8.62
95 - SLEEVE BDE-641823-00.A153 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A59 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A15 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A2 N273780	£1.50	£1.80
101 - DEFLECTOR BDE-N401958.A19 N401958	£1.50	£1.80
102 - CIRCLIP BDE-N398877.A12 N398877	£1.50	£1.80
103 - BEARING BDE-N175104.A23 N175104	£3.30	£3.96
104 - O RING BDE-N119639.A11 N119639	£1.50	£1.80
105 - BUTTON BDE-N278899.A42 N278899	£1.50	£1.80
106 - SPRING BDE-N263579.A17 N263579	£1.50	£1.80
107 - LOCK PIN BDE-N481683.A21 N481683	£1.50	£1.80
108 - O RING BDE-N263699.A31 N263699	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A251 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
