Dewalt DWE4216 Type 3 Small Angle Grinder Spare Parts

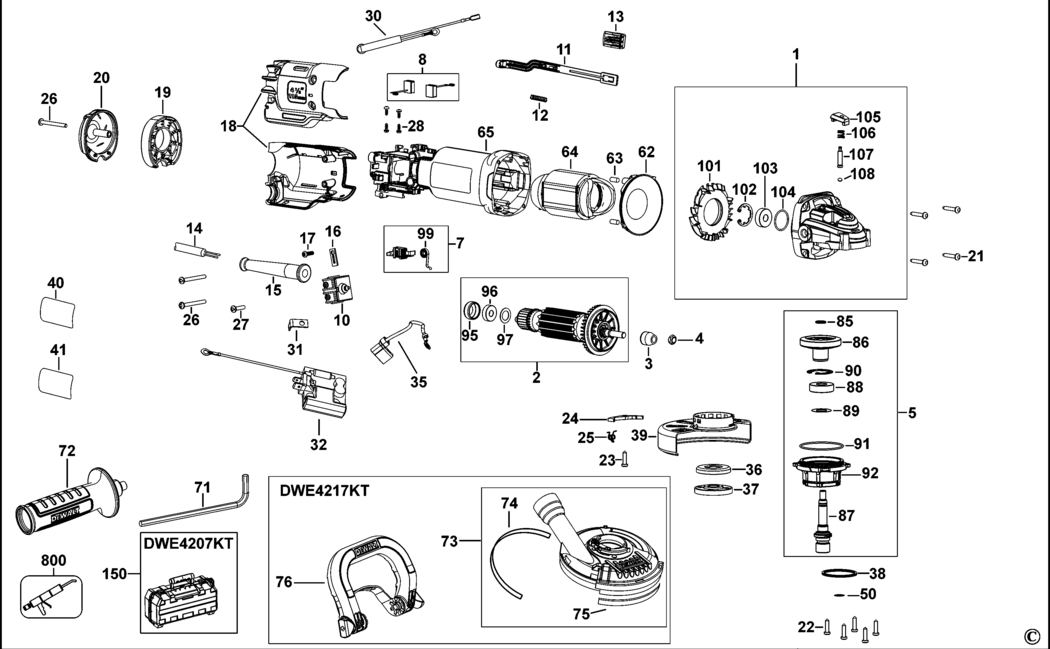

An exploded drawing and spare parts listing for the Dewalt DWE4216 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
3 - PINION BDE-N423537.A20 N423537	£5.88	£7.06
4 - NUT BDE-N372039.A47 N372039	£1.50	£1.80
7 - BRUSHBOX SA BDE-N413349.A17 N413349	£4.69	£5.63
11 - LINK BDE-N298583.A22 N298583	£1.51	£1.81
12 - SPRING BDE-N093410.A35 N093410	£1.50	£1.80
13 - BUTTON BDE-N097844.A41 N097844	£1.50	£1.80
17 - SCREW BDE-330065-06.A298 330065-06	£1.50	£1.80
18 - HOUSING SA BDE-N391187.A5 N391187	£5.88	£7.06
21 - SCREW BDE-N371839.A1 N371839	£1.50	£1.80
22 - SCREW BDE-330045-06.A52 330045-06	£1.50	£1.80
23 - SCREW BDE-N297219.A25 N297219	£1.50	£1.80
26 - SCREW BDE-N389438.A42 N389438	£1.50	£1.80
27 - SCREW BDE-330065-09.A17 330065-09	£1.50	£1.80
28 - SCREW BDE-593478-00.A66 593478-00	£1.50	£1.80
31 - TERMINAL BDE-634599-00.A5 634599-00	£1.50	£1.80
35 - LEAD SA BDE-631028-00.A21 631028-00	£1.50	£1.80
36 - INNER FLANGE BDE-391969-00.A150 391969-00	£1.82	£2.19
37 - OUTER FLANGE BDE-N419748.A10 N419748	£5.88	£7.06
40 - BRAND LABEL BDE-N403730.A14 N403730	£1.50	£1.80
50 - O RING BDE-N420261.A41 N420261	£1.50	£1.80
62 - BAFFLE FAN BDE-N399419.A8 N399419	£1.50	£1.80
63 - DAMPER BDE-949638-02.A69 949638-02	£1.50	£1.80
65 - FIELDCASE BDE-N390640.A17 N390640	£7.85	£9.42
71 - HEX KEY 6 MM BDE-N107295.A6 N107295	£1.50	£1.80
85 - CIRCLIP BDE-444793-00.A40 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A28 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A14 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A97 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A18 N400478	£1.50	£1.80
90 - RETAINER BDE-N481950.A5 N481950	£1.50	£1.80
91 - O RING BDE-N307625.A37 N307625	£1.50	£1.80
95 - SLEEVE BDE-641823-00.A30 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A22 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A30 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A31 N273780	£1.50	£1.80
101 - DEFLECTOR BDE-N401958.A29 N401958	£1.50	£1.80
102 - RETAINER BDE-N453031.A14 N453031	£1.50	£1.80
103 - BEARING BDE-N175104.A73 N175104	£3.30	£3.96
104 - O RING BDE-N119639.A95 N119639	£1.50	£1.80
105 - BUTTON BDE-N278899.A5 N278899	£1.50	£1.80
106 - SPRING BDE-N263579.A42 N263579	£1.50	£1.80
107 - LOCK PIN BDE-N481683.A30 N481683	£1.50	£1.80
108 - O RING BDE-N263699.A18 N263699	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A170 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
