Dewalt DWE4215 Type 1 Small Angle Grinder Spare Parts

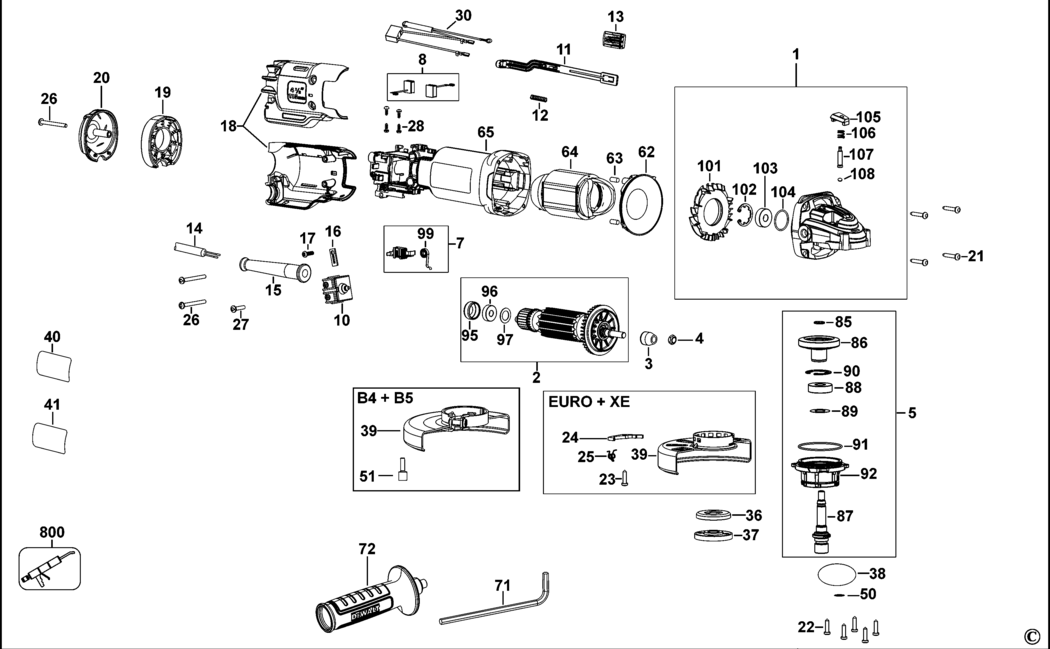

An exploded drawing and spare parts listing for the Dewalt DWE4215 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N413331.A15 N413331	£18.91	£22.69
3 - PINION BDE-N423537.A28 N423537	£5.88	£7.06
4 - NUT BDE-N372039.A32 N372039	£1.50	£1.80
7 - BRUSHBOX SA BDE-N413349.A1 N413349	£4.69	£5.63
10 - SWITCH BDE-N396008.A7 N396008	£9.41	£11.29
11 - LINK BDE-N298583.A6 N298583	£1.51	£1.81
12 - SPRING BDE-N093410.A53 N093410	£1.50	£1.80
13 - BUTTON BDE-N097844.A51 N097844	£1.50	£1.80
17 - SCREW BDE-330065-06.A268 330065-06	£1.50	£1.80
19 - DUST PORT GB BDE-N401671.A5 N401671	£2.78	£3.34
20 - END CAP BDE-N400902.A4 N400902	£1.50	£1.80
21 - SCREW BDE-N371839.A14 N371839	£1.50	£1.80
22 - SCREW BDE-330045-06.A23 330045-06	£1.50	£1.80
26 - SCREW BDE-N389438.A27 N389438	£1.50	£1.80
27 - SCREW BDE-330065-09.A36 330065-09	£1.50	£1.80
28 - SCREW BDE-593478-00.A56 593478-00	£1.50	£1.80
36 - INNER FLANGE BDE-391969-00.A104 391969-00	£1.82	£2.19
37 - OUTER FLANGE BDE-N419748.A1 N419748	£5.88	£7.06
38 - O RING BDE-N355619.A17 N355619	£1.50	£1.80
40 - BRAND LABEL BDE-N403730.A30 N403730	£1.50	£1.80
50 - O RING BDE-N420261.A31 N420261	£1.50	£1.80
62 - BAFFLE FAN BDE-N399419.A16 N399419	£1.50	£1.80
63 - DAMPER BDE-949638-02.A10 949638-02	£1.50	£1.80
65 - FIELDCASE BDE-N390640.A12 N390640	£7.85	£9.42
71 - HEX KEY 6 MM BDE-N107295.A24 N107295	£1.50	£1.80
72 - SIDE HANDLE BDE-N382311.A15 N382311	£12.17	£14.60
85 - CIRCLIP BDE-444793-00.A12 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A21 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A5 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A66 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A6 N400478	£1.50	£1.80
90 - RING BDE-N389985.A14 N389985	-
91 - O RING BDE-N307625.A21 N307625	£1.50	£1.80
95 - SLEEVE BDE-641823-00.A120 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A34 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A38 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A39 N273780	£1.50	£1.80
101 - DEFLECTOR BDE-N401958.A46 N401958	£1.50	£1.80
102 - CIRCLIP BDE-N398877.A15 N398877	£1.50	£1.80
103 - BEARING BDE-N175104.A47 N175104	£3.30	£3.96
104 - O RING BDE-N119639.A57 N119639	£1.50	£1.80
105 - BUTTON BDE-N278899.A18 N278899	£1.50	£1.80
106 - SPRING BDE-N263579.A30 N263579	£1.50	£1.80
107 - LOCK PIN BDE-N481683.A33 N481683	£1.50	£1.80
108 - O RING BDE-N263699.A9 N263699	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A65 583534-00	£144.10	£172.92
