Dewalt DWE4205 Type 3 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

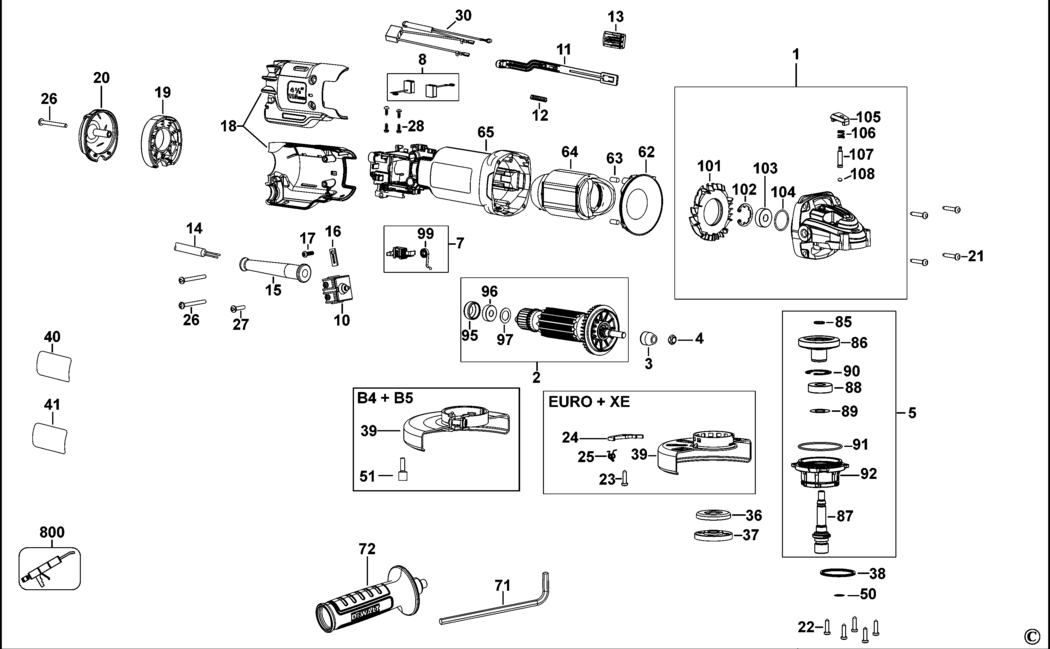

An exploded drawing and spare parts listing for the Dewalt DWE4205 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
1 - GEARCASE SA BDE-N493259.A6 N493259	£25.12	£30.15
3 - PINION BDE-N423537.A16 N423537	£6.06	£7.27
4 - NUT BDE-N372039.A40 N372039	£1.66	£1.99
7 - BRUSHBOX SA BDE-N413349.A15 N413349	£4.83	£5.80
10 - SWITCH BDE-N396008.A1 N396008	£9.69	£11.63
11 - LINK BDE-N298583.A17 N298583	£1.66	£1.99
12 - SPRING BDE-N093410.A33 N093410	£1.66	£1.99
13 - BUTTON BDE-N097844.A35 N097844	£1.66	£1.99
17 - SCREW BDE-330065-06.A305 330065-06	£1.66	£1.99
21 - SCREW BDE-N371839.A7 N371839	£1.66	£1.99
22 - SCREW BDE-330045-06.A46 330045-06	£1.66	£1.99
26 - SCREW BDE-N389438.A39 N389438	£1.66	£1.99
27 - SCREW BDE-330065-09.A23 330065-09	£1.66	£1.99
28 - SCREW BDE-593478-00.A73 593478-00	£1.66	£1.99
30 - CAPACITOR SA BDE-N399579.A2 N399579	£4.83	£5.80
36 - INNER FLANGE BDE-391969-00.A144 391969-00	£2.49	£2.99
37 - OUTER FLANGE BDE-N419748.A14 N419748	£6.06	£7.27
40 - BRAND LABEL BDE-N403730.A20 N403730	£1.66	£1.99
50 - O RING BDE-N420261.A37 N420261	£1.66	£1.99
62 - BAFFLE FAN BDE-N399419.A3 N399419	£1.66	£1.99
63 - DAMPER BDE-949638-02.A72 949638-02	£1.66	£1.99
65 - FIELDCASE BDE-N390640.A20 N390640	£8.08	£9.70
71 - HEX KEY 6 MM BDE-N107295.A13 N107295	£1.66	£1.99
85 - CIRCLIP BDE-444793-00.A39 444793-00	£1.66	£1.99
86 - GEAR BDE-N409481.A35 N409481	£12.53	£15.04
87 - SPINDLE BDE-N163702.A10 N163702	£6.06	£7.27
88 - BEARING BDE-605040-24.A100 605040-24	£3.39	£4.07
89 - WASHER BDE-N400478.A11 N400478	£1.66	£1.99
91 - O RING BDE-N307625.A36 N307625	£1.66	£1.99
95 - SLEEVE BDE-641823-00.A27 641823-00	£1.66	£1.99
96 - BEARING BDE-N130916.A20 N130916	£2.32	£2.78
97 - WASHER BDE-N324400.A22 N324400	£1.66	£1.99
99 - SPRING BDE-N273780.A26 N273780	£1.66	£1.99
101 - DEFLECTOR BDE-N401958.A24 N401958	£1.66	£1.99
102 - RETAINER BDE-N453031.A17 N453031	£1.66	£1.99
103 - BEARING BDE-N175104.A77 N175104	£3.39	£4.07
104 - O RING BDE-N119639.A88 N119639	£1.66	£1.99
105 - BUTTON BDE-N278899.A10 N278899	£1.66	£1.99
106 - SPRING BDE-N263579.A36 N263579	£1.66	£1.99
107 - LOCK PIN BDE-N481683.A28 N481683	£1.66	£1.99
108 - O RING BDE-N263699.A23 N263699	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A164 583534-00	£148.42	£178.11

Attribute Name	Value
Brand	Dewalt
