Dewalt DWE4203 Type 3 Small Angle Grinder Spare Parts

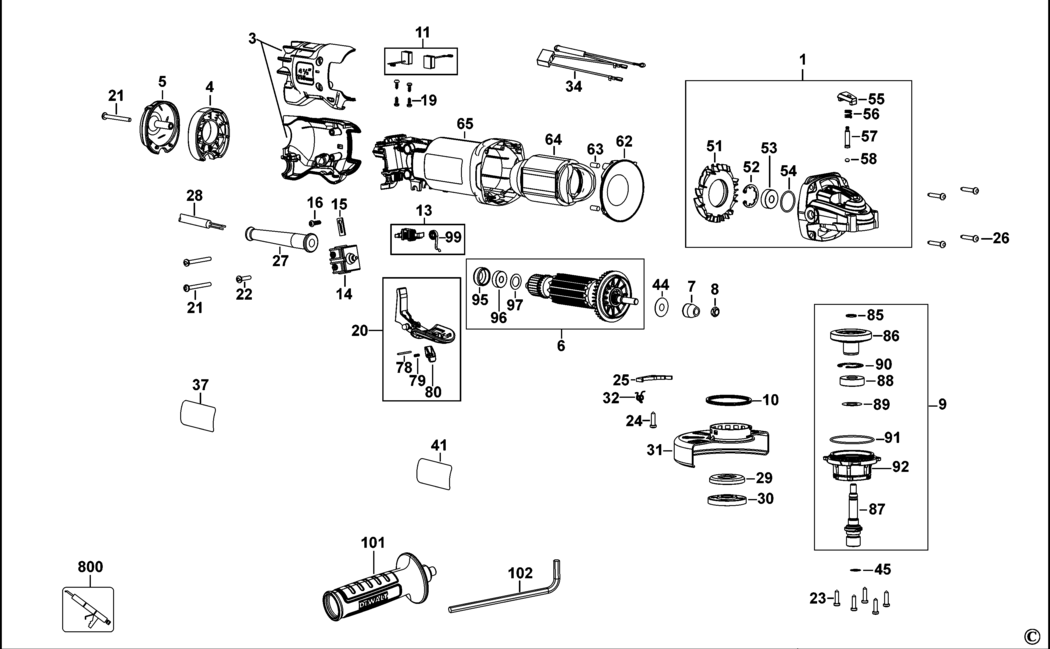

An exploded drawing and spare parts listing for the Dewalt DWE4203 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
3 - HOUSING SA BDE-N393706.A3 N393706	£4.69	£5.63
4 - DUST PORT INCL 7071 BDE-N401671.A8 N401671	£2.78	£3.34
5 - END CAP BDE-N400902.A17 N400902	£1.50	£1.80
7 - PINION BDE-N375339.A1 N375339	£5.88	£7.06
8 - NUT BDE-N372039.A3 N372039	£1.50	£1.80
10 - WASHER SPRING BDE-N135116.A25 N135116	£1.50	£1.80
13 - BRUSHBOX SA BDE-N413349.A43 N413349	£4.69	£5.63
14 - SWITCH BDE-N396008.A14 N396008	£9.41	£11.29
15 - CORD CLAMP BDE-619328-00.A23 619328-00	£1.50	£1.80
16 - SCREW BDE-330065-06.A64 330065-06	£1.50	£1.80
19 - SCREW BDE-593478-00.A31 593478-00	£1.50	£1.80
20 - PADDLE BDE-N413352.A0 N413352	£3.30	£3.96
21 - SCREW BDE-N389438.A17 N389438	£1.50	£1.80
22 - SCREW BDE-330065-08.A90 330065-08	£1.50	£1.80
23 - SCREW BDE-330045-06.A109 330045-06	£1.50	£1.80
24 - SCREW BDE-N297219.A14 N297219	£1.50	£1.80
25 - LEVER BDE-N637725.A4 N637725	£2.26	£2.71
26 - SCREW BDE-N371839.A31 N371839	£1.50	£1.80
29 - INNER FLANGE BDE-391969-00.A69 391969-00	£1.82	£2.19
30 - OUTER FLANGE BDE-N419748.A20 N419748	£5.88	£7.06
32 - SPRING BDE-N465886.A16 N465886	£1.50	£1.80
34 - CAPACITOR BDE-N349959.A1 N349959	£3.30	£3.96
37 - BRAND LABEL BDE-N400392.A4 N400392	£1.50	£1.80
44 - WASHER BDE-N213812.A49 N213812	£1.50	£1.80
45 - O RING BDE-N420261.A16 N420261	£1.50	£1.80
51 - DEFLECTOR BDE-N401958.A17 N401958	£1.50	£1.80
52 - RETAINER BDE-N453031.A6 N453031	£1.50	£1.80
53 - BEARING BDE-N175104.A36 N175104	£3.30	£3.96
54 - O RING BDE-N119639.A16 N119639	£1.50	£1.80
55 - BUTTON BDE-N278899.A45 N278899	£1.50	£1.80
56 - SPRING BDE-N263579.A20 N263579	£1.50	£1.80
57 - LOCK PIN BDE-N481683.A16 N481683	£1.50	£1.80
58 - O RING BDE-N263699.A27 N263699	£1.50	£1.80
62 - BAFFLE BDE-N265479.A4 N265479	£1.50	£1.80
63 - DAMPER BDE-949638-02.A120 949638-02	£1.50	£1.80
65 - FIELDCASE BDE-N369341.A1 N369341	£7.85	£9.42
78 - ROLL PIN BDE-099204-14.A8 099204-14	£1.50	£1.80
79 - SPRING BDE-150264-01.A9 150264-01	£1.50	£1.80
80 - LEVER LOCK-OFF BDE-397657-00.A15 397657-00	£1.50	£1.80
85 - CIRCLIP BDE-444793-00.A65 444793-00	£1.50	£1.80
86 - GEAR BDE-N409481.A2 N409481	£12.17	£14.60
87 - SPINDLE BDE-N163702.A35 N163702	£5.88	£7.06
88 - BEARING BDE-605040-24.A22 605040-24	£3.30	£3.96
89 - WASHER BDE-N400478.A37 N400478	£1.50	£1.80
90 - RETAINER BDE-N481950.A23 N481950	£1.50	£1.80
91 - O RING BDE-N307625.A17 N307625	£1.50	£1.80
95 - SLEEVE BDE-641823-00.A175 641823-00	£1.50	£1.80
96 - BEARING BDE-N130916.A50 N130916	£2.26	£2.71
97 - WASHER BDE-N324400.A20 N324400	£1.50	£1.80
99 - SPRING BDE-N273780.A7 N273780	£1.50	£1.80
101 - SIDE HANDLE BDE-N382311.A26 N382311	£12.17	£14.60
102 - HEX KEY 6 MM BDE-N107295.A42 N107295	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A254 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
