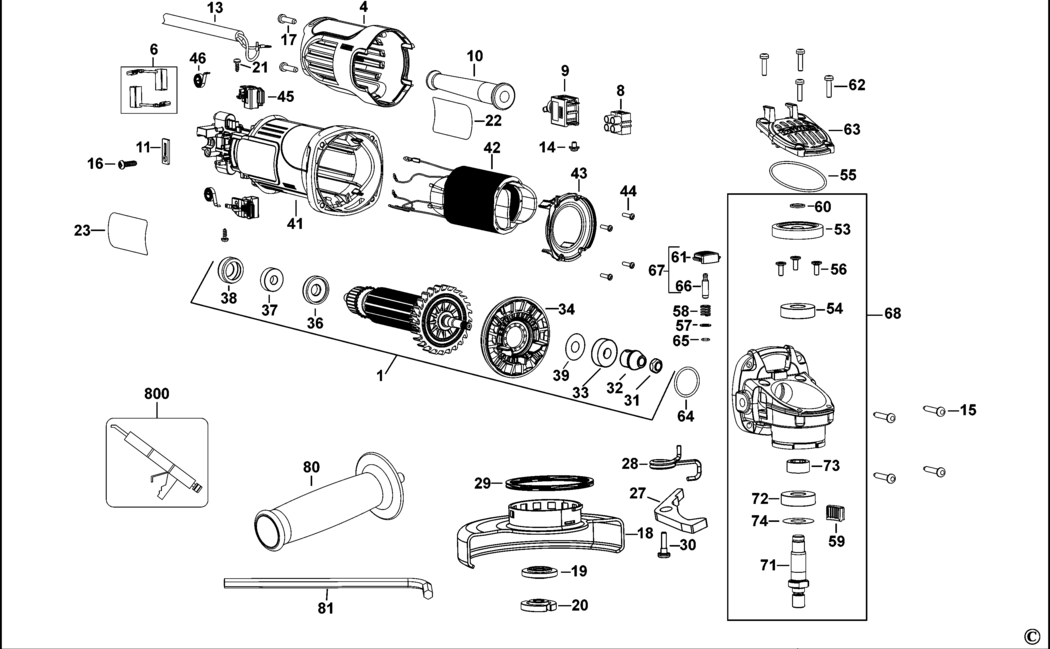

4 - HOUSING
BDE-N121288-01.A5
N121288-01
|
-
|
|
|
|
8 - TERMINAL BLOCK
BDE-655417-00.A2
655417-00
|
-
|
|
|
|
10 - CORD PROTECTOR
BDE-N447519.A17
N447519
|
£1.50
|
£1.80
|
|
|
11 - CORD CLAMP
BDE-619328-00.A4
619328-00
|
£1.50
|
£1.80
|
|
|
14 - SCREW
BDE-627647-00.A7
627647-00
|
-
|
|
|
|
15 - PLASTIC SCREW
BDE-330065-31.A0
330065-31
|
£1.50
|
£1.80
|
|
|
16 - SCREW
BDE-562097-00.A4
562097-00
|
£1.50
|
£1.80
|
|
|
17 - SCREW
BDE-N017839.A29
N017839
|
£1.50
|
£1.80
|
|
|
19 - INNER FLANGE
BDE-391969-00.A38
391969-00
|
£1.82
|
£2.19
|
|
|
20 - OUTER FLANGE
BDE-N134466.A2
N134466
|
£7.18
|
£8.62
|
|
|
21 - SCREW
BDE-593478-00.A5
593478-00
|
£1.50
|
£1.80
|
|
|
22 - BRAND LABEL
BDE-N149175.A10
N149175
|
£1.50
|
£1.80
|
|
|
27 - LEVER
BDE-N136731.A11
N136731
|
£1.50
|
£1.80
|
|
|
28 - SPRING
BDE-N105579.A0
N105579
|
£1.50
|
£1.80
|
|
|
29 - WASHER SPRING
BDE-N135116.A33
N135116
|
£1.50
|
£1.80
|
|
|
30 - SCREW
BDE-N137733.A13
N137733
|
£1.50
|
£1.80
|
|
|
31 - NUT
BDE-604484-00.A44
604484-00
|
£1.50
|
£1.80
|
|
|
32 - PINION
BDE-N153125.A0
N153125
|
£4.69
|
£5.63
|
|
|
33 - BEARING
BDE-N175104.A4
N175104
|
£3.30
|
£3.96
|
|
|
34 - BAFFLE
BDE-N132042.A33
N132042
|
£1.50
|
£1.80
|
|
|
36 - WASHER
BDE-N101228.A25
N101228
|
£1.50
|
£1.80
|
|
|
37 - BEARING
BDE-N130916.A71
N130916
|
£2.26
|
£2.71
|
|
|
38 - SLEEVE
BDE-641823-00.A180
641823-00
|
£1.50
|
£1.80
|
|
|
39 - WASHER
BDE-N213812.A27
N213812
|
£1.50
|
£1.80
|
|
|
41 - FIELDCASE
BDE-N121287-01.A0
N121287-01
|
-
|
|
|
|
43 - BAFFLE
BDE-N132864.A15
N132864
|
£1.50
|
£1.80
|
|
|
44 - SCREW
BDE-330065-25.A148
330065-25
|
£1.50
|
£1.80
|
|
|
45 - BRUSHBOX
BDE-N097702.A5
N097702
|
£1.82
|
£2.19
|
|
|
46 - SPRING
BDE-N097703.A40
N097703
|
£1.50
|
£1.80
|
|
|
53 - GEAR
BDE-N153126.A7
N153126
|
£7.85
|
£9.42
|
|
|
54 - BEARING
BDE-N150961.A4
N150961
|
£2.78
|
£3.34
|
|
|
55 - O RING
BDE-N094024.A37
N094024
|
£1.50
|
£1.80
|
|
|
56 - SCREW
BDE-N118088.A19
N118088
|
£1.50
|
£1.80
|
|
|
57 - WASHER
BDE-N447838.A7
N447838
|
£1.50
|
£1.80
|
|
|
58 - SPRING
BDE-N092954.A13
N092954
|
£1.50
|
£1.80
|
|
|
59 - INSERT
BDE-N126708.A11
N126708
|
£1.50
|
£1.80
|
|
|
60 - CIRCLIP
BDE-444793-00.A104
444793-00
|
£1.50
|
£1.80
|
|
|
61 - BUTTON
BDE-N126105.A6
N126105
|
£1.50
|
£1.80
|
|
|
62 - SCREW
BDE-N122904.A25
N122904
|
£1.50
|
£1.80
|
|
|
63 - GEARCASE COVER
BDE-N116180.A6
N116180
|
£1.50
|
£1.80
|
|
|
64 - O RING
BDE-N119639.A22
N119639
|
£1.50
|
£1.80
|
|
|
65 - O RING
BDE-N094012.A5
N094012
|
£1.50
|
£1.80
|
|
|
66 - SPINDLE LOCK
BDE-N114592.A6
N114592
|
£1.50
|
£1.80
|
|
|
67 - SPINDLE LOCK
BDE-N181767.A30
N181767
|
£3.80
|
£4.56
|
|
|
68 - GEARCASE SA
BDE-N232479.A3
N232479
|
£38.80
|
£46.56
|
|
|
71 - SPINDLE
BDE-N110057.A7
N110057
|
£7.85
|
£9.42
|
|
|
72 - BEARING
BDE-N150961.A5
N150961
|
£2.78
|
£3.34
|
|
|
73 - SLEEVE
BDE-N095815.A41
N095815
|
£1.50
|
£1.80
|
|
|
74 - WASHER
BDE-638229-00.A42
638229-00
|
£1.50
|
£1.80
|
|
|
80 - HANDLE SIDE SA
BDE-562211-00.A17
562211-00
|
£3.30
|
£3.96
|
|
|
81 - HEX KEY 6 MM
BDE-N107295.A62
N107295
|
£1.50
|
£1.80
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A295
583534-00
|
£144.10
|
£172.92
|
|
