Dewalt DWE4050 Type 1 Small Angle Grinder Spare Parts

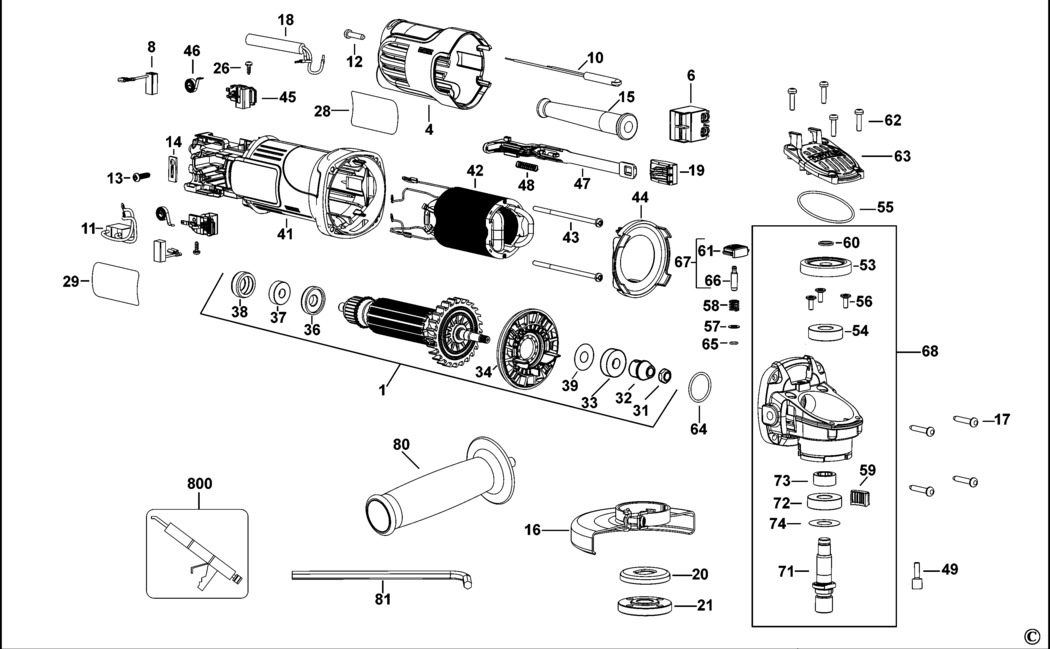

An exploded drawing and spare parts listing for the Dewalt DWE4050 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - ARMATURE SA GB BDE-N181765.A0 N181765	£47.08	£56.49
1 - ARMATURE SA LX BDE-N419588.A2 N419588	£30.08	£36.10
4 - HOUSING BDE-N105642.A1 N105642	£3.80	£4.56
6 - SWITCH BDE-N167538.A5 N167538	£7.18	£8.62
8 - BRUSH PAIR GB BDE-N183725.A0 N183725	£7.85	£9.42
8 - BRUSH PAIR LX BDE-N183726.A3 N183726	£7.85	£9.42
10 - ELECTRONIC LX BDE-N125668.A1 N125668	£2.26	£2.71
10 - ELECTRONIC GB BDE-N125668.A2 N125668	£2.26	£2.71
11 - CAPACITOR GB BDE-N120979.A5 N120979	£2.26	£2.71
11 - CAPACITOR LX BDE-N120979.A6 N120979	£2.26	£2.71
12 - SCREW BDE-N017839.A36 N017839	£1.50	£1.80
13 - SCREW BDE-562097-00.A13 562097-00	£1.50	£1.80
14 - CORD CLAMP GB BDE-619328-00.A0 619328-00	£1.50	£1.80
14 - CORD CLAMP LX BDE-N194291.A2 N194291	£1.50	£1.80
15 - CORD PROTECTOR LX BDE-401088-03.A25 401088-03	£1.50	£1.80
15 - CORD PROTECTOR GB BDE-N447519.A19 N447519	£1.50	£1.80
16 - GUARD SA BDE-N169018 N169018	£9.41	£11.29
17 - PLASTIC SCREW BDE-330065-31.A7 330065-31	£1.50	£1.80
18 - CORDSET (M/PLUG) GB GB BDE-N133091.A0 N133091	£16.03	£19.24
18 - CORDSET LX BDE-N133092.A3 N133092	£38.80	£46.56
19 - BUTTON BDE-N097844.A2 N097844	£1.50	£1.80
20 - INNER FLANGE BDE-391969-00.A57 391969-00	£1.82	£2.19
21 - OUTER FLANGE BDE-N134466.A1 N134466	£7.18	£8.62
26 - SCREW BDE-593478-00.A40 593478-00	£1.50	£1.80
28 - BRAND LABEL BDE-N149175.A0 N149175	£1.50	£1.80
29 - RATING PLATE LX BDE-N149167 N149167	-
29 - RATING PLATE GB BDE-N149166 N149166	-
31 - NUT BDE-604484-00.A26 604484-00	£1.50	£1.80
32 - PINION BDE-N095840.A7 N095840	£7.18	£8.62
33 - BEARING BDE-N214432.A11 N214432	£2.08	£2.50
34 - BAFFLE BDE-N132042.A29 N132042	£1.50	£1.80
36 - SPACER BDE-N118549.A9 N118549	£1.50	£1.80
37 - BEARING BDE-N130916.A57 N130916	£2.26	£2.71
38 - SLEEVE BDE-641823-00.A166 641823-00	£1.50	£1.80
39 - WASHER BDE-N213812.A44 N213812	£1.50	£1.80
41 - FIELDCASE BDE-N105641.A3 N105641	£9.41	£11.29
42 - FIELD 230V GB BDE-N185183.A0 N185183	£25.70	£30.84
42 - FIELD 120V LX BDE-N185184.A2 N185184	£34.00	£40.80
43 - SCREW BDE-N098351.A15 N098351	£1.50	£1.80
44 - BAFFLE BDE-N129051.A11 N129051	£1.50	£1.80
45 - BRUSHBOX BDE-N097702.A15 N097702	£1.82	£2.19
46 - SPRING BDE-N097703.A30 N097703	£1.50	£1.80
47 - LINK BDE-N093409.A9 N093409	£1.50	£1.80
48 - SPRING BDE-N093410.A2 N093410	£1.50	£1.80
49 - SCREW BDE-N130031.A20 N130031	£1.50	£1.80
53 - GEAR BDE-N097361.A11 N097361	£7.85	£9.42
54 - BEARING BDE-N150961.A2 N150961	£2.78	£3.34
55 - O RING BDE-N094024.A26 N094024	£1.50	£1.80
56 - SCREW BDE-N118088.A1 N118088	£1.50	£1.80
57 - WASHER BDE-N447838.A20 N447838	£1.50	£1.80
58 - SPRING BDE-N092954.A0 N092954	£1.50	£1.80
59 - INSERT BDE-N126708.A6 N126708	£1.50	£1.80
60 - CIRCLIP BDE-444793-00.A75 444793-00	£1.50	£1.80
61 - BUTTON BDE-N126105.A1 N126105	£1.50	£1.80
62 - SCREW BDE-N122904.A33 N122904	£1.50	£1.80
63 - GEARCASE COVER BDE-N116180.A16 N116180	£1.50	£1.80
64 - O RING BDE-N119639.A1 N119639	£1.50	£1.80
65 - O RING BDE-N094012.A16 N094012	£1.50	£1.80
66 - SPINDLE LOCK BDE-N114592.A0 N114592	£1.50	£1.80
67 - SPINDLE LOCK BDE-N181767.A40 N181767	£3.80	£4.56
68 - GEARCASE SA BDE-N183724.A0 N183724	£41.24	£49.49
71 - SPINDLE BDE-N110057.A6 N110057	£7.85	£9.42
72 - BEARING BDE-N150961.A3 N150961	£2.78	£3.34
73 - SLEEVE BDE-N095815.A31 N095815	£1.50	£1.80
74 - WASHER BDE-638229-00.A24 638229-00	£1.50	£1.80
80 - HANDLE SIDE SA BDE-562211-00.A0 562211-00	£3.30	£3.96
81 - HEX KEY 6 MM BDE-N107295.A34 N107295	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A227 583534-00	£144.10	£172.92
