Dewalt DW812 Type 5 Small Angle Grinder Spare Parts

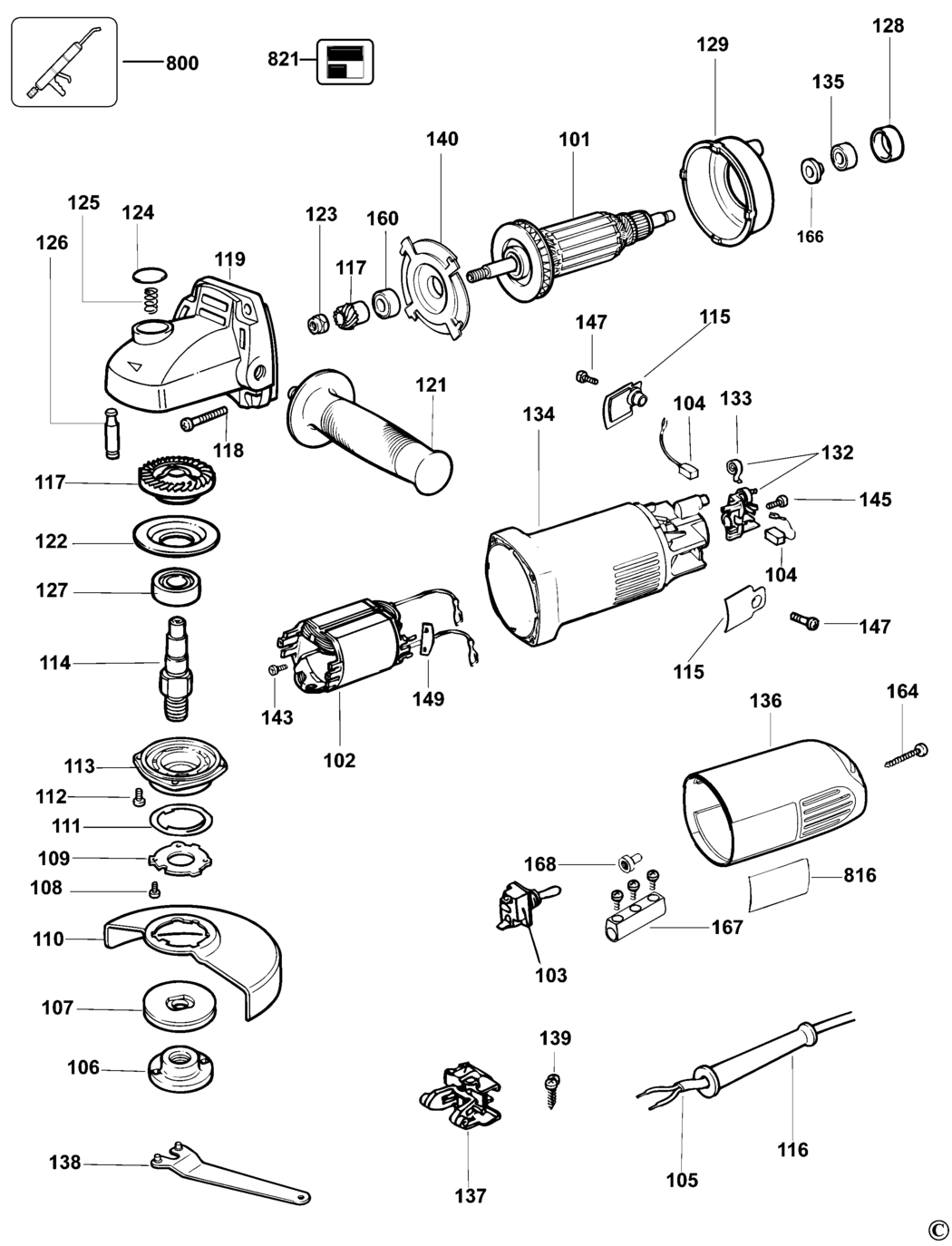

An exploded drawing and spare parts listing for the Dewalt DW812 Type 5 Small Angle Grinder

	Ex VAT	Inc VAT
103 - SWITCH BDE-562209-01.A0 562209-01	-
103 - SWITCH BDE-562209-01.A1 562209-01	-
106 - OUTER FLANGE BDE-401678-05.A7 401678-05	£4.69	£5.63
106 - OUTER FLANGE BDE-401678-05.A8 401678-05	£4.69	£5.63
107 - INNER FLANGE BDE-391969-00.A5 391969-00	£1.82	£2.19
107 - INNER FLANGE BDE-391969-00.A6 391969-00	£1.82	£2.19
108 - SCREW BDE-562160-06.A25 562160-06	£1.50	£1.80
108 - SCREW BDE-562160-06.A26 562160-06	£1.50	£1.80
109 - RETAINING PLATE BDE-605415-00.A4 605415-00	-
109 - RETAINING PLATE BDE-605415-00.A5 605415-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A63229 000000-00	-
110 - GUARD BDE-944685-00.A6 944685-00	-
111 - RING BDE-393576-00.A88 393576-00	£1.50	£1.80
111 - RING BDE-393576-00.A89 393576-00	£1.50	£1.80
112 - SCREW BDE-330045-46.A59 330045-46	£1.50	£1.80
112 - SCREW BDE-330045-46.A60 330045-46	£1.50	£1.80
113 - GEARCASE COVER BDE-945298-01.A10 945298-01	-
113 - GEARCASE COVER BDE-945298-01.A11 945298-01	-
114 - SPINDLE BDE-641892-00.A3 641892-00	-
114 - SPINDLE BDE-641892-00.A4 641892-00	-
115 - BRUSH COVER BDE-945279-01.A10 945279-01	£1.42	£1.70
115 - BRUSH COVER BDE-945279-01.A11 945279-01	£1.42	£1.70
116 - CORD PROTECTOR BDE-N542553.A39 N542553	£3.80	£4.56
116 - CORD PROTECTOR BDE-330005-01.A13 330005-01	£1.50	£1.80
117 - GEAR & PINION BDE-661243-00.A73 661243-00	£12.17	£14.60
117 - GEAR & PINION BDE-661243-00.A74 661243-00	£12.17	£14.60
118 - SCREW BDE-562097-01.A119 562097-01	£1.50	£1.80
118 - SCREW BDE-562097-01.A120 562097-01	£1.50	£1.80
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A36 562304-01	-
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A37 562304-01	-
121 - HANDLE SIDE SA BDE-562211-00.A11 562211-00	£3.30	£3.96
121 - HANDLE SIDE SA BDE-562211-00.A12 562211-00	£3.30	£3.96
122 - FLANGE BDE-945299-00.A103 945299-00	£1.50	£1.80
122 - FLANGE BDE-945299-00.A104 945299-00	£1.50	£1.80
123 - NUT BDE-945292-00.A126 945292-00	£1.50	£1.80
123 - NUT BDE-945292-00.A127 945292-00	£1.50	£1.80
124 - BUTTON BDE-944575-00.A70 944575-00	£1.50	£1.80
124 - BUTTON BDE-944575-00.A71 944575-00	£1.50	£1.80
125 - SPRING BDE-562210-00.A126 562210-00	£1.50	£1.80
125 - SPRING BDE-562210-00.A127 562210-00	£1.50	£1.80
126 - SPINDLE LOCK BDE-944571-00.A129 944571-00	-
126 - SPINDLE LOCK BDE-944571-00.A130 944571-00	-
127 - BEARING BDE-605040-22.A48 605040-22	£4.69	£5.63
127 - BEARING BDE-605040-22.A49 605040-22	£4.69	£5.63
128 - SLEEVE BDE-930275-00.A185 930275-00	£2.26	£2.71
128 - SLEEVE BDE-930275-00.A186 930275-00	£2.26	£2.71
129 - BAFFLE BDE-401623-00.A27 401623-00	£1.50	£1.80
132 - BRUSH HOLDER SA BDE-604146-00.A5 604146-00	-
132 - BRUSH HOLDER SA BDE-604146-00.A6 604146-00	-
133 - SPRING BDE-562204-00.A76 562204-00	£1.50	£1.80
133 - SPRING BDE-562204-00.A77 562204-00	£1.50	£1.80
134 - FIELDCASE BDE-396007-04.A13 396007-04	-
134 - FIELDCASE BDE-396007-04.A14 396007-04	-
135 - BEARING BALL BDE-605040-03.A55 605040-03	£2.78	£3.34
135 - BEARING BALL BDE-605040-03.A56 605040-03	£2.78	£3.34
136 - NO LONGER AVAILABLE BDE-000000-00.A63231 000000-00	-
136 - END CAP BDE-944671-04.A0 944671-04	-
137 - NO LONGER AVAILABLE BDE-000000-00.A63230 000000-00	-
137 - SWITCH SUPPORT BDE-397701-00.A5 397701-00	-
138 - WRENCH BDE-401680-00.A135 401680-00	£4.69	£5.63
138 - WRENCH BDE-401680-00.A136 401680-00	£4.69	£5.63
139 - SCREW BDE-562097-05.A118 562097-05	£1.50	£1.80
139 - SCREW BDE-562097-05.A119 562097-05	£1.50	£1.80
140 - FLANGE BDE-401622-01.A148 401622-01	£1.50	£1.80
140 - FLANGE BDE-401622-01.A149 401622-01	£1.50	£1.80
143 - SCREW BDE-562097-02.A10 562097-02	£1.42	£1.70
143 - SCREW BDE-562097-02.A11 562097-02	£1.42	£1.70
145 - SCREW BDE-562097-00.A44 562097-00	£1.50	£1.80
145 - SCREW BDE-562097-00.A45 562097-00	£1.50	£1.80
147 - SCREW BDE-945280-00.A34 945280-00	£1.50	£1.80
147 - SCREW BDE-945280-00.A35 945280-00	£1.50	£1.80
149 - FELT SEAL BDE-641893-00.A32 641893-00	£1.50	£1.80
149 - FELT SEAL BDE-641893-00.A33 641893-00	£1.50	£1.80
160 - BEARING BDE-N110359.A138 N110359	£3.75	£4.50
160 - BEARING BDE-N110359.A139 N110359	£3.75	£4.50
164 - SCREW BDE-562097-02.A12 562097-02	£1.42	£1.70
164 - SCREW BDE-562097-02.A13 562097-02	£1.42	£1.70
166 - SPACER INSULATING BDE-398906-00.A19 398906-00	£1.50	£1.80
166 - SPACER INSULATING BDE-398906-00.A20 398906-00	£1.50	£1.80
167 - TERMINAL BDE-930187-00.A8 930187-00	£1.50	£1.80
167 - TERMINAL BDE-930187-00.A9 930187-00	£1.50	£1.80
168 - NO LONGER AVAILABLE BDE-000000-00.A63232 000000-00	-
168 - SWITCH COVER BDE-943254-00.A5 943254-00	-
800 - GREASE BDE-286436-00.A99 286436-00	£126.63	£151.96
800 - GREASE BDE-286436-00.A100 286436-00	£126.63	£151.96
816 - BRAND LABEL BDE-946194-00.A50 946194-00	£1.50	£1.80
816 - BRAND LABEL BDE-946194-00.A51 946194-00	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
