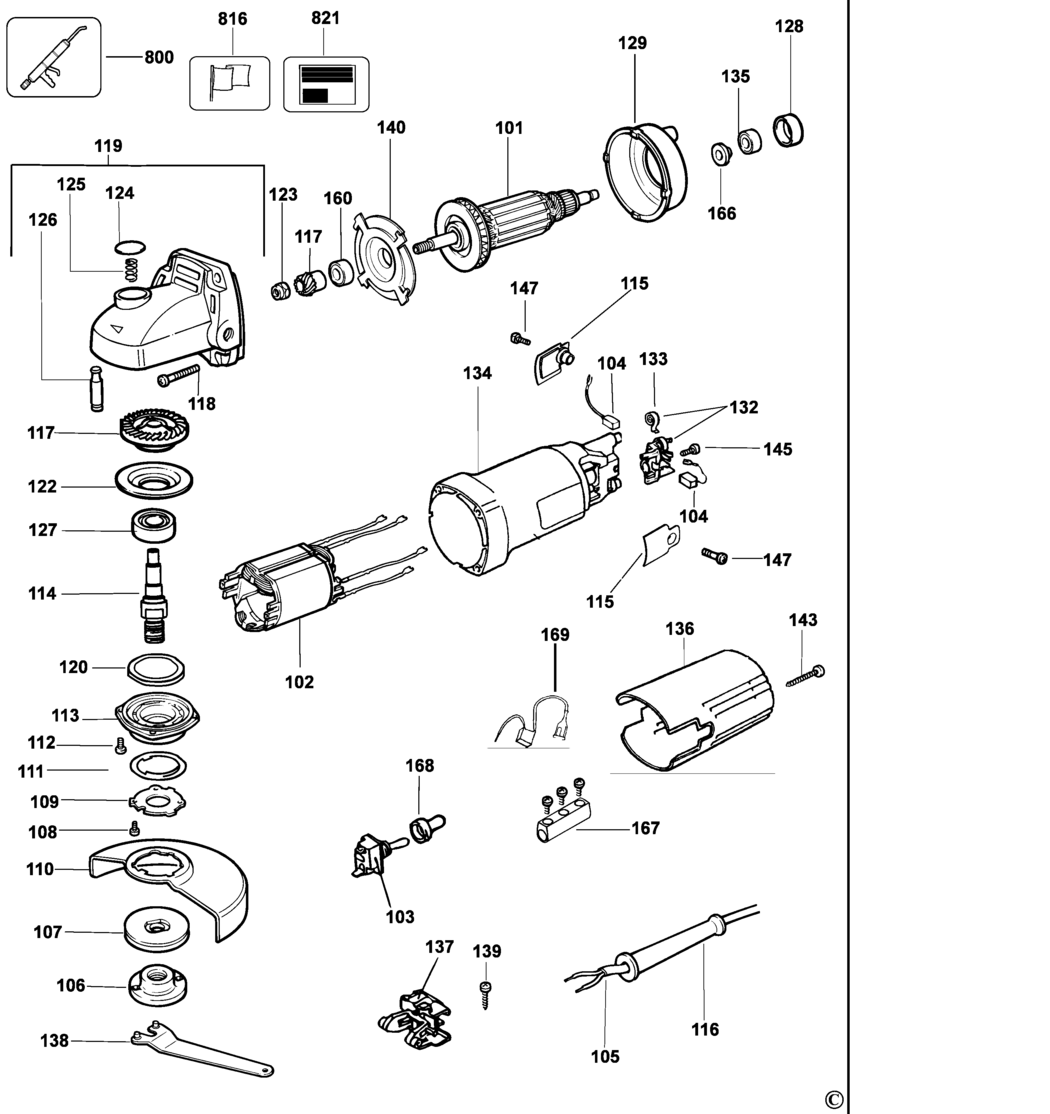

103 - SWITCH
BDE-562209-00.A3
562209-00
|
-
|
|
|
|
106 - OUTER FLANGE
BDE-659109-00.A9
659109-00
|
-
|
|
|
|
107 - INNER FLANGE
BDE-N039245.A14
N039245
|
-
|
|
|
|
108 - SCREW
BDE-562160-06.A27
562160-06
|
£1.66
|
£1.99
|
|
|
109 - RETAINING PLATE
BDE-605415-00.A1
605415-00
|
-
|
|
|
|
110 - GUARD
BDE-944675-00.A27
944675-00
|
-
|
|
|
|
111 - RING
BDE-393576-00.A87
393576-00
|
£1.66
|
£1.99
|
|
|
112 - SCREW
BDE-330045-46.A58
330045-46
|
£1.66
|
£1.99
|
|
|
113 - GEARCASE COVER
BDE-945298-01.A7
945298-01
|
-
|
|
|
|
114 - SPINDLE
BDE-N039248.A2
N039248
|
-
|
|
|
|
115 - BRUSH COVER
BDE-945279-01.A12
945279-01
|
£1.66
|
£1.99
|
|
|
116 - CORD PROTECTOR
BDE-641081-00.A3
641081-00
|
-
|
|
|
|
117 - GEAR & PINION
BDE-661243-00.A75
661243-00
|
£12.53
|
£15.04
|
|
|
118 - SCREW
BDE-562097-01.A121
562097-01
|
£1.66
|
£1.99
|
|
|
119 - GEARCASE SA Inc # 124 125 126
BDE-562304-01.A35
562304-01
|
-
|
|
|
|
120 - FELT SEAL
BDE-641893-00.A35
641893-00
|
£1.66
|
£1.99
|
|
|
122 - FLANGE
BDE-945299-00.A109
945299-00
|
£1.66
|
£1.99
|
|
|
123 - NUT
BDE-945292-00.A131
945292-00
|
£1.66
|
£1.99
|
|
|
124 - BUTTON
BDE-944575-00.A69
944575-00
|
£1.66
|
£1.99
|
|
|
125 - SPRING
BDE-562210-00.A132
562210-00
|
£1.66
|
£1.99
|
|
|
126 - SPINDLE LOCK
BDE-944571-00.A131
944571-00
|
-
|
|
|
|
127 - BEARING
BDE-605040-22.A47
605040-22
|
£4.83
|
£5.80
|
|
|
128 - SLEEVE
BDE-930275-00.A189
930275-00
|
£2.32
|
£2.78
|
|
|
129 - BAFFLE
BDE-401623-01.A10
401623-01
|
-
|
|
|
|
132 - BRUSH HOLDER SA
BDE-604146-00.A4
604146-00
|
-
|
|
|
|
133 - SPRING
BDE-562204-00.A78
562204-00
|
£1.66
|
£1.99
|
|
|
134 - FIELDCASE
BDE-396007-04.A12
396007-04
|
-
|
|
|
|
135 - BEARING BALL
BDE-605040-03.A57
605040-03
|
£2.87
|
£3.44
|
|
|
136 - END CAP
BDE-944671-04.A1
944671-04
|
-
|
|
|
|
137 - SWITCH SUPPORT
BDE-397701-00.A6
397701-00
|
-
|
|
|
|
138 - WRENCH ROUND-PINS
BDE-401253-00.A80
401253-00
|
£4.83
|
£5.80
|
|
|
139 - SCREW
BDE-562097-05.A120
562097-05
|
£1.66
|
£1.99
|
|
|
140 - FLANGE
BDE-401622-01.A150
401622-01
|
£1.66
|
£1.99
|
|
|
143 - SCREW
BDE-562097-02.A9
562097-02
|
£1.66
|
£1.99
|
|
|
145 - SCREW
BDE-562097-00.A43
562097-00
|
£1.66
|
£1.99
|
|
|
147 - SCREW
BDE-945280-00.A32
945280-00
|
£1.66
|
£1.99
|
|
|
160 - BEARING
BDE-N110359.A135
N110359
|
£3.75
|
£4.50
|
|
|
166 - SPACER INSULATING
BDE-398906-00.A18
398906-00
|
£1.66
|
£1.99
|
|
|
167 - CONNECTOR
BDE-603180-00.A7
603180-00
|
£1.66
|
£1.99
|
|
|
168 - SWITCH COVER
BDE-943254-00.A3
943254-00
|
-
|
|
|
|
800 - GREASE
BDE-286436-00.A98
286436-00
|
£130.43
|
£156.52
|
|
|
816 - BRAND LABEL
BDE-946194-00.A54
946194-00
|
£1.66
|
£1.99
|
|
