Dewalt DW810 Type 7 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

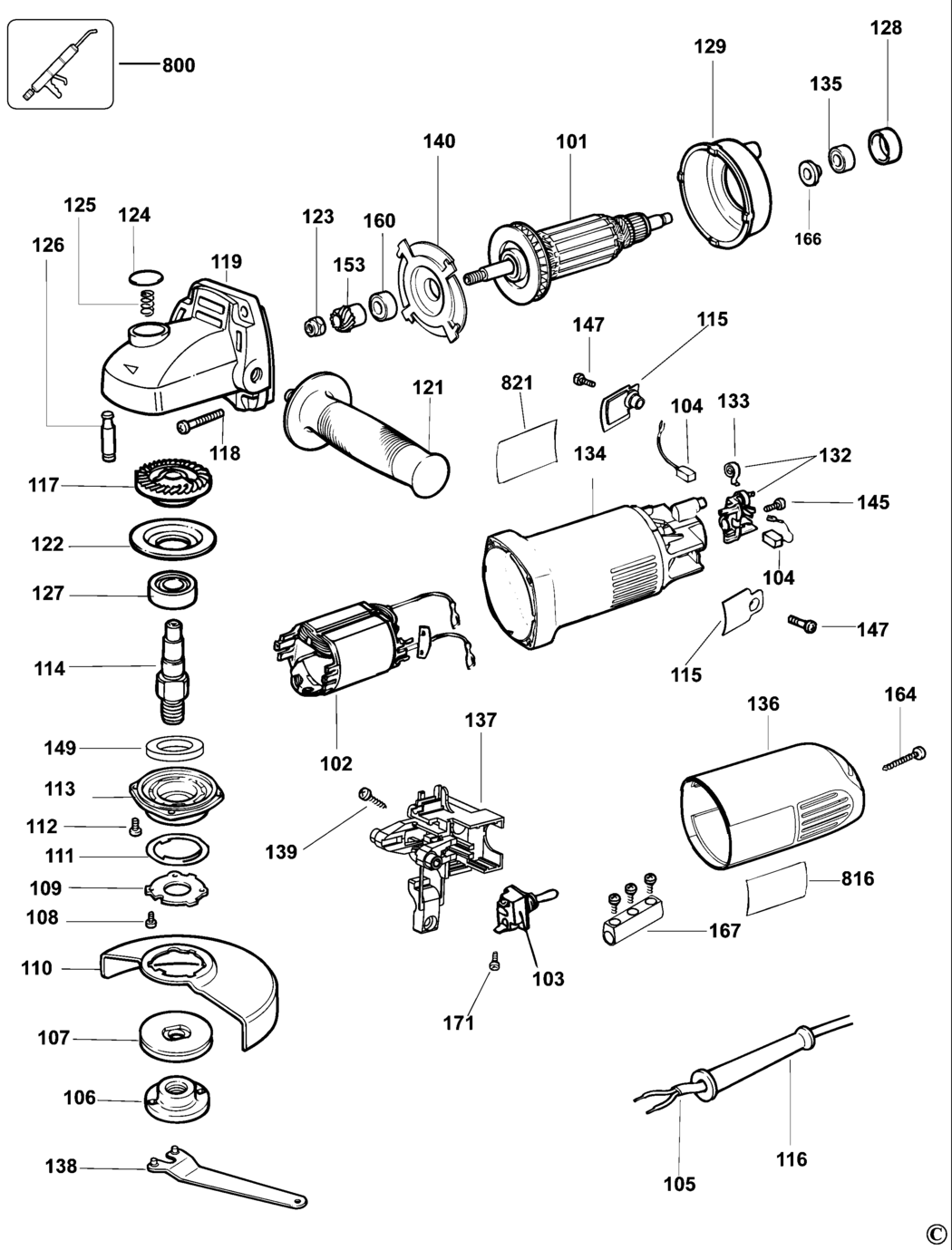

An exploded drawing and spare parts listing for the Dewalt DW810 Type 7 Small Angle Grinder

	Ex VAT	Inc VAT
103 - SWITCH BDE-N032282.A1 N032282	-
104 - BRUSH PAIR 230V BDE-N035676.A4 N035676	£3.92	£4.70
106 - OUTER FLANGE BDE-659109-00.A1 659109-00	-
106 - OUTER FLANGE BDE-659109-00.A2 659109-00	-
107 - INNER FLANGE BDE-659110-00.A15 659110-00	-
108 - SCREW BDE-562160-06.A7 562160-06	£1.66	£1.99
109 - RETAINING PLATE BDE-N043269.A6 N043269	£1.66	£1.99
110 - GUARD BDE-N042943.A2 N042943	-
111 - RING BDE-393576-00.A21 393576-00	£1.66	£1.99
112 - SCREW BDE-330045-46.A26 330045-46	£1.66	£1.99
112 - SCREW BDE-330045-46.A27 330045-46	£1.66	£1.99
113 - GEARCASE COVER BDE-562185-01.A5 562185-01	-
113 - GEARCASE COVER BDE-945298-01.A22 945298-01	-
114 - SPINDLE BDE-641891-00.A1 641891-00	-
115 - BRUSH COVER BDE-945279-01.A27 945279-01	£1.66	£1.99
115 - BRUSH COVER BDE-945279-01.A28 945279-01	£1.66	£1.99
116 - CORD PROTECTOR BDE-641081-00.A18 641081-00	-
116 - CORD PROTECTOR BDE-641081-00.A19 641081-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A96529 000000-00	-
118 - SCREW BDE-562097-01.A35 562097-01	£1.66	£1.99
118 - SCREW BDE-562097-01.A36 562097-01	£1.66	£1.99
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A5 562304-01	-
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A6 562304-01	-
120 - FELT SEAL BDE-641893-00.A19 641893-00	£1.66	£1.99
121 - HANDLE SIDE SA BDE-562211-00.A30 562211-00	£3.39	£4.07
122 - FLANGE BDE-945299-00.A3 945299-00	£1.66	£1.99
122 - FLANGE BDE-945299-00.A4 945299-00	£1.66	£1.99
123 - NUT BDE-945292-00.A94 945292-00	£1.66	£1.99
123 - NUT BDE-945292-00.A95 945292-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A22 944575-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A23 944575-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A14 562210-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A15 562210-00	£1.66	£1.99
126 - SPINDLE LOCK BDE-944571-00.A29 944571-00	-
126 - SPINDLE LOCK BDE-944571-00.A30 944571-00	-
127 - BEARING BDE-605040-22.A94 605040-22	£4.83	£5.80
127 - BEARING BDE-605040-22.A95 605040-22	£4.83	£5.80
128 - SLEEVE BDE-930275-00.A24 930275-00	£2.32	£2.78
128 - SLEEVE BDE-930275-00.A25 930275-00	£2.32	£2.78
129 - BAFFLE BDE-401623-01.A2 401623-01	-
129 - BAFFLE BDE-401623-01.A3 401623-01	-
132 - BRUSH HOLDER SA BDE-604146-00.A23 604146-00	-
132 - BRUSH HOLDER SA BDE-604146-00.A24 604146-00	-
133 - SPRING BDE-562204-00.A54 562204-00	£1.66	£1.99
133 - SPRING BDE-562204-00.A55 562204-00	£1.66	£1.99
134 - FIELDCASE BDE-396007-04.A7 396007-04	-
135 - BEARING BALL BDE-605040-03.A6 605040-03	£2.87	£3.44
135 - BEARING BALL BDE-605040-03.A7 605040-03	£2.87	£3.44
136 - END CAP BDE-659168-01.A0 659168-01	-
137 - SWITCH SUPPORT BDE-659169-00.A2 659169-00	-
137 - SWITCH SUPPORT BDE-659169-00.A3 659169-00	-
138 - WRENCH ROUND-PINS BDE-401253-00.A5 401253-00	£4.83	£5.80
138 - WRENCH ROUND-PINS BDE-401253-00.A6 401253-00	£4.83	£5.80
139 - SCREW BDE-562097-05.A29 562097-05	£1.66	£1.99
139 - SCREW BDE-562097-05.A30 562097-05	£1.66	£1.99
140 - FLANGE BDE-401622-01.A5 401622-01	£1.66	£1.99
140 - FLANGE BDE-401622-01.A6 401622-01	£1.66	£1.99
143 - SCREW BDE-562097-02.A35 562097-02	£1.66	£1.99
145 - SCREW BDE-562097-00.A178 562097-00	£1.66	£1.99
145 - SCREW BDE-562097-00.A179 562097-00	£1.66	£1.99
147 - SCREW BDE-945280-00.A10 945280-00	£1.66	£1.99
147 - SCREW BDE-945280-00.A11 945280-00	£1.66	£1.99
149 - FELT SEAL BDE-641893-00.A20 641893-00	£1.66	£1.99
153 - NO LONGER AVAILABLE BDE-000000-00.A96530 000000-00	-
160 - BEARING BDE-N110359.A110 N110359	£3.75	£4.50
160 - BEARING BDE-330003-60.A125 330003-60	£2.87	£3.44
164 - SCREW BDE-562097-02.A36 562097-02	£1.66	£1.99
166 - SPACER INSULATING BDE-398906-00.A68 398906-00	£1.66	£1.99
166 - SPACER INSULATING BDE-398906-00.A69 398906-00	£1.66	£1.99
167 - CONNECTOR BDE-603180-00.A22 603180-00	£1.66	£1.99
167 - CONNECTOR BDE-603180-00.A23 603180-00	£1.66	£1.99
171 - SCREW BDE-627647-00.A12 627647-00	-
173 - SCREW BDE-562160-02.A11 562160-02	-
800 - GREASE BDE-286436-00.A150 286436-00	£130.43	£156.52
800 - GREASE BDE-286436-00.A151 286436-00	£130.43	£156.52
816 - BRAND LABEL BDE-946194-00.A14 946194-00	£1.66	£1.99
816 - BRAND LABEL BDE-946194-00.A15 946194-00	£1.66	£1.99

Attribute Name	Value
Brand	Dewalt
