Dewalt DW808 Type 5 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

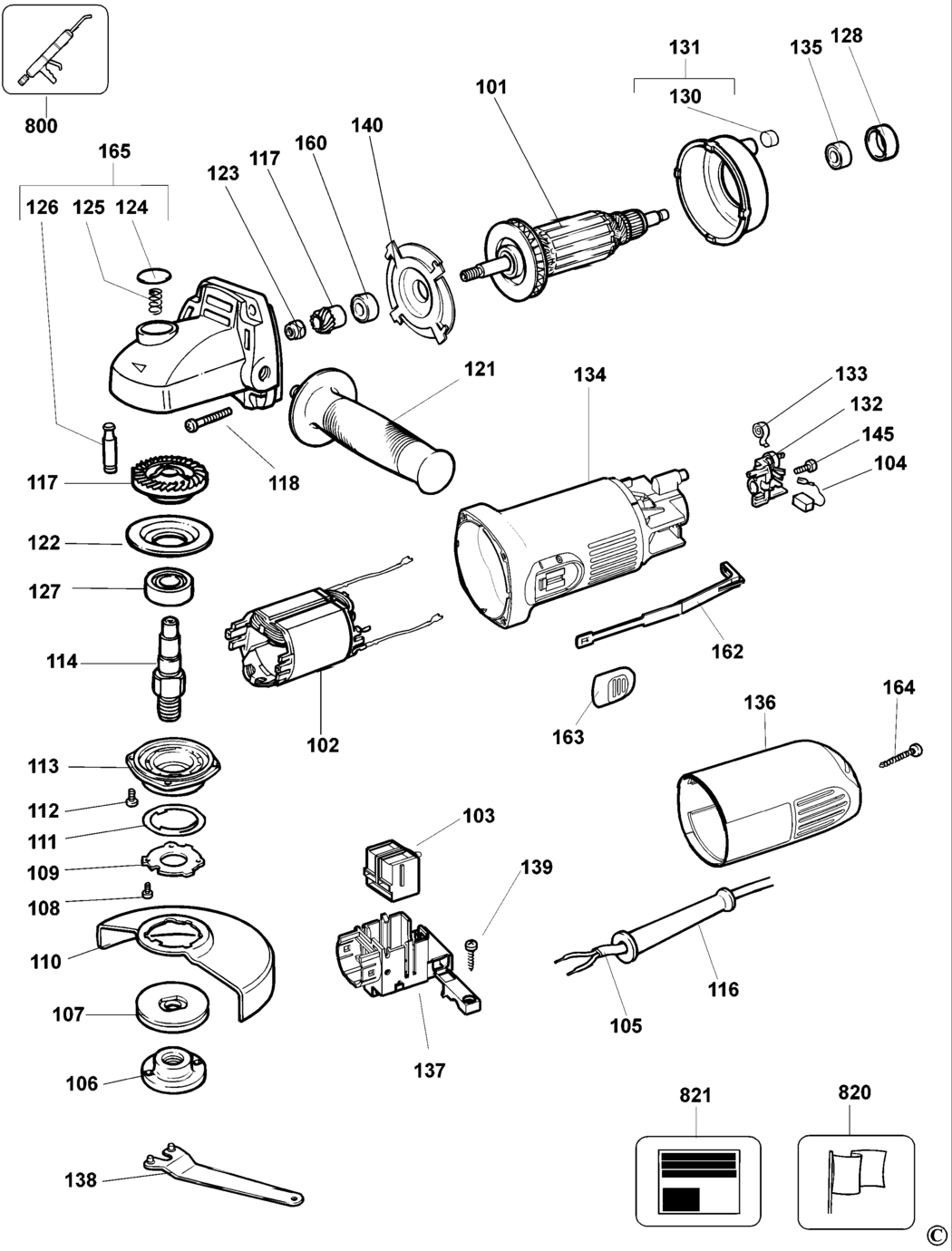

An exploded drawing and spare parts listing for the Dewalt DW808 Type 5 Small Angle Grinder

	Ex VAT	Inc VAT
103 - SWITCH BDE-945614-00.A61 945614-00	-
104 - BRUSH 220V BDE-930151-00.A49 930151-00	£4.83	£5.80
108 - SCREW BDE-562160-06.A2 562160-06	£1.66	£1.99
109 - RETAINING PLATE BDE-605415-00.A107 605415-00	-
110 - GUARD BDE-944675-00.A9 944675-00	-
111 - RING BDE-393576-00.A39 393576-00	£1.66	£1.99
112 - SCREW BDE-330045-46.A1 330045-46	£1.66	£1.99
113 - GEARCASE COVER BDE-945298-00.A39 945298-00	£6.06	£7.27
114 - SPINDLE BDE-622210-00.A0 622210-00	-
116 - CORD PROTECTOR BDE-N542553.A208 N542553	£3.92	£4.70
117 - GEAR & PINION BDE-661243-00.A6 661243-00	£12.53	£15.04
118 - SCREW BDE-562097-01.A26 562097-01	£1.66	£1.99
121 - SIDE HANDLE BDE-573115-00.A42 573115-00	£2.87	£3.44
122 - FLANGE BDE-945299-00.A43 945299-00	£1.66	£1.99
123 - NUT BDE-945292-00.A41 945292-00	£1.66	£1.99
124 - BUTTON BDE-944574-00.A58 944574-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A101 562210-00	£1.66	£1.99
126 - SPINDLE LOCK BDE-944571-00.A57 944571-00	-
127 - BEARING BDE-605040-22.A145 605040-22	£4.83	£5.80
128 - SLEEVE BDE-641823-00.A57 641823-00	£1.66	£1.99
130 - BUFFER BDE-949638-01.A107 949638-01	£1.66	£1.99
131 - BAFFLE SA BDE-401635-00.A27 401635-00	-
132 - BRUSH HOLDER BDE-606574-01.A21 606574-01	£7.40	£8.88
133 - SPRING BDE-562204-00.A2 562204-00	£1.66	£1.99
134 - NO LONGER AVAILABLE BDE-000000-00.A124653 000000-00	-
135 - BEARING BDE-605040-02.A96 605040-02	£2.32	£2.78
136 - END CAP BDE-394938-01.A16 394938-01	-
137 - SUPPORT BDE-611540-00.A0 611540-00	£1.66	£1.99
138 - WRENCH BDE-401680-00.A4 401680-00	£4.83	£5.80
139 - SCREW BDE-562097-05.A14 562097-05	£1.66	£1.99
140 - FLANGE BDE-401622-01.A98 401622-01	£1.66	£1.99
145 - SCREW BDE-562097-00.A206 562097-00	£1.66	£1.99
160 - BEARING BDE-N110359.A11 N110359	£3.75	£4.50
162 - LINK BDE-611737-01.A39 611737-01	£2.32	£2.78
163 - BUTTON BDE-569624-01.A32 569624-01	£1.66	£1.99
164 - SCREW BDE-562097-13.A1 562097-13	£1.66	£1.99
165 - NO LONGER AVAILABLE BDE-000000-00.A124654 000000-00	-
165 - LINK BDE-611737-01.A40 611737-01	£2.32	£2.78
800 - GREASE BDE-286436-00.A252 286436-00	£130.43	£156.52
820 - BRAND LABEL BDE-946194-00.A31 946194-00	£1.66	£1.99
821 - RATING PLATE BDE-569037-00.A163 569037-00	£3.92	£4.70

Attribute Name	Value
Brand	Dewalt
