Dewalt DW806 Type 4 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

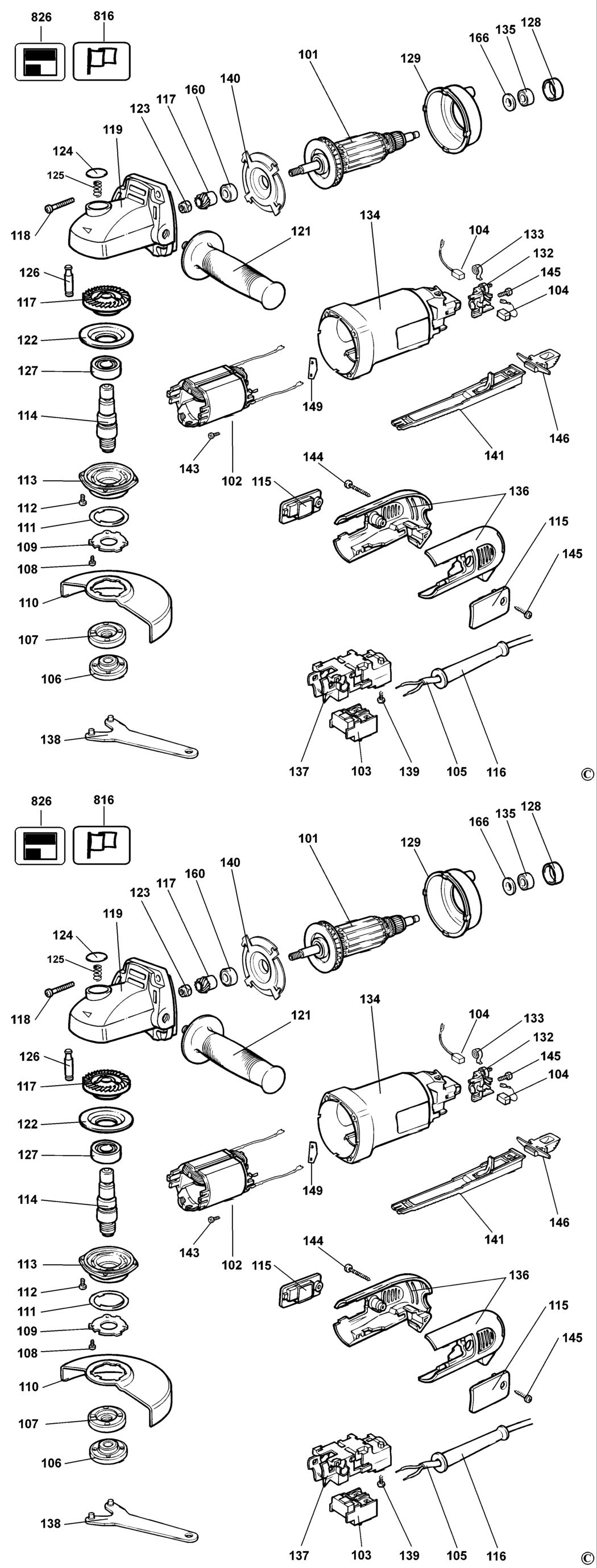

An exploded drawing and spare parts listing for the Dewalt DW806 Type 4 Small Angle Grinder

	Ex VAT	Inc VAT
101 - ARMATURE 115V XW BDE-401702-11.A13 401702-11	£33.13	£39.76
102 - FIELD 115V XW BDE-645369-01.A0 645369-01	-
103 - SWITCH XW BDE-945614-00.A6 945614-00	-
104 - BRUSH CUT OFF XW BDE-939539-00.A52 939539-00	£8.08	£9.70
106 - OUTER FLANGE XW BDE-622208-00.A0 622208-00	-
107 - INNER FLANGE XW BDE-659110-00.A0 659110-00	-
108 - SCREW BDE-562160-06.A42 562160-06	£1.66	£1.99
108 - SCREW BDE-562160-06.A43 562160-06	£1.66	£1.99
109 - RETAINING PLATE BDE-605415-00.A50 605415-00	-
109 - RETAINING PLATE BDE-605415-00.A51 605415-00	-
110 - GUARD BDE-944675-00.A17 944675-00	-
110 - GUARD BDE-944675-00.A18 944675-00	-
111 - RING BDE-393576-00.A121 393576-00	£1.66	£1.99
111 - RING BDE-393576-00.A122 393576-00	£1.66	£1.99
112 - SCREW BDE-330045-46.A79 330045-46	£1.66	£1.99
112 - SCREW XW BDE-562160-07.A9 562160-07	£1.66	£1.99
113 - GEARCASE COVER BDE-945298-01.A14 945298-01	-
113 - GEARCASE COVER BDE-945298-01.A15 945298-01	-
114 - SPINDLE BDE-641891-00.A9 641891-00	-
114 - SPINDLE BDE-641891-00.A10 641891-00	-
115 - NO LONGER AVAILABLE XW BDE-000000-00.A29649 000000-00	-
116 - PROTECTOR XW BDE-401088-00.A59 401088-00	£1.66	£1.99
117 - GEAR & PINION BDE-945295-01.A0 945295-01	£19.48	£23.37
117 - GEAR & PINION BDE-661243-00.A51 661243-00	£12.53	£15.04
118 - SCREW BDE-562097-01.A81 562097-01	£1.66	£1.99
118 - SCREW BDE-562097-01.A82 562097-01	£1.66	£1.99
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A46 562304-01	-
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A47 562304-01	-
121 - SIDE HANDLE XW BDE-573115-00.A85 573115-00	£2.87	£3.44
122 - FLANGE BDE-945299-00.A80 945299-00	£1.66	£1.99
122 - FLANGE BDE-945299-00.A81 945299-00	£1.66	£1.99
123 - NUT BDE-945292-00.A168 945292-00	£1.66	£1.99
123 - NUT BDE-945292-00.A169 945292-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A88 944575-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A89 944575-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A175 562210-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A176 562210-00	£1.66	£1.99
126 - SPINDLE LOCK BDE-944571-00.A152 944571-00	-
126 - SPINDLE LOCK BDE-944571-00.A153 944571-00	-
127 - BEARING BDE-605040-22.A9 605040-22	£4.83	£5.80
127 - BEARING BDE-605040-22.A10 605040-22	£4.83	£5.80
128 - SLEEVE BDE-N178067.A2 N178067	-
128 - SLEEVE BDE-N178067.A3 N178067	-
129 - BAFFLE BDE-401623-00.A49 401623-00	£1.66	£1.99
129 - BAFFLE BDE-401623-00.A50 401623-00	£1.66	£1.99
132 - BRUSH HOLDER SA BDE-604146-00.A18 604146-00	-
132 - BRUSH HOLDER SA BDE-604146-00.A19 604146-00	-
133 - SPRING BDE-562204-00.A112 562204-00	£1.66	£1.99
133 - SPRING BDE-562204-00.A113 562204-00	£1.66	£1.99
134 - FIELDCASE BDE-396373-00.A17 396373-00	£5.72	£6.87
134 - FIELDCASE BDE-396373-00.A18 396373-00	£5.72	£6.87
135 - BEARING XW BDE-605040-02.A45 605040-02	£2.32	£2.78
136 - HANDLE & COVER XW BDE-401973-03.A0 401973-03	£2.78	£3.34
137 - SWITCH SUPPORT BDE-401595-00.A19 401595-00	-
137 - SWITCH SUPPORT BDE-401595-00.A20 401595-00	-
138 - WRENCH ROUND-PINS BDE-401253-00.A102 401253-00	£4.83	£5.80
138 - WRENCH ROUND-PINS BDE-401253-00.A103 401253-00	£4.83	£5.80
139 - SCREW BDE-562097-04.A8 562097-04	£1.66	£1.99
139 - SCREW BDE-562097-04.A9 562097-04	£1.66	£1.99
140 - FLANGE BDE-401622-01.A110 401622-01	£1.66	£1.99
140 - FLANGE BDE-401622-01.A111 401622-01	£1.66	£1.99
141 - LEVER SA BDE-947815-01.A4 947815-01	-
141 - LEVER SA BDE-947815-01.A5 947815-01	-
143 - SCREW BDE-390198-00.A48 390198-00	£1.66	£1.99
143 - SCREW BDE-390198-00.A49 390198-00	£1.66	£1.99
144 - NO LONGER AVAILABLE BDE-000000-00.A29650 000000-00	-
144 - SCREW BDE-562097-06.A2 562097-06	-
145 - SCREW BDE-562097-00.A109 562097-00	£1.66	£1.99
145 - SCREW BDE-562097-00.A110 562097-00	£1.66	£1.99
146 - BUTTON LOCK-ON BDE-401259-01.A4 401259-01	£1.66	£1.99
146 - BUTTON LOCK-ON BDE-401259-01.A5 401259-01	£1.66	£1.99
149 - PAD BDE-402489-00.A42 402489-00	£1.66	£1.99
149 - PAD BDE-402489-00.A43 402489-00	£1.66	£1.99
160 - BEARING BDE-N110359.A213 N110359	£3.75	£4.50
160 - BEARING BDE-N110359.A214 N110359	£3.75	£4.50
166 - SPACER INSULATING BDE-398906-00.A0 398906-00	£1.66	£1.99
166 - SPACER INSULATING BDE-398906-00.A1 398906-00	£1.66	£1.99
816 - BRAND LABEL BDE-946194-00.A73 946194-00	£1.66	£1.99
816 - BRAND LABEL BDE-946194-00.A74 946194-00	£1.66	£1.99
826 - RATING PLATE XW BDE-658265-00 658265-00	-
