Dewalt DW803 Type 4 Angle Grinder Spare Parts

Home Details Reviews Delivery

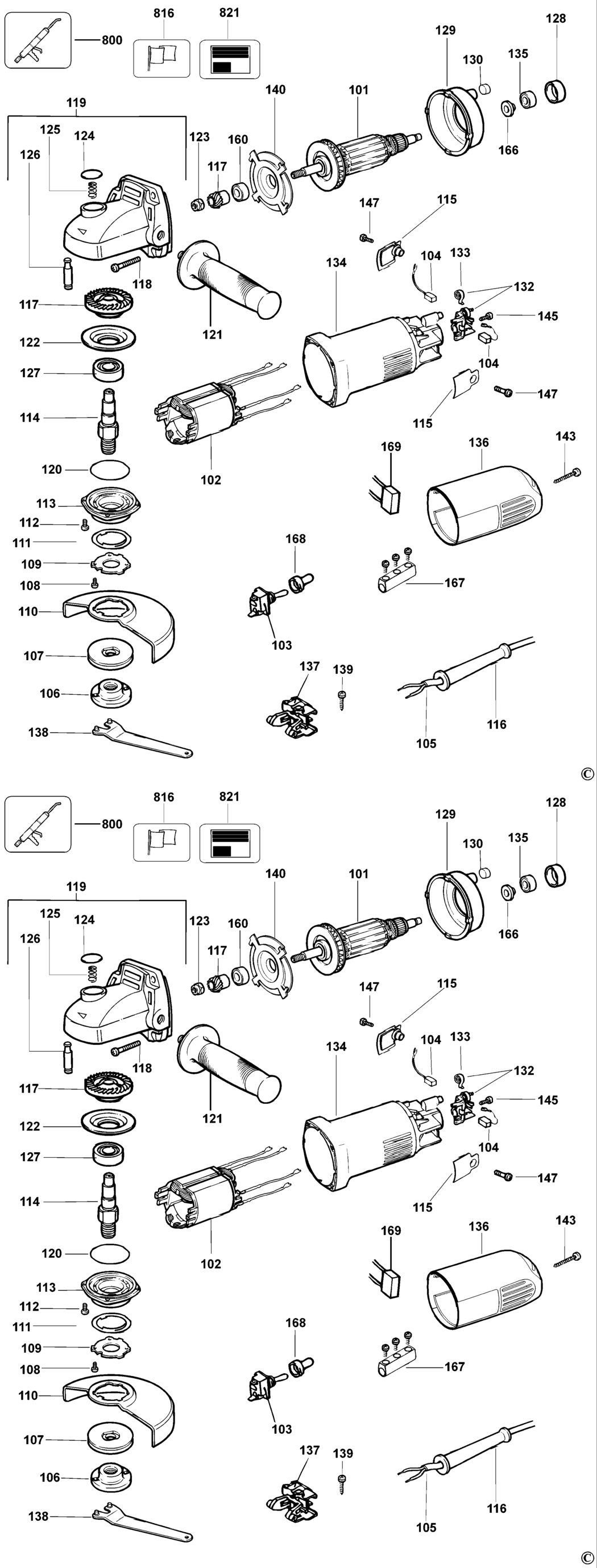

An exploded drawing and spare parts listing for the Dewalt DW803 Type 4 Angle Grinder

	Ex VAT	Inc VAT
101 - ARMATURE 115V BDE-401702-11.A11 401702-11	£33.13	£39.76
101 - ARMATURE 230V BDE-401702-10.A0 401702-10	£36.42	£43.70
102 - FIELD BDE-604133-02 604133-02	-
102 - FIELD 115V BDE-641079-01 641079-01	-
103 - SWITCH BDE-562209-00.A1 562209-00	-
103 - SWITCH BDE-562209-01.A4 562209-01	-
104 - BRUSH CUT OFF BDE-939539-00.A38 939539-00	£8.08	£9.70
104 - BRUSH CUT OFF BDE-939539-01.A99 939539-01	£2.87	£3.44
104 - BRUSH PAIR 230V BDE-N035676.A3 N035676	£3.92	£4.70
105 - CORDSET BDE-562161-07.A0 562161-07	-
105 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A273 000000-05	-
106 - OUTER FLANGE BDE-635489-00.A1 635489-00	-
106 - OUTER FLANGE BDE-659109-00.A12 659109-00	-
107 - INNER FLANGE BDE-635488-00.A2 635488-00	-
108 - SCREW BDE-562160-06.A33 562160-06	£1.66	£1.99
108 - SCREW BDE-562160-06.A34 562160-06	£1.66	£1.99
109 - RETAINING PLATE BDE-605415-00.A11 605415-00	-
109 - RETAINING PLATE BDE-605415-00.A12 605415-00	-
110 - GUARD BDE-944675-00.A19 944675-00	-
110 - GUARD BDE-944675-00.A20 944675-00	-
111 - RING BDE-393576-00.A84 393576-00	£1.66	£1.99
111 - RING BDE-393576-00.A85 393576-00	£1.66	£1.99
112 - SCREW BDE-562160-07.A12 562160-07	£1.66	£1.99
112 - SCREW BDE-562160-07.A13 562160-07	£1.66	£1.99
113 - GEARCASE COVER BDE-945298-01.A0 945298-01	-
113 - GEARCASE COVER BDE-945298-01.A1 945298-01	-
114 - SPINDLE BDE-641891-00.A8 641891-00	-
114 - SPINDLE BDE-N039248.A1 N039248	-
115 - BRUSH COVER BDE-945279-01.A8 945279-01	£1.66	£1.99
115 - BRUSH COVER BDE-945279-01.A9 945279-01	£1.66	£1.99
116 - CORD PROTECTOR BDE-641081-00.A0 641081-00	-
116 - CORD PROTECTOR BDE-641081-00.A1 641081-00	-
117 - GEAR & PINION BDE-945295-01.A4 945295-01	£19.48	£23.37
117 - GEAR & PINION BDE-661243-00.A78 661243-00	£12.53	£15.04
118 - SCREW BDE-562097-01.A124 562097-01	£1.66	£1.99
118 - SCREW BDE-562097-01.A125 562097-01	£1.66	£1.99
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A29 562304-01	-
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A30 562304-01	-
120 - FELT SEAL BDE-641893-00.A43 641893-00	£1.66	£1.99
120 - FELT SEAL BDE-641893-00.A44 641893-00	£1.66	£1.99
121 - SIDE HANDLE BDE-573115-00.A59 573115-00	£2.87	£3.44
121 - SIDE HANDLE BDE-573115-00.A60 573115-00	£2.87	£3.44
122 - FLANGE BDE-945299-00.A117 945299-00	£1.66	£1.99
122 - FLANGE BDE-945299-00.A118 945299-00	£1.66	£1.99
123 - NUT BDE-945292-00.A120 945292-00	£1.66	£1.99
123 - NUT BDE-945292-00.A121 945292-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A67 944575-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A68 944575-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A118 562210-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A119 562210-00	£1.66	£1.99
126 - SPINDLE LOCK BDE-944571-00.A132 944571-00	-
126 - SPINDLE LOCK BDE-944571-00.A133 944571-00	-
127 - BEARING BDE-605040-22.A56 605040-22	£4.83	£5.80
127 - BEARING BDE-605040-22.A57 605040-22	£4.83	£5.80
128 - SLEEVE BDE-930275-00.A183 930275-00	£2.32	£2.78
128 - SLEEVE BDE-930275-00.A184 930275-00	£2.32	£2.78
129 - BAFFLE BDE-401623-00.A24 401623-00	£1.66	£1.99
129 - BAFFLE BDE-401623-00.A25 401623-00	£1.66	£1.99
130 - BUFFER BDE-949638-01.A34 949638-01	£1.66	£1.99
130 - BUFFER BDE-949638-01.A35 949638-01	£1.66	£1.99
132 - BRUSH HOLDER SA BDE-604146-00.A0 604146-00	-
132 - BRUSH HOLDER SA BDE-604146-00.A1 604146-00	-
133 - SPRING BDE-562204-00.A87 562204-00	£1.66	£1.99
133 - SPRING BDE-562204-00.A88 562204-00	£1.66	£1.99
134 - FIELDCASE BDE-396007-04.A18 396007-04	-
134 - FIELDCASE BDE-396007-04.A19 396007-04	-
135 - BEARING BDE-605040-02.A2 605040-02	£2.32	£2.78
135 - BEARING BDE-605040-02.A3 605040-02	£2.32	£2.78
136 - NO LONGER AVAILABLE BDE-000000-00.A62168 000000-00	-
136 - END CAP BDE-944671-04.A3 944671-04	-
137 - NO LONGER AVAILABLE BDE-000000-00.A62167 000000-00	-
137 - SWITCH SUPPORT BDE-397701-00.A1 397701-00	-
138 - WRENCH ROUND-PINS BDE-401253-00.A76 401253-00	£4.83	£5.80
138 - WRENCH ROUND-PINS BDE-401253-00.A77 401253-00	£4.83	£5.80
139 - SCREW BDE-562097-05.A114 562097-05	£1.66	£1.99
139 - SCREW BDE-562097-05.A115 562097-05	£1.66	£1.99
140 - FLANGE BDE-401622-01.A157 401622-01	£1.66	£1.99
140 - FLANGE BDE-401622-01.A158 401622-01	£1.66	£1.99
143 - SCREW BDE-562097-02.A5 562097-02	£1.66	£1.99
143 - SCREW BDE-562097-02.A6 562097-02	£1.66	£1.99
145 - SCREW BDE-562097-00.A37 562097-00	£1.66	£1.99
145 - SCREW BDE-562097-00.A38 562097-00	£1.66	£1.99
147 - SCREW BDE-945280-00.A38 945280-00	£1.66	£1.99
147 - SCREW BDE-945280-00.A39 945280-00	£1.66	£1.99
160 - BEARING BDE-390821-01.A5 390821-01	£3.39	£4.07
160 - BEARING BDE-N110359.A127 N110359	£3.75	£4.50
166 - SPACER INSULATING BDE-398906-00.A25 398906-00	£1.66	£1.99
166 - SPACER INSULATING BDE-398906-00.A26 398906-00	£1.66	£1.99
167 - CONNECTOR BDE-603180-00.A9 603180-00	£1.66	£1.99
167 - CONNECTOR BDE-603180-00.A10 603180-00	£1.66	£1.99
168 - SWITCH COVER BDE-943254-00.A1 943254-00	-
168 - NO LONGER AVAILABLE BDE-000000-00.A62169 000000-00	-
169 - CAPACITOR BDE-562212-03.A1 562212-03	-
800 - GREASE BDE-286436-00.A94 286436-00	£130.43	£156.52
800 - GREASE BDE-286436-00.A95 286436-00	£130.43	£156.52
816 - BRAND LABEL BDE-946194-00.A45 946194-00	£1.66	£1.99
816 - BRAND LABEL BDE-946194-00.A46 946194-00	£1.66	£1.99
821 - RATING PLATE BDE-604143-00.A0 604143-00	-
821 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A274 000000-05	-

Attribute Name	Value
Brand	Dewalt
