Dewalt DW803 Type 3 Angle Grinder Spare Parts

Home Details Reviews Delivery

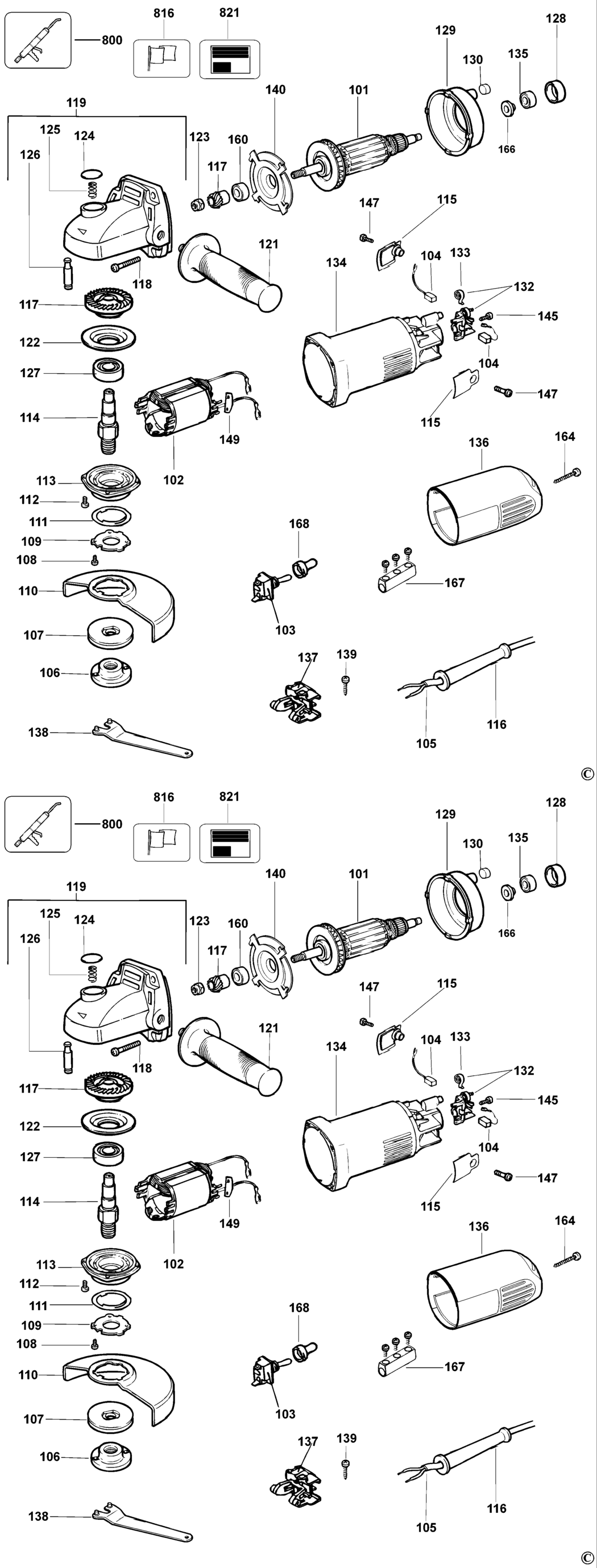

An exploded drawing and spare parts listing for the Dewalt DW803 Type 3 Angle Grinder

	Ex VAT	Inc VAT
101 - ARMATURE 115V BDE-401702-11.A12 401702-11	£33.13	£39.76
102 - NO LONGER AVAILABLE BDE-000000-00.A59317 000000-00	-
102 - FIELD 115V BDE-395991-01 395991-01	-
104 - BRUSH CUT OFF BDE-939539-00.A36 939539-00	£8.08	£9.70
105 - CORDSET BDE-562161-07.A1 562161-07	-
106 - OUTER FLANGE BDE-561670-00.A0 561670-00	-
106 - OUTER FLANGE BDE-622208-00.A8 622208-00	-
107 - INNER FLANGE BDE-659110-00.A9 659110-00	-
107 - INNER FLANGE BDE-659110-00.A10 659110-00	-
108 - SCREW BDE-562160-06.A51 562160-06	£1.66	£1.99
108 - SCREW BDE-562160-06.A52 562160-06	£1.66	£1.99
109 - RETAINING PLATE BDE-605415-00.A40 605415-00	-
109 - RETAINING PLATE BDE-605415-00.A41 605415-00	-
110 - GUARD BDE-944675-00.A11 944675-00	-
110 - GUARD BDE-944675-00.A12 944675-00	-
111 - RING BDE-393576-00.A124 393576-00	£1.66	£1.99
111 - RING BDE-393576-00.A125 393576-00	£1.66	£1.99
112 - SCREW BDE-562160-07.A1 562160-07	£1.66	£1.99
112 - SCREW BDE-562160-07.A2 562160-07	£1.66	£1.99
113 - NO LONGER AVAILABLE BDE-000000-00.A25506 000000-00	-
113 - GEARCASE COVER BDE-945298-00.A55 945298-00	£6.06	£7.27
114 - SPINDLE BDE-622210-00.A7 622210-00	-
114 - SPINDLE BDE-622210-00.A8 622210-00	-
115 - BRUSH COVER BDE-945279-01.A2 945279-01	£1.66	£1.99
115 - BRUSH COVER BDE-945279-01.A3 945279-01	£1.66	£1.99
116 - CORD PROTECTOR BDE-N542553.A181 N542553	£3.92	£4.70
116 - CORD PROTECTOR BDE-330005-01.A5 330005-01	£1.66	£1.99
117 - GEAR & PINION BDE-945295-01.A1 945295-01	£19.48	£23.37
117 - GEAR & PINION BDE-661243-00.A53 661243-00	£12.53	£15.04
118 - SCREW BDE-562097-01.A92 562097-01	£1.66	£1.99
118 - SCREW BDE-562097-01.A93 562097-01	£1.66	£1.99
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A48 562304-01	-
119 - GEARCASE SA Inc # 124 125 126 BDE-562304-01.A49 562304-01	-
121 - SIDE HANDLE BDE-573115-00.A72 573115-00	£2.87	£3.44
121 - SIDE HANDLE BDE-573115-00.A73 573115-00	£2.87	£3.44
122 - FLANGE BDE-945299-00.A84 945299-00	£1.66	£1.99
122 - FLANGE BDE-945299-00.A85 945299-00	£1.66	£1.99
123 - NUT BDE-945292-00.A165 945292-00	£1.66	£1.99
123 - NUT BDE-945292-00.A166 945292-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A85 944575-00	£1.66	£1.99
124 - BUTTON BDE-944575-00.A86 944575-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A163 562210-00	£1.66	£1.99
125 - SPRING BDE-562210-00.A164 562210-00	£1.66	£1.99
126 - SPINDLE LOCK BDE-944571-00.A142 944571-00	-
126 - SPINDLE LOCK BDE-944571-00.A143 944571-00	-
127 - BEARING BDE-605040-22.A15 605040-22	£4.83	£5.80
127 - BEARING BDE-605040-22.A16 605040-22	£4.83	£5.80
128 - SLEEVE BDE-930275-00.A135 930275-00	£2.32	£2.78
128 - SLEEVE BDE-930275-00.A136 930275-00	£2.32	£2.78
129 - BAFFLE BDE-401623-00.A45 401623-00	£1.66	£1.99
129 - BAFFLE BDE-401623-00.A46 401623-00	£1.66	£1.99
130 - BUFFER BDE-949638-01.A61 949638-01	£1.66	£1.99
130 - BUFFER BDE-949638-01.A62 949638-01	£1.66	£1.99
132 - BRUSH HOLDER SA BDE-395986-00.A2 395986-00	£1.66	£1.99
132 - BRUSH HOLDER SA BDE-395986-00.A3 395986-00	£1.66	£1.99
133 - SPRING BDE-562204-00.A126 562204-00	£1.66	£1.99
133 - SPRING BDE-562204-00.A127 562204-00	£1.66	£1.99
134 - FIELDCASE BDE-396007-04.A8 396007-04	-
134 - FIELDCASE BDE-396007-04.A9 396007-04	-
135 - BEARING BDE-605040-02.A34 605040-02	£2.32	£2.78
135 - BEARING BDE-605040-02.A35 605040-02	£2.32	£2.78
136 - END CAP BDE-944671-04.A4 944671-04	-
136 - NO LONGER AVAILABLE BDE-000000-00.A25507 000000-00	-
137 - NO LONGER AVAILABLE BDE-000000-00.A25508 000000-00	-
137 - SWITCH SUPPORT BDE-397701-00.A9 397701-00	-
138 - WRENCH ROUND-PINS BDE-401253-00.A99 401253-00	£4.83	£5.80
138 - WRENCH ROUND-PINS BDE-401253-00.A100 401253-00	£4.83	£5.80
139 - SCREW BDE-562097-05.A78 562097-05	£1.66	£1.99
139 - SCREW BDE-562097-05.A79 562097-05	£1.66	£1.99
140 - FLANGE BDE-401622-01.A114 401622-01	£1.66	£1.99
140 - FLANGE BDE-401622-01.A115 401622-01	£1.66	£1.99
145 - SCREW BDE-562097-00.A95 562097-00	£1.66	£1.99
145 - SCREW BDE-562097-00.A96 562097-00	£1.66	£1.99
147 - SCREW BDE-945280-00.A48 945280-00	£1.66	£1.99
147 - SCREW BDE-945280-00.A49 945280-00	£1.66	£1.99
149 - PAD BDE-402489-00.A35 402489-00	£1.66	£1.99
149 - PAD BDE-402489-00.A36 402489-00	£1.66	£1.99
160 - BEARING BDE-N110359.A210 N110359	£3.75	£4.50
160 - BEARING BDE-390821-01.A9 390821-01	£3.39	£4.07
164 - SCREW BDE-562097-02.A24 562097-02	£1.66	£1.99
164 - SCREW BDE-562097-02.A25 562097-02	£1.66	£1.99
166 - SPACER INSULATING BDE-398906-00.A3 398906-00	£1.66	£1.99
166 - SPACER INSULATING BDE-398906-00.A4 398906-00	£1.66	£1.99
167 - TERMINAL BDE-930187-00.A5 930187-00	£1.66	£1.99
167 - TERMINAL BDE-930187-00.A6 930187-00	£1.66	£1.99
168 - NO LONGER AVAILABLE BDE-000000-00.A25509 000000-00	-
168 - SWITCH COVER BDE-943254-00.A8 943254-00	-
800 - GREASE BDE-286436-00.A32 286436-00	£130.43	£156.52
800 - GREASE BDE-286436-00.A33 286436-00	£130.43	£156.52
816 - BRAND LABEL BDE-946194-00.A64 946194-00	£1.66	£1.99
816 - BRAND LABEL BDE-946194-00.A65 946194-00	£1.66	£1.99
821 - RATING PLATE BDE-569037-00.A1 569037-00	£3.92	£4.70
821 - RATING PLATE BDE-569037-00.A2 569037-00	£3.92	£4.70

Attribute Name	Value
Brand	Dewalt
