Dewalt DCG412 Type 2 Small Angle Grinder Spare Parts

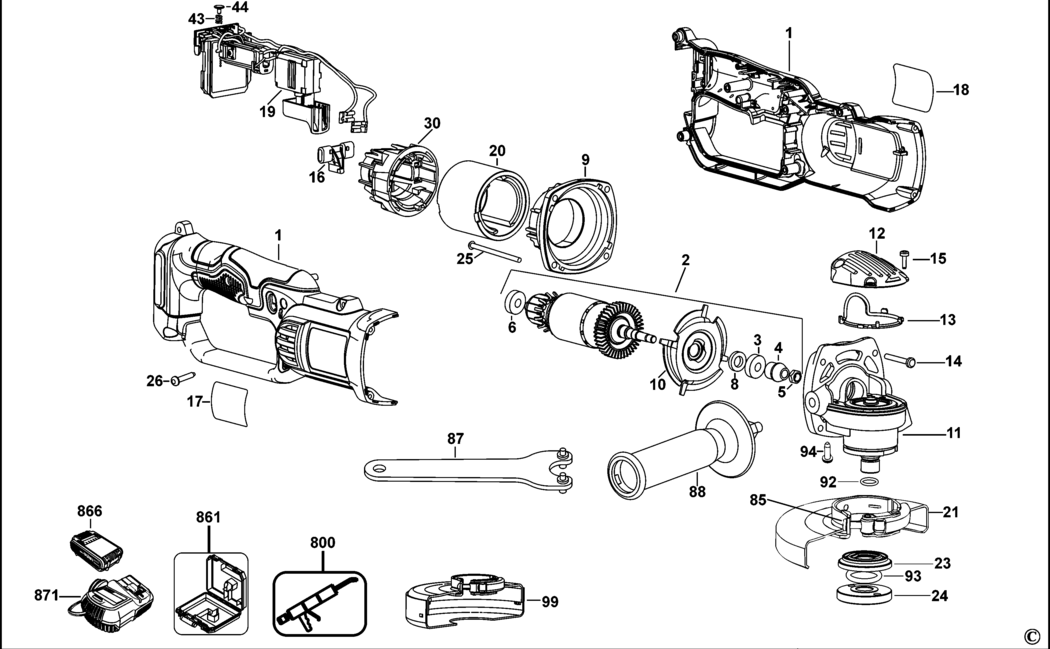

An exploded drawing and spare parts listing for the Dewalt DCG412 Type 2 Small Angle Grinder

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N382444.A0 N382444	£12.17	£14.60
2 - ARMATURE SA BDE-N415906.A1 N415906	-
3 - BEARING BDE-330003-60.A147 330003-60	£2.78	£3.34
3 - BEARING BDE-330003-60.A148 330003-60	£2.78	£3.34
4 - PINION BDE-623564-00.A6 623564-00	£10.85	£13.02
5 - NUT BDE-604484-00.A131 604484-00	£1.50	£1.80
6 - BEARING BALL BDE-N330639.A4 N330639	£3.30	£3.96
7 - BRUSH HOLDER SA BDE-N412223.A7 N412223	£16.03	£19.24
8 - FELT SEAL BDE-623617-00.A60 623617-00	£1.50	£1.80
9 - BAFFLE BDE-N312459.A1 N312459	£24.39	£29.27
10 - RETAINER BDE-N422242.A0 N422242	£1.50	£1.80
11 - GEARCASE SA BDE-N042060SV.A0 N042060SV	-
12 - GEARCASE COVER BDE-623562-00.A28 623562-00	£3.80	£4.56
13 - GASKET BDE-623618-00.A16 623618-00	£1.50	£1.80
14 - SCREW BDE-330065-13.A58 330065-13	£1.50	£1.80
15 - SCREW BDE-385676-01.A86 385676-01	£1.50	£1.80
16 - BUTTON LOCK-OFF BDE-N129056.A4 N129056	£1.50	£1.80
18 - BRAND LABEL BDE-N139498.A1 N139498	£2.26	£2.71
19 - SWITCH SA BDE-N414107.A1 N414107	£51.90	£62.28
20 - MAGNET BDE-N436044.A5 N436044	£14.57	£17.48
21 - GUARD SA BDE-N039878.A4 N039878	£14.57	£17.48
22 - SCREW BDE-631609-03.A28 631609-03	£1.50	£1.80
23 - INNER FLANGE SA BDE-633257-00SV.A50 633257-00SV	£5.88	£7.06
24 - OUTER FLANGE BDE-622613-02.A1 622613-02	£4.69	£5.63
25 - SCREW BDE-N389143.A2 N389143	£1.50	£1.80
26 - SCREW BDE-90611830.A16 90611830	£1.50	£1.80
30 - BRUSH HOLDER SA BDE-N412223.A6 N412223	£16.03	£19.24
43 - SPRING BDE-N102647.A5 N102647	£1.50	£1.80
44 - BLOCK BDE-N122099.A2 N122099	£1.50	£1.80
44 - MOUNT BDE-N122099.A61 N122099	£1.50	£1.80
85 - SCREW BDE-631609-03.A29 631609-03	£1.50	£1.80
87 - WRENCH BDE-401680-00.A93 401680-00	£4.69	£5.63
88 - SIDE HANDLE BDE-N401305.A1 N401305	£3.80	£4.56
92 - O RING BDE-633045-00.A17 633045-00	£1.50	£1.80
93 - O RING BDE-633043-00.A22 633043-00	£1.50	£1.80
94 - SCREW BDE-N033051.A29 N033051	£1.50	£1.80
99 - GUARD SA BDE-N042787.A2 N042787	-
800 - GREASE 90 GMS BDE-870889-02.A372 870889-02	£7.85	£9.42
800 - GREASE BDE-283484-01.A21 283484-01	£80.98	£97.18
861 - KITBOX BDE-N132422.A2 N132422	£65.52	£78.62

Attribute Name	Value
Brand	Dewalt
