Dewalt DCG412 Type 1 Small Angle Grinder Spare Parts

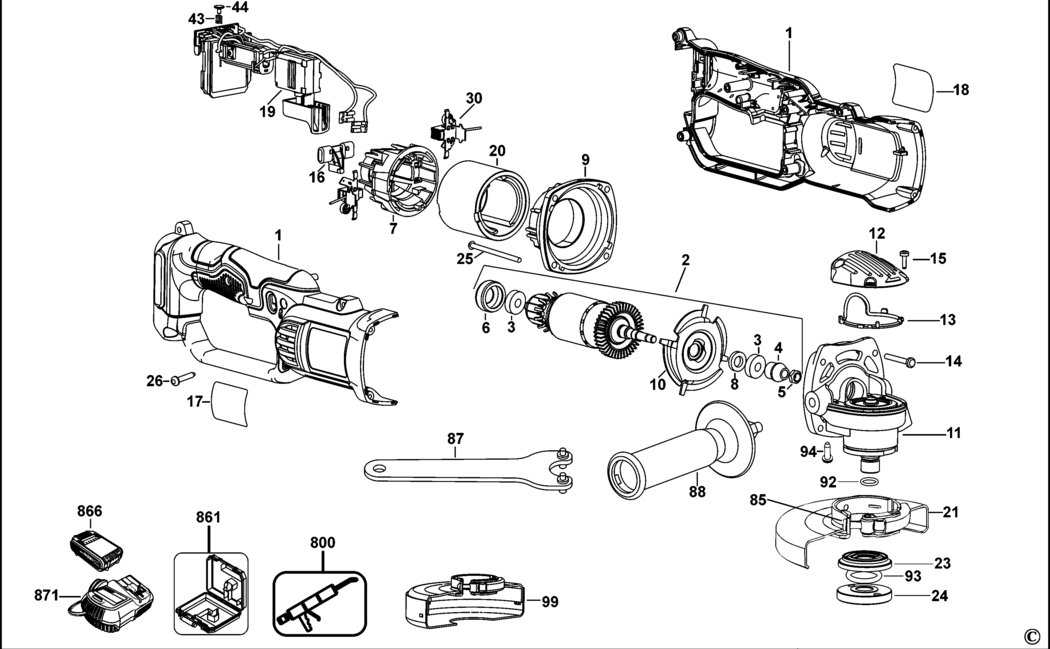

An exploded drawing and spare parts listing for the Dewalt DCG412 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N115615.A0 N115615	-
1 - CLAMSHELL SET BDE-N115615.A1 N115615	-
2 - ARMATURE SA BDE-652479-00SV.A0 652479-00SV	£44.00	£52.80
2 - ARMATURE SA GB BDE-652479-00SV.A1 652479-00SV	£44.00	£52.80
3 - BEARING BDE-330003-60.A17 330003-60	£2.78	£3.34
3 - BEARING BDE-330003-60.A18 330003-60	£2.78	£3.34
4 - PINION BDE-623564-00.A27 623564-00	£10.85	£13.02
4 - PINION BDE-623564-00.A28 623564-00	£10.85	£13.02
5 - NUT BDE-604484-00.A49 604484-00	£1.50	£1.80
5 - NUT BDE-604484-00.A50 604484-00	£1.50	£1.80
6 - BOOT BDE-631563-00.A10 631563-00	£1.50	£1.80
6 - BOOT BDE-631563-00.A11 631563-00	£1.50	£1.80
7 - SUPPORT BEARING BDE-N171820.A2 N171820	-
7 - SUPPORT BEARING BDE-N171820.A3 N171820	-
8 - FELT SEAL BDE-623617-00.A25 623617-00	£1.50	£1.80
8 - FELT SEAL BDE-623617-00.A26 623617-00	£1.50	£1.80
9 - BAFFLE FAN BDE-640579-01.A3 640579-01	£5.72	£6.87
9 - BAFFLE FAN BDE-N027986 N027986	-
10 - RETAINER BDE-N422242.A53 N422242	£1.50	£1.80
10 - RETAINER BDE-N422242.A54 N422242	£1.50	£1.80
11 - GEARCASE SA BDE-N042060SV.A2 N042060SV	-
12 - GEARCASE COVER BDE-623562-00.A4 623562-00	£3.80	£4.56
12 - GEARCASE COVER BDE-623562-00.A5 623562-00	£3.80	£4.56
13 - GASKET BDE-623618-00.A40 623618-00	£1.50	£1.80
13 - GASKET BDE-623618-00.A41 623618-00	£1.50	£1.80
14 - SCREW BDE-330065-13.A61 330065-13	£1.50	£1.80
14 - SCREW BDE-330065-13.A62 330065-13	£1.50	£1.80
15 - SCREW BDE-385676-01.A32 385676-01	£1.50	£1.80
15 - SCREW BDE-385676-01.A33 385676-01	£1.50	£1.80
16 - BUTTON LOCK-OFF BDE-N129056.A0 N129056	£1.50	£1.80
16 - BUTTON LOCK-OFF BDE-N129056.A1 N129056	£1.50	£1.80
17 - RATING PLATE GB BDE-N173923 N173923	-
18 - BRAND LABEL BDE-N139498.A2 N139498	£2.26	£2.71
18 - BRAND LABEL GB BDE-N139498.A3 N139498	£2.26	£2.71
19 - SWITCH SA GB BDE-N165338 N165338	-
19 - NO LONGER AVAILABLE BDE-000000-00.A63904 000000-00	-
20 - MAGNET BDE-611202-00SV.A2 611202-00SV	-
20 - MAGNET BDE-611202-00SV.A3 611202-00SV	-
21 - GUARD SA BDE-N039878.A15 N039878	£14.57	£17.48
21 - GUARD SA BDE-N039878.A16 N039878	£14.57	£17.48
22 - SCREW BDE-631609-03.A0 631609-03	£1.50	£1.80
23 - INNER FLANGE SA BDE-633257-00SV.A5 633257-00SV	£5.88	£7.06
24 - OUTER FLANGE BDE-622613-02.A108 622613-02	£4.69	£5.63
25 - SCREW BDE-330019-25.A22 330019-25	£1.50	£1.80
25 - SCREW BDE-330019-25.A23 330019-25	£1.50	£1.80
26 - SCREW BDE-90611830.A22 90611830	£1.50	£1.80
26 - SCREW BDE-90611830.A23 90611830	£1.50	£1.80
30 - BRUSHBOX SA BDE-610126-00.A17 610126-00	£7.85	£9.42
30 - BRUSHBOX SA BDE-610126-00.A18 610126-00	£7.85	£9.42
43 - SPRING BDE-N102647.A11 N102647	£1.50	£1.80
44 - BLOCK BDE-N122099.A41 N122099	£1.50	£1.80
85 - SCREW BDE-631609-03.A1 631609-03	£1.50	£1.80
87 - WRENCH BDE-401680-00.A131 401680-00	£4.69	£5.63
88 - SIDE HANDLE BDE-N401305.A48 N401305	£3.80	£4.56
92 - O RING BDE-633045-00.A58 633045-00	£1.50	£1.80
93 - O RING BDE-633043-00.A69 633043-00	£1.50	£1.80
94 - SCREW BDE-N033051.A49 N033051	£1.50	£1.80
99 - GUARD SA BDE-N042787.A8 N042787	-
800 - GREASE 90 GMS BDE-870889-02.A341 870889-02	£7.85	£9.42
800 - GREASE BDE-283484-01.A13 283484-01	£80.98	£97.18
861 - KITBOX BDE-N132422.A1 N132422	£65.52	£78.62
866 - BATTERY 18V - 4.0AH - 72WH DCG412L2 GB BDE-N195933.A63 N195933	£218.32	£261.98
866 - BATTERY 18V - 4.0AH - 72WH DCG412M2 GB BDE-N195933.A64 N195933	£218.32	£261.98
871 - CHARGER 10.8V - 18V GB BDE-N450537.A133 N450537	£157.18	£188.61

Attribute Name	Value
Brand	Dewalt
