Dewalt DCG405F Type 1 Small Angle Grinder Spare Parts

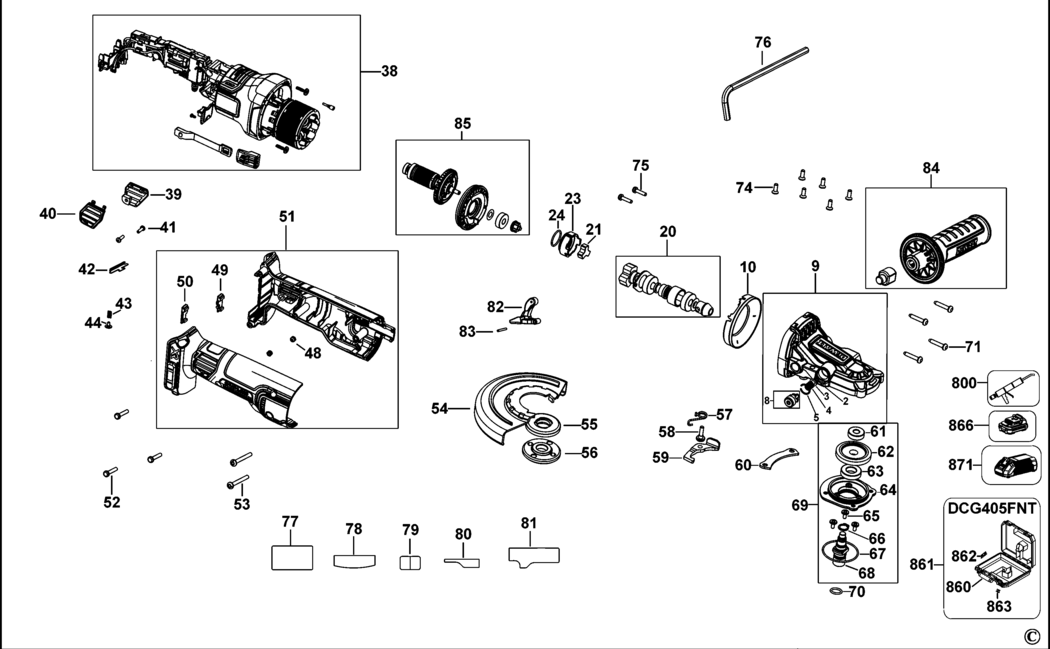

An exploded drawing and spare parts listing for the Dewalt DCG405F Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
2 - O RING BDE-N094012.A43 N094012	£1.50	£1.80
3 - WASHER BDE-N447838.A30 N447838	£1.50	£1.80
4 - SPRING BDE-N092954.A34 N092954	£1.50	£1.80
5 - CIRCLIP BDE-N503684 N503684	£1.50	£1.80
8 - SPINDLE LOCK BDE-N497322 N497322	£1.50	£1.80
9 - GEARCASE SA BDE-N534332 N534332	£30.08	£36.10
10 - BAFFLE BDE-N478435.A1 N478435	£1.50	£1.80
20 - PINION SA BDE-N534333 N534333	£24.39	£29.27
21 - COUPLING BDE-N521879 N521879	£1.50	£1.80
23 - BUSHING BDE-N494179 N494179	£7.85	£9.42
24 - O RING BDE-N119639.A62 N119639	£1.50	£1.80
39 - COVER BDE-N493573.A1 N493573	£3.30	£3.96
40 - COVER BDE-N493572.A1 N493572	£3.30	£3.96
41 - SCREW BDE-N042665.A108 N042665	£1.50	£1.80
42 - PLATE BDE-N467560.A3 N467560	£1.50	£1.80
43 - SPRING BDE-N461735.A18 N461735	£1.50	£1.80
44 - BLOCK BDE-N122099.A11 N122099	£1.50	£1.80
48 - LOCK NUT BDE-330021-11.A5 330021-11	£1.50	£1.80
49 - INSERT BDE-N438439.A4 N438439	£1.50	£1.80
50 - INSERT BDE-N438438.A12 N438438	£1.50	£1.80
51 - CLAMSHELL SET BDE-N534719.A0 N534719	£17.48	£20.97
52 - SCREW BDE-90611830.A203 90611830	£1.50	£1.80
53 - SCREW BDE-N042665.A107 N042665	£1.50	£1.80
54 - GUARD BDE-N505139 N505139	£24.39	£29.27
55 - INNER FLANGE BDE-391969-00.A111 391969-00	£1.82	£2.19
56 - OUTER FLANGE BDE-N134466.A17 N134466	£7.18	£8.62
57 - SPRING BDE-N105579.A11 N105579	£1.50	£1.80
58 - SCREW BDE-N137733.A12 N137733	£1.50	£1.80
59 - LEVER LOCK BDE-N501337 N501337	£3.30	£3.96
60 - PLATE BDE-N498478 N498478	£1.50	£1.80
61 - BEARING BALL BDE-605040-03.A21 605040-03	£2.78	£3.34
62 - GEAR BDE-N516681 N516681	£9.41	£11.29
63 - BEARING BDE-605040-72.A4 605040-72	£5.88	£7.06
64 - GEARCASE COVER BDE-N494588 N494588	£7.85	£9.42
65 - SCREW BDE-N514767 N514767	£1.50	£1.80
66 - CIRCLIP BDE-444793-00.A1 444793-00	£1.50	£1.80
67 - O RING BDE-N307625.A30 N307625	£1.50	£1.80
68 - SPINDLE BDE-N517686 N517686	£7.18	£8.62
69 - GEARCASE COVER SA BDE-N534339 N534339	£30.08	£36.10
70 - O RING BDE-N420261.A28 N420261	£1.50	£1.80
71 - SCREW BDE-N371839.A21 N371839	£1.50	£1.80
74 - SCREW BDE-N503419 N503419	£1.50	£1.80
75 - SCREW BDE-330065-33.A2 330065-33	£12.17	£14.60
76 - HEX KEY 6 MM BDE-N107295.A27 N107295	£1.50	£1.80
77 - WARNING LABEL BDE-N520387.A0 N520387	£1.50	£1.80
78 - LABEL BDE-N196273.A8 N196273	£1.50	£1.80
79 - BRAND LABEL BDE-N529192 N529192	£1.50	£1.80
80 - LABEL BDE-N499164.A0 N499164	£1.50	£1.80
82 - LEVER BDE-N497112.A0 N497112	£2.78	£3.34
83 - PIN BDE-N489903.A1 N489903	£1.50	£1.80
84 - SIDE HANDLE BDE-N534336 N534336	£17.48	£20.97
800 - GREASE 50 GMS BDE-583534-00.A81 583534-00	£144.10	£172.92

Attribute Name	Value
Brand	Dewalt
