Dewalt DC415 Type 2 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

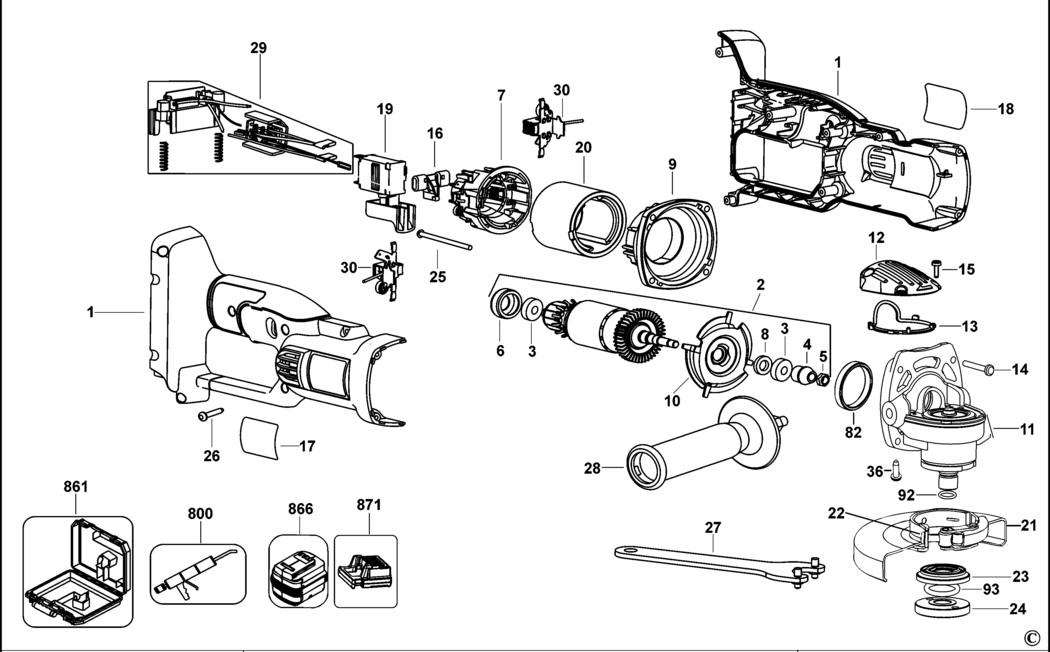

An exploded drawing and spare parts listing for the Dewalt DC415 Type 2 Small Angle Grinder

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-640873-00.A1 640873-00	£34.00	£40.80
2 - ARMATURE SA BDE-640024-00SV.A0 640024-00SV	£78.12	£93.74
3 - BEARING BDE-330003-60.A120 330003-60	£2.87	£3.44
4 - PINION GB BDE-623564-00.A11 623564-00	£11.18	£13.41
5 - NUT BDE-604484-00.A99 604484-00	£1.66	£1.99
6 - BOOT BDE-631563-00.A14 631563-00	£1.66	£1.99
7 - SUPPORT BEARING BDE-N171820.A20 N171820	-
8 - FELT SEAL BDE-623617-00.A77 623617-00	£1.66	£1.99
9 - BAFFLE FAN BDE-640579-01.A4 640579-01	£5.72	£6.87
10 - RETAINER BDE-N422242.A20 N422242	£1.66	£1.99
11 - GEARCASE SA BDE-N042063 N042063	£50.60	£60.72
12 - GEARCASE COVER BDE-623562-00.A24 623562-00	£3.80	£4.56
13 - GASKET BDE-623618-00.A4 623618-00	£1.66	£1.99
14 - SCREW BDE-330065-13.A37 330065-13	£1.66	£1.99
15 - SCREW BDE-385676-01.A72 385676-01	£1.66	£1.99
16 - BUTTON LOCK-OFF BDE-646976-00.A2 646976-00	£1.66	£1.99
17 - RATING PLATE GB BDE-N045213 N045213	£17.03	£20.44
18 - IDENTITY LABEL BDE-646006-00.A2 646006-00	£1.66	£1.99
19 - SWITCH SA BDE-641216-00.A0 641216-00	£24.39	£29.27
20 - MAGNET BDE-611202-00SV.A19 611202-00SV	-
21 - GUARD SA GB BDE-N039878.A1 N039878	£15.01	£18.01
22 - SCREW BDE-631609-03.A25 631609-03	£1.66	£1.99
23 - INNER FLANGE SA BDE-633257-00SV.A64 633257-00SV	£6.06	£7.27
24 - OUTER FLANGE BDE-622613-02.A20 622613-02	£4.83	£5.80
25 - SCREW BDE-330019-25.A10 330019-25	£1.66	£1.99
26 - SCREW BDE-90611830.A158 90611830	£1.66	£1.99
27 - WRENCH BDE-401680-00.A48 401680-00	£4.83	£5.80
28 - SIDE HANDLE BDE-614796-00.A13 614796-00	£15.01	£18.01
29 - LEAD SA BDE-648694-00.A1 648694-00	-
30 - BRUSHBOX SA BDE-610126-00.A32 610126-00	£8.08	£9.70
36 - SCREW BDE-N033051.A10 N033051	£1.66	£1.99
82 - SLEEVE BDE-611492-00.A39 611492-00	£1.66	£1.99
92 - O RING BDE-633045-00.A29 633045-00	£1.66	£1.99
93 - O RING BDE-633043-00.A10 633043-00	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A479 870889-02	£8.08	£9.70
861 - KITBOX BDE-647578-00.A4 647578-00	£93.62	£112.35
866 - BATTERY 36V - 4.0AH - 144WH DC415M2 GB BDE-N394595.A5 N394595	£215.88	£259.06
871 - CHARGER GB GB BDE-1006633-00.A12 1006633-00	£131.95	£158.34

Attribute Name	Value
Brand	Dewalt
