Dewalt D28130 Type 3 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

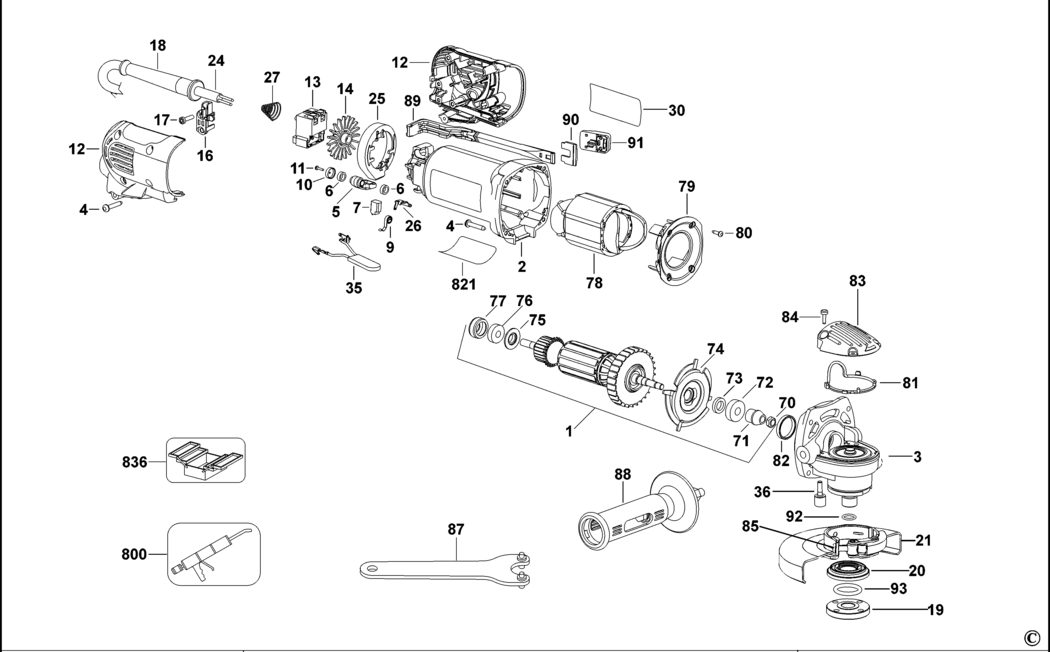

An exploded drawing and spare parts listing for the Dewalt D28130 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
2 - FIELDCASE BDE-650994-01.A9 650994-01	£7.85	£9.42
3 - GEARCASE SA BDE-N074217.A0 N074217	£39.97	£47.96
4 - PLASTIC SCREW BDE-330065-31.A32 330065-31	£1.66	£1.99
5 - ARM BDE-648743-00.A22 648743-00	£1.66	£1.99
6 - FELT SEAL BDE-623592-00.A50 623592-00	£1.66	£1.99
9 - BRUSH SPRING BDE-623589-00.A29 623589-00	£1.66	£1.99
10 - BRUSH CAP BDE-623591-00.A24 623591-00	£1.66	£1.99
11 - SCREW BDE-593685-00.A73 593685-00	£1.66	£1.99
13 - SWITCH SA BDE-641889-01.A1 641889-01	£3.92	£4.70
14 - SEPARATOR BDE-N055787.A15 N055787	£1.66	£1.99
16 - CORD CLAMP BDE-636963-00.A3 636963-00	£1.66	£1.99
17 - SCREW BDE-330019-03.A89 330019-03	£1.66	£1.99
18 - CORD PROTECTOR BDE-N542553.A165 N542553	£3.92	£4.70
19 - OUTER FLANGE BDE-622613-02.A118 622613-02	£4.83	£5.80
20 - INNER FLANGE SA BDE-633257-00SV.A12 633257-00SV	£6.06	£7.27
21 - GUARD SA BDE-N039878.A8 N039878	£15.01	£18.01
25 - BAFFLE BDE-637616-00.A6 637616-00	£1.66	£1.99
26 - TERMINAL BDE-623593-00.A19 623593-00	£1.66	£1.99
27 - SPRING BDE-628396-00.A4 628396-00	£1.66	£1.99
30 - BRAND LABEL BDE-635892-00.A38 635892-00	£1.66	£1.99
35 - CHOKE SA BDE-637543-00.A5 637543-00	£3.30	£3.96
36 - SCREW BDE-N033051.A84 N033051	£1.66	£1.99
70 - NUT BDE-604484-00.A6 604484-00	£1.66	£1.99
72 - BEARING BDE-605040-67.A22 605040-67	£1.66	£1.99
73 - FELT SEAL BDE-623617-00.A13 623617-00	£1.66	£1.99
74 - RETAINER BDE-N422242.A77 N422242	£1.66	£1.99
75 - WASHER BDE-623613-00.A66 623613-00	£1.66	£1.99
76 - BEARING BDE-605040-02.A57 605040-02	£2.32	£2.78
77 - SLEEVE BDE-641823-00.A145 641823-00	£1.66	£1.99
79 - BAFFLE FAN BDE-650997-00.A1 650997-00	£1.66	£1.99
80 - SCREW BDE-330065-25.A104 330065-25	£1.66	£1.99
81 - GASKET BDE-623618-00.A50 623618-00	£1.66	£1.99
82 - SLEEVE BDE-611492-00.A9 611492-00	£1.66	£1.99
83 - GEARCASE COVER BDE-623562-00.A11 623562-00	£3.80	£4.56
84 - SCREW BDE-385676-01.A17 385676-01	£1.66	£1.99
85 - SCREW BDE-631609-03.A9 631609-03	£1.66	£1.99
87 - WRENCH BDE-401680-00.A109 401680-00	£4.83	£5.80
88 - SIDE HANDLE BDE-614796-00.A52 614796-00	£15.01	£18.01
89 - ARM LINK BDE-623610-00.A17 623610-00	£3.39	£4.07
90 - BAR LOCKING BDE-644326-00.A49 644326-00	£1.66	£1.99
91 - BUTTON START BDE-623608-00.A13 623608-00	£1.66	£1.99
92 - O RING BDE-633045-00.A54 633045-00	£1.66	£1.99
93 - O RING BDE-633043-00.A46 633043-00	£1.66	£1.99
800 - GREASE 50 GMS BDE-583534-00.A193 583534-00	£148.42	£178.11
836 - DRIVER BDE-233804-36.A14 233804-36	£30.08	£36.10

Attribute Name	Value
Brand	Dewalt
