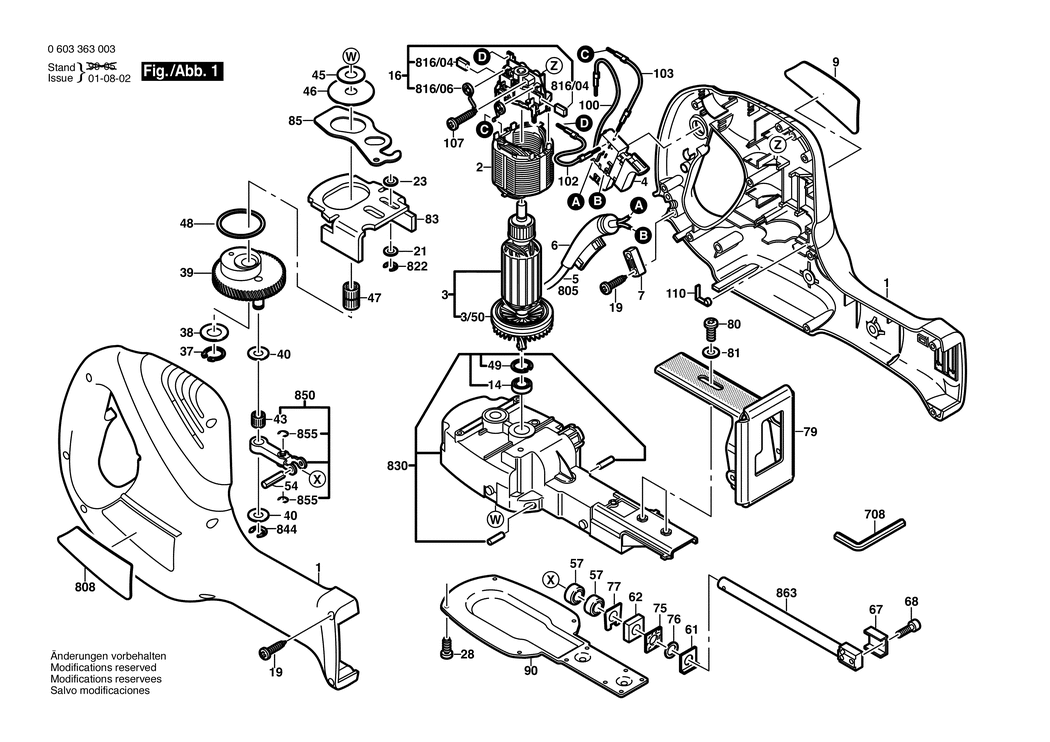

1 - HOUSING SECTION
BSD-2605104604.A2
2605104604
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220647.A18
2604220647
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 230-240V
BSD-2604011219.A1
2604011219
|
-
|
|
|
|
3/50 - FAN
BSD-2606610093.A15
2606610093
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-2607200532.A1
2607200532
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460432.A51
1604460432
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.4-dia7.2x77 MM
BSD-2600703064.A9
2600703064
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2686
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119608.A0
2601119608
|
-
|
|
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A137
2600905095
|
£12.04
|
£14.45
|
|
|
16 - BRUSH PLATE
BSD-2605807082.A32
2605807082
|
£27.23
|
£32.68
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2545
2603490022
|
£1.75
|
£2.10
|
|
|
21 - SHIM
BSD-2600100103.A5
2600100103
|
£1.32
|
£1.58
|
|
|
23 - SHIM
BSD-2600100525.A17
2600100525
|
£1.75
|
£2.10
|
|
|
28 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603410049.A307
2603410049
|
£1.75
|
£2.10
|
|
|
37 - SPRING RETAINING RING DIN 471-12x1-FSTM
BSD-2916650903.A49
2916650903
|
£1.75
|
£2.10
|
|
|
38 - SHIM
BSD-2600105001.A10
2600105001
|
£1.95
|
£2.34
|
|
|
39 - ECCENTRIC COG WHEEL
BSD-2606320062.A0
2606320062
|
£33.45
|
£40.14
|
|
|
40 - SHIM 0.5 MM
BSD-2600100623.A1
2600100623
|
-
|
|
|
|
43 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A70
1610910057
|
£2.80
|
£3.36
|
|
|
45 - SHIM WASHER
BSD-2600105109.A0
2600105109
|
£2.52
|
£3.02
|
|
|
46 - SHIM
BSD-2600105013.A5
2600105013
|
£1.95
|
£2.34
|
|
|
47 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913008.A8
2600913008
|
£8.49
|
£10.19
|
|
|
48 - SHIM
BSD-2600105004.A9
2600105004
|
£1.95
|
£2.34
|
|
|
49 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A82
2916660008
|
£2.16
|
£2.59
|
|
|
54 - PIVOT PIN
BSD-2603105065.A4
2603105065
|
£1.75
|
£2.10
|
|
|
57 - SINTERED-METAL BUSHING
BSD-2600302022.A0
2600302022
|
£2.61
|
£3.13
|
|
|
61 - SEALING DISK
BSD-2601334011.A10
2601334011
|
£1.75
|
£2.10
|
|
|
62 - FELT DISC
BSD-2600108078.A5
2600108078
|
£1.75
|
£2.10
|
|
|
67 - CLAMPING SADDLE
BSD-2601321012.A1
2601321012
|
-
|
|
|
|
68 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-12.9
BSD-2910405154.A48
2910405154
|
£1.95
|
£2.34
|
|
|
75 - RUBBER GASKET 1 MM
BSD-2601015082.A10
2601015082
|
£2.52
|
£3.02
|
|
|
76 - SCRAPER
BSD-2600101038.A9
2600101038
|
£1.75
|
£2.10
|
|
|
77 - GUIDING PLATE
BSD-2601334012.A4
2601334012
|
£1.75
|
£2.10
|
|
|
79 - BASE PLATE
BSD-2608000239.A0
2608000239
|
£14.91
|
£17.89
|
|
|
80 - OVAL-HEAD SCREW M 5x10
BSD-2603414007.A0
2603414007
|
£1.75
|
£2.10
|
|
|
81 - PLAIN WASHER
BSD-3600100002.A10
3600100002
|
£1.75
|
£2.10
|
|
|
83 - COUNTERWEIGHT
BSD-2608012009.A4
2608012009
|
£11.78
|
£14.13
|
|
|
85 - FORK LEVER
BSD-2601923011.A10
2601923011
|
£6.61
|
£7.93
|
|
|
90 - GEAR COVER
BSD-2605500142.A5
2605500142
|
£4.75
|
£5.70
|
|
|
100 - EARTH CONDUCTOR
BSD-2604448217.A3
2604448217
|
£3.34
|
£4.01
|
|
|
102 - CONNECTING CABLE L=220 MM
BSD-2604448127.A15
2604448127
|
£1.32
|
£1.58
|
|
|
103 - CONNECTING CABLE
BSD-2604448220.A6
2604448220
|
£2.33
|
£2.80
|
|
|
107 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A933
2603490024
|
£1.75
|
£2.10
|
|
|
110 - CONTACT SPRING
BSD-2601329057.A192
2601329057
|
-
|
|
|
|
708 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A422
2607950004
|
£1.75
|
£2.10
|
|
|
808 - MARKING PLATE
BSD-2601117031.A0
2601117031
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604320914.A39
2604320914
|
-
|
|
|
|
816/06 - SPIRAL SPRING
BSD-1604652013.A276
1604652013
|
£1.75
|
£2.10
|
|
|
822 - LOCKING WASHER DIN 6799-6-FST
BSD-2916080909.A153
2916080909
|
£1.75
|
£2.10
|
|
|
830 - GEAR HOUSING
BSD-2605806897.A4
2605806897
|
£46.82
|
£56.18
|
|
|
844 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A7
2916080910
|
£2.16
|
£2.59
|
|
|
850 - CONNECTING ROD
BSD-2602130903.A0
2602130903
|
-
|
|
|
|
855 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A486
2916080007
|
£2.61
|
£3.13
|
|
|
863 - LIFTING ROD
BSD-2600780910.A1
2600780910
|
-
|
|
|
