Bosch EasyCut 50 / 3603CC8030 / CH 230 Volt Spare Parts

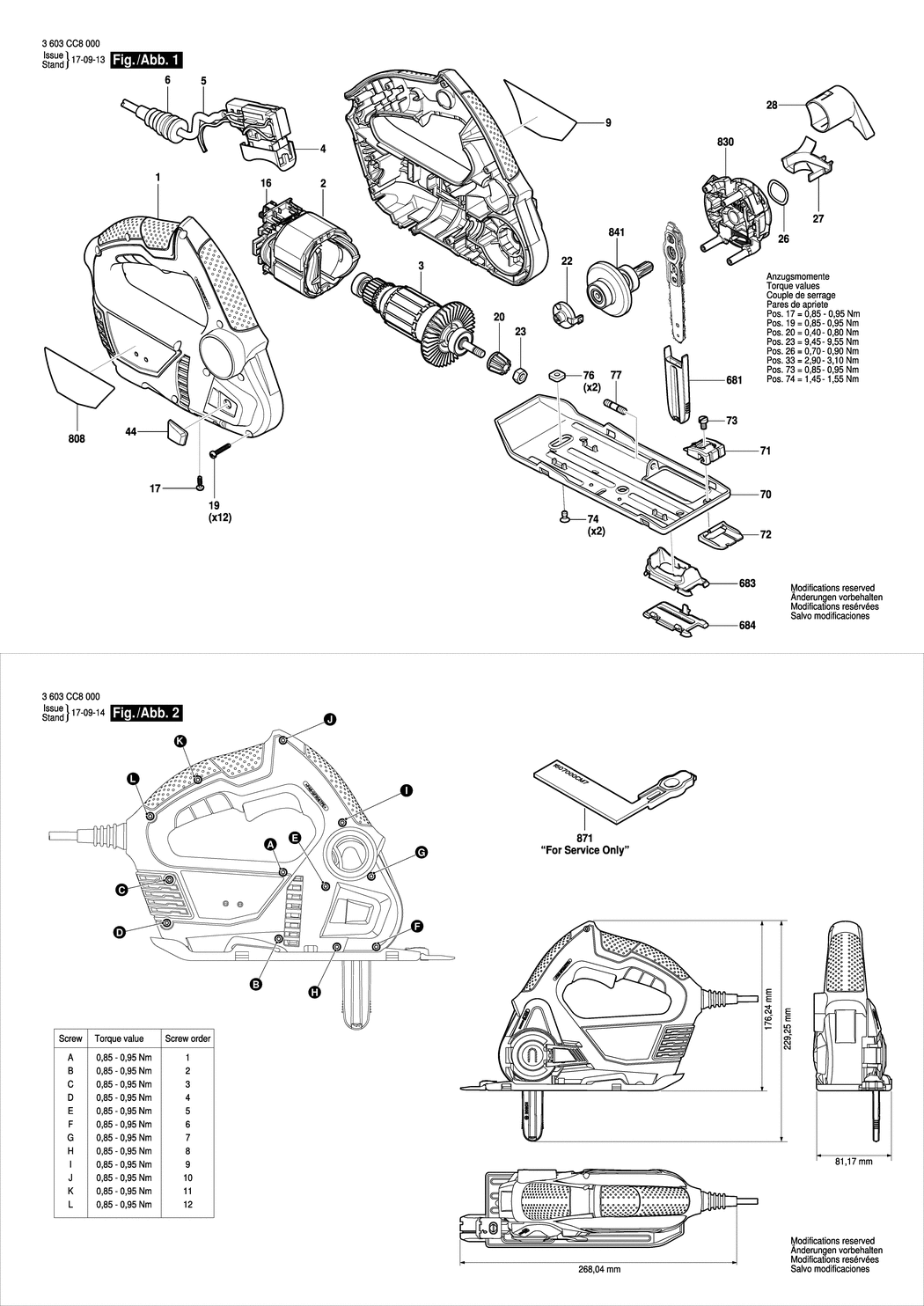

An exploded drawing and listing for the Bosch EasyCut 50 / 3603CC8030 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING ASSEMBLY BSD-1600A009PG.A1 1600A009PG	£21.68	£26.01
2 - FIELD 220-240V BSD-2609002875.A1 2609002875	£13.12	£15.75
3 - ARMATURE BSD-2609007826.A1 2609007826	£33.74	£40.49
4 - SWITCH BSD-1607200322.A0 1607200322	£14.91	£17.89
5 - POWER SUPPLY CORD EU 230V 2.7m 2 x 0.75mm H05 VV-F BSD-2604460259.A19 2604460259	£13.12	£15.75
6 - GROMMET Durchmesser 6.2-6.9 BSD-2609005502.A4 2609005502	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE EasyCut 50 BSD-160111C0Z0.A1 160111C0Z0	£2.61	£3.13
16 - BRUSH PLATE BSD-1600A00H2K.A4 1600A00H2K	£11.30	£13.56
17 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A907 2603490017	£2.16	£2.59
19 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A331 2603490018	£1.75	£2.10
20 - BEVEL GEAR BSD-1619P02825.A3 1619P02825	£5.30	£6.36
22 - ADJUSTING PLATE BSD-2605500138.A16 2605500138	£2.80	£3.36
23 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1526 2915011007	-
26 - SPRING WASHER BSD-2609110294.A12 2609110294	£1.75	£2.10
27 - CHANNEL BSD-1600A00875.A4 1600A00875	£1.75	£2.10
28 - CONNECTION PART BSD-1600A00DT6.A2 1600A00DT6	£2.16	£2.59
44 - COVER BSD-160550029X.A5 160550029X	£1.75	£2.10
70 - BASE PLATE BSD-1600A007S0.A1 1600A007S0	£11.30	£13.56
71 - FIXING ELEMENT BSD-1600A00MU7.A0 1600A00MU7	£1.75	£2.10
72 - INDICATOR BSD-1600A00MU8.A2 1600A00MU8	£1.75	£2.10
73 - SOCKET HEAD CAP SCREW DIN 84-M4x6-4.8 BSD-2910001116.A12 2910001116	£1.75	£2.10
74 - COUNTERSUNK-HEAD SCREW BSD-2910548118.A4 2910548118	£1.75	£2.10
76 - FIXING PLATE BSD-1600A00AM5.A0 1600A00AM5	£1.75	£2.10
77 - BOLT BSD-1600A007RP.A4 1600A007RP	£2.16	£2.59
681 - CHAIN COVER BSD-1600A00J6Z.A6 1600A00J6Z	£2.16	£2.59
683 - HOOD BSD-1600A003D8.A5 1600A003D8	£2.61	£3.13
684 - SPLINTERING PROTECTOR BSD-1600A003D9.A0 1600A003D9	£2.16	£2.59
808 - NAMEPLATE BSD-160111A49F.A0 160111A49F	£2.61	£3.13
830 - HOUSING SET BSD-1600A00R7B.A0 1600A00R7B	£23.86	£28.63
841 - SHAFT BSD-1607000CA2.A5 1607000CA2	£27.23	£32.68
871 - SERVICE KIT BSD-1607000CM7.A0 1607000CM7	-
