Bosch GAS 50 M / 0601988132 / CH 230 Volt Spare Parts

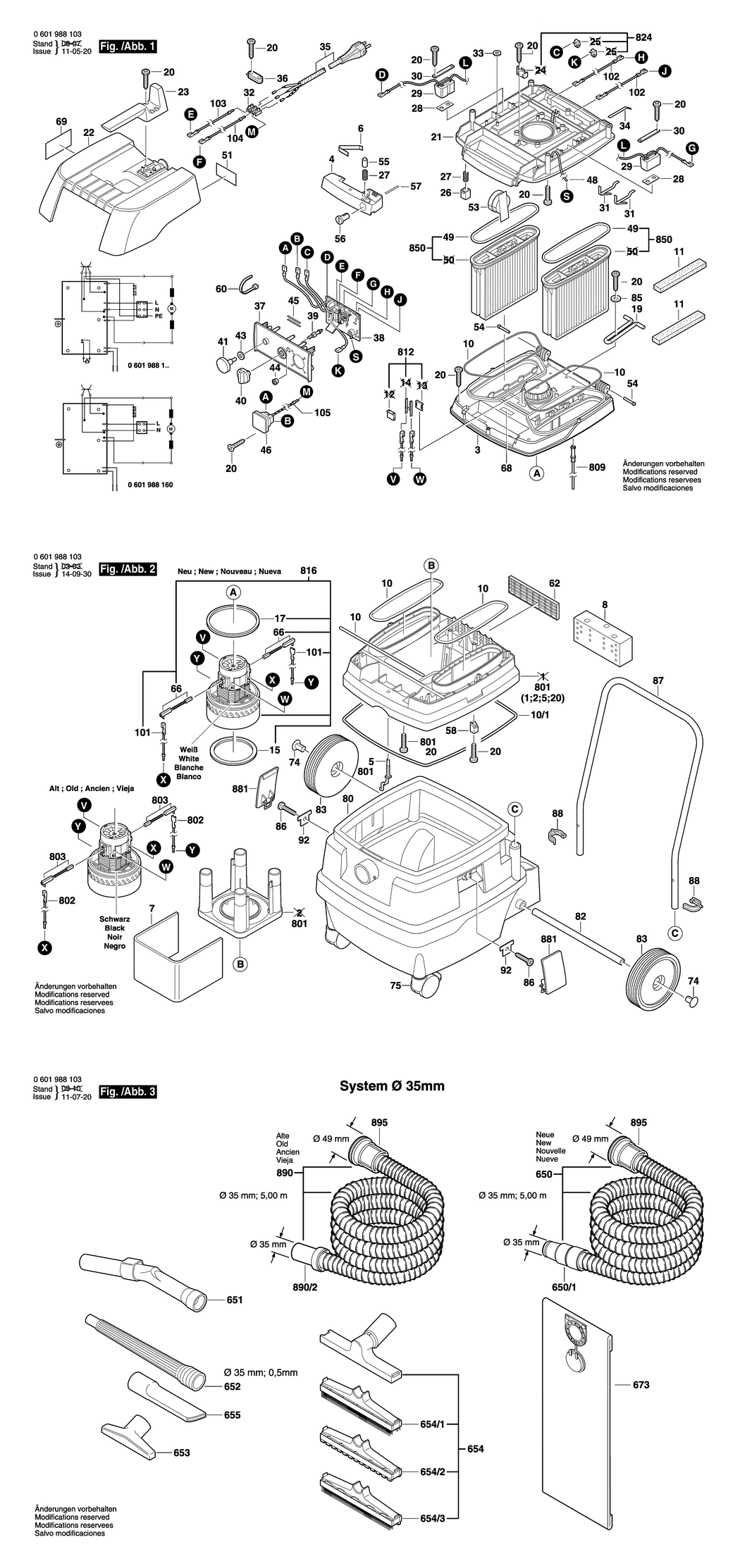

An exploded drawing and listing for the Bosch GAS 50 M / 0601988132 / CH 230 Volt

	Ex VAT	Inc VAT
3 - MOTOR HOUSING BSD-1600A000R5.A1 1600A000R5	£48.38	£58.06
4 - LOCKING-BAR BSD-1609203D09.A0 1609203D09	£8.49	£10.19
5 - CONTACT FINGER BSD-1609203C27.A10 1609203C27	£4.26	£5.11
6 - LEAF SPRING BSD-1609203C28.A5 1609203C28	£2.61	£3.13
7 - SOUND INSULATION MAT BSD-1609203C29.A10 1609203C29	£10.10	£12.12
8 - SOUND INSULATION MAT BSD-1609203C30.A5 1609203C30	£18.96	£22.75
10 - SEALING CORD 3 M BSD-1609203C32.A10 1609203C32	£10.10	£12.12
10/1 - SEALING CORD 1.5 M BSD-1609203C33.A5 1609203C33	£11.30	£13.56
11 - AIR FILTER BSD-1609203C34.A10 1609203C34	£2.61	£3.13
15 - SEAL RING BSD-1609201669.A129 1609201669	£5.58	£6.70
17 - SEAL RING BSD-1609203B13.A56 1609203B13	£6.52	£7.83
19 - LOAD ABSORBER BSD-1600A000RW.A7 1600A000RW	£6.52	£7.83
20 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A198 2910611015	£1.75	£2.10
21 - INTERMEDIATE HOUSING BSD-1600A000R7.A1 1600A000R7	£33.74	£40.49
22 - COVERING HOOD BSD-1609203C42.A7 1609203C42	£33.74	£40.49
23 - HANDLE BSD-1609203C43.A8 1609203C43	£11.30	£13.56
26 - THRUST MEMBER BSD-1609203C46.A7 1609203C46	£1.75	£2.10
27 - COMPRESSION SPRING BSD-1609201685.A36 1609201685	£2.16	£2.59
28 - SEALING DISK BSD-1609201663.A36 1609201663	£2.16	£2.59
29 - ATTACHMENT VIBRATOR 220-240V BSD-1609201662.A29 1609201662	£93.88	£112.65
30 - HOLDING PLATE BSD-1609203C48.A5 1609203C48	£2.16	£2.59
31 - CONTACT STRAP BSD-1609203C49.A10 1609203C49	£2.16	£2.59
32 - CONNECTING TERMINAL BSD-1609203C50.A5 1609203C50	£2.61	£3.13
33 - HOLDING-DOWN-APPLIANCE BSD-1609203C51.A10 1609203C51	£1.75	£2.10
34 - CONTACT SPRING BSD-1609203C52.A5 1609203C52	£1.75	£2.10
35 - POWER SUPPLY CORD BSD-1604460108.A1 1604460108	£72.18	£86.62
36 - CABLE CLIP BSD-1609203C54.A5 1609203C54	£1.75	£2.10
37 - FRONT SHIELD BSD-1609203C59.A0 1609203C59	£12.04	£14.45
38 - PRINTED-BOARD ASSEMBLY 230V BSD-1609203D16.A0 1609203D16	£102.57	£123.08
39 - AXLE BSD-1609203W42.A12 1609203W42	£1.75	£2.10
40 - SWITCH BUTTON BSD-1609203C58.A8 1609203C58	£4.26	£5.11
41 - ROTARY KNOB BSD-1609203D13.A0 1609203D13	£7.78	£9.33
43 - LOCKING DISC BSD-1609203C61.A1 1609203C61	£1.75	£2.10
44 - INDICATOR LAMP BSD-1609201654.A1 1609201654	£6.52	£7.83
45 - SWITCH SPRING BSD-1609203C62.A0 1609203C62	£1.75	£2.10
46 - SOCKET BSD-1609203D76.A0 1609203D76	£48.38	£58.06
48 - PLASTIC HOSE BSD-1609203C65.A1 1609203C65	£2.61	£3.13
49 - SEAL RING BSD-1609203C66.A7 1609203C66	£5.58	£6.70
51 - NAMEPLATE BSD-1601118E69.A0 1601118E69	-
53 - SIREN BSD-1609203C69.A0 1609203C69	£48.38	£58.06
54 - BEARING BOLT BSD-1609203C70.A1 1609203C70	£2.16	£2.59
55 - LOCKING PIN BSD-1609203C71.A14 1609203C71	£2.61	£3.13
56 - COUPLER LINK BSD-1609203C72.A1 1609203C72	£2.61	£3.13
57 - LOCK SPRING BSD-1609203C73.A14 1609203C73	£11.30	£13.56
58 - SUPPORT BSD-1609203C74.A1 1609203C74	£1.75	£2.10
60 - CABLE TIE BSD-1609203C76.A1 1609203C76	£1.75	£2.10
62 - PROTECTIVE GRILLE BSD-1609203C77.A0 1609203C77	£12.04	£14.45
66 - CARBON-BRUSH SET BSD-1609203Z24.A2 1609203Z24	£40.80	£48.96
68 - WARNING PLATE BSD-1601118C61.A14 1601118C61	£3.72	£4.47
69 - WARNING PLATE BSD-1601118E17.A1 1601118E17	-
74 - PLUG BSD-1609202727.A1 1609202727	£3.72	£4.47
75 - CASTER WHEEL BSD-1609203K69.A2 1609203K69	£14.91	£17.89
80 - DUST CONTAINER BSD-1609203D14.A1 1609203D14	£134.16	£160.99
82 - AXLE BSD-1609203C90.A1 1609203C90	£13.12	£15.75
83 - IMPELLER BSD-1609203C91.A7 1609203C91	£21.52	£25.83
85 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A157 1609202726	£1.75	£2.10
86 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A194 2910611015	£1.75	£2.10
87 - BOW BSD-1609203C93.A1 1609203C93	£54.42	£65.30
88 - RETAINING SPRING BSD-1609203C94.A7 1609203C94	£6.52	£7.83
92 - PRESSURE PLATE BSD-1609203E24.A6 1609203E24	-
101 - CONNECTING CABLE BSD-1609203Z25.A10 1609203Z25	£10.10	£12.12
102 - CONNECTING CABLE BSD-1609203C96.A14 1609203C96	£2.61	£3.13
103 - CONNECTING CABLE BSD-1609203C97.A1 1609203C97	£2.80	£3.36
104 - CONNECTING CABLE BSD-1609203C98.A14 1609203C98	£2.80	£3.36
105 - CONNECTING CABLE BSD-1609203U04.A9 1609203U04	£4.26	£5.11
650 - AIR HOSE BSD-1600A000W2.A1 1600A000W2	£179.37	£215.24
650/1 - FITTING BSD-1609203V36.A11 1609203V36	£23.86	£28.63
651 - SETTING TUBE BSD-1609202525.A13 1609202525	£27.23	£32.68
652 - SUCTION PIPE dia 35x500 BSD-1609202527.A13 1609202527	£18.96	£22.75
653 - SUCTION NOZZLE BSD-1609202526.A2 1609202526	£21.52	£25.83
654 - SUCTION NOZZLE BSD-2609390006.A9 2609390006	-
654/1 - FLAT BRUSH BSD-1609390493.A98 1609390493	£21.68	£26.01
654/2 - FLAT BRUSH BSD-1609390494.A3 1609390494	-
654/3 - STRIP BRUSH BSD-1609390495.A98 1609390495	£16.41	£19.69
655 - CREVICE NOZZLE dia 35 MM BSD-1609202532.A4 1609202532	£10.10	£12.12
673 - DUST BAG BSD-1609203C80.A2 1609203C80	-
801 - INTERMEDIATE FLANGE BSD-1609203C39.A7 1609203C39	£40.80	£48.96
802 - CONNECTING CABLE BSD-1609203C95.A1 1609203C95	£2.61	£3.13
803 - CARBON-BRUSH SET BSD-1609203C81.A6 1609203C81	£40.80	£48.96
809 - ELECTRODE BSD-1609203M84.A3 1609203M84	£7.36	£8.83
812 - CONNECTOR BSD-1609203C40.A8 1609203C40	£7.36	£8.83
816 - SUCTION BLOWER BSD-1609203Z37.A7 1609203Z37	£251.67	£302.00
824 - SOCKET CONTACT BSD-1609203C75.A13 1609203C75	£8.67	£10.41
850 - AIR FILTER BSD-1609203C99.A0 1609203C99	£81.81	£98.17
881 - BENT-LEVER CLOSURE BSD-1609203L96.A6 1609203L96	£16.41	£19.69
890 - AIR HOSE BSD-1600A000W2.A0 1600A000W2	£179.37	£215.24
890/2 - FITTING BSD-1609203V36.A12 1609203V36	£23.86	£28.63
895 - FITTING BSD-1600A000W0.A9 1600A000W0	£31.64	£37.97
