Bosch GAS 18 V-LI / 3601JC6100 / EU 18 Volt Spare Parts

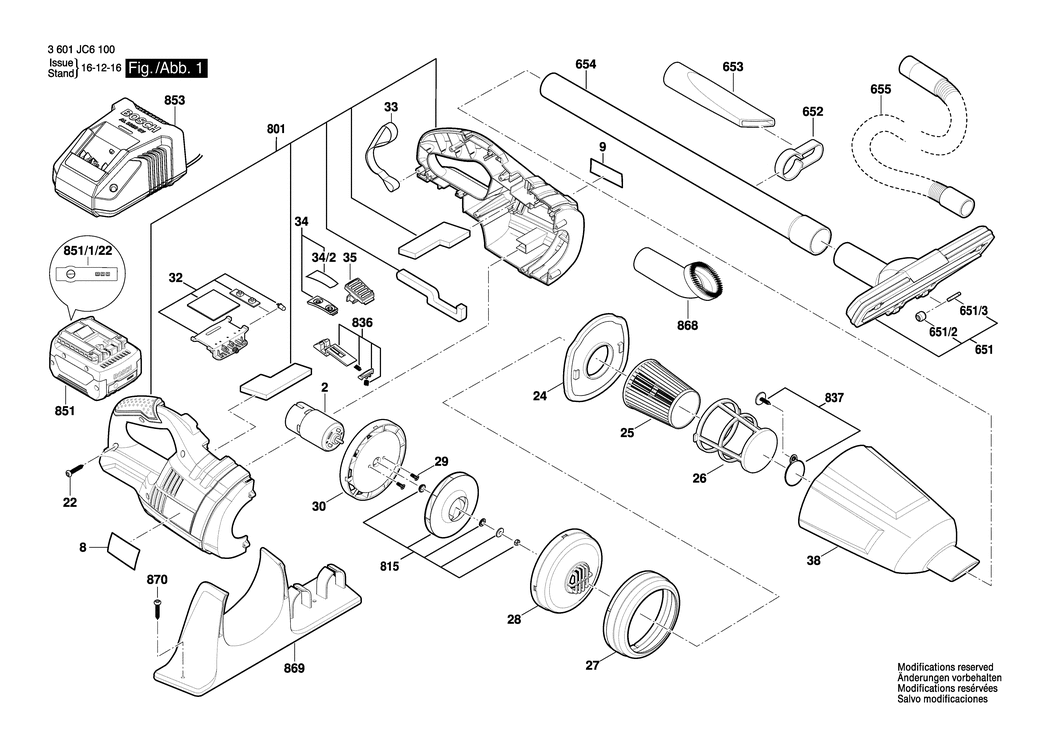

An exploded drawing and listing for the Bosch GAS 18 V-LI / 3601JC6100 / EU 18 Volt

	Ex VAT	Inc VAT
2 - DC MOTOR BSD-1619PA5183.A0 1619PA5183	£27.23	£32.68
8 - NAMEPLATE BSD-1619PA9060.A0 1619PA9060	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE GAS 18 V-LI BSD-1619PA5171.A0 1619PA5171	£2.61	£3.13
22 - TAPPING SCREW BSD-1619PA5185.A0 1619PA5185	£1.75	£2.10
24 - FILTER HOUSING BSD-1619PA7400.A0 1619PA7400	£5.58	£6.70
25 - FILTER BSD-1619PA5188.A1 1619PA5188	£12.04	£14.45
26 - FILTER COVER BSD-1619PA5187.A0 1619PA5187	£6.52	£7.83
27 - RUBBER RETAINING RING BSD-1619PA5190.A0 1619PA5190	£5.30	£6.36
28 - PROTECTIVE COVER BSD-1619PA5191.A0 1619PA5191	£6.52	£7.83
29 - SCREW BSD-1619PA5192.A0 1619PA5192	£1.75	£2.10
30 - MOTOR CRADLE BSD-1619PA5193.A0 1619PA5193	£3.72	£4.47
32 - ELECTRONICS MODULE BSD-1619PA5195.A0 1619PA5195	£46.82	£56.18
33 - CARRYING LOOP BSD-1619PA5196.A0 1619PA5196	£2.61	£3.13
34 - SWITCH BUTTON BSD-1619PA5197.A0 1619PA5197	£2.80	£3.36
34/2 - STICKER BSD-1619PB0096.A0 1619PB0096	£2.61	£3.13
35 - BUTTON BSD-1619PA5198.A0 1619PA5198	£1.75	£2.10
38 - DUST CHAMBER BSD-1619PA5201.A0 1619PA5201	£16.41	£19.69
651 - FLOOR NOZZLE BSD-1619PA5202.A0 1619PA5202	£14.91	£17.89
651/2 - ROLLER BSD-1619PA7502.A3 1619PA7502	£2.61	£3.13
651/3 - SHAFT BSD-1619PA7501.A0 1619PA7501	£2.80	£3.36
652 - HOLDER BSD-1619PA5203.A0 1619PA5203	£2.16	£2.59
653 - CREVICE NOZZLE BSD-1619PA5204.A0 1619PA5204	£5.58	£6.70
654 - SUCTION TUBE BSD-1619PA5205.A0 1619PA5205	£11.30	£13.56
655 - HOSE BSD-1619PA9058.A0 1619PA9058	£12.04	£14.45
801 - HOUSING ASSEMBLY BSD-1619PA5181.A0 1619PA5181	£27.23	£32.68
815 - FAN BSD-1619PA5184.A0 1619PA5184	£7.36	£8.83
836 - SWITCH SLIDE BSD-1619PA5199.A0 1619PA5199	£3.72	£4.47
837 - RUBBER DISC BSD-1619PA5200.A0 1619PA5200	£2.16	£2.59
851 - SLIDE-IN ACCU PACKAGE 18V. 2.0Ah. LI BBS MR-L BSD-2607336905.A6 2607336905	£58.76	£70.51
851 - SLIDE-IN ACCU PACKAGE BBS MR 18V. 4.0Ah. 47 S BSD-1607A350M0.A9 1607A350M0	£93.88	£112.65
851/1/22 - STICKER BSD-2601115537.A33 2601115537	£2.33	£2.80
853 - FAST CHARGER EU AL 1820 CV 220V BSD-2607225423.A43 2607225423	£68.42	£82.10
868 - BRUSH BSD-1619PA5261.A1 1619PA5261	£4.26	£5.11
869 - HOOK BSD-1619PA5263.A1 1619PA5263	£13.12	£15.75
870 - SCREW BSD-1619PA5354.A0 1619PA5354	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
