Bosch GAS 12-50 RF / 0601975960 / DK 230 Volt Spare Parts

Home Details Reviews Delivery

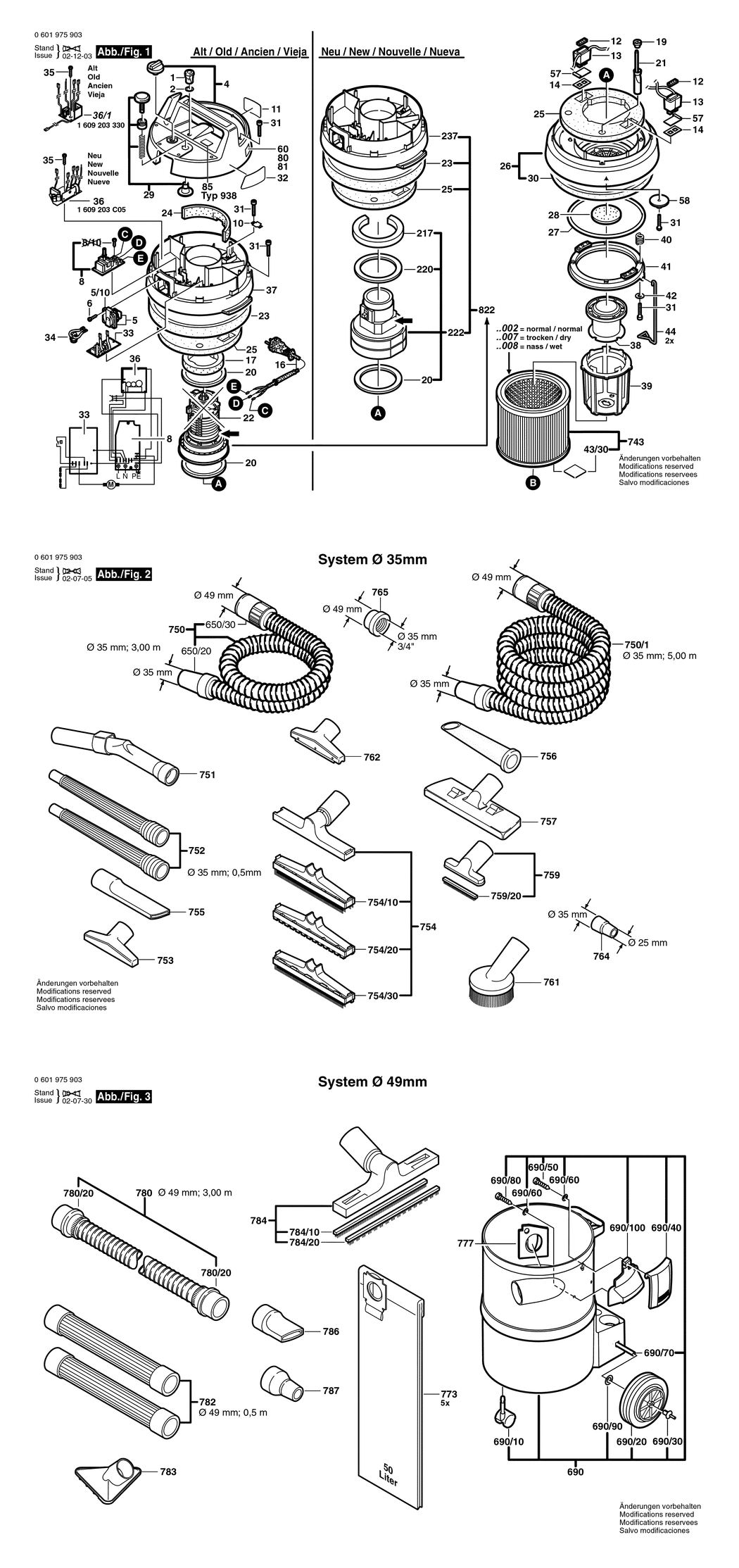

An exploded drawing and listing for the Bosch GAS 12-50 RF / 0601975960 / DK 230 Volt

	Ex VAT	Inc VAT
1 - INDICATOR LAMP BSD-1609201654.A33 1609201654	£6.52	£7.83
2 - SEAL RING BSD-1609201655.A23 1609201655	£1.84	£2.21
4 - COVERING HOOD BSD-1609203650.A4 1609203650	£15.46	£18.55
4 - COVERING HOOD BSD-1609202713.A4 1609202713	-
5 - SOCKET BSD-1609201707.A8 1609201707	-
6 - TAPPING SCREW DIN 7982-ST3.5x16-F-H BSD-2910601412.A13 2910601412	£2.74	£3.29
8 - ON-OFF SWITCH BSD-1609201706.A8 1609201706	£45.67	£54.80
10 - CABLE CLIP BSD-1609202693.A40 1609202693	£1.38	£1.66
11 - NAMEPLATE BSD-1601118268.A0 1601118268	-
12 - DAMPING PLATE BSD-1609201660.A20 1609201660	£1.75	£2.10
13 - ATTACHMENT VIBRATOR 220-240V BSD-1609201662.A6 1609201662	£98.57	£118.28
14 - SEALING DISK BSD-1609201663.A61 1609201663	£2.27	£2.72
16 - POWER SUPPLY CORD BSD-1609203191.A4 1609203191	-
17 - AIR-DEFLECTOR RING BSD-1609201666.A9 1609201666	-
19 - SEAL RING BSD-1609201668.A48 1609201668	£2.16	£2.59
20 - SEAL RING BSD-1609201669.A7 1609201669	£5.87	£7.04
21 - GUIDE SLEEVE BSD-1609202573.A10 1609202573	£3.91	£4.69
23 - DAMPING PLATE BSD-1609203478.A26 1609203478	-
24 - DAMPING PLATE BSD-1609202764.A23 1609202764	-
25 - DAMPING PLATE BSD-1609203423.A19 1609203423	-
26 - INTERMEDIATE FLANGE BSD-1609203474.A16 1609203474	-
26 - INTERMEDIATE FLANGE BSD-1609203474.A17 1609203474	-
27 - SEAL RING BSD-1609201676.A50 1609201676	-
28 - AIR FILTER BSD-1609201677.A4 1609201677	£2.05	£2.46
29 - ROTARY KNOB BSD-1609202716.A6 1609202716	-
30 - SEAL BSD-1609203499.A5 1609203499	-
30 - SEAL RING BSD-1609202765.A21 1609202765	£10.61	£12.73
31 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A27 2910611015	£1.84	£2.21
32 - MANUFACTURER'S NAMEPLATE BSD-1601118194.A6 1601118194	-
33 - INTEGRATED CIRCUIT BSD-1609202717.A5 1609202717	-
34 - PRESSURE SWITCH BSD-1609203181.A4 1609203181	£21.52	£25.83
35 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A28 2910611015	£1.84	£2.21
35 - TAPPING SCREW 3.5x32 MM BSD-1609201681.A6 1609201681	-
36 - AUTOMATIC SWITCHING UNIT BSD-1609203C05.A14 1609203C05	-
37 - INTERMEDIATE HOUSING BSD-1609202698.A12 1609202698	-
38 - FLOAT BSD-1609200952.A49 1609200952	-
39 - SUCTION BASKET BSD-1609201684.A97 1609201684	-
40 - COMPRESSION SPRING BSD-1609201685.A6 1609201685	£2.16	£2.59
41 - RETAINING SNAP RING BSD-1609203182.A6 1609203182	-
42 - PLAIN WASHER dia4.2xdia11x1.1MM BSD-1609201687.A19 1609201687	-
43/30 - REFERENCE PLATE BSD-1601110830.A26 1601110830	£2.74	£3.29
44 - RETAINING BRACKET BSD-1609203417.A15 1609203417	-
57 - LEAF SPRING BSD-1609202192.A23 1609202192	-
58 - DAMPING DISC BSD-1609203714.A14 1609203714	-
60 - REFERENCE PLATE BSD-1601118753.A9 1601118753	£3.72	£4.47
217 - AIR-DEFLECTOR RING BSD-1609203B12.A41 1609203B12	-
220 - SEAL RING BSD-1609203B13.A0 1609203B13	£6.85	£8.22
222 - SUCTION BLOWER BSD-1609203Z37.A17 1609203Z37	£264.25	£317.10
237 - INTERMEDIATE HOUSING BSD-1609203B15.A34 1609203B15	-
650/20 - FITTING BSD-1609203V36.A47 1609203V36	£25.05	£30.06
650/30 - FITTING dia 49 MM BSD-1609390580.A21 1609390580	£5.58	£6.70
690 - DUST CONTAINER BSD-1609202711.A6 1609202711	-
690/10 - IMPELLER dia 50 MM BSD-1609202703.A40 1609202703	£6.85	£8.22
690/20 - IMPELLER dia 200 MM BSD-1609202712.A15 1609202712	£33.22	£39.87
690/30 - PLUG BSD-1609202727.A40 1609202727	£3.91	£4.69
690/40 - BENT-LEVER CLOSURE BSD-1609202708.A21 1609202708	-
690/50 - TAPPING SCREW DIN 7981-ST3.5x16-C-H BSD-2910611012.A22 2910611012	-
690/60 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A19 1609202726	£1.75	£2.10
690/70 - ROLLER AXLE BSD-1609202709.A10 1609202709	£15.65	£18.78
690/80 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A26 2910611015	£1.84	£2.21
690/90 - PLAIN WASHER BSD-1609202725.A25 1609202725	£1.75	£2.10
690/100 - CARRYING HANDLE BSD-1609202710.A11 1609202710	-
743 - AIR FILTER BSD-2607432002.A0 2607432002	-
743 - AIR FILTER BSD-2607432007.A0 2607432007	-
743 - AIR FILTER BSD-2607432008.A5 2607432008	-
750 - AIR HOSE dia35MM.3M.1 BSD-2607000837.A20 2607000837	£62.47	£74.96
750/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A136 1609202230	£85.74	£102.89
751 - SETTING TUBE dia 35 MM BSD-2607000164.A28 2607000164	£23.68	£28.42
752 - SUCTION PIPE dia 35 MM. 0.5 M BSD-2607000162.A36 2607000162	£29.38	£35.25
753 - SUCTION NOZZLE dia 35 MM BSD-2607000170.A28 2607000170	£13.78	£16.53
754 - SUCTION NOZZLE dia 35 MM BSD-1609390478.A36 1609390478	£34.99	£41.99
754/10 - FLAT BRUSH BSD-1609390493.A36 1609390493	£21.68	£26.01
754/20 - FLAT BRUSH BSD-1609390494.A65 1609390494	-
754/30 - STRIP BRUSH BSD-1609390495.A36 1609390495	£16.41	£19.69
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A95 2607000165	£5.24	£6.29
756 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A39 1609201229	£18.37	£22.04
757 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A99 1609201230	£41.99	£50.39
759 - SUCTION NOZZLE dia 35 MM BSD-2607000166.A33 2607000166	£9.18	£11.01
759/20 - BRUSH INSERT BSD-1609202534.A30 1609202534	£2.80	£3.36
761 - SUCTION BRUSH dia 35 MM BSD-1609390481.A45 1609390481	£8.74	£10.49
762 - SUCTION NOZZLE dia 35 MM BSD-2607000168.A28 2607000168	-
764 - FITTING dia 25x35 MM BSD-1600499005.A20 1600499005	£6.99	£8.39
765 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A85 1609200933	£7.57	£9.08
773 - DUST BAG BSD-2601411062.A0 2601411062	-
777 - DEFLECTOR BSD-2607001248.A30 2607001248	-
780 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A75 2607000167	£67.98	£81.57
780/20 - FITTING dia 49 MM BSD-1609390577.A9 1609390577	£5.58	£6.70
782 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A52 1609200968	£12.24	£14.69
783 - SUCTION NOZZLE dia 49 MM BSD-2607000169.A32 2607000169	-
784 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A61 1609200970	£27.55	£33.06
784/10 - FLAT BRUSH BSD-1609201109.A39 1609201109	-
784/20 - FLAT BRUSH BSD-1609201110.A88 1609201110	-
786 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A61 1609200971	£7.87	£9.44
787 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A83 1609200976	£3.79	£4.55
822 - MODIFICATION SET 230V BSD-1609203G98.A4 1609203G98	-
