Bosch GAS 12-50 RF / 0601975903 / EU 230 Volt Spare Parts

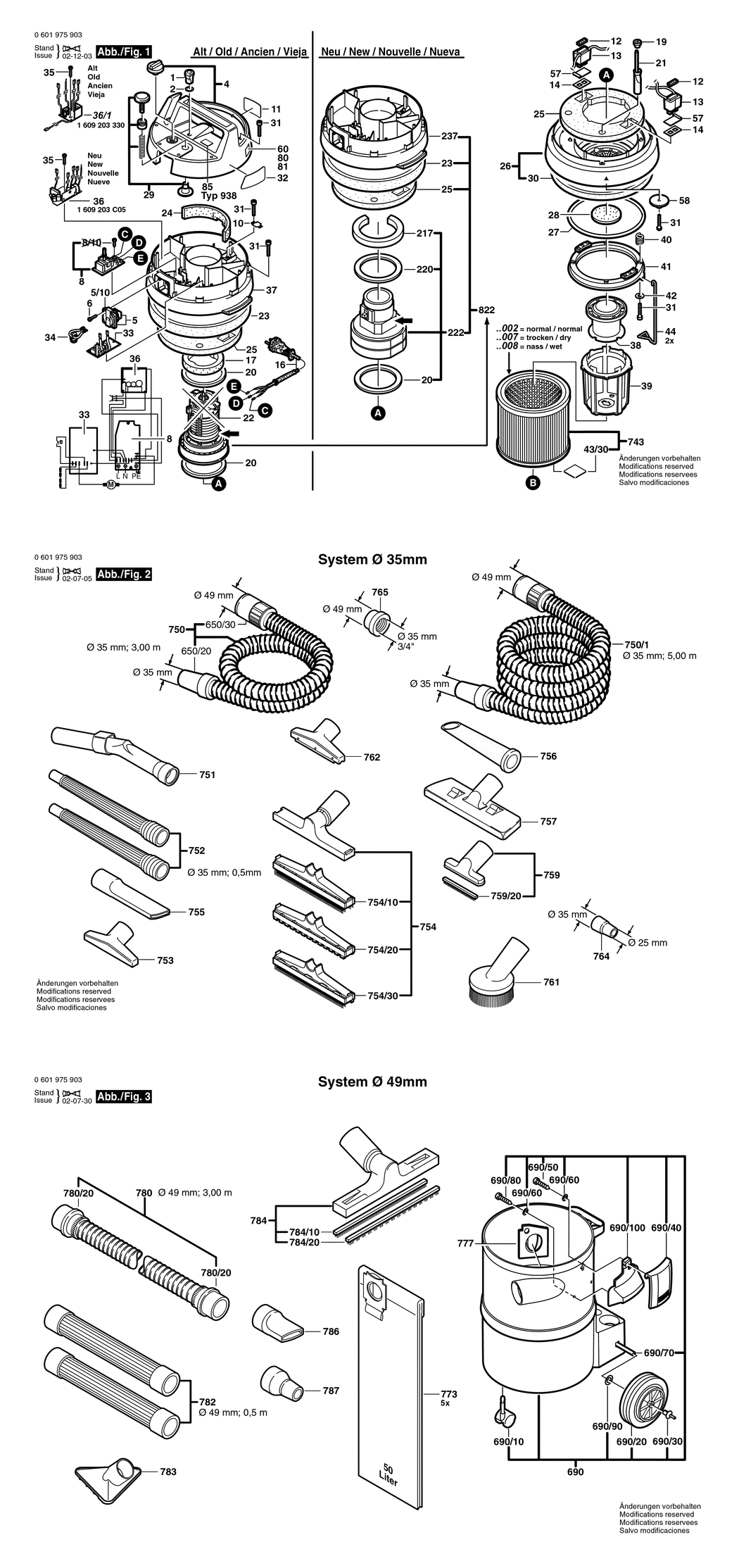

An exploded drawing and listing for the Bosch GAS 12-50 RF / 0601975903 / EU 230 Volt

	Ex VAT	Inc VAT
1 - INDICATOR LAMP BSD-1609201654.A36 1609201654	£6.52	£7.83
2 - SEAL RING BSD-1609201655.A20 1609201655	£1.75	£2.10
4 - COVERING HOOD BSD-1609203650.A0 1609203650	£14.72	£17.67
4 - COVERING HOOD BSD-1609202713.A7 1609202713	-
5 - SOCKET BSD-1609200948.A11 1609200948	£21.52	£25.83
6 - TAPPING SCREW DIN 7982-ST3.5x16-F-H BSD-2910601412.A9 2910601412	£2.61	£3.13
8 - ON-OFF SWITCH BSD-1609201658.A4 1609201658	-
10 - CABLE CLIP BSD-1609202693.A37 1609202693	£1.32	£1.58
11 - NAMEPLATE BSD-1601118193.A0 1601118193	-
12 - DAMPING PLATE BSD-1609201660.A15 1609201660	£1.75	£2.10
13 - ATTACHMENT VIBRATOR 220-240V BSD-1609201662.A11 1609201662	£93.88	£112.65
14 - SEALING DISK BSD-1609201663.A56 1609201663	£2.16	£2.59
16 - POWER SUPPLY CORD BSD-1609202714.A8 1609202714	-
17 - AIR-DEFLECTOR RING BSD-1609201666.A14 1609201666	-
19 - SEAL RING BSD-1609201668.A43 1609201668	£2.16	£2.59
20 - SEAL RING BSD-1609201669.A12 1609201669	£5.58	£6.70
21 - GUIDE SLEEVE BSD-1609202573.A8 1609202573	£3.72	£4.47
23 - DAMPING PLATE BSD-1609203478.A23 1609203478	-
24 - DAMPING PLATE BSD-1609202764.A20 1609202764	-
25 - DAMPING PLATE BSD-1609203423.A14 1609203423	-
26 - INTERMEDIATE FLANGE BSD-1609203474.A23 1609203474	-
26 - INTERMEDIATE FLANGE BSD-1609203474.A24 1609203474	-
27 - SEAL RING BSD-1609201676.A43 1609201676	-
28 - AIR FILTER BSD-1609201677.A11 1609201677	£1.95	£2.34
29 - ROTARY KNOB BSD-1609202716.A3 1609202716	-
30 - SEAL BSD-1609203499.A10 1609203499	-
30 - SEAL RING BSD-1609202765.A19 1609202765	£10.10	£12.12
31 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A3 2910611015	£1.75	£2.10
32 - MANUFACTURER'S NAMEPLATE BSD-1601118194.A0 1601118194	-
33 - INTEGRATED CIRCUIT BSD-1609202717.A8 1609202717	-
34 - PRESSURE SWITCH BSD-1609203181.A6 1609203181	£21.52	£25.83
35 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A4 2910611015	£1.75	£2.10
35 - TAPPING SCREW 3.5x32 MM BSD-1609201681.A3 1609201681	-
36 - AUTOMATIC SWITCHING UNIT BSD-1609203C05.A12 1609203C05	-
37 - INTERMEDIATE HOUSING BSD-1609202698.A15 1609202698	-
38 - FLOAT BSD-1609200952.A50 1609200952	-
39 - SUCTION BASKET BSD-1609201684.A100 1609201684	-
40 - COMPRESSION SPRING BSD-1609201685.A3 1609201685	£2.16	£2.59
41 - RETAINING SNAP RING BSD-1609203182.A4 1609203182	-
42 - PLAIN WASHER dia4.2xdia11x1.1MM BSD-1609201687.A21 1609201687	-
43/30 - REFERENCE PLATE BSD-1601110830.A32 1601110830	£2.61	£3.13
44 - RETAINING BRACKET BSD-1609203417.A14 1609203417	-
57 - LEAF SPRING BSD-1609202192.A17 1609202192	-
58 - DAMPING DISC BSD-1609203714.A13 1609203714	-
60 - REFERENCE PLATE BSD-1601118753.A4 1601118753	£3.72	£4.47
217 - AIR-DEFLECTOR RING BSD-1609203B12.A31 1609203B12	-
220 - SEAL RING BSD-1609203B13.A11 1609203B13	£6.52	£7.83
222 - SUCTION BLOWER BSD-1609203Z37.A20 1609203Z37	£251.67	£302.00
237 - INTERMEDIATE HOUSING BSD-1609203B15.A26 1609203B15	-
650/20 - FITTING BSD-1609203V36.A51 1609203V36	£23.86	£28.63
650/30 - FITTING dia 49 MM BSD-1609390580.A19 1609390580	£5.58	£6.70
690 - DUST CONTAINER BSD-1609202711.A3 1609202711	-
690/10 - IMPELLER dia 50 MM BSD-1609202703.A37 1609202703	£6.52	£7.83
690/20 - IMPELLER dia 200 MM BSD-1609202712.A23 1609202712	£31.64	£37.97
690/30 - PLUG BSD-1609202727.A38 1609202727	£3.72	£4.47
690/40 - BENT-LEVER CLOSURE BSD-1609202708.A29 1609202708	-
690/50 - TAPPING SCREW DIN 7981-ST3.5x16-C-H BSD-2910611012.A31 2910611012	-
690/60 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A21 1609202726	£1.75	£2.10
690/70 - ROLLER AXLE BSD-1609202709.A7 1609202709	£14.91	£17.89
690/80 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A2 2910611015	£1.75	£2.10
690/90 - PLAIN WASHER BSD-1609202725.A23 1609202725	£1.75	£2.10
690/100 - CARRYING HANDLE BSD-1609202710.A13 1609202710	-
743 - AIR FILTER BSD-2607432002.A1 2607432002	-
743 - AIR FILTER BSD-2607432007.A5 2607432007	-
743 - AIR FILTER BSD-2607432008.A0 2607432008	-
750 - AIR HOSE dia35MM.3M.1 BSD-2607000837.A22 2607000837	£59.49	£71.39
750/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A127 1609202230	£85.74	£102.89
751 - SETTING TUBE dia 35 MM BSD-2607000164.A26 2607000164	£22.56	£27.07
752 - SUCTION PIPE dia 35 MM. 0.5 M BSD-2607000162.A41 2607000162	£27.98	£33.57
753 - SUCTION NOZZLE dia 35 MM BSD-2607000170.A26 2607000170	£13.12	£15.74
754 - SUCTION NOZZLE dia 35 MM BSD-1609390478.A35 1609390478	£34.99	£41.99
754/10 - FLAT BRUSH BSD-1609390493.A35 1609390493	£21.68	£26.01
754/20 - FLAT BRUSH BSD-1609390494.A66 1609390494	-
754/30 - STRIP BRUSH BSD-1609390495.A35 1609390495	£16.41	£19.69
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A102 2607000165	£5.24	£6.29
756 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A36 1609201229	£17.49	£20.99
757 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A102 1609201230	£41.99	£50.39
759 - SUCTION NOZZLE dia 35 MM BSD-2607000166.A26 2607000166	£8.74	£10.49
759/20 - BRUSH INSERT BSD-1609202534.A36 1609202534	£2.80	£3.36
761 - SUCTION BRUSH dia 35 MM BSD-1609390481.A46 1609390481	£8.74	£10.49
762 - SUCTION NOZZLE dia 35 MM BSD-2607000168.A26 2607000168	-
764 - FITTING dia 25x35 MM BSD-1600499005.A15 1600499005	£3.49	£4.19
765 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A92 1609200933	£7.21	£8.65
773 - DUST BAG BSD-2601411062.A2 2601411062	-
777 - DEFLECTOR BSD-2607001248.A28 2607001248	-
780 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A77 2607000167	£64.74	£77.69
780/20 - FITTING dia 49 MM BSD-1609390577.A10 1609390577	£5.58	£6.70
782 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A49 1609200968	£12.24	£14.69
783 - SUCTION NOZZLE dia 49 MM BSD-2607000169.A34 2607000169	-
784 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A64 1609200970	£26.24	£31.49
784/10 - FLAT BRUSH BSD-1609201109.A36 1609201109	-
784/20 - FLAT BRUSH BSD-1609201110.A91 1609201110	-
786 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A58 1609200971	£7.87	£9.44
787 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A86 1609200976	£3.61	£4.33
822 - MODIFICATION SET 230V BSD-1609203G98.A5 1609203G98	-
