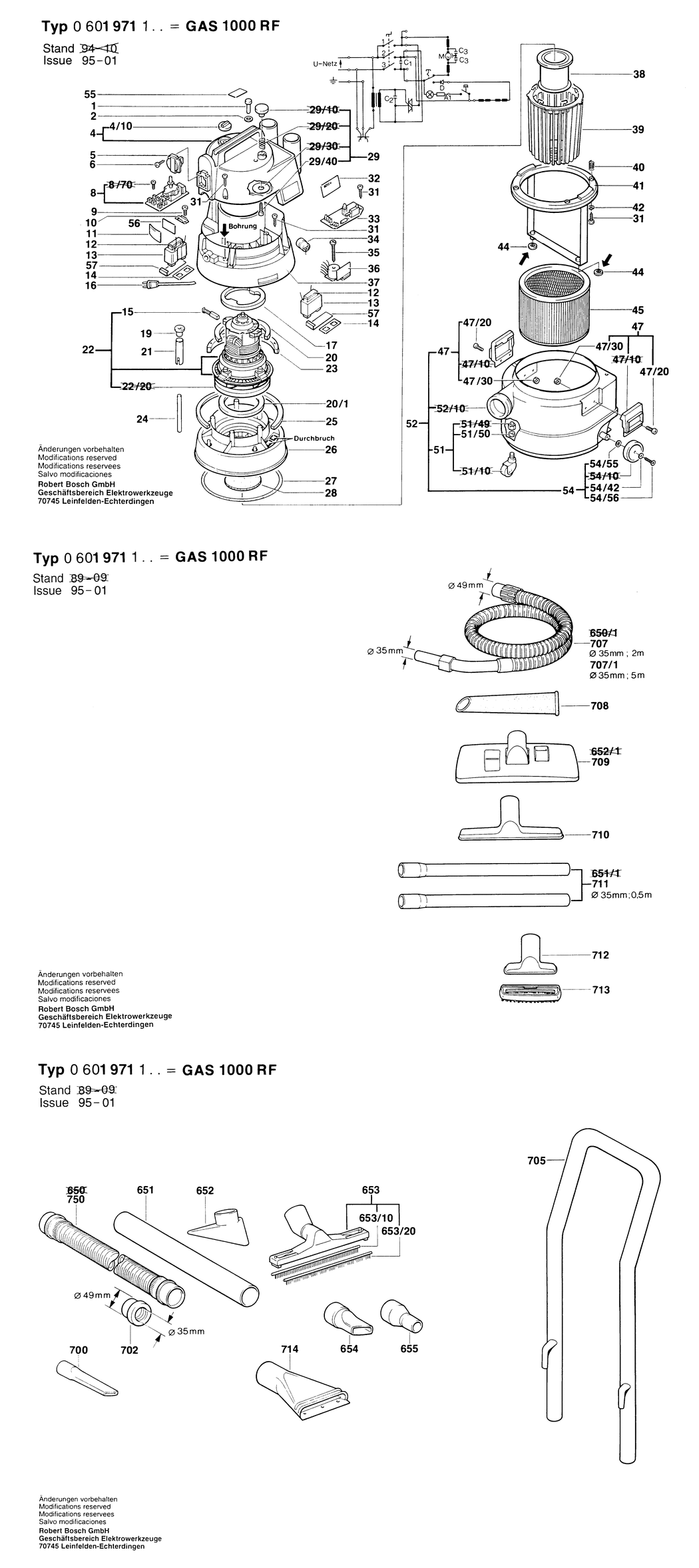

1 - INDICATOR LAMP
BSD-1609201654.A12
1609201654
|
£6.52
|
£7.83
|
|
|
2 - SEAL RING
BSD-1609201655.A44
1609201655
|
£1.75
|
£2.10
|
|
|
4 - COVERING HOOD
BSD-1609202365.A24
1609202365
|
-
|
|
|
|
4 - COVERING HOOD
BSD-1609202365.A25
1609202365
|
-
|
|
|
|
4/10 - SWITCH BUTTON
BSD-1609203721.A12
1609203721
|
-
|
|
|
|
4/10 - SWITCH BUTTON
BSD-1609201656.A9
1609201656
|
-
|
|
|
|
5 - SOCKET
BSD-1609201709.A10
1609201709
|
£21.52
|
£25.83
|
|
|
6 - TAPPING SCREW DIN 7983-ST3.9x19-C-H
BSD-2910612519.A11
2910612519
|
-
|
|
|
|
8 - ON-OFF SWITCH
BSD-1609201658.A26
1609201658
|
-
|
|
|
|
9 - TAPPING SCREW DIN 7971-B2.9x19
BSD-2910211208.A14
2910211208
|
-
|
|
|
|
10 - CLAMP
BSD-1609201659.A25
1609201659
|
-
|
|
|
|
11 - NAMEPLATE
BSD-1601110583.A0
1601110583
|
-
|
|
|
|
12 - DAMPING PLATE
BSD-1609201660.A29
1609201660
|
£1.75
|
£2.10
|
|
|
13 - ATTACHMENT VIBRATOR 220-240V
BSD-1609201662.A56
1609201662
|
£93.88
|
£112.65
|
|
|
14 - SEALING DISK
BSD-1609201663.A2
1609201663
|
£2.16
|
£2.59
|
|
|
15 - CARBON-BRUSH SET
BSD-1609201664.A47
1609201664
|
-
|
|
|
|
16 - CABLE
BSD-1609201665.A1
1609201665
|
-
|
|
|
|
17 - AIR-DEFLECTOR RING
BSD-1609201666.A110
1609201666
|
-
|
|
|
|
19 - SEAL RING
BSD-1609201668.A3
1609201668
|
£2.16
|
£2.59
|
|
|
20 - SEAL RING
BSD-1609201669.A86
1609201669
|
£5.58
|
£6.70
|
|
|
20/1 - SEAL RING
BSD-1609202374.A8
1609202374
|
-
|
|
|
|
21 - GUIDE SLEEVE
BSD-1609202573.A22
1609202573
|
£3.72
|
£4.47
|
|
|
22 - SUCTION BLOWER 220V
BSD-1609202695.A21
1609202695
|
-
|
|
|
|
23 - AIR FILTER
BSD-1609201672.A36
1609201672
|
-
|
|
|
|
24 - GUIDE SLEEVE
BSD-1609202573.A23
1609202573
|
£3.72
|
£4.47
|
|
|
25 - AIR FILTER
BSD-1609201674.A27
1609201674
|
-
|
|
|
|
26 - INTERMEDIATE FLANGE
BSD-1609201675.A3
1609201675
|
-
|
|
|
|
27 - SEAL RING
BSD-1609201676.A24
1609201676
|
-
|
|
|
|
28 - AIR FILTER
BSD-1609201677.A49
1609201677
|
£1.95
|
£2.34
|
|
|
29 - PUSH-BUTTON
BSD-1609201678.A20
1609201678
|
-
|
|
|
|
29/40 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A140
2910611015
|
£1.75
|
£2.10
|
|
|
31 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A141
2910611015
|
£1.75
|
£2.10
|
|
|
32 - MANUFACTURER'S NAMEPLATE
BSD-1601110712.A7
1601110712
|
-
|
|
|
|
33 - CONNECTION PLATE
BSD-1609201679.A3
1609201679
|
-
|
|
|
|
34 - PRESSURE SWITCH
BSD-1609201680.A20
1609201680
|
-
|
|
|
|
35 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A142
2910611015
|
£1.75
|
£2.10
|
|
|
35 - TAPPING SCREW 3.5x32 MM
BSD-1609201681.A34
1609201681
|
-
|
|
|
|
36 - AUTOMATIC SWITCHING UNIT
BSD-1609203C05.A43
1609203C05
|
-
|
|
|
|
37 - INTERMEDIATE HOUSING
BSD-1609201683.A20
1609201683
|
-
|
|
|
|
38 - FLOAT
BSD-1609200952.A86
1609200952
|
-
|
|
|
|
39 - SUCTION BASKET
BSD-1609201684.A3
1609201684
|
-
|
|
|
|
40 - COMPRESSION SPRING
BSD-1609201685.A67
1609201685
|
£2.16
|
£2.59
|
|
|
41 - RETAINING SNAP RING
BSD-1609203182.A50
1609203182
|
-
|
|
|
|
42 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A83
1609202726
|
£1.75
|
£2.10
|
|
|
44 - SEALING DISK
BSD-1609201688.A1
1609201688
|
-
|
|
|
|
45 - AIR FILTER dia 245x194 MM
BSD-1609202378.A17
1609202378
|
-
|
|
|
|
47 - BENT-LEVER CLOSURE
BSD-1609201690.A10
1609201690
|
-
|
|
|
|
47/20 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8
BSD-2910021193.A78
2910021193
|
£1.75
|
£2.10
|
|
|
47/30 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1400
2915011007
|
-
|
|
|
|
51 - IMPELLER
BSD-1609201691.A53
1609201691
|
-
|
|
|
|
51/50 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A116
2915011009
|
£2.61
|
£3.13
|
|
|
52 - DUST CONTAINER
BSD-1609201692.A10
1609201692
|
-
|
|
|
|
54 - IMPELLER
BSD-1609202221.A13
1609202221
|
-
|
|
|
|
54/42 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A84
1609202726
|
£1.75
|
£2.10
|
|
|
54/55 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A48
2916011016
|
£1.75
|
£2.10
|
|
|
54/56 - TAPPING SCREW DIN 7981-B4.2x19
BSD-2910611027.A14
2910611027
|
-
|
|
|
|
55 - REFERENCE PLATE
BSD-1601110724.A1
1601110724
|
-
|
|
|
|
56 - STICKER
BSD-1601110265.A146
1601110265
|
-
|
|
|
|
57 - LEAF SPRING
BSD-1609202192.A39
1609202192
|
-
|
|
|
|
651 - SUCTION PIPE dia 49 MM. L=0.5 M
BSD-1609200968.A103
1609200968
|
£12.24
|
£14.69
|
|
|
652 - SUCTION NOZZLE dia 49 MM
BSD-1609200969.A16
1609200969
|
-
|
|
|
|
653 - SUCTION NOZZLE dia 49 MM. 350 MM
BSD-1609200970.A98
1609200970
|
£26.24
|
£31.49
|
|
|
653/10 - FLAT BRUSH
BSD-1609201109.A124
1609201109
|
-
|
|
|
|
653/20 - FLAT BRUSH
BSD-1609201110.A3
1609201110
|
-
|
|
|
|
654 - CREVICE NOZZLE dia 49 MM
BSD-1609200971.A23
1609200971
|
£7.87
|
£9.44
|
|
|
655 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A123
1609200976
|
£3.61
|
£4.33
|
|
|
700 - CREVICE NOZZLE dia 35 MM. L= 250 MM
BSD-2607000165.A70
2607000165
|
£5.24
|
£6.29
|
|
|
702 - REDUCTION SLEEVE dia 49/35 MM+3/4
BSD-1609200933.A155
1609200933
|
£7.21
|
£8.65
|
|
|
705 - GUIDE BRACKET
BSD-1609201627.A36
1609201627
|
-
|
|
|
|
707 - AIR HOSE dia 35 MM. 2 M.1
BSD-2607000163.A45
2607000163
|
-
|
|
|
|
707/1 - AIR HOSE dia 35 MM. L=5 M
BSD-1609202230.A16
1609202230
|
£85.74
|
£102.89
|
|
|
708 - SUCTION NOZZLE dia 35 MM
BSD-1609201229.A95
1609201229
|
£17.49
|
£20.99
|
|
|
709 - SUCTION NOZZLE dia 35 MM
BSD-1609201230.A43
1609201230
|
£41.99
|
£50.39
|
|
|
710 - FLAT SUCTION NOZZLE dia 35 MM-200 MM
BSD-1609201231.A38
1609201231
|
-
|
|
|
|
711 - SUCTION PIPE dia 35 MM. L=0.5 M
BSD-1609201232.A28
1609201232
|
-
|
|
|
|
712 - UPHOLSTERY NOZZLE dia 35 MM
BSD-1609201233.A38
1609201233
|
-
|
|
|
|
713 - SUCTION BRUSH
BSD-1609201234.A28
1609201234
|
-
|
|
|
|
714 - SUCTION NOZZLE dia 49 MM
BSD-1609201235.A46
1609201235
|
-
|
|
|
|
750 - AIR HOSE dia 49 MM. 3 M.1
BSD-2607000167.A46
2607000167
|
£64.74
|
£77.69
|
|
