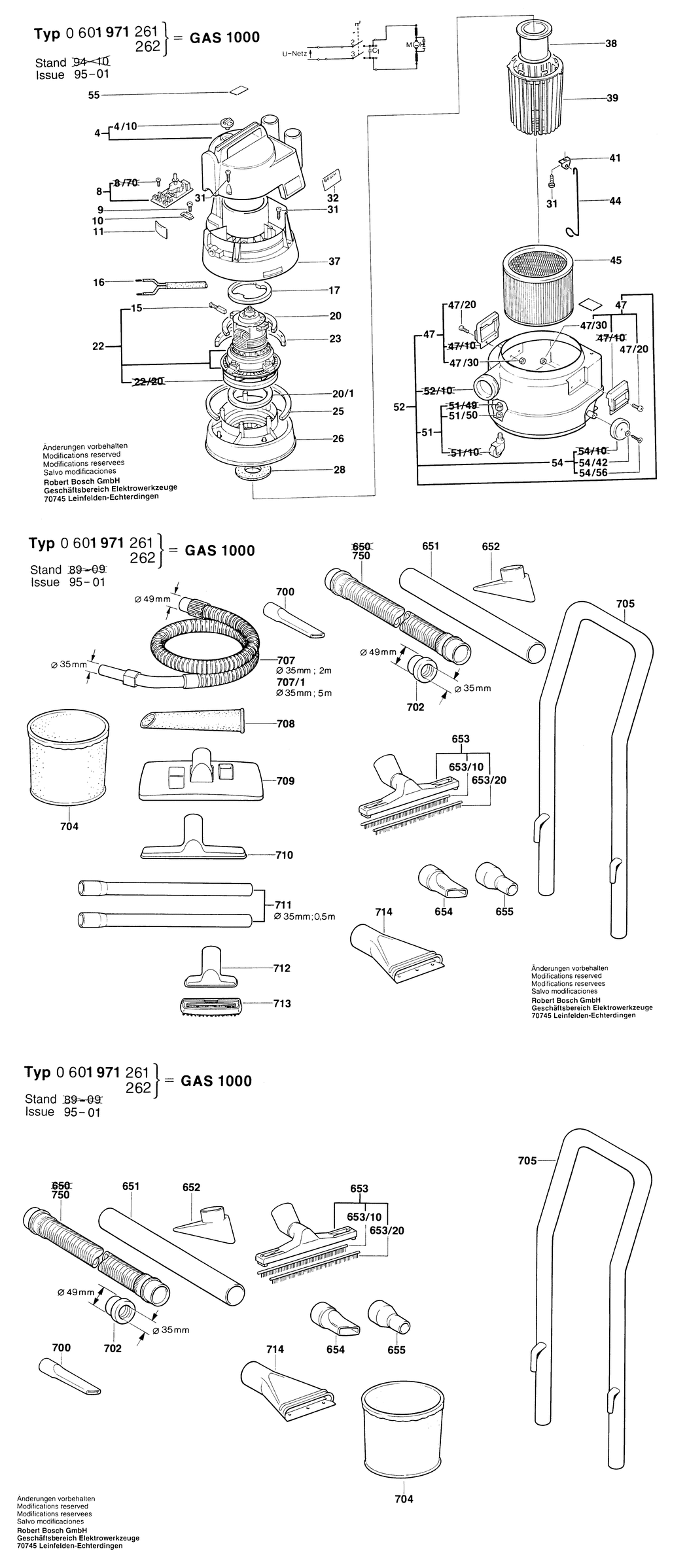

4 - COVERING HOOD
BSD-1609202372.A1
1609202372
|
-
|
|
|
|
4/10 - SWITCH BUTTON
BSD-1609202373.A12
1609202373
|
-
|
|
|
|
8 - ON-OFF SWITCH
BSD-1609201712.A21
1609201712
|
-
|
|
|
|
9 - TAPPING SCREW DIN 7971-B2.9x19
BSD-2910211208.A25
2910211208
|
-
|
|
|
|
10 - CLAMP
BSD-1609201659.A6
1609201659
|
-
|
|
|
|
11 - NAMEPLATE
BSD-1601110763.A0
1601110763
|
-
|
|
|
|
15 - CARBON-BRUSH SET
BSD-1609201699.A8
1609201699
|
-
|
|
|
|
16 - CABLE
BSD-1609201720.A9
1609201720
|
-
|
|
|
|
17 - AIR-DEFLECTOR RING
BSD-1609201666.A89
1609201666
|
-
|
|
|
|
20 - SEAL RING
BSD-1609201669.A61
1609201669
|
£5.87
|
£7.04
|
|
|
20/1 - SEAL RING
BSD-1609202374.A1
1609202374
|
-
|
|
|
|
22 - SUCTION BLOWER 110-115V
BSD-1609202369.A1
1609202369
|
-
|
|
|
|
23 - AIR FILTER
BSD-1609201672.A56
1609201672
|
-
|
|
|
|
25 - AIR FILTER
BSD-1609201674.A7
1609201674
|
-
|
|
|
|
26 - INTERMEDIATE FLANGE
BSD-1609202375.A20
1609202375
|
-
|
|
|
|
28 - AIR FILTER
BSD-1609202377.A19
1609202377
|
-
|
|
|
|
31 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A120
2910611015
|
£1.84
|
£2.21
|
|
|
32 - NAMEPLATE
BSD-1601110765.A1
1601110765
|
-
|
|
|
|
37 - INTERMEDIATE HOUSING
BSD-1609201715.A38
1609201715
|
-
|
|
|
|
38 - FLOAT
BSD-1609200952.A70
1609200952
|
-
|
|
|
|
39 - SUCTION BASKET
BSD-1609201684.A27
1609201684
|
-
|
|
|
|
41 - MOUNTING BRACKET
BSD-1609202407.A2
1609202407
|
-
|
|
|
|
44 - RETAINING BRACKET
BSD-1609202406.A13
1609202406
|
-
|
|
|
|
45 - AIR FILTER dia 245x194 MM
BSD-1609202378.A3
1609202378
|
-
|
|
|
|
47 - BENT-LEVER CLOSURE
BSD-1609201690.A23
1609201690
|
-
|
|
|
|
47/20 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8
BSD-2910021193.A68
2910021193
|
£1.84
|
£2.21
|
|
|
47/30 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1408
2915011007
|
-
|
|
|
|
51 - IMPELLER
BSD-1609201691.A40
1609201691
|
-
|
|
|
|
51/50 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A108
2915011009
|
£2.74
|
£3.29
|
|
|
52 - DUST CONTAINER
BSD-1609201692.A23
1609201692
|
-
|
|
|
|
54 - IMPELLER
BSD-1609202221.A6
1609202221
|
-
|
|
|
|
54/42 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A75
1609202726
|
£1.75
|
£2.10
|
|
|
54/56 - TAPPING SCREW DIN 7981-B4.2x19
BSD-2910611027.A24
2910611027
|
-
|
|
|
|
55 - REFERENCE PLATE
BSD-1601110724.A15
1601110724
|
-
|
|
|
|
651 - SUCTION PIPE dia 49 MM. L=0.5 M
BSD-1609200968.A118
1609200968
|
£12.24
|
£14.69
|
|
|
652 - SUCTION NOZZLE dia 49 MM
BSD-1609200969.A3
1609200969
|
-
|
|
|
|
653 - SUCTION NOZZLE dia 49 MM. 350 MM
BSD-1609200970.A111
1609200970
|
£27.55
|
£33.06
|
|
|
653/10 - FLAT BRUSH
BSD-1609201109.A111
1609201109
|
-
|
|
|
|
653/20 - FLAT BRUSH
BSD-1609201110.A16
1609201110
|
-
|
|
|
|
654 - CREVICE NOZZLE dia 49 MM
BSD-1609200971.A11
1609200971
|
£7.87
|
£9.44
|
|
|
655 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A135
1609200976
|
£3.79
|
£4.55
|
|
|
700 - CREVICE NOZZLE dia 35 MM. L= 250 MM
BSD-2607000165.A49
2607000165
|
£5.24
|
£6.29
|
|
|
702 - REDUCTION SLEEVE dia 49/35 MM+3/4
BSD-1609200933.A136
1609200933
|
£7.57
|
£9.08
|
|
|
704 - DUST SEPARATOR
BSD-2607432010.A33
2607432010
|
-
|
|
|
|
705 - GUIDE BRACKET
BSD-1609201627.A57
1609201627
|
-
|
|
|
|
707 - AIR HOSE dia 35 MM. 2 M.1
BSD-2607000163.A39
2607000163
|
-
|
|
|
|
707/1 - AIR HOSE dia 35 MM. L=5 M
BSD-1609202230.A4
1609202230
|
£85.74
|
£102.89
|
|
|
708 - SUCTION NOZZLE dia 35 MM
BSD-1609201229.A84
1609201229
|
£18.37
|
£22.04
|
|
|
709 - SUCTION NOZZLE dia 35 MM
BSD-1609201230.A54
1609201230
|
£41.99
|
£50.39
|
|
|
710 - FLAT SUCTION NOZZLE dia 35 MM-200 MM
BSD-1609201231.A27
1609201231
|
-
|
|
|
|
711 - SUCTION PIPE dia 35 MM. L=0.5 M
BSD-1609201232.A39
1609201232
|
-
|
|
|
|
712 - UPHOLSTERY NOZZLE dia 35 MM
BSD-1609201233.A27
1609201233
|
-
|
|
|
|
713 - SUCTION BRUSH
BSD-1609201234.A39
1609201234
|
-
|
|
|
|
714 - SUCTION NOZZLE dia 49 MM
BSD-1609201235.A27
1609201235
|
-
|
|
|
|
750 - AIR HOSE dia 49 MM. 3 M.1
BSD-2607000167.A39
2607000167
|
£67.98
|
£81.57
|
|
