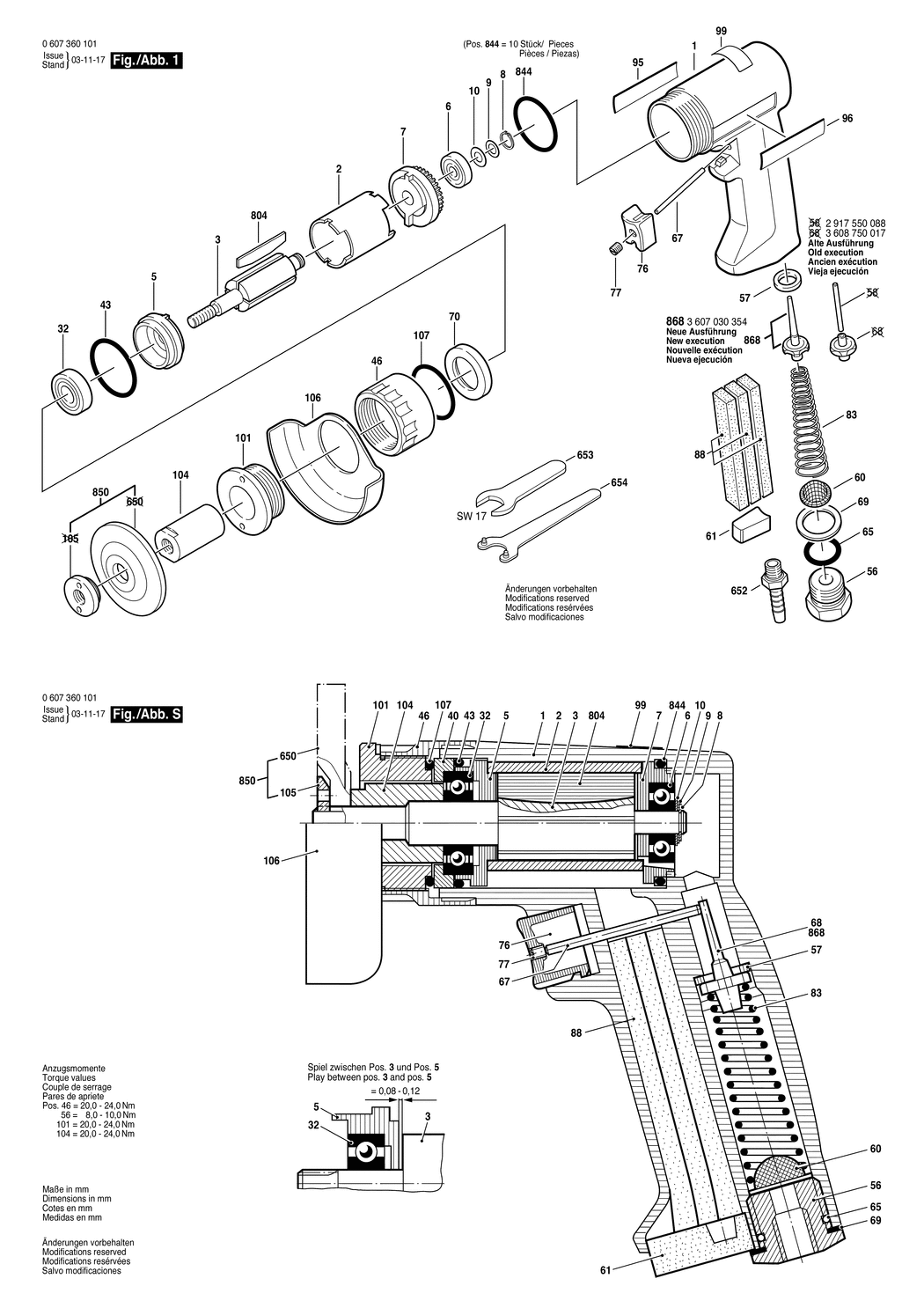

1 - MOTOR HOUSING
BSD-3605108040.A13
3605108040
|
£21.52
|
£25.83
|
|
|
2 - STATOR 320W
BSD-3604090029.A18
3604090029
|
£22.60
|
£27.12
|
|
|
3 - ROTOR
BSD-3604220043.A0
3604220043
|
£126.12
|
£151.34
|
|
|
5 - BEARING FLANGE
BSD-3605700078.A1
3605700078
|
£9.11
|
£10.93
|
|
|
6 - GROOVE BALL BEARING
BSD-3600905139.A1
3600905139
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700039.A21
3605700039
|
£9.11
|
£10.93
|
|
|
8 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A0
2916640004
|
£1.84
|
£2.21
|
|
|
9 - SHIM
BSD-3600150005.A3
3600150005
|
£2.27
|
£2.72
|
|
|
10 - SHIM 0.5 MM
BSD-1600100631.A147
1600100631
|
£1.75
|
£2.10
|
|
|
32 - GROOVE BALL BEARING
BSD-3600905140.A3
3600905140
|
£12.04
|
£14.45
|
|
|
43 - O-RING 30x2.5 MM
BSD-1900210131.A69
1900210131
|
£4.48
|
£5.37
|
|
|
46 - INTERMEDIATE HOUSING
BSD-3605125032.A1
3605125032
|
-
|
|
|
|
56 - FITTING
BSD-3603462011.A0
3603462011
|
£15.65
|
£18.78
|
|
|
57 - VALVE BUSHING
BSD-3600209004.A21
3600209004
|
£2.27
|
£2.72
|
|
|
60 - STRAINER
BSD-3600002006.A25
3600002006
|
£3.72
|
£4.47
|
|
|
61 - SILENCER
BSD-2607000179.A24
2607000179
|
£9.11
|
£10.93
|
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A171
1900210112
|
£2.61
|
£3.13
|
|
|
67 - STRAIGHT PIN
BSD-3603201043.A24
3603201043
|
£2.27
|
£2.72
|
|
|
69 - SHIM WASHER
BSD-3600105001.A47
3600105001
|
£1.75
|
£2.10
|
|
|
70 - SHIM WASHER
BSD-3600102018.A1
3600102018
|
-
|
|
|
|
76 - PUSH-BUTTON
BSD-3602053004.A1
3602053004
|
£5.57
|
£6.68
|
|
|
77 - SET SCREW M 4x4 DIN 913-45H
BSD-2912041114.A0
2912041114
|
£2.61
|
£3.13
|
|
|
83 - COMPRESSION SPRING
BSD-3604643012.A22
3604643012
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010006.A4
3601010006
|
£1.84
|
£2.21
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A573
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A166
3601119055
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A317
3601119236
|
£3.91
|
£4.69
|
|
|
101 - CLAMPING RING
BSD-3603462010.A0
3603462010
|
£62.51
|
£75.01
|
|
|
104 - ROUND NUT
BSD-3603342004.A0
3603342004
|
-
|
|
|
|
106 - PROTECTIVE COVER
BSD-3605510007.A0
3605510007
|
£12.64
|
£15.17
|
|
|
107 - O-RING 28x3 MM
BSD-1900210129.A49
1900210129
|
£2.74
|
£3.29
|
|
|
652 - HOSE FITTING
BSD-3603386068.A12
3603386068
|
£22.60
|
£27.12
|
|
|
653 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A192
2607950511
|
£4.48
|
£5.37
|
|
|
654 - PIN-TYPE FACE-WRENCH
BSD-1609310098.A1
1609310098
|
£22.50
|
£27.00
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030244.A8
3607030244
|
£25.05
|
£30.06
|
|
|
844 - PARTS SET
BSD-3607010026.A39
3607010026
|
£8.67
|
£10.41
|
|
|
850 - ASSEMBLY OF SERVICE PARTS
BSD-3607030374.A1
3607030374
|
-
|
|
|
|
868 - VALVE CONE
BSD-3607030354.A29
3607030354
|
£15.65
|
£18.78
|
|
