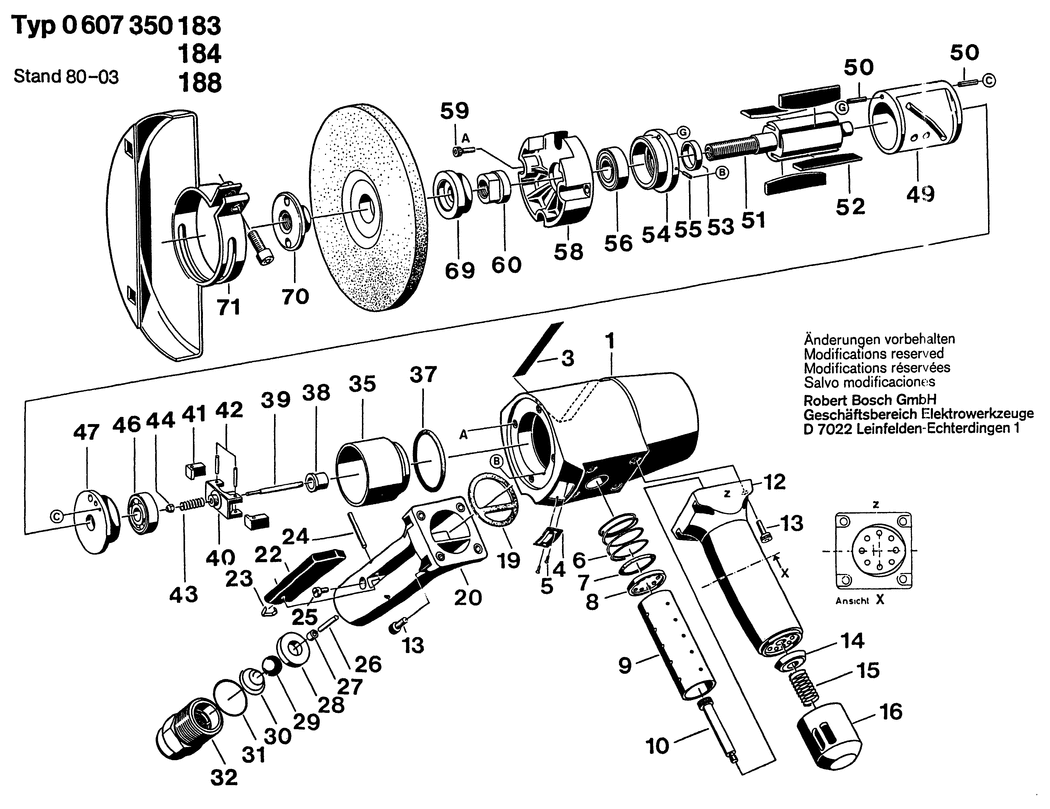

1 - MOTOR HOUSING
BSD-1609310255.A1
1609310255
|
-
|
|
|
|
3 - MANUFACTURER'S NAMEPLATE
BSD-1609310208.A14
1609310208
|
-
|
|
|
|
4 - NAMEPLATE
BSD-160111A3H5.A510
160111A3H5
|
£2.74
|
£3.29
|
|
|
5 - ROUND-HEAD GROOVED PIN
BSD-1609310358.A4
1609310358
|
-
|
|
|
|
6 - COMPRESSION SPRING
BSD-1609310192.A7
1609310192
|
-
|
|
|
|
7 - SEAL RING
BSD-1609310158.A10
1609310158
|
-
|
|
|
|
8 - PERFORATED PANEL
BSD-1609310280.A7
1609310280
|
-
|
|
|
|
9 - PVC TUBE
BSD-1609310283.A0
1609310283
|
-
|
|
|
|
10 - STOP BOLT
BSD-1609310135.A7
1609310135
|
-
|
|
|
|
12 - HANDLE
BSD-1609310251.A7
1609310251
|
-
|
|
|
|
12 - INSULATING PLATE
BSD-1609310323.A1
1609310323
|
-
|
|
|
|
13 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A40
2910141158
|
£1.84
|
£2.21
|
|
|
14 - PLAIN WASHER
BSD-1609310282.A8
1609310282
|
-
|
|
|
|
15 - COMPRESSION SPRING
BSD-1609310188.A8
1609310188
|
-
|
|
|
|
16 - PROTECTIVE CAP
BSD-1609310275.A7
1609310275
|
-
|
|
|
|
19 - SEALING PLATE
BSD-1609310153.A11
1609310153
|
-
|
|
|
|
20 - HANDLE
BSD-1609310263.A12
1609310263
|
-
|
|
|
|
22 - CONTROL LEVER
BSD-1609310272.A5
1609310272
|
-
|
|
|
|
23 - STOP BRACKET
BSD-1609310267.A7
1609310267
|
-
|
|
|
|
24 - NEEDLE ROLLER DIN5402-A3.5x34.8-G2
BSD-1903201064.A7
1903201064
|
£3.91
|
£4.69
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-8.8
BSD-2910021150.A13
2910021150
|
-
|
|
|
|
26 - NEEDLE ROLLER
BSD-1609310021.A3
1609310021
|
-
|
|
|
|
27 - GUIDE SLEEVE
BSD-1609310083.A1
1609310083
|
-
|
|
|
|
28 - PLAIN WASHER
BSD-1609310177.A5
1609310177
|
-
|
|
|
|
29 - BALL
BSD-1609310099.A5
1609310099
|
-
|
|
|
|
30 - COMPRESSION SPRING
BSD-1609310186.A4
1609310186
|
-
|
|
|
|
31 - SEAL RING
BSD-1609310157.A9
1609310157
|
-
|
|
|
|
32 - FITTING
BSD-1609310148.A4
1609310148
|
-
|
|
|
|
35 - GUIDE SLEEVE
BSD-1609310252.A0
1609310252
|
-
|
|
|
|
37 - SEAL RING
BSD-1609310158.A8
1609310158
|
-
|
|
|
|
38 - GUIDE BUSHING
BSD-1609310246.A1
1609310246
|
-
|
|
|
|
39 - STUD BOLT
BSD-1609310145.A1
1609310145
|
-
|
|
|
|
40 - REGULATOR ARMATURE
BSD-1609310244.A2
1609310244
|
-
|
|
|
|
41 - FLYWEIGHT
BSD-1609310248.A0
1609310248
|
-
|
|
|
|
42 - NEEDLE ROLLER A 3x15.8G2DIN5402
BSD-1903201044.A17
1903201044
|
£2.33
|
£2.80
|
|
|
43 - COMPRESSION SPRING
BSD-1609310189.A0
1609310189
|
-
|
|
|
|
44 - HEX NUT
BSD-2915061001.A1
2915061001
|
-
|
|
|
|
46 - GROOVE BALL BEARING 12x32x10
BSD-1900905225.A28
1900905225
|
£10.10
|
£12.12
|
|
|
47 - BEARING FLANGE
BSD-1609310241.A1
1609310241
|
-
|
|
|
|
49 - STATOR
BSD-1609310225.A1
1609310225
|
-
|
|
|
|
50 - SLOTTED SPRING PIN 2x6 DIN 1481
BSD-2917760034.A1
2917760034
|
£1.75
|
£2.10
|
|
|
51 - ROTOR
BSD-1609310220.A1
1609310220
|
-
|
|
|
|
52 - ROTOR LAMELLA
BSD-1609310233.A2
1609310233
|
-
|
|
|
|
53 - O-RING
BSD-1609310179.A1
1609310179
|
-
|
|
|
|
54 - BEARING FLANGE
BSD-1609310236.A1
1609310236
|
-
|
|
|
|
55 - SLOTTED SPRING PIN 4x16 DIN 1481
BSD-2917760097.A0
2917760097
|
-
|
|
|
|
56 - GROOVE BALL BEARING 6202-Z DIN 625
BSD-1900905204.A0
1900905204
|
-
|
|
|
|
58 - BEARING FLANGE
BSD-1609310264.A1
1609310264
|
-
|
|
|
|
59 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A138
2910141122
|
£2.27
|
£2.72
|
|
|
60 - GUIDE BUSHING
BSD-1609310276.A1
1609310276
|
-
|
|
|
|
69 - ROUND NUT M14
BSD-2603345004.A301
2603345004
|
£6.52
|
£7.83
|
|
|
70 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A283
2600501006
|
£17.26
|
£20.71
|
|
|
71 - PROTECTIVE COVER dia 125 MM
BSD-1605510022.A42
1605510022
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1410
3601119236
|
£3.91
|
£4.69
|
|
