Bosch ---- / 0607350182 / --- Spare Parts

Home Details Reviews Delivery

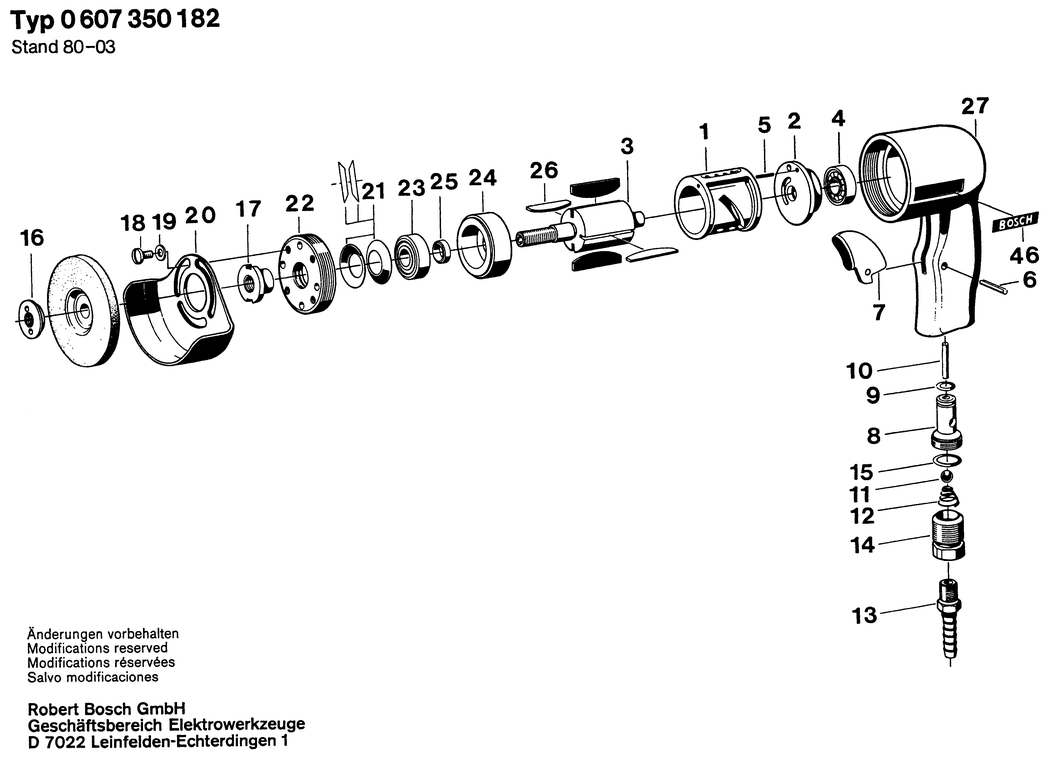

An exploded drawing and listing for the Bosch ---- / 0607350182 / ---

	Ex VAT	Inc VAT
1 - STATOR BSD-1609310052.A0 1609310052	-
2 - SEALING PLATE BSD-1609310061.A0 1609310061	-
3 - ROTOR BSD-1609310051.A0 1609310051	-
4 - GROOVE BALL BEARING 6000 DIN 625 BSD-1900900270.A62 1900900270	-
5 - SLOTTED SPRING PIN 2x12 DIN 1481 BSD-2917760037.A0 2917760037	-
6 - SLOTTED SPRING PIN 3x20 DIN 1481 BSD-2917760081.A16 2917760081	-
7 - CONTROL LEVER BSD-1609310300.A0 1609310300	-
8 - VALVE BODY BSD-1609310084.A0 1609310084	-
9 - SEAL RING BSD-1609310012.A0 1609310012	-
10 - NEEDLE ROLLER BSD-1609310021.A1 1609310021	-
11 - BALL BSD-1609310076.A2 1609310076	-
12 - COMPRESSION SPRING BSD-1609310027.A0 1609310027	-
13 - HOSE FITTING BSD-1609310043.A2 1609310043	-
14 - FITTING BSD-1609310003.A0 1609310003	-
15 - SEAL RING BSD-1609310013.A0 1609310013	-
16 - ROUND NUT WITH 2 HOLES BSD-3603340001.A1 3603340001	-
17 - BEARING FLANGE BSD-1609310090.A0 1609310090	-
18 - PAN HEAD SCREW BSD-2910091148.A0 2910091148	-
19 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A49 2916060006	£1.38	£1.66
20 - PROTECTIVE COVER BSD-1609310046.A0 1609310046	-
21 - DISC SPRING BSD-1609310031.A0 1609310031	-
22 - THREADED RING BSD-1609310089.A0 1609310089	-
23 - GROOVE BALL BEARING 6200-Z DIN 625 BSD-1900905200.A0 1900905200	-
24 - SEALING PLATE BSD-1609310058.A0 1609310058	-
25 - O-RING BSD-1609310023.A0 1609310023	-
26 - ROTOR LAMELLA BSD-1609310055.A0 1609310055	-
27 - MOTOR HOUSING BSD-1609310068.A0 1609310068	-
46 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A112 1601110013	-
46 - NAMEPLATE BSD-1601104578.A0 1601104578	-
46 - ROUND-HEAD GROOVED PIN 2x4 DIN 1476 ST BSD-2917721032.A0 2917721032	-
99 - REFERENCE PLATE BSD-3601119236.A1404 3601119236	£3.91	£4.69
