Bosch 550 WATT-SERIE / 0607352103 / --- Spare Parts

Home Details Reviews Delivery

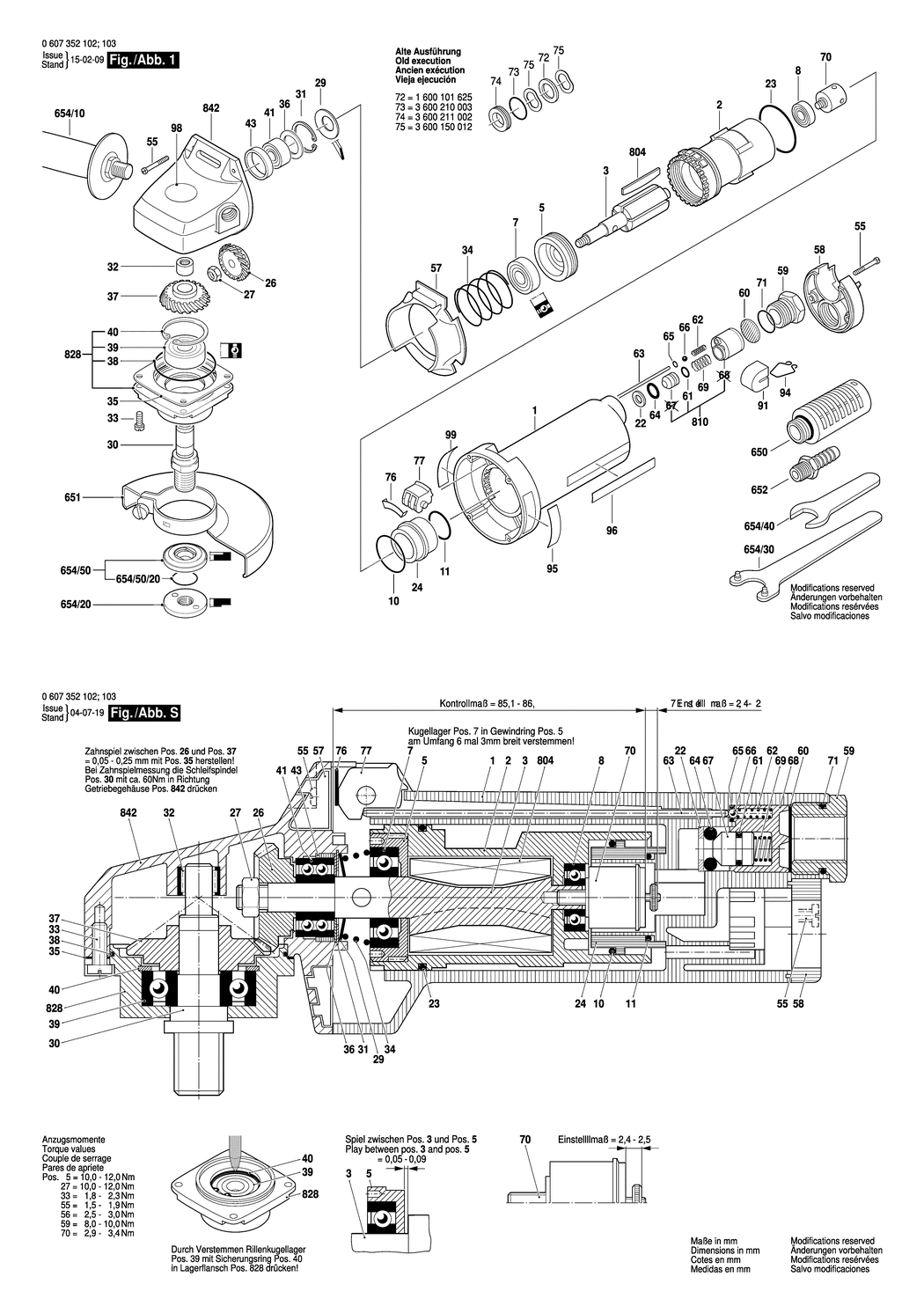

An exploded drawing and listing for the Bosch 550 WATT-SERIE / 0607352103 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108059.A18 3605108059	£27.23	£32.68
2 - STATOR 550W BSD-3604090049.A9 3604090049	£98.57	£118.28
3 - ROTOR BSD-3604220053.A1 3604220053	-
5 - BEARING FLANGE BSD-3605700074.A9 3605700074	£28.59	£34.31
7 - GROOVE BALL BEARING BSD-3600905038.A17 3600905038	£15.65	£18.78
8 - BALL BEARING 7x19x6 BSD-2600905032.A411 2600905032	£5.57	£6.68
10 - O-RING 28x2 MM BSD-1900210127.A3 1900210127	£5.57	£6.68
11 - O-RING 20x2 MM BSD-1900210118.A63 1900210118	£2.80	£3.36
22 - STOP DISC BSD-3600100022.A21 3600100022	£2.16	£2.59
23 - O-RING 39.0x2.0 MM BSD-3600210022.A31 3600210022	£3.72	£4.47
24 - GUIDE SLEEVE BSD-3600327000.A1 3600327000	£3.72	£4.47
26 - BEVEL GEAR Z=23 BSD-3606333045.A0 3606333045	£40.80	£48.96
27 - HEX NUT BSD-1603300017.A32 1603300017	-
29 - DISC SPRING DIN 2093-C25G21 BSD-2916160109.A1 2916160109	£2.16	£2.59
30 - GRINDING SPINDLE M14. SW17 BSD-1603523101.A14 1603523101	£18.96	£22.75
31 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A156 2916660009	£2.16	£2.59
32 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A836 1600910018	£5.57	£6.68
33 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A46 2914471401	£1.75	£2.10
34 - COMPRESSION SPRING BSD-3604619011.A4 3604619011	-
35 - SHIM 0.2 MM BSD-1600136010.A83 1600136010	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136011.A240 1600136011	£2.16	£2.59
35 - SHIM 0.1 MM BSD-1600136012.A83 1600136012	£1.75	£2.10
36 - STOP DISC BSD-3600101008.A43 3600101008	£1.75	£2.10
37 - CROWN GEAR Z=31 BSD-3606334049.A2 3606334049	£48.38	£58.06
38 - O-RING 46.0x1.1 MM BSD-3600210124.A195 3600210124	£2.94	£3.53
39 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A143 1600905006	£12.64	£15.17
40 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A445 2916660013	£2.16	£2.59
41 - ANG. CONTACT BALL BEARING BSD-3600905037.A3 3600905037	£33.74	£40.49
43 - RUBBER RING BSD-1600206025.A731 1600206025	£2.16	£2.59
55 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A859 2910211021	£1.75	£2.10
57 - COVER PLATE BSD-3600591000.A5 3600591000	£11.30	£13.56
58 - CONNECTION COVER BSD-3605500032.A17 3605500032	£9.11	£10.93
59 - FITTING BSD-3603462011.A40 3603462011	£15.65	£18.78
60 - FILTER SCREEN BSD-3600002004.A26 3600002004	£2.80	£3.36
61 - O-RING 6.0x2.0 MM BSD-3600210023.A13 3600210023	£3.91	£4.69
62 - COMPRESSION SPRING BSD-2604611025.A16 2604611025	£2.80	£3.36
63 - STRAIGHT PIN BSD-3604710054.A9 3604710054	£3.72	£4.47
64 - O-RING 5.94x3.53 MM BSD-3600210024.A42 3600210024	£2.27	£2.72
65 - O-RING 2.7x1.5 MM BSD-3600210025.A14 3600210025	£2.16	£2.59
66 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A160 1903230004	£2.27	£2.72
69 - COMPRESSION SPRING BSD-3604610024.A18 3604610024	£1.84	£2.21
70 - CENTRIFUGAL GOVERNOR BSD-3607021012.A6 3607021012	£40.80	£48.96
71 - O-RING 15x2 MM BSD-1900210112.A49 1900210112	£2.61	£3.13
72 - SHIM BSD-1600101625.A20 1600101625	£3.91	£4.69
73 - O-RING 15.6x1.8 MM BSD-3600210003.A77 3600210003	£1.84	£2.21
74 - RETAINING SNAP RING BSD-3600211002.A0 3600211002	-
75 - CORRUGATED WASHER BSD-3600150012.A3 3600150012	-
77 - TOGGLE SWITCH BSD-3602033001.A17 3602033001	£3.91	£4.69
91 - SILENCER BSD-3601010001.A37 3601010001	£2.16	£2.59
94 - HOLDING SPRING BSD-3601250003.A29 3601250003	£2.94	£3.53
95 - NAMEPLATE BSD-160111A3HF.A66 160111A3HF	£3.91	£4.69
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A239 1601110481	£2.27	£2.72
98 - REFERENCE PLATE BSD-3601119238.A6 3601119238	£3.72	£4.47
99 - REFERENCE PLATE BSD-3601119236.A1426 3601119236	£3.91	£4.69
650 - SILENCER BSD-3607000073.A192 3607000073	£19.91	£23.89
651 - PROTECTIVE COVER dia 125 MM (5) BSD-1605510117.A37 1605510117	-
652 - HOSE FITTING BSD-3603386068.A45 3603386068	£22.60	£27.12
654/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A823 160202509T	£3.91	£4.69
654/20 - ROUND NUT M14 BSD-1603345043.A509 1603345043	£9.11	£10.93
654/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A252 1607950052	£3.91	£4.69
654/40 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A888 2607950511	£4.48	£5.37
654/50 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A804 2605703014	£7.72	£9.27
654/50/20 - O-RING 20.35x1.78 MM BSD-1600210039.A37 1600210039	£2.27	£2.72
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030260.A23 3607030260	£21.68	£26.01
810 - PISTON ASSEMBLY GROUP BSD-3607030494.A7 3607030494	£18.96	£22.75
828 - BEARING FLANGE BSD-1607000936.A74 1607000936	£27.23	£32.68
842 - GEAR HOUSING BSD-3605806050.A6 3605806050	£54.42	£65.30

Attribute Name	Value
Brand	Bosch
