Fein ASW 18-45 PC / 71126300940 Spare Parts

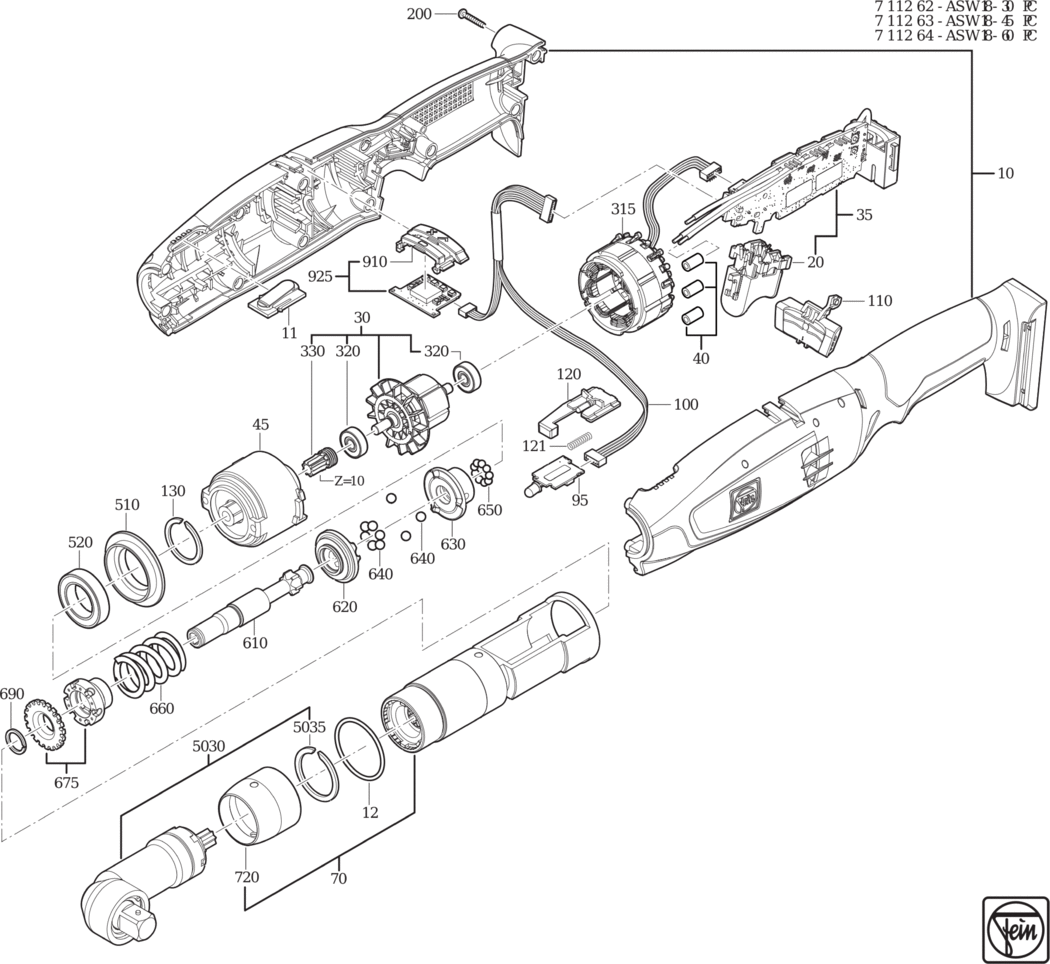

An exploded diagram and spare parts listing for the Fein ASW 18-45 PC / 71126300940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901197010.A5 31901197010	-
11 - COVER FEI-32424025004.A22 32424025004	-
12 - SEALING RING FEI-40612121003.A12 40612121003	£1.60	£1.92
30 - ROTOR Z=10 FEI-33101013010.A5 33101013010	-
35 - ELECTRONICS FEI-30762627990.A0 30762627990	-
45 - GEARBOX FEI-30109195990.A2 30109195990	-
70 - GEARBOX FEI-30109220020.A0 30109220020	-
95 - ELECTRONICS FEI-30762526990.A5 30762526990	-
100 - CABLE HARNESS FEI-30719933010.A5 30719933010	-
110 - TOGGLE SWITCH FEI-30701310010.A8 30701310010	£2.90	£3.48
120 - SLIDE SWITCH FEI-32804002010.A30 32804002010	-
121 - SPIRAL SPRING FEI-30901370000.A8 30901370000	-
130 - CIRCLIP FEI-42615000002.A8 42615000002	-
200 - SCREW FEI-43072015000.A82 43072015000	£1.60	£1.92
315 - STATOR FEI-51113017800.A3 51113017800	-
320 - GROOVED BALL BEARING FEI-41701235033.A24 41701235033	£13.80	£16.56
330 - GEAR-WHEEL FEI-33605011000.A6 33605011000	-
510 - FLANGE FEI-32436079000.A6 32436079000	-
520 - GROOVED BALL BEARING FEI-41701108222.A15 41701108222	£19.74	£23.69
610 - TOOL HOLDER FEI-30104152000.A1 30104152000	£52.58	£63.10
620 - CLUTCH RING FEI-30103052000.A42 30103052000	-
630 - CLUTCH RING FEI-30102108000.A10 30102108000	-
640 - BALL FEI-41708018000.A10 41708018000	£1.60	£1.92
650 - BALL FEI-41708017002.A77 41708017002	£1.60	£1.92
660 - SPIRAL SPRING FEI-30901372000.A2 30901372000	-
675 - PRESSURE PIECE SET FEI-32602092010.A45 32602092010	-
690 - CIRCLIP FEI-42615110009.A28 42615110009	£1.60	£1.92
720 - SLEEVE FEI-30509049000.A1 30509049000	-
910 - COVER FEI-31201148000.A1 31201148000	-
925 - ELECTRONICS FEI-30762527990.A10 30762527990	-
5030 - ANGLED HEAD WITH OUTPUT UP TO 45 NM FEI-90102015020.A1 90102015020	£899.74	£1079.69
5035 - CIRCLIP FEI-42615000001.A0 42615000001	-
9000 - N.A. FEI-34101305060.A6 34101305060	-
9020 - SAFETY INSTRUCTION FEI-34130465060.A11 34130465060	-
