Fein ASW 18-12 (12-18V) / 71126700940 Spare Parts

Fein ASW 18-12 ⠒-18V) / 71126700940 Spare Parts

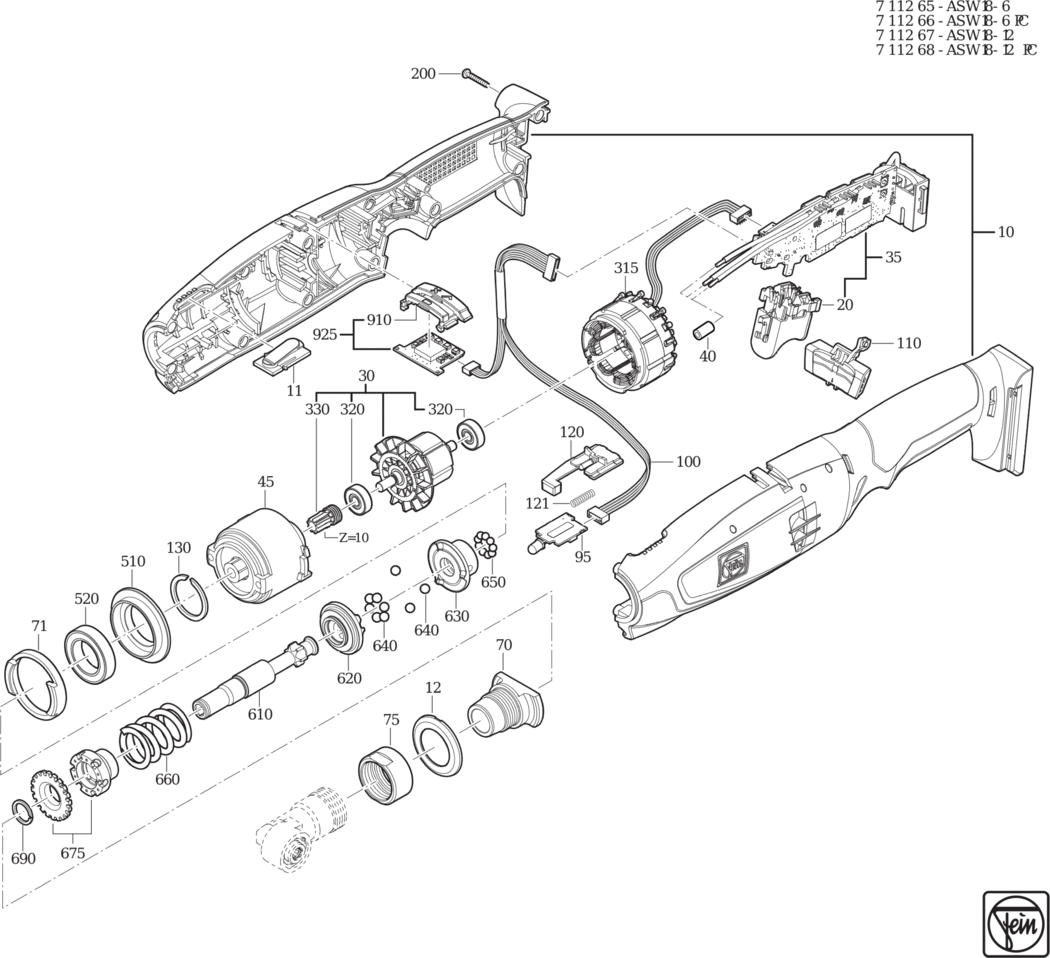

An exploded diagram and spare parts listing for the Fein ASW 18-12 (12-18V) / 71126700940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901197010.A4 31901197010	-
11 - COVER FEI-32424025004.A17 32424025004	-
12 - SLEEVE FEI-30501352000.A3 30501352000	-
30 - ROTOR Z=10 FEI-33101013010.A0 33101013010	-
35 - ELECTRONICS FEI-30762623990.A1 30762623990	-
45 - GEARBOX FEI-30109196990.A4 30109196990	-
70 - FLANGE FEI-32436080000.A2 32436080000	-
71 - RING FEI-32601279000.A2 32601279000	-
75 - THREAD RING FEI-30509048000.A2 30509048000	-
95 - ELECTRONICS FEI-30762526990.A2 30762526990	-
100 - CABLE HARNESS FEI-30719933010.A2 30719933010	-
110 - TOGGLE SWITCH FEI-30701310010.A10 30701310010	£2.90	£3.48
120 - SLIDE SWITCH FEI-32804002010.A29 32804002010	-
121 - SPIRAL SPRING FEI-30901370000.A13 30901370000	-
130 - CIRCLIP FEI-42615000002.A9 42615000002	-
200 - SCREW FEI-43072015000.A77 43072015000	£1.60	£1.92
315 - STATOR FEI-51113017800.A2 51113017800	-
320 - GROOVED BALL BEARING FEI-41701235033.A30 41701235033	£13.80	£16.56
330 - GEAR-WHEEL FEI-33605011000.A11 33605011000	-
510 - FLANGE FEI-32436079000.A5 32436079000	-
520 - GROOVED BALL BEARING FEI-41701108222.A10 41701108222	£19.74	£23.69
610 - TOOL HOLDER FEI-30104152000.A3 30104152000	£52.58	£63.10
620 - CLUTCH RING FEI-30103052000.A40 30103052000	-
630 - CLUTCH RING FEI-30102108000.A5 30102108000	-
640 - BALL FEI-41708018000.A4 41708018000	£1.60	£1.92
650 - BALL FEI-41708017002.A83 41708017002	£1.60	£1.92
660 - SPIRAL SPRING FEI-30901372000.A3 30901372000	-
675 - PRESSURE PIECE SET FEI-32602092010.A47 32602092010	-
690 - CIRCLIP FEI-42615110009.A23 42615110009	£1.60	£1.92
910 - COVER FEI-31201148000.A2 31201148000	-
925 - ELECTRONICS FEI-30762527990.A9 30762527990	-
9000 - N.A. FEI-34101305060.A0 34101305060	-
9020 - SAFETY INSTRUCTION FEI-34130465060.A5 34130465060	-

Attribute Name	Value
Brand	Fein
