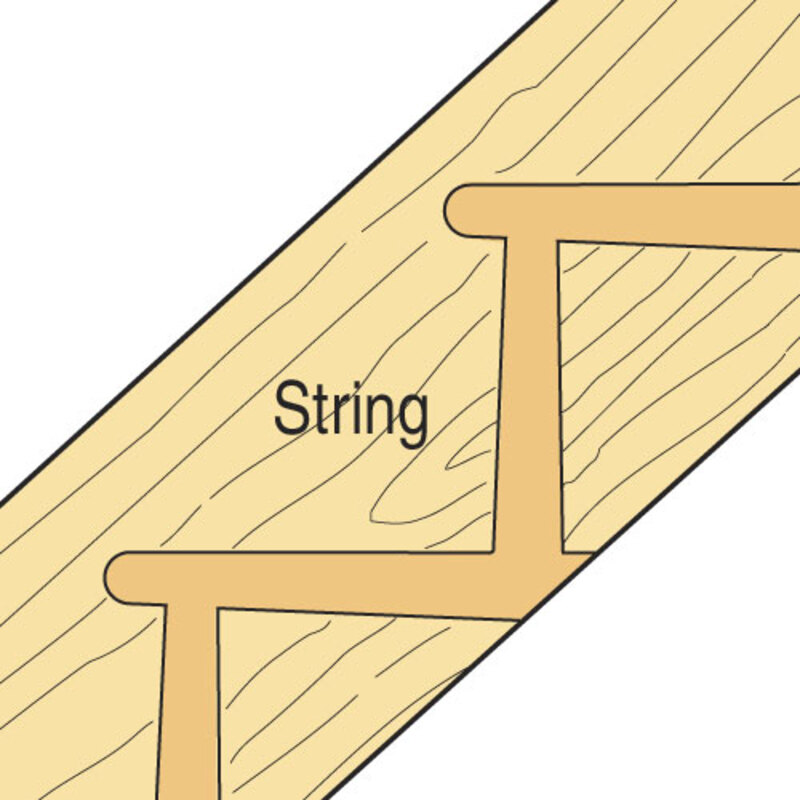

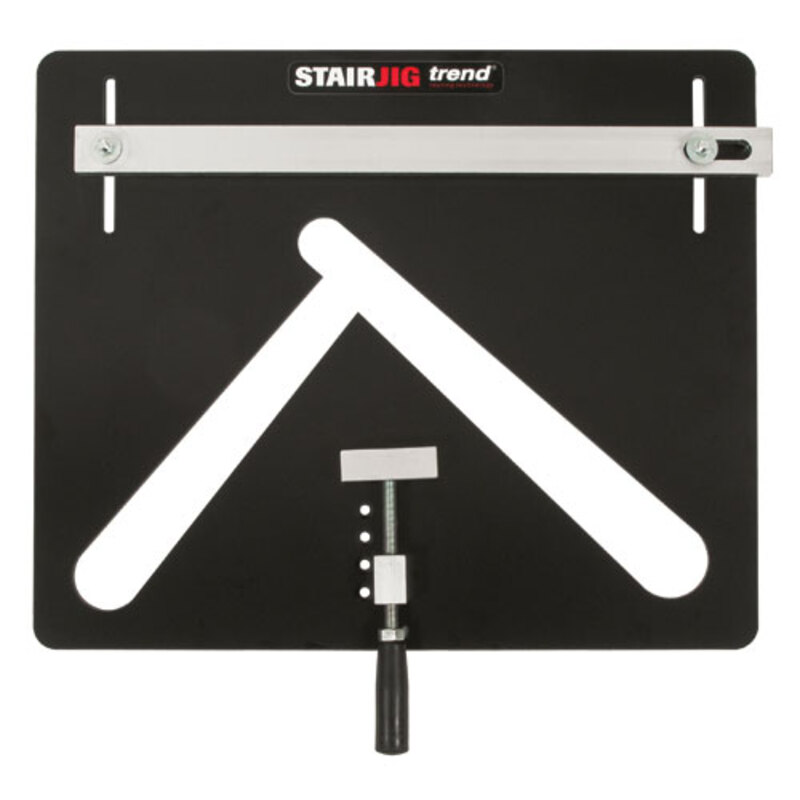

This template jig is a well proven means of routing out stair housings quickly and accurately.
Constructed from hard wearing Compact Grade High Pressure Laminate and includes a reversible fence for exact matching of stair strings and fully adjustable nosing piece.
Built-in heavy duty front clamp for quick clamping for each trench.
Adjustable to suit private and common stair angle pitch.

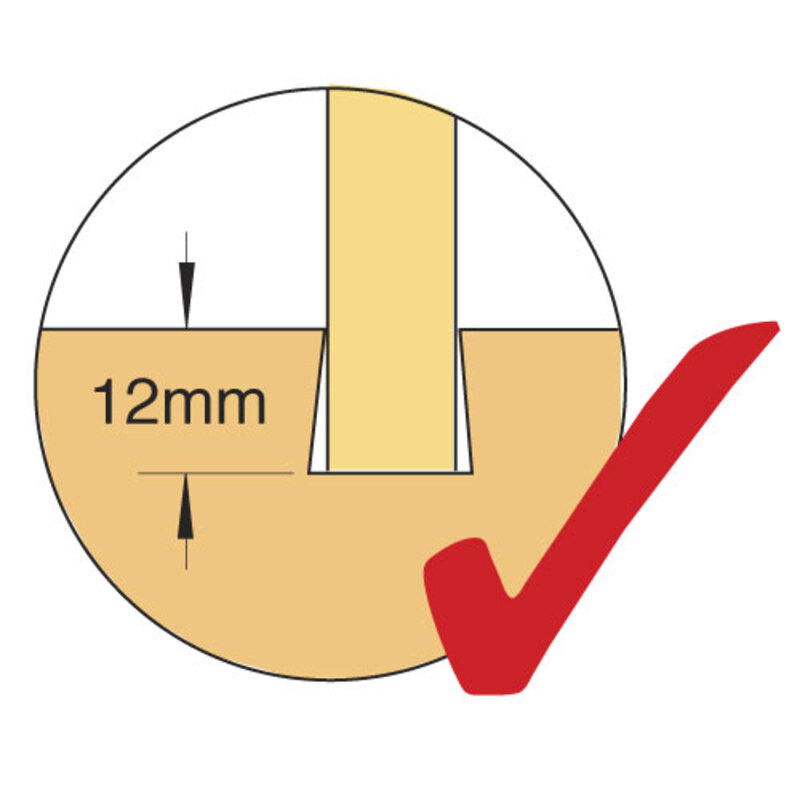

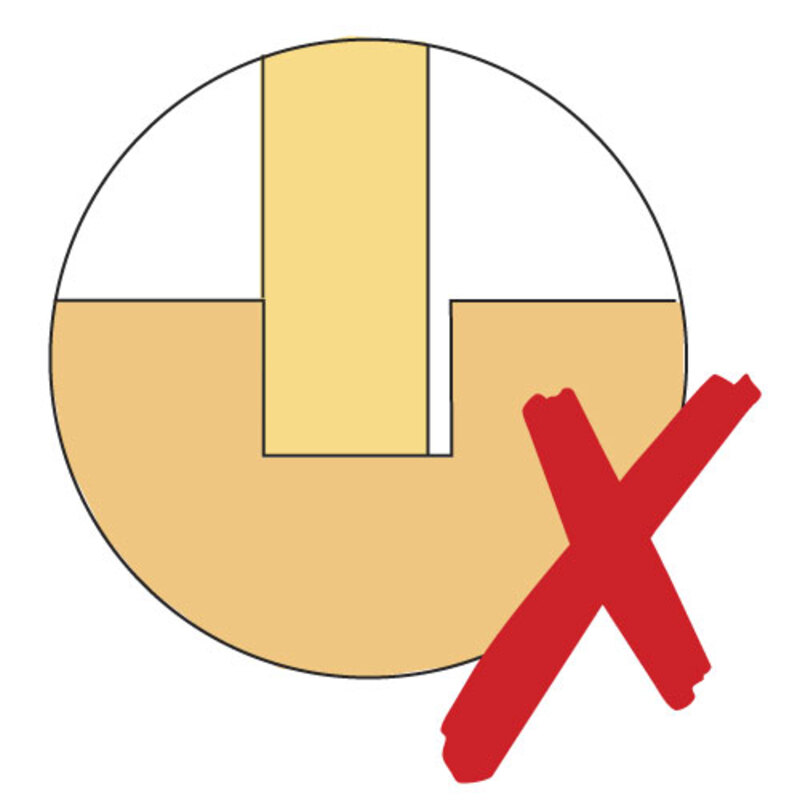

Standard TCT dovetail cutters are offered for various tread thicknesses.
All heavy duty routers over 1600 watts can be used.
Sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2 inch routers for other makes the sub-base will have to be redrilled.
Please state the make and model in the special requirements/comments box on the delivery details page when ordering.
Router not included.

Specification:
Tread Thickness=22-32 mm
Slider Diameter=30 mm
Nosing Adjustment=16-19 mm
Length=585 mm
Height=485 mm
Width=12.5 mm
Weight=6.17kg

Includes:
1 x Sub-base
1 x Adjustable reversible clamp bar
1 x Reversible clamp bar
1 x Nosepiece
1 x Line-up pin & bush
2 x Spanners
