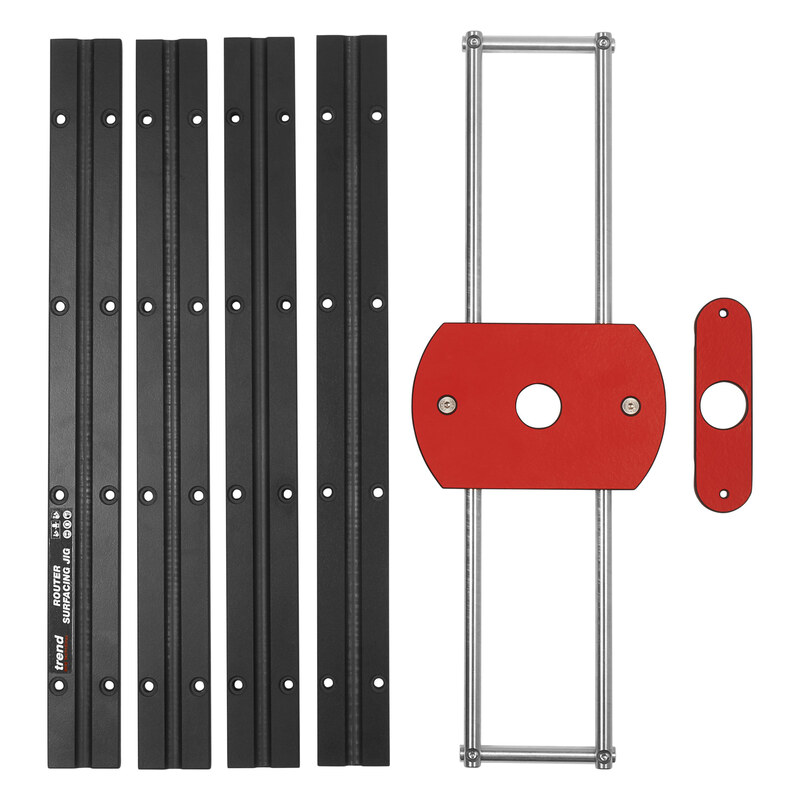

Adaptable compact jig for flattening surfacing and trenching work on wide or irregular shaped material
IDEAL FOR WIDER MATERIALS Surfaces and flattens stock up to 400mm wide
END GRAIN ROUTING Routing cut across the surface of end grain for clean finish
CONTROLLED CUTTING Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts
BI-DIRECTIONAL CUTTING Can be used across or along the grain
HPL MATERIAL High Pressure Laminate running rails and router cradle for wear-free performance accuracy and durability
TWIN 12MM STAINLESS STEEL RAILS Supports heavier routers up to 7Kg weight without distortion
FIXED POSITION CRADLE Cradle can be locked to the bars for single axis movement such as trenching cuts
NO FIXED SUB BASE REQUIRED Simple guide bush location cradle for fast set up and removal
30MM GUIDE BUSH CONNECTION Links to the cradle with 30mm guide bush for compatibility with multiple brands and router sizes
EXTENDABLE DESIGN Additional running rails can be added for longer sleds
SLIM MODULAR DESIGN Easily stores away saving workshop space

Specification:
Rails
Length=511 mm
Width=50 mm
Thickness=12 mm
Steel bars
Length=511mm
Thickness=12mm
Router base plate bore=30 mm
Max. router weight=7 kg
