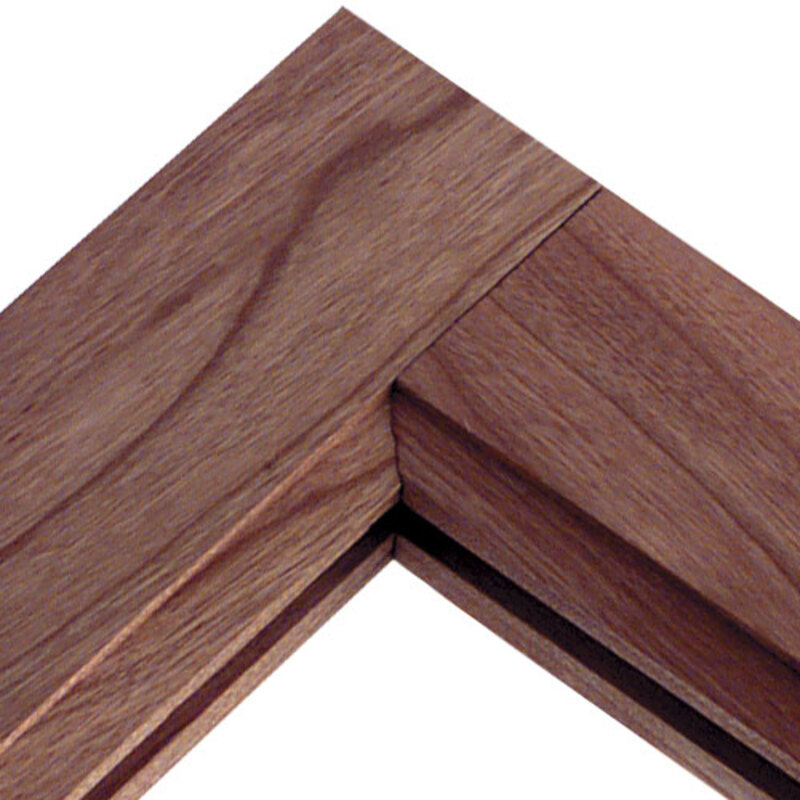

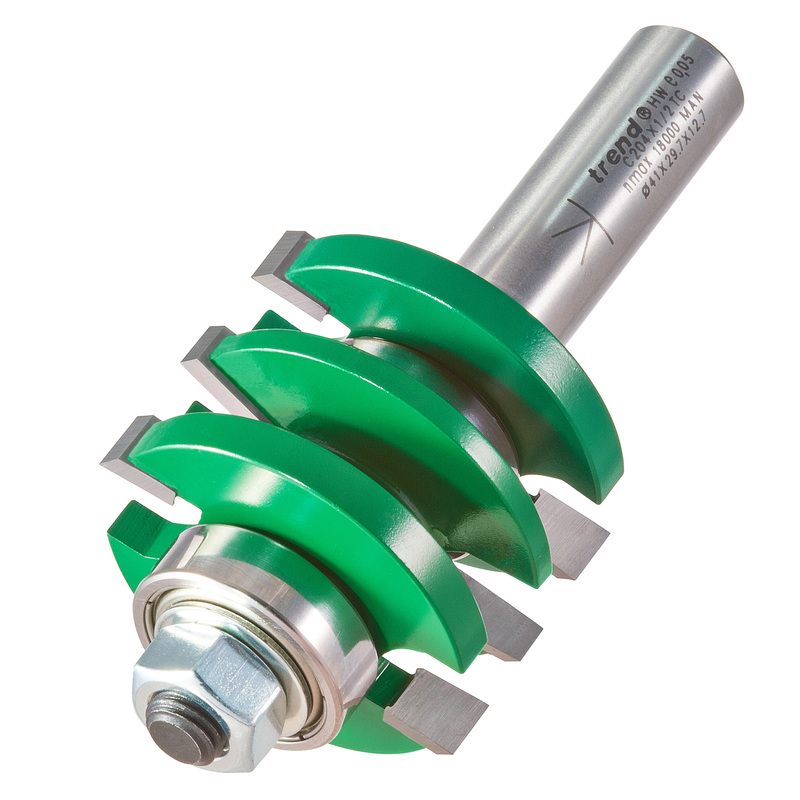

The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type components are re-arranged on the arbor to cut the profile or the scribe.

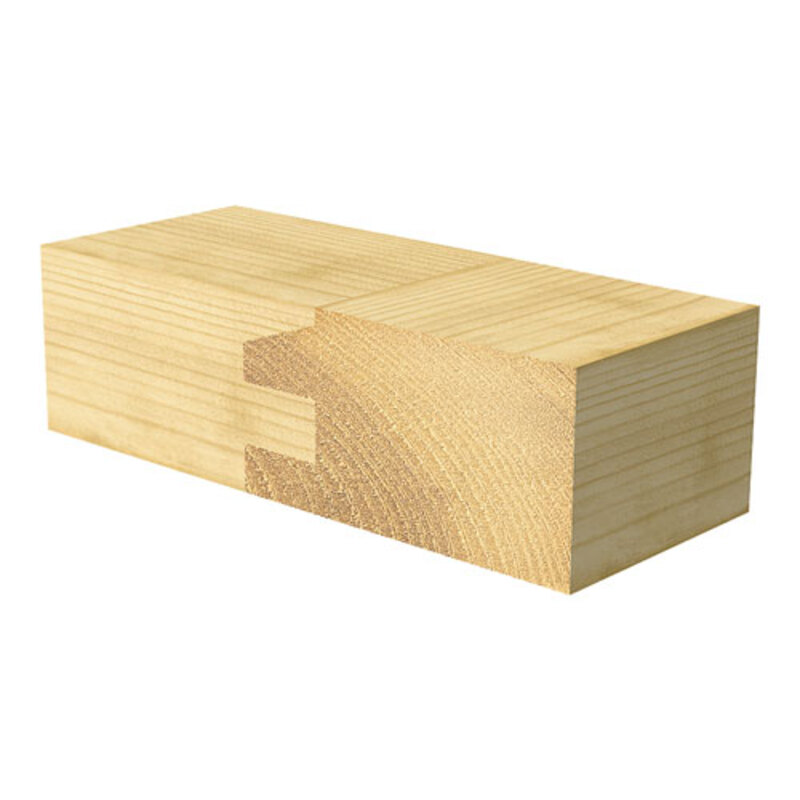

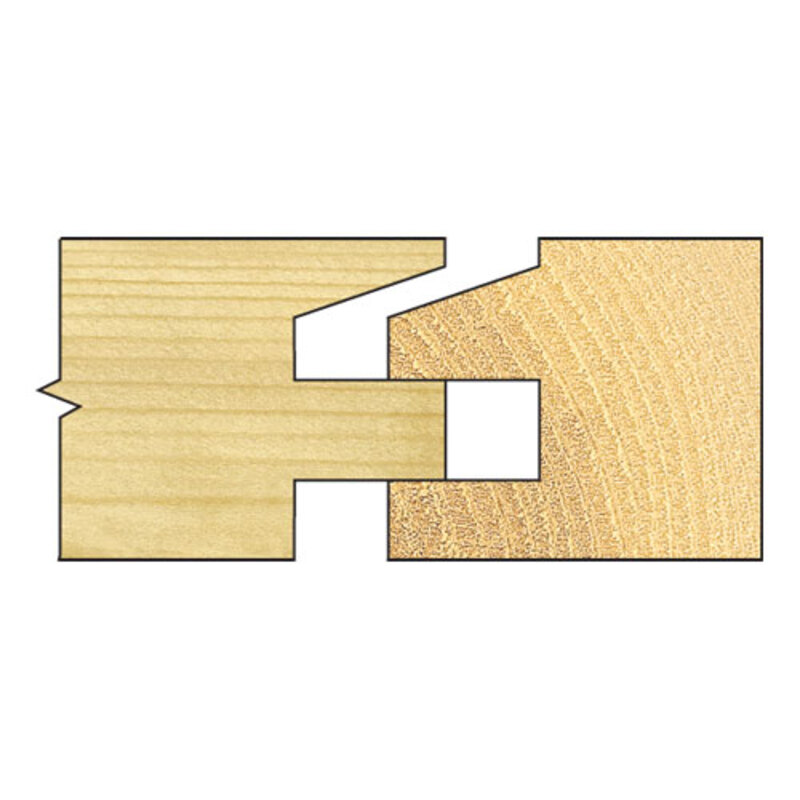

Cuts both parts of the joint by only changing the cutter height. No reassembly of the tool is required so saving time.

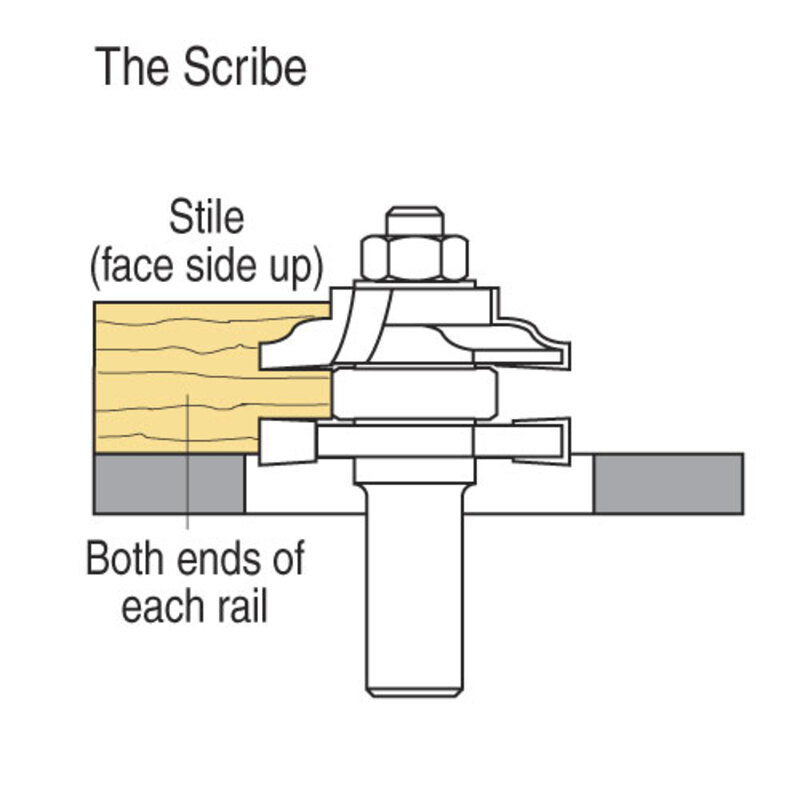

Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other. When using Easyset cutters take several passes.

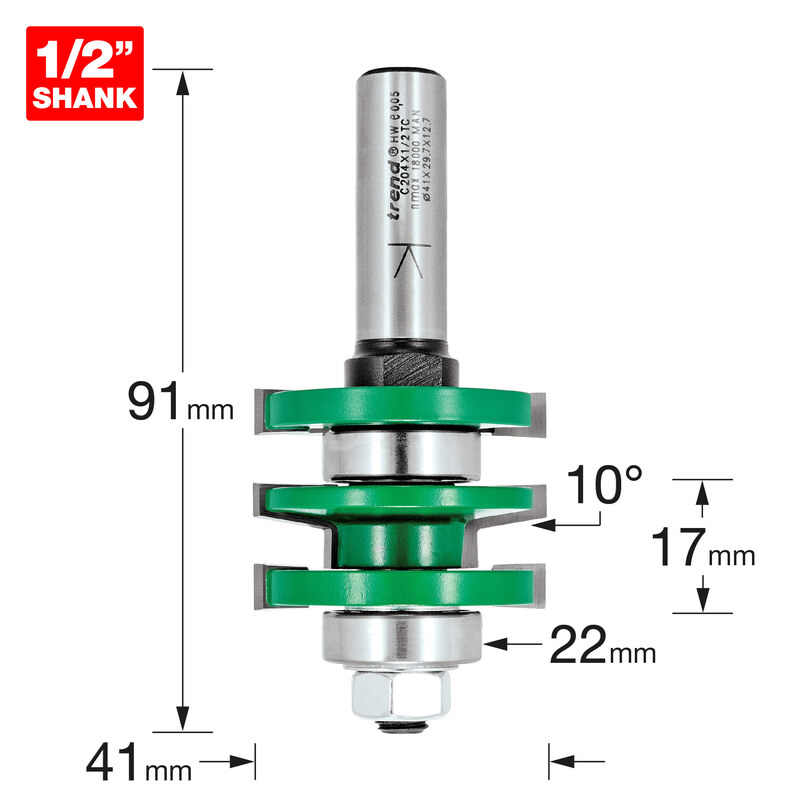

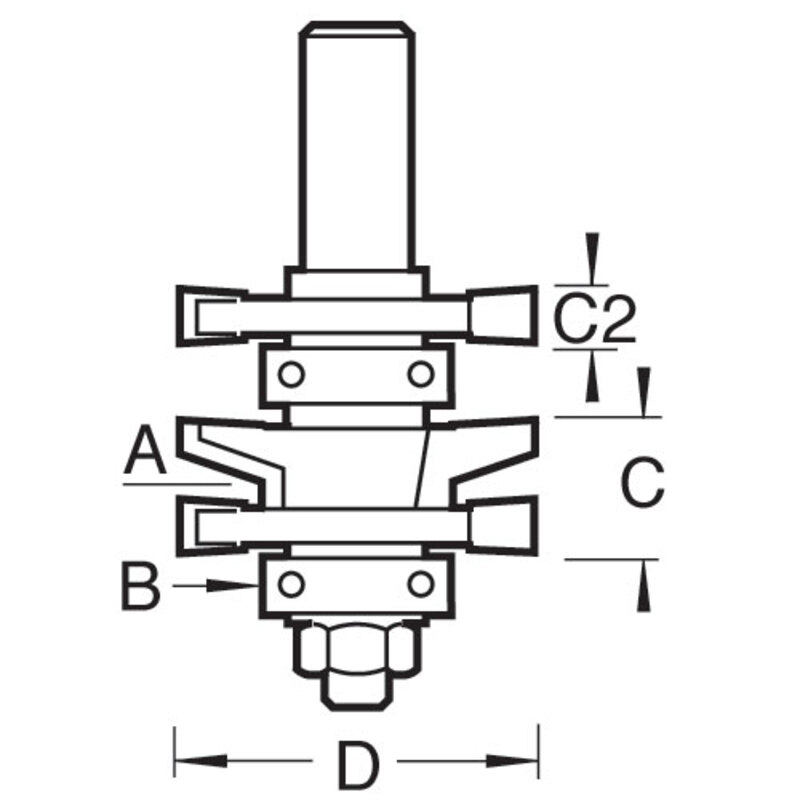

Specification:
D=41 mm
C=17 mm
C2=6.35 mm
B=22 mm
A=10 degrees
Shank Diameter=1/2 inch
OL=91 mm
Timber thickness min.=18 mm
Timber thickness max.=22 mm
