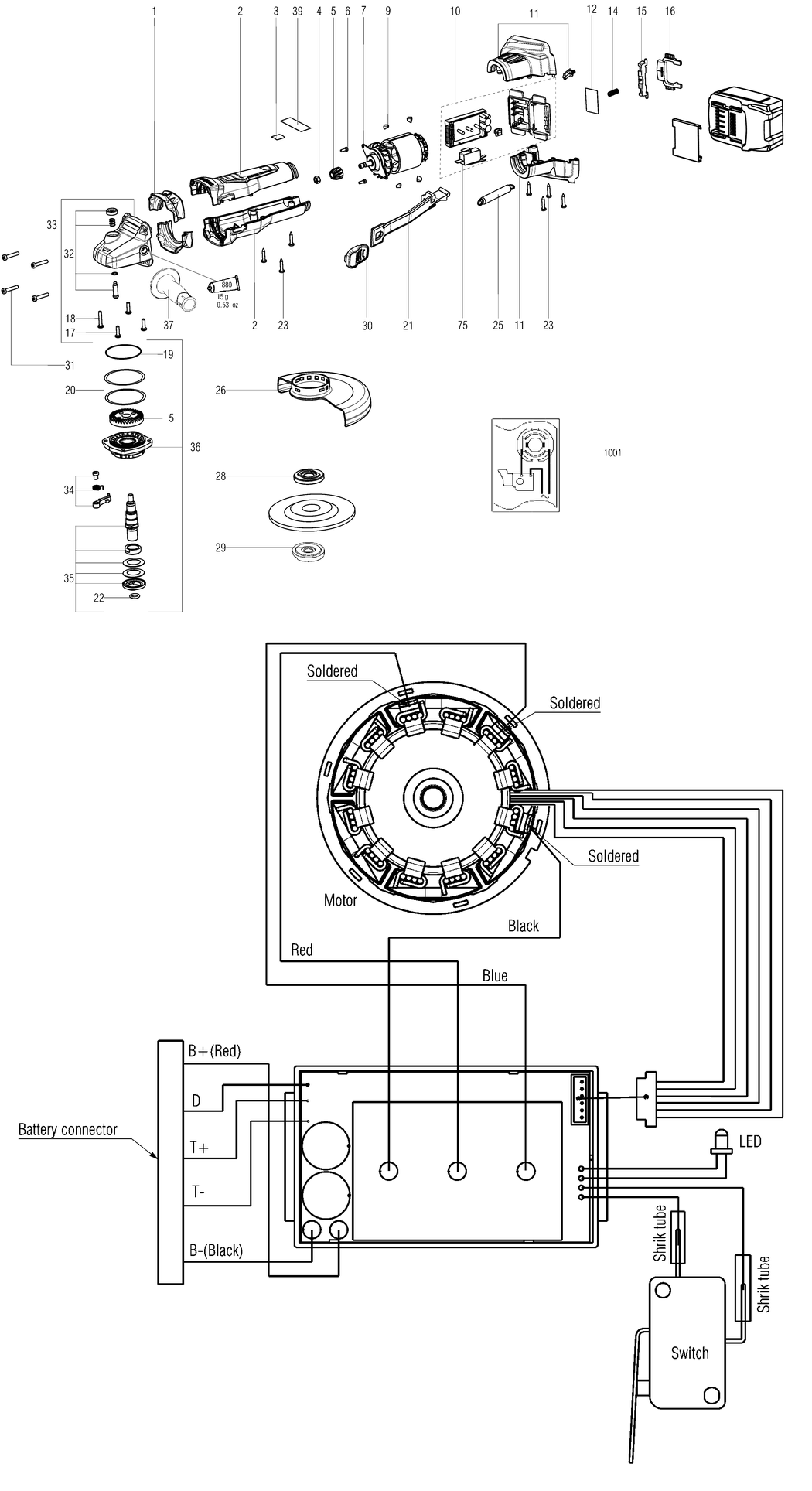

1 - BAFFLE
MET-339151230.A5
339151230
|
£3.20
|
£3.84
|
|
|
2 - MOTOR HOUSING BLACK
MET-315014030.A0
315014030
|
-
|
|
|
|
3 - INDICATION LABEL
MET-338129940.A69
338129940
|
£3.20
|
£3.84
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A5
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316057770.A0
316057770
|
£22.96
|
£27.55
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A32
141110460
|
£1.50
|
£1.80
|
|
|
7 - MOTOR COMPL.
MET-316096700.A4
316096700
|
£94.04
|
£112.85
|
|
|
9 - RUBBER BUFFER
MET-344101750.A5
344101750
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT WE 18 BL
MET-343084550.A7
343084550
|
£86.42
|
£103.71
|
|
|
11 - BATTERY HOUSING COMPL.
MET-316069500.A0
316069500
|
-
|
|
|
|
12 - RATING PLATE 13077000 WB 18 LTX
MET-338073300.A0
338073300
|
-
|
|
|
|
14 - PRESSURE SPRING
MET-342003030.A88
342003030
|
£1.50
|
£1.80
|
|
|
15 - LOCKING PIECE
MET-343430520.A56
343430520
|
£2.94
|
£3.53
|
|
|
16 - SWITCH SLIDE
MET-343430530.A17
343430530
|
£3.20
|
£3.84
|
|
|
17 - FILL. HEAD SCREW
MET-141120070.A46
141120070
|
£1.50
|
£1.80
|
|
|
18 - FILLISTER HEAD SCREW DUO-TAPTITE
MET-141123920.A9
141123920
|
£2.94
|
£3.53
|
|
|
19 - O-RING 48 X 1
MET-344097550.A82
344097550
|
£1.50
|
£1.80
|
|
|
20 - COMPENSATING WASHER
MET-339060160.A8
339060160
|
£3.20
|
£3.84
|
|
|
21 - SWITCH ROD
MET-343438510.A7
343438510
|
£3.20
|
£3.84
|
|
|
22 - O-RING
MET-143192540.A98
143192540
|
£1.50
|
£1.80
|
|
|
23 - SELF-TAP. FILL. H. SCREW
MET-141113180.A225
141113180
|
£1.50
|
£1.80
|
|
|
25 - TENSION SPRING
MET-342004000.A2
342004000
|
£2.94
|
£3.53
|
|
|
26 - WHEEL GUARD D 125
MET-339203490.A8
339203490
|
£22.96
|
£27.55
|
|
|
28 - CLAMPING FLANGE
MET-341031160.A458
341031160
|
£15.41
|
£18.49
|
|
|
29 - QUICKNUT M14
MET-316064680.A40
316064680
|
£13.63
|
£16.36
|
|
|
30 - SWITCH SLIDE RED
MET-343412110.A0
343412110
|
£2.94
|
£3.53
|
|
|
31 - SELF-TAP FILL H SCREW
MET-141116020.A604
141116020
|
£3.20
|
£3.84
|
|
|
32 - SPINDLE STOP COMPL.
MET-316040610.A71
316040610
|
£4.76
|
£5.71
|
|
|
33 - GEAR HOUSING COMPL.
MET-316046070.A47
316046070
|
£30.06
|
£36.07
|
|
|
34 - CLAMPING LEVER COMPL.
MET-316047590.A11
316047590
|
£17.55
|
£21.06
|
|
|
35 - SPINDLE COMPL.
MET-316092970.A2
316092970
|
£30.06
|
£36.07
|
|
|
36 - FLANGE COMPL.
MET-316092980.A5
316092980
|
£63.36
|
£76.03
|
|
|
37 - HANDLE CPL.
MET-314000540.A173
314000540
|
£15.41
|
£18.49
|
|
|
39 - TYPE LABEL FEATURES13090890 WB 18 LTX
MET-338132150.A0
338132150
|
-
|
|
|
|
75 - DEFOND µ-SWITCH DMU-112D-006
MET-343411790.A7
343411790
|
£9.62
|
£11.54
|
|
|
880 - GREASE 100G
MET-344130910.A225
344130910
|
£19.18
|
£23.02
|
|
|
1001 - WIRING DIAGRAM
MET-338510160.A6
338510160
|
-
|
|
|
