Makita 5017RKB Dustless Circular Saw Spare Parts

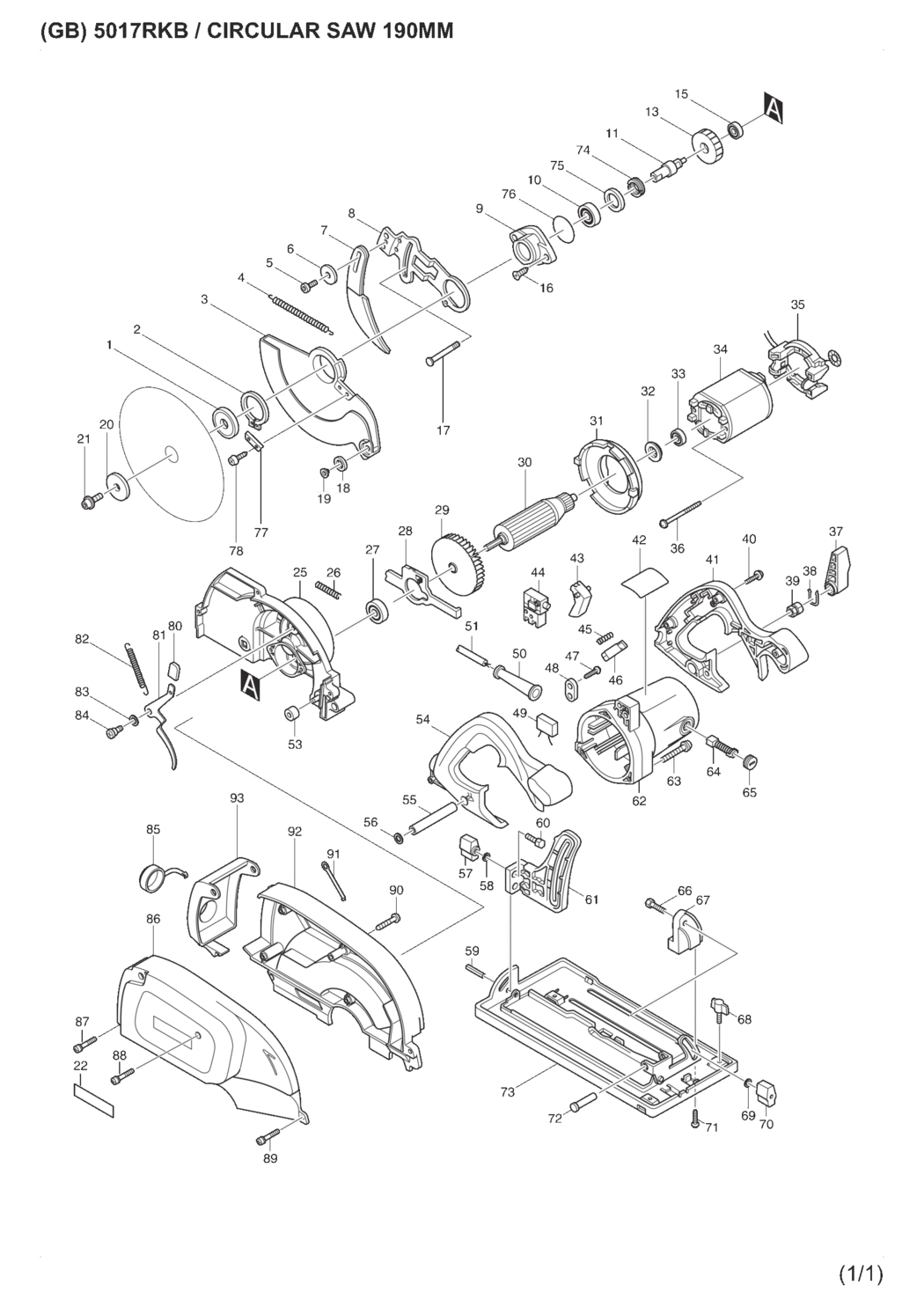

An exploded drawing and spare parts listing for the Makita 5017RKB Dustless Circular Saw

	Ex VAT	Inc VAT
1 - INNER FLANGE 40 5703R/5017RKB MSP-224339-9.A2 224339-9	£7.18	£8.61
2 - RETAINING RING S-40 5703R/560 MSP-961156-3.A5 961156-3	£1.44	£1.73
3-1 - SAFETY COVER 5017RKB MSP-318077-4 318077-4	£20.30	£24.36
4-1 - TENSION SPRING 4 5703R/5603R MSP-231827-9.A0 231827-9	£2.50	£3.00
4-2 - TENSION SPRING 4 5017RKB MSP-231845-7 231845-7	£1.44	£1.73
5 - CAP HD SCREW M6X12 PC5000/500 MSP-922312-0.A9 922312-0	£1.44	£1.73
6 - LARGE HARD WASHER 6 MSP-253783-3.A7 253783-3	£1.44	£1.73
7 - RIVING KNIFE BSR730/5704R MSP-165094-3.A3 165094-3	£10.61	£12.73
7-1 - RIVING KNIFE 5703R/5017RKB MSP-165623-2.A0 165623-2	£9.98	£11.98
8-1 - RIVING KNIFE HOLDER 5703R MSP-345733-3.A0 345733-3	£4.52	£5.43
9 - BEARING BOX 5603R/5017RKB MSP-317469-4.A0 317469-4	£11.23	£13.48
10-1 - BALL BEARING 6002DDW GA5020/2 MSP-211236-8.A13 211236-8	£8.42	£10.11
11 - SPINDLE 5603R/5703R/5017RKB MSP-322922-7.A0 322922-7	£27.65	£33.18
13 - HELICAL GEAR 41 5703R/5017RKB MSP-226473-1.A2 226473-1	£20.30	£24.36
15-1 - BALL BEARING 608 BFS440/BFR5 MSP-211034-0.A14 211034-0	£3.59	£4.31
15 - BALL BEARING 608DDW GA5020 MSP-210005-4.A63 210005-4	£8.42	£10.11
16 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A39 265034-2	£1.44	£1.73
17 - CAP SQUARE NECK BOLT M8X98 59 MSP-266019-1.A4 266019-1	£2.50	£3.00
18 - ROLLER 20 5903R/5603R/5604R MSP-415438-0.A5 415438-0	£1.66	£1.99
19 - ROLLER PIN 6 5903R/5603R/5604 MSP-415437-2.A6 415437-2	£1.44	£1.73
20 - OUTER FLANGE 40 5603R/5703R MSP-224338-1.A0 224338-1	£6.71	£8.05
21 - CAP HD SCREW M6X20 W.CAPTIVE MSP-266139-1.A0 266139-1	£1.44	£1.73
22 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A34 819064-1	£1.44	£1.73
25 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A918 263005-3	£1.44	£1.73
25-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A931 263005-3	£1.44	£1.73
25-1 - BLADE CASE COMLETE 5017RKB MSP-158087-7 158087-7	£68.54	£82.25
26 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A8 233092-6	£1.44	£1.73
27 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A122 211129-9	£10.14	£12.17
28 - SHAFT LOCK 5703R/5603R/5017RK MSP-344114-8.A0 344114-8	£4.37	£5.24
29 - FAN 76 HR4000C/5017RKB/4131 MSP-241876-8.A1 241876-8	£3.90	£4.68
30 - ARMATURE ASSY 110V 5703R/5017 MSP-516201-5.A2 516201-5	£101.43	£121.72
30B - ARMATURE ASSY 240V 5017RKB MSP-516419-8 516419-8	£72.82	£87.39
31 - BAFFLE PLATE 5703R/5017RKB MSP-415460-7.A0 415460-7	£2.50	£3.00
32 - INSULATION WASHER 4157KB MSP-681625-5.A4 681625-5	£1.44	£1.73
33 - BALL BEARING 608DDW GA5020 MSP-210005-4.A64 210005-4	£8.42	£10.11
34 - FIELD 110V 5703R/5017RKB MSP-634211-1.A0 634211-1	£40.03	£48.04
34A - FIELD 240V 5017RKB MSP-634373-5 634373-5	£40.03	£48.04
35-1 - SUPPORT 5603R/5703R/5705 MSP-135793-1.A0 135793-1	£9.20	£11.04
35-1 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A18 654020-2	£1.44	£1.73
35-1 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A50 654501-6	£1.44	£1.73
36 - PT SCREW 5X65 5703R MSP-266029-8.A22 266029-8	£1.44	£1.73
37 - LEVER 54 5903R/5603R/BSR730S MSP-272230-5.A0 272230-5	£2.50	£3.00
38 - RING SPRING 12 5903R/5603R/BS MSP-231955-0.A6 231955-0	£1.44	£1.73
39 - HEX NUT M8 MSP-252141-0.A2 252141-0	£3.59	£4.31
40 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A43 266041-8	£1.44	£1.73
41 - HANDLE SET 5703R/5603R MSP-182675-8.A7 182675-8	£40.03	£48.04
43 - SWITCH LEVER 5903R/5603R/5143 MSP-415439-8.A4 415439-8	£2.34	£2.81
44 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A26 651922-3	£15.42	£18.51
45 - COMPRESSION SPRING 4 5903R MSP-231230-4.A0 231230-4	£1.44	£1.73
46 - LOCK-OFF BUTTON 5903R/5603R/5 MSP-415440-3.A3 415440-3	£1.44	£1.73
47 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A425 265995-6	£1.44	£1.73
48 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A80 687063-9	£1.44	£1.73
49 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A45 645141-1	£3.21	£3.85
49-2 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A50 645141-1	£3.21	£3.85
49-2 - NOISE SUPPRESOR 8450/HP2030-3 MSP-645142-9.A7 645142-9	£1.44	£1.73
49-3 - NOISE SUPPRESSOR 5017RKB/5903 MSP-645141-1.A0 645141-1	£3.21	£3.85
50 - CORD GUARD UH45570/5570/5580 MSP-682505-8.A80 682505-8	£1.44	£1.73
53-1 - RUBBER SLEEVE 6 M241 BHS630/ MSP-262511-5.A13 262511-5	£1.44	£1.73
54 - HANDLE SET 5703R/5603R MSP-182675-8.A6 182675-8	£40.03	£48.04
55 - PIPE 9 5903R/5603R/BSR730S MSP-331432-3.A5 331432-3	£2.65	£3.18
56 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A5 941201-0	£1.44	£1.73
57 - WING NUT M6 5603R MSP-252624-0.A7 252624-0	£2.18	£2.62
58 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A171 941151-9	£1.44	£1.73
59 - TENSION PIN 6-16 DIN1481 5603 MSP-951204-6.A3 951204-6	£1.44	£1.73
60 - HEX HD SCREW M6X20 5703R MSP-921332-1.A8 921332-1	£1.44	£1.73
61 - DEPTH GUIDE 5703R/5017RKB MSP-316578-6.A2 316578-6	£23.62	£28.34
62 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A9 643708-9	£2.34	£2.81
62 - MOTOR HOUSING 5703R/ MSP-159714-9.A3 159714-9	£53.07	£63.68
63 - PAN HD SCREW M5X55 5703R/560 MSP-911278-9.A1 911278-9	£1.44	£1.73
64 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A38 191963-2	£8.58	£10.30
65 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A32 643750-0	£1.44	£1.73
66 - HEX HD SCREW M6X20 5703R MSP-921332-1.A7 921332-1	£1.44	£1.73
67 - ANGULAR PLATE GUIDE 5703R/560 MSP-415443-7.A0 415443-7	£4.68	£5.62
68 - WING SCREW M6X15 MSP-265725-5.A3 265725-5	£1.44	£1.73
69 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A172 941151-9	£1.44	£1.73
70 - WING NUT M6 5603R MSP-252624-0.A6 252624-0	£2.18	£2.62
71 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A424 265995-6	£1.44	£1.73
72 - PIN 10 5703R/5603R MSP-256690-9.A0 256690-9	£1.44	£1.73
73 - BASE 5017RKB MSP-168352-6.A0 168352-6	£25.20	£30.24
73-1 - BASE 5017RKB MSP-168352-6.A1 168352-6	£25.20	£30.24
74 - BEARING RETAINER 19-34 5703R/ MSP-285831-0.A3 285831-0	£3.28	£3.93
75 - BLUE WASHER 22 5603R MSP-267126-3.A4 267126-3	£1.44	£1.73
76 - O RING 44 HS6100/7100/BSS500 MSP-213560-5.A10 213560-5	£1.44	£1.73
77 - SUB PLATE 5017RKB/4131 MSP-344944-7.A0 344944-7	£3.28	£3.93
78 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A0 266026-4	£1.44	£1.73
80 - RUBBER CAP 5017RKB MSP-421676-4.A0 421676-4	£1.44	£1.73
81 - OPEN LEVER 5017RKB MSP-344945-5 344945-5	£5.78	£6.93
82 - TENSION SPRING 4 5017RKB/4131 MSP-231823-7.A0 231823-7	£1.44	£1.73
83 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A6 941201-0	£1.44	£1.73
84 - PAN HD SHOULDER SCREW M6 2400 MSP-251267-5.A7 251267-5	£1.44	£1.73
85 - CAP 5017RKB/LH1040/4157KB MSP-421362-7.A3 421362-7	£1.44	£1.73
86 - DUST BOX SET 5017RKB MSP-183288-8.A1 183288-8	£25.20	£30.24
87 - PAN HD SCREW M5X28 W/CP WASHE MSP-911248-8.A1 911248-8	£1.44	£1.73
88 - PAN HD SCREW M5X55 5703R/560 MSP-911278-9.A0 911278-9	£1.44	£1.73
89 - PAN HD SCREW M5X28 W/CP WASHE MSP-911248-8.A0 911248-8	£1.44	£1.73
90 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A48 265999-8	£1.44	£1.73
91 - EARTH PLATE 5017RKB MSP-344943-9 344943-9	£1.44	£1.73
92 - DUST BOX SET 5017RKB MSP-183288-8.A0 183288-8	£25.20	£30.24
93 - DUST CAP 5017RKB MSP-417384-3 417384-3	£4.68	£5.62
A01 - GUIDE RULE 5703R/5603R/5017RKB MSP-165108-8.A0 165108-8	£10.80	£12.96
A03 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A61 783203-8	£1.20	£1.44
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A316 654091-9	£1.44	£1.73
