Makita GF600SE Cordless Brad Nailer Spare Parts

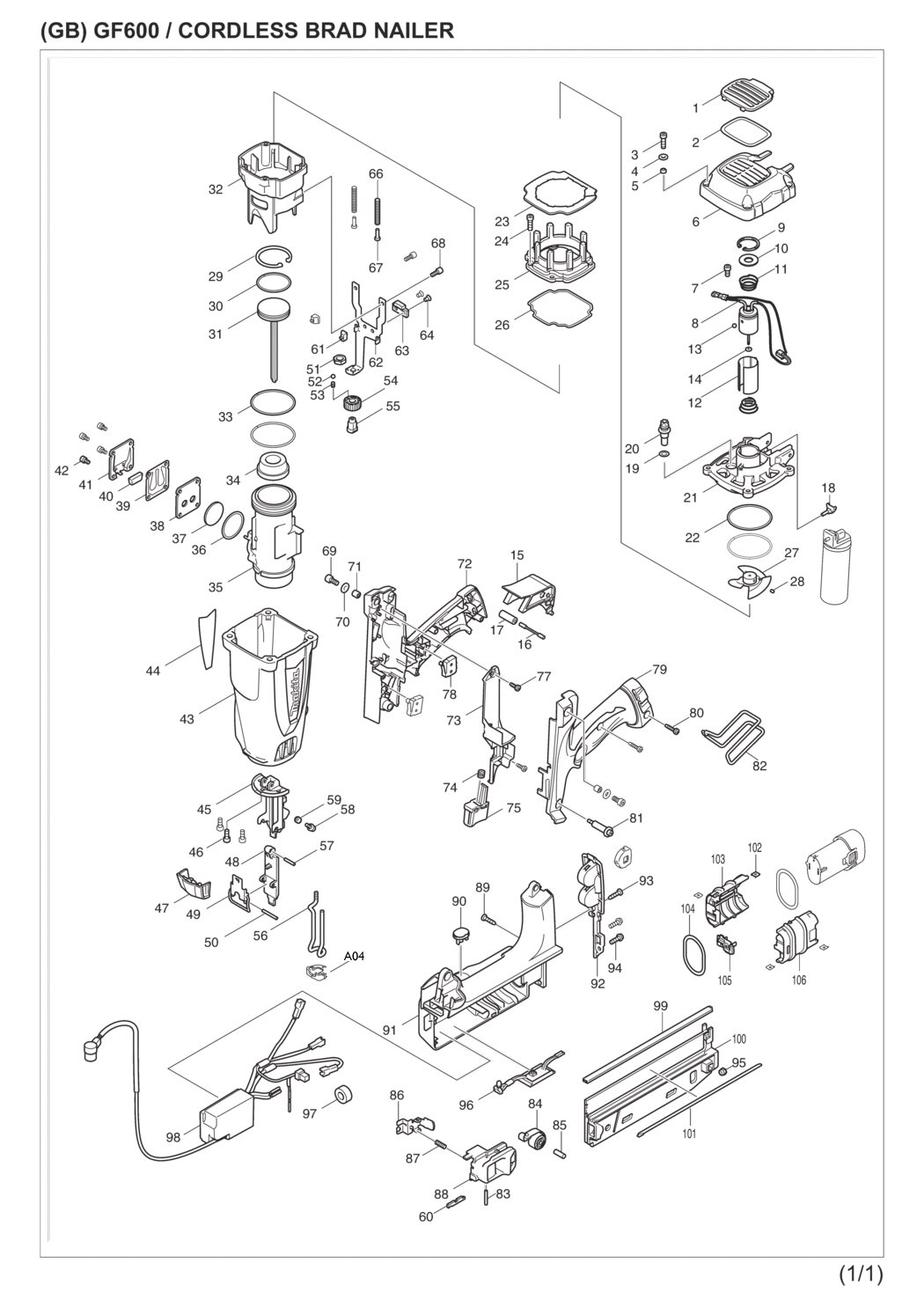

An exploded drawing and spare parts listing for the Makita GF600SE Cordless Brad Nailer

	Ex VAT	Inc VAT
1 - FILTER COVER GF600 MSP-452900-4 452900-4	£7.02	£8.42
2 - FILTER GF600 MSP-162327-7 162327-7	£7.49	£8.99
3 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A5 922127-5	£1.44	£1.73
4 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A39 941051-3	£1.44	£1.73
5 - SLEEVE 4 HR4001C MSP-257754-2.A1 257754-2	£1.44	£1.73
6 - TOP CAP GF600 MSP-452899-3 452899-3	£14.51	£17.41
7 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A57 266273-7	£1.44	£1.73
8 - DC MOTOR GF600 MSP-629925-5 629925-5	£206.88	£248.26
9 - RETAINING RING R-24 AN620 MSP-962103-7.A25 962103-7	£1.44	£1.73
10 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A26 253024-7	£1.44	£1.73
11 - COMPRESSION SPRING 12-18 GN90 MSP-233969-5.A4 233969-5	£1.44	£1.73
12 - MOTOR SLEEVE GN900SE/GN420 MSP-454002-2.A0 454002-2	£2.65	£3.18
13 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A185 216019-1	£1.44	£1.73
14 - EPOXY WASHER 2 GN900SE MSP-261141-9.A2 261141-9	£1.44	£1.73
15 - ACTUATOR GF600 MSP-452904-6 452904-6	£7.96	£9.55
16 - SHOULDER PIN 4 GN900SE MSP-324976-0.A2 324976-0	£1.44	£1.73
17 - RUBBER SLEEVE 9 GN900SE/GN420 MSP-422044-4.A2 422044-4	£1.44	£1.73
18 - STEM ADAPTER GN900SE/GN420 MSP-454003-0.A2 454003-0	£2.18	£2.62
19 - O RING 7 UK360D/GA7050/GA9050 MSP-213026-5.A11 213026-5	£1.44	£1.73
20 - SPARK PLUG GF600 MSP-162326-9 162326-9	£24.48	£29.38
21 - CYLINDER HEAD GF600 MSP-318761-1 318761-1	£23.62	£28.34
22 - CYLINDER RING 54 GF6000 MSP-326081-9.A0 326081-9	£15.29	£18.35
23 - CHAMBER RUBBER PLATE GF600 MSP-423421-3 423421-3	£5.62	£6.74
24 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A4 922127-5	£1.44	£1.73
25 - CHAMBER TOP GF600 MSP-318760-3 318760-3	£11.39	£13.67
26 - CHAMBER SEAL RING GF600 MSP-424441-0 424441-0	£3.59	£4.31
27 - FAN 52 GF600 MSP-240129-2 240129-2	£21.89	£26.27
28 - SET SCREW (CUP POINT) M3X4 MSP-913904-6.A2 913904-6	£1.44	£1.73
29 - RETAINING RING R-40 HM0870/71 MSP-962157-4.A14 962157-4	£1.44	£1.73
30 - PISTON RING 39 GF600 MSP-326080-1 326080-1	£17.13	£20.56
31 - DRIVER GF600 MSP-141006-0 141006-0	£47.92	£57.50
32 - CHAMBER GF600 MSP-318759-8 318759-8	£18.72	£22.46
33 - CYLINDER RING 54 GF6000 MSP-326081-9.A1 326081-9	£15.29	£18.35
34 - FRONT CUSHION GF600 MSP-424440-2 424440-2	£17.13	£20.56
35 - CYLINDER GF600 MSP-318758-0 318758-0	£41.23	£49.48
36 - O RING 32 HM1110/1111.HR5211C MSP-213492-6.A1 213492-6	£2.50	£3.00
37 - EXHAUST FILTER GF600 MSP-352014-8 352014-8	£6.24	£7.49
38 - EXHAUST PLATE GF600 MSP-346481-7 346481-7	£2.18	£2.62
39 - EXHAUST VALVE GF600 MSP-346480-9 346480-9	£5.78	£6.93
40 - SILENCER GF600 MSP-352015-6 352015-6	£6.08	£7.30
42 - CAP HD SCREW M4X8 4300D/SD100D MSP-922106-3.A1 922106-3	£1.44	£1.73
43 - LABEL/CAUTION 141032-9 MSP-893032-2 893032-2	£1.44	£1.73
43 - HOUSING GF600 MSP-141209-6 141209-6	£55.31	£66.37
44 - NAME PLATE GF600 MSP-896549-4 896549-4	£1.44	£1.73
45 - DRIVER GUIDE GF600 MSP-310487-1 310487-1	£101.43	£121.72
46 - HEX SOCKET HD BOLT M4X12 MSP-266797-3 266797-3	£1.44	£1.73
47 - LATCH COVER GF600 MSP-452902-0 452902-0	£5.92	£7.11
48 - DOOR GF600 MSP-310488-9 310488-9	£41.48	£49.77
49 - LATCH GF600 MSP-163526-4 163526-4	£3.59	£4.31
50 - SPRING PIN 3-24 AN451 MSP-951072-7.A3 951072-7	£1.44	£1.73
51 - HEX HALFNUT M8 VC3211M MSP-931403-6.A6 931403-6	£1.44	£1.73
52 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A184 216019-1	£1.44	£1.73
53 - COMPRESSION SPRING 2 AN510/61 MSP-233491-2.A5 233491-2	£1.44	£1.73
54 - ADJUSTER DIAL GF600 MSP-452909-6 452909-6	£3.90	£4.68
55 - ADJUSTER SHAFT GF600 MSP-326076-2 326076-2	£4.06	£4.87
56 - CONTACT TOP GF600 MSP-326079-6 326079-6	£24.48	£29.38
57 - PIN 3 4602D/9046/DFL301/402 MSP-256104-8.A5 256104-8	£1.44	£1.73
58 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A58 266273-7	£1.44	£1.73
59 - SLEEVE 4 HR4001C MSP-257754-2.A0 257754-2	£1.44	£1.73
60 - STOPPER GF600 MSP-346486-7 346486-7	£1.44	£1.73
61 - STOP RUBBER GF600 MSP-424442-8 424442-8	£1.44	£1.73
62 - ARM GF600 MSP-346483-3 346483-3	£8.11	£9.73
63 - ARM STOPPER GF600 MSP-310507-1 310507-1	£9.67	£11.61
64 - HS CS HD SCREW M4X6 MSP-266563-8 266563-8	£1.44	£1.73
66 - COMPRESSION SPRING 5 GF600 MSP-234219-1 234219-1	£1.44	£1.73
67 - SPRING BUSH GF600 MSP-452905-4 452905-4	£1.44	£1.73
68 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A5 922112-8	£1.44	£1.73
69 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A0 922212-4	£1.44	£1.73
70 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A17 941102-2	£1.44	£1.73
71 - SLEEVE 5 GF600/6300-4 MSP-257539-6 257539-6	£1.44	£1.73
72 - HANDLE SET GF600 MSP-187435-3.A1 187435-3	£50.02	£60.03
73 - WIRE COVER GF600 MSP-452907-0 452907-0	£7.02	£8.42
74 - COMPRESSION SPRING 6 MSP-231307-5.A3 231307-5	£1.93	£2.32
75 - TRIGGER GF600 MSP-452903-8 452903-8	£5.78	£6.93
77 - PT SCREW 4X12 BUR181/BUR141 MSP-266020-6.A63 266020-6	£1.44	£1.73
78 - SWITCH UNIT GN900SE/EB7650TH MSP-638642-6.A6 638642-6	£13.42	£16.10
79 - HANDLE SET GF600 MSP-187435-3.A0 187435-3	£50.02	£60.03
80 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A235 265995-6	£1.44	£1.73
81 - SHOULDER H SOCKET HEAD GF600 MSP-266694-3 266694-3	£6.40	£7.68
82 - HOOK GF600 MSP-326077-0 326077-0	£9.67	£11.61
83 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A15 256221-4	£1.58	£1.89
84 - SPIRAL SPRING GF600 MSP-141005-2 141005-2	£23.62	£28.34
85 - PIN 5 GF600/2107/DPB180 MSP-268225-4.A2 268225-4	£1.44	£1.73
86 - PUSHER GF600 MSP-346485-9 346485-9	£7.80	£9.36
87 - COMPRESSION SPRING 4 9523NB MSP-233285-5.A0 233285-5	£1.44	£1.73
88 - PUSHER LEVER GF600 MSP-452901-2 452901-2	£8.11	£9.73
89 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A236 265995-6	£1.44	£1.73
90 - SWITCH PLATE GF600 MSP-141004-4 141004-4	£21.17	£25.40
91 - LABEL/CAUTION GF600 MSP-893826-5 893826-5	£14.20	£17.04
91 - MAGAZINE COVER GF600 MSP-141003-6 141003-6	£42.72	£51.26
92 - MAGAZINE END GF600 MSP-452898-5 452898-5	£7.18	£8.61
93 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A237 265995-6	£1.44	£1.73
95 - HEX LOCKING NUT M4-7 MT/TD126 MSP-252126-6.A120 252126-6	£1.44	£1.73
96-1 - LIGHT CIRCUIT GF600 MSP-620219-1 620219-1	£24.48	£29.38
97 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A5 688131-1	£1.44	£1.73
98 - SPARK UNIT GF600 MSP-620094-5 620094-5	£199.92	£239.90
99 - NAIL RAIL GF600 MSP-346484-1 346484-1	£34.28	£41.13
100 - MAGAZINE GF600 MSP-452897-7 452897-7	£31.68	£38.02
101 - NAIL HOLDER GF600 MSP-346487-5 346487-5	£1.44	£1.73
102 - SET PLATE TD020DSE/DF010D/GN9 MSP-345749-8.A0 345749-8	£1.44	£1.73
103 - BATTERY CASE SET GN900SE MSP-188598-8.A0 188598-8	£4.68	£5.62
104 - RUBBER RING 40 GN900SE/GN420 MSP-424152-7.A0 424152-7	£1.44	£1.73
105 - TERMINAL GN900SE/UM164D/CL070 MSP-643817-4.A5 643817-4	£1.44	£1.73
106 - BATTERY CASE SET GN900SE MSP-188598-8.A1 188598-8	£4.68	£5.62
A01 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A0 195246-2	£2.55	£3.06
A02 - SHORT NAIL ADAPTER GF600 MSP-346488-3 346488-3	£3.48	£4.17
A03 - CAP HD SCREW M4X8 4320/JV101D MSP-922107-1.A2 922107-1	£1.44	£1.73
A04 - NOSE ADAPTER GF600 MSP-424443-6 424443-6	£2.53	£3.04
A05 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A33 783201-2	£1.20	£1.44
A06 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A21 783202-0	£1.20	£1.44
A07 - LATCH FOR 868960-0/821508-9 MSP-162315-4.A14 162315-4	£1.32	£1.58
A07-1 - PLASTIC CASE GF600 MSP-821595-8 821595-8	£38.16	£45.79
A07-1 - LATCH FOR 868960-0/821508-9 MSP-162315-4.A13 162315-4	£1.32	£1.58
A09-1 - DC10WA CHARGER LI-ION 194589-9 MSP-*DC10WA.A14 *DC10WA	-
A10-2 - BATTERY BL0715 SET MSP-198000-3.A7 198000-3	£36.90	£44.28
