Makita AN935H Construction Coil Nailer Spare Parts

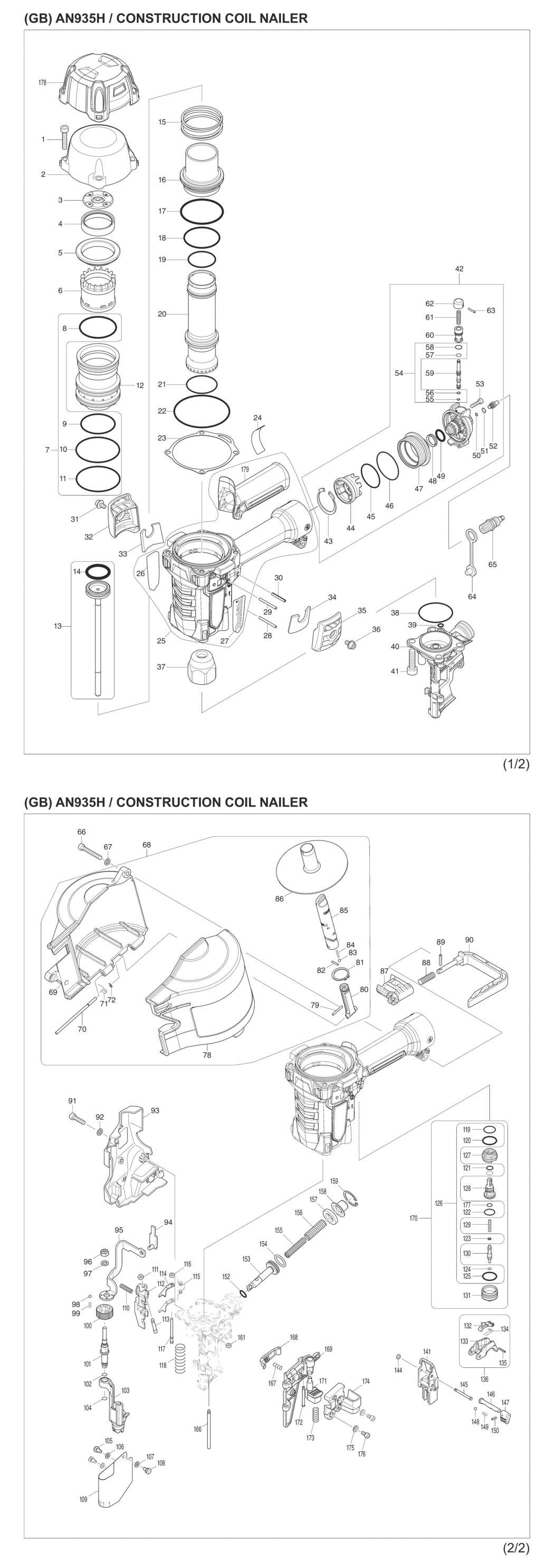

An exploded drawing and spare parts listing for the Makita AN935H Construction Coil Nailer

	Ex VAT	Inc VAT
1 - HSH BOLT M6X30 AN935H MSP-266913-7 266913-7	£1.44	£1.73
2 - TOP CAP AN935H MSP-319360-2 319360-2	£58.21	£69.85
3 - REAR CUSHION AN935H MSP-424649-6 424649-6	£4.52	£5.43
5 - VALVE SEAT AN935H MSP-424648-8 424648-8	£11.08	£13.29
6 - HEAD VALVE GUIDE AN935H MSP-455320-1 455320-1	£64.28	£77.14
8 - O-RING 48 AN935H MSP-213791-6 213791-6	£1.44	£1.73
9 - O-RING 45 AN935H MSP-213792-4 213792-4	£1.44	£1.73
10 - O-RING 58 AN935H MSP-213790-8.A0 213790-8	£1.44	£1.73
11 - O-RING 58 AN935H MSP-213790-8.A1 213790-8	£1.44	£1.73
12 - HEAD VALVE AN935H MSP-332120-5 332120-5	£35.57	£42.68
13 - DRIVER ASSY AN935H MSP-135719-3 135719-3	£153.00	£183.60
15 - COMPRESSION SPRING 52 AN935H MSP-234341-4 234341-4	£5.46	£6.55
16 - CYLINDER SEPARATOR AN935H MSP-332117-4 332117-4	£27.36	£32.83
18 - O RING 45 AN935H MSP-213086-7 213086-7	£2.50	£3.00
19 - O RING 36 AN510/HR2010/HM1202 MSP-213510-0.A9 213510-0	£1.44	£1.73
20 - *CYLINDER AN935H MSP-326766-7 326766-7	£39.31	£47.17
21 - O-RING 40 AN620/AN635H/AR411HR MSP-213509-5.A1 213509-5	£1.44	£1.73
22 - O RING 75 HM1400/BO4900V/5021 MSP-213755-0.A4 213755-0	£2.18	£2.62
23 - TOP CAP GASKET AN935H MSP-162368-3 162368-3	£6.24	£7.49
25 - *HOUSING SET AN953H MSP-183E68-2 183E68-2	£224.04	£268.85
28 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A4 951078-5	£1.44	£1.73
29 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A15 951078-5	£1.44	£1.73
30 - SPRING PIN 3-24 AN451 MSP-951072-7.A0 951072-7	£1.44	£1.73
31 - HSH BOLT M5X10 AN935H/AN635H MSP-266912-9.A2 266912-9	£1.44	£1.73
32 - EXHAUST COVER R AN935H MSP-455322-7 455322-7	£2.97	£3.56
33 - FILTER AN935H MSP-455319-6.A0 455319-6	£2.34	£2.81
34 - FILTER AN935H MSP-455319-6.A1 455319-6	£2.34	£2.81
35 - EXHAUST COVER L AN935H MSP-455321-9 455321-9	£2.97	£3.56
36 - HSH BOLT M5X10 AN935H/AN635H MSP-266912-9.A1 266912-9	£1.44	£1.73
38 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A1 213569-7	£1.44	£1.73
39 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A13 213045-1	£1.44	£1.73
40 - DRIVER GUIDE AN935H MSP-143408-6 143408-6	£434.76	£521.71
41 - HSH BOLT M8X30 AN935H MSP-266914-5 266914-5	£2.65	£3.18
42 - DUSTER SET AN935H/AN635H MSP-196452-2.A1 196452-2	£115.17	£138.20
44 - INLET HOLDER AN635H MSP-318983-3.A1 318983-3	£8.73	£10.48
45 - O RING 33 AN510/AN635H MSP-213462-5.A1 213462-5	£1.44	£1.73
46 - O-RING 40 AN620/AN635H/AR411HR MSP-213509-5.A0 213509-5	£1.44	£1.73
47 - INLET FLANGE AN635H MSP-331929-2.A0 331929-2	£10.61	£12.73
49 - O RING 14 AN510/620/711 8406C MSP-213154-6.A7 213154-6	£1.44	£1.73
50 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A1 213034-6	£1.44	£1.73
53 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A3 922127-5	£1.44	£1.73
55 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A0 213034-6	£1.44	£1.73
56 - O-RING 3 AN510/620/711/AN635H MSP-213979-8.A5 213979-8	£2.34	£2.81
58 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A9 213030-4	£1.44	£1.73
61 - COMPRESSION SPRING 5 DUR361U MSP-234003-4.A3 234003-4	£1.44	£1.73
63 - SPRING PIN 2-8 BPT350/AN635H MSP-951001-0.A0 951001-0	£1.44	£1.73
64 - CAP 9 AN510/610/711/911/AN635H MSP-286280-4.A2 286280-4	£2.34	£2.81
65 - 1 TOUCH JOINT H22PM AN510/711 MSP-243105-5.A1 243105-5	£29.38	£35.25
66 - HEX SOCKET HEAD BOLT AN610/62 MSP-922257-2.A2 922257-2	£1.44	£1.73
67 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A45 941102-2	£1.44	£1.73
68 - MAGAZINE ASSY AN935H MSP-135820-4 135820-4	£78.38	£94.05
70 - PIN 4 AN620/711/AN635H MSP-256773-5.A4 256773-5	£4.99	£5.99
71 - TORSION SPRING 7 AN510/711 MSP-233505-7.A1 233505-7	£3.90	£4.68
72 - STOP RING E-3 AN510/711/AN635H MSP-259042-3.A1 259042-3	£1.44	£1.73
79 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A0 268168-0	£1.44	£1.73
81 - EXT DIN 471 CIRCLIP-25/AN635H MSP-961105-0.A10 961105-0	£1.44	£1.73
82 - PIN 2.5 AN510/711 MSP-268272-5.A2 268272-5	£1.44	£1.73
83 - STEEL BALL 4 5008MB/JV101D MSP-216008-6.A30 216008-6	£1.44	£1.73
84 - COMPRESSION SPRING 2 AN510/71 MSP-233492-0.A1 233492-0	£1.44	£1.73
85 - ADJUST SLEEVE AN911H MSP-419859-8.A1 419859-8	£2.81	£3.37
86 - CHANGE PLATE AN911H MSP-419860-3.A0 419860-3	£7.64	£9.17
87 - HOOK BASE AN935H MSP-455324-3 455324-3	£4.52	£5.43
88 - COMPRESSION SPRING 7 BHR262 MSP-233343-7.A5 233343-7	£1.44	£1.73
89 - TENSION PIN 3-16 DIN1481/AN635 MSP-951063-8.A5 951063-8	£1.44	£1.73
90 - HOOK AN935H MSP-168583-7 168583-7	£26.50	£31.80
91 - HEX SOCKET HD BOLT M5X20 AN51 MSP-266369-4.A1 266369-4	£1.44	£1.73
92 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A46 941102-2	£1.44	£1.73
93 - CONTACT ARM COVER AN935H MSP-456258-3 456258-3	£6.55	£7.86
97 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A43 941152-7	£1.44	£1.73
98 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A131 216001-0	£1.59	£1.91
99 - *COMPRESSION SPRING 3/AN635H MSP-231236-2.A0 231236-2	£1.44	£1.73
101 - ADJUSTER SHAFT AN935H MSP-326751-0 326751-0	£13.58	£16.29
103 - CONTACT TOP AN935H MSP-310673-4 310673-4	£36.72	£44.06
105 - PUSH RIVET AN711/AN635H MSP-255174-4.A7 255174-4	£1.44	£1.73
106 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A54 941051-3	£1.44	£1.73
107 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A55 941051-3	£1.44	£1.73
108 - PUSH RIVET AN711/AN635H MSP-255174-4.A8 255174-4	£1.44	£1.73
111 - URETHANE RING 3 AN942/6837 MSP-262054-7.A1 262054-7	£1.44	£1.73
113 - PIN 4-4.5 AN451 MSP-256432-1.A0 256432-1	£2.50	£3.00
116 - URETHANE RING 3 AN942/6837 MSP-262054-7.A0 262054-7	£1.44	£1.73
119 - O-RING 15 AN510/620/711/AN635H MSP-213233-0.A5 213233-0	£1.44	£1.73
120 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A4 213275-4	£1.44	£1.73
121 - O-RING 7 AN510/620/711/AN635H MSP-213968-3.A0 213968-3	£2.65	£3.18
122 - O-RING 12.5 AN510/620/711 MSP-213185-5.A4 213185-5	£1.44	£1.73
123 - O RING 3 AN942/AN635H MSP-213044-3.A7 213044-3	£1.44	£1.73
124 - O RING 3 AN942/AN635H/AR411HR MSP-213640-7.A1 213640-7	£4.37	£5.24
125 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A14 213275-4	£1.44	£1.73
125-1 - O RING 20 6805BV/6826/AR411HR MSP-213310-8.A2 213310-8	£1.44	£1.73
135 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A7 951007-8	£1.44	£1.73
144 - URETHANE WASHER AN635H/AR411HR MSP-261118-4.A2 261118-4	£1.44	£1.73
148 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A191 216001-0	£1.59	£1.91
149 - *COMPRESSION SPRING 3/AN635H MSP-231236-2.A3 231236-2	£1.44	£1.73
150 - SPRING PIN 2-8 BPT350/AN635H MSP-951001-0.A1 951001-0	£1.44	£1.73
152 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A5 213054-0	£1.44	£1.73
153 - PISTON AN935H MSP-326438-4 326438-4	£20.88	£25.06
159 - RETAINING RING INT R-24 AN935H MSP-257395-4 257395-4	£1.44	£1.73
161 - URETHANE RING 3 AN942/6837 MSP-262054-7.A8 262054-7	£1.44	£1.73
166 - PIN 4 AN935H MSP-256570-9 256570-9	£1.44	£1.73
167 - COMPRESSION SPRING 4 AN711/91 MSP-234009-2.A2 234009-2	£2.18	£2.62
169 - DOOR AN935H MSP-310684-9 310684-9	£107.35	£128.82
170 - TRIGGER VALVE ASSY AN935H MSP-135654-5 135654-5	£112.39	£134.87
173 - COMPRESSION SPRING 7 MSP-231401-3.A2 231401-3	£1.44	£1.73
175 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A3 941051-3	£1.44	£1.73
176 - HEX SOCKET HD BOLT M4X8 AN711 MSP-265911-8.A5 265911-8	£1.44	£1.73
178 - TOP CAP COVER AN935H MSP-424771-9 424771-9	£9.05	£10.86
A02 - OIL SUPPLY SET AN510/620/711 MSP-194381-3.A1 194381-3	£2.01	£2.41
A03 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A37 195246-2	£2.55	£3.06
A04 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A58 783202-0	£1.20	£1.44
A05 - LATCH FOR 868960-0/821508-9 MSP-162315-4.A29 162315-4	£1.32	£1.58
A07 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A10 951007-8	£1.44	£1.73
A07-1 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A11 951007-8	£1.44	£1.73
