Makita 3708F Trimmer Spare Parts

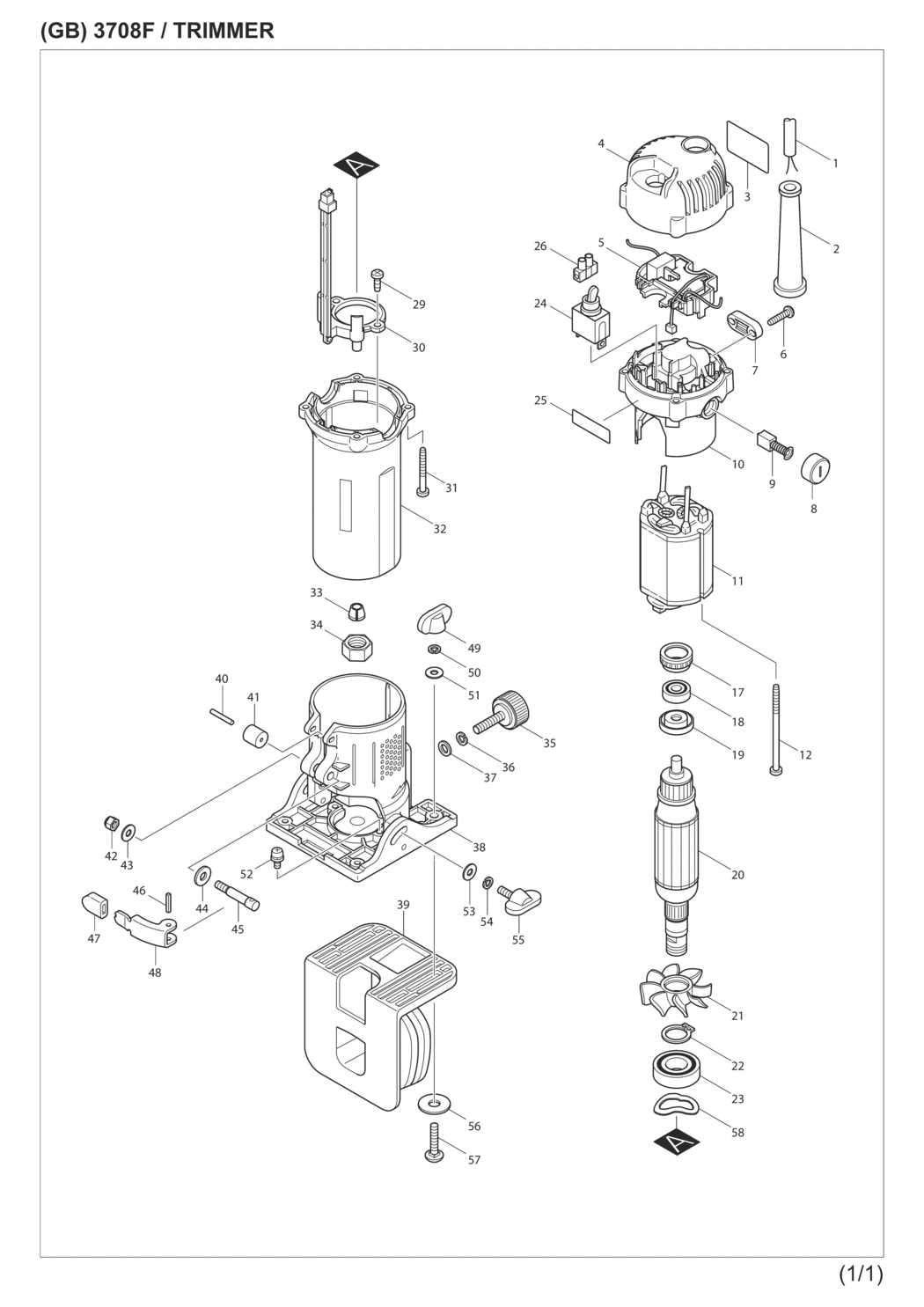

An exploded drawing and spare parts listing for the Makita 3708F Trimmer

	Ex VAT	Inc VAT
1 - POWER SUPPLY CORD 1.0-2-2.5 MSP-692021-2.A20 692021-2	£9.05	£10.86
1 - POWER SUPPLY CORD 1.00-2-2.5 MSP-663926-3.A23 663926-3	£12.17	£14.60
2 - CORD GUARD 8-85 3707/N1923B MSP-682502-4.A28 682502-4	£1.58	£1.90
3 - NAME PLATE 3708F MSP-853746-5 853746-5	£1.44	£1.73
4 - REAR COVER 3707F/3708F MSP-417747-3.A1 417747-3	£4.52	£5.43
5 - LED POWER SUPPLY CIRCUIT 370 MSP-631489-7.A0 631489-7	£23.62	£28.34
5 - LED POWER SUPPLY CIRCUIT 370 MSP-631490-2.A1 631490-2	£23.62	£28.34
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A26 265995-6	£1.44	£1.73
7 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A53 687063-9	£1.44	£1.73
8 - BRUSH HOLDER CAP TD0101F/3707 MSP-643928-5.A8 643928-5	£1.44	£1.73
9-1 - CARBON BRUSH CB-411 TD0101F/S MSP-191940-4.A21 191940-4	£6.40	£7.68
10 - BRUSH HOLDER 6X9 TD0101F/370 MSP-643981-1.A4 643981-1	£4.83	£5.80
10 - MOTOR REAR HOUSING 3707/F&08/ MSP-183417-3.A3 183417-3	£20.30	£24.36
11 - FIELD ASSY 110V 3707F/3708F MSP-595066-8.A0 595066-8	£25.20	£30.24
11 - FIELD ASSY 240V 3707F/3708F MSP-595069-2.A2 595069-2	£25.20	£30.24
11 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A24 654501-6	£1.44	£1.73
11 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A18 654100-4	£1.44	£1.73
12 - PT SCREW 4X70 MSP-266004-4.A4 266004-4	£1.44	£1.73
17 - RUBBER RING 19 4305/T/3707/HP MSP-421494-0.A4 421494-0	£6.08	£7.30
18 - BALL BEARING 607DDW BO5041/3 MSP-210017-7.A27 210017-7	£4.99	£5.99
19 - INSULATION WASHER MT814/815 MSP-681636-0.A62 681636-0	£2.18	£2.62
20 - ARMATURE ASSY 240V 3707F/08F MSP-517574-9.A2 517574-9	£66.40	£79.68
20 - ARMATURE ASSY 110V 3707F/08F MSP-518552-2.A2 518552-2	£66.40	£79.68
21 - FAN 48 3707F/3708F MSP-240049-0.A4 240049-0	£2.65	£3.18
22 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A51 961055-9	£1.44	£1.73
23 - BALL BEARING 6002DDW GA5020/2 MSP-211236-8.A4 211236-8	£8.42	£10.11
24 - SWITCH BTM/3707F/3708F/DTM51 MSP-651423-1.A4 651423-1	£11.39	£13.67
25 - LABEL/MAKITA 6071DWGD0800C MSP-819720-3.A4 819720-3	£1.44	£1.73
26 - TERMINAL BLOCK 3707F/3708F MSP-654544-8.A1 654544-8	£1.44	£1.73
29 - +TAPPING SCREW M4X12 122291-4 MSP-251991-0.A2 251991-0	£1.44	£1.73
30 - LEAD CIRCUIT 3707F/3708F MSP-631480-5.A3 631480-5	£26.92	£32.31
31 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A64 266053-1	£1.44	£1.73
32 - MOTOR HOUSING CO 3707F/08F MSP-153347-2.A0 153347-2	£11.86	£14.23
32 - LABEL/SCALE 3707F08F MSP-816274-1.A3 816274-1	£1.44	£1.73
33-1 - COLLET CONE 6.35 3700B/3708F MSP-763608-8.A0 763608-8	£3.72	£4.46
33 - COLLET CONE 6.35 3700B/3708F MSP-763608-8.A17 763608-8	£3.72	£4.46
34 - COLLET NUT 6 3700B/906/3707 MSP-763606-2.A9 763606-2	£3.20	£3.84
35 - SCREW M6X18 1805 3700B MSP-251814-2.A1 251814-2	£1.44	£1.73
36 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A75 253428-3	£1.44	£1.73
37 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A113 941151-9	£1.44	£1.73
38-1 - BASE 3708/3708F MSP-143655-9.A0 143655-9	£41.48	£49.77
39 - TRIMMER SHOE 3708F MSP-414304-8.A1 414304-8	£10.92	£13.10
40 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A18 256158-5	£1.44	£1.73
40-1 - PIN 3 DST111/DST112/JR3020 MSP-256221-4.A18 256221-4	£1.58	£1.89
41 - ROLLER 3707F/3708F MSP-421566-1.A2 421566-1	£1.44	£1.73
42 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A47 252103-8	£1.58	£1.89
43 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A42 941101-4	£1.44	£1.73
44 - FLAT WASHER 6 3707F/08F MSP-267214-6.A1 267214-6	£1.44	£1.73
45 - SUPPORT PIN 3707F/08F MSP-324243-3.A3 324243-3	£3.90	£4.68
46 - SPRING PIN 3-14 3707F/3708F/A MSP-951060-4.A4 951060-4	£1.58	£1.89
47 - RUBBER CAP 3707F/3708F MSP-421818-0.A0 421818-0	£1.44	£1.73
48 - LOCK LEVER 3707F/3708F MSP-345229-4.A3 345229-4	£2.50	£3.00
49 - WING NUT M5 3708F MSP-252646-0.A0 252646-0	£5.46	£6.55
50 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A7 253427-5	£1.44	£1.73
51 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A41 941101-4	£1.44	£1.73
52 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A5 911114-9	£1.44	£1.73
53 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A40 941101-4	£1.44	£1.73
54 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A8 253427-5	£1.44	£1.73
55 - BRASS WINGSCREW M5X15 MSP-265740-9.A1 265740-9	£5.78	£6.93
56 - FLAT WASHER 8 5100BR MSP-253022-1.A0 253022-1	£1.44	£1.73
56-1 - FLAT WASHER 8 3708F MSP-267248-9.A1 267248-9	£1.44	£1.73
57 - CAP SQ NECK BOLT M5X25 3708F MSP-923241-0.A1 923241-0	£1.44	£1.73
A01-1 - TRIMMER GUIDE ASSY RT0700C/370 MSP-122703-7.A4 122703-7	£12.67	£15.20
A01-1 - TRIMMER GUIDE 3700B/3707/3707 MSP-317789-6.A3 317789-6	£1.44	£1.73
A03 - COUNTERSUNK SCREW M4X12 W/SP MSP-912116-8.A2 912116-8	£1.44	£1.73
A02-1 - THUMB SET SCREW M6X20 3707/37 MSP-265764-5.A3 265764-5	£1.44	£1.73
A03-1 - COUNTERSUNK SCREW M4X12 W/SP MSP-265135-6.A6 265135-6	£1.44	£1.73
A04 - HOOK 3700B/3707/F/3708/F/DRT50 MSP-341136-9.A9 341136-9	£1.44	£1.73
A05-1 - SLOTTED HD SHOULDER SCREW M5 MSP-251471-6.A2 251471-6	£1.44	£1.73
A06-1 - ROLLER 11 3700B/3707/F/3708/F MSP-324378-0.A1 324378-0	£1.44	£1.73
A08 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A114 941151-9	£1.44	£1.73
A07-1 - GUIDE HOLDER 3700B/3707/F/08/ MSP-317788-8.A10 317788-8	£1.44	£1.73
A09 - WAVE WASHER 6 3703/2414B/NB MSP-253903-9.A12 253903-9	£1.44	£1.73
A10 - KNUR THUMB SETSCREW M6X25 370 MSP-251815-0.A0 251815-0	£2.41	£2.89
A10-1 - KNUR THUMB SETSCREW M6X25 370 MSP-265763-7.A27 265763-7	£2.71	£3.25
A13 - TEMPLET GUIDE 3700B/3705/3707 MSP-343577-5.A6 343577-5	£3.01	£3.61
A14 - *SPANNER 10 3700B/3707/08&F MSP-781036-5.A9 781036-5	£2.88	£3.46
A15 - SPANNER 17 37B 63L 9505B/9217S MSP-781037-3.A11 781037-3	£2.48	£2.97
A14-1 - WRENCH 10 M3700 MSP-781036-5.A1 781036-5	£2.88	£3.46
A18 - GUIDE PLATE 3707F/3708F MSP-343593-7.A3 343593-7	£1.78	£2.13
A19 - STRAIGHT GUIDE 3707F/3708F MSP-343594-5.A3 343594-5	£6.95	£8.34
E01 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A175 654091-9	£1.44	£1.73

Attribute Name	Value
Brand	Makita
