Makita 3703 Trimmer Spare Parts

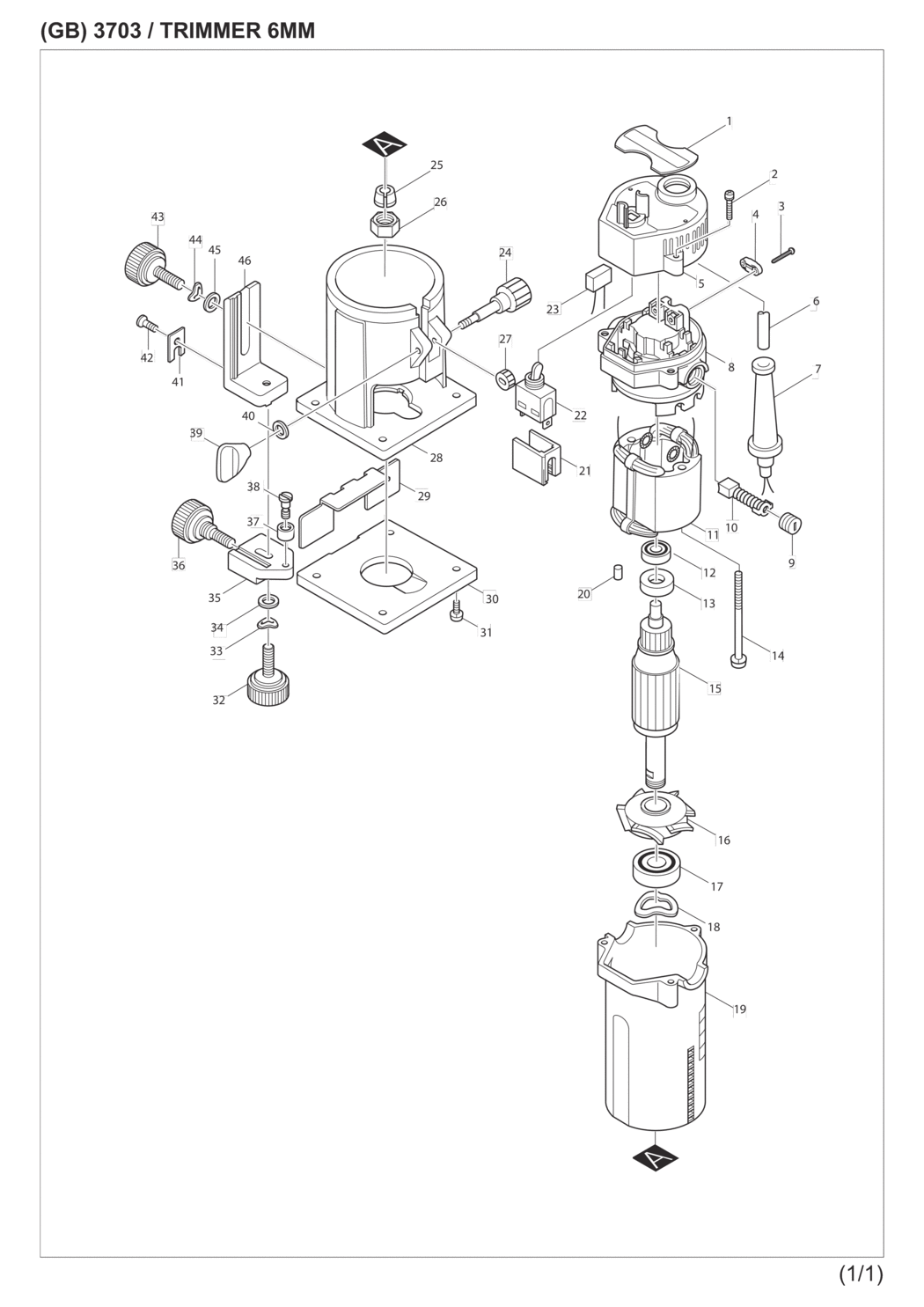

An exploded drawing and spare parts listing for the Makita 3703 Trimmer

	Ex VAT	Inc VAT
1 - NAME PLATE 3703 MSP-856566-6 856566-6	£1.44	£1.73
2 - PAN HD SCREW M4X40 W/CP WASHE MSP-911168-6.A0 911168-6	£1.44	£1.73
3-2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A400 265995-6	£1.44	£1.73
3-1 - TF SCREW 4X18 TRILOBULAR 9005 MSP-265941-9.A3 265941-9	£1.44	£1.73
4B3 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A83 687063-9	£1.44	£1.73
4B2 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A42 687052-4	£1.44	£1.73
4D - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A82 687063-9	£1.44	£1.73
5 - REAR COVER 3705 MSP-410062-4.A0 410062-4	£6.71	£8.05
6C1 - POWER SUPPLY CORD 1.00-2-2.5 MSP-663926-3.A32 663926-3	£12.17	£14.60
6O - POWER SUPPLY CORD 1.0-2-2.5 MSP-692021-2.A11 692021-2	£9.05	£10.86
7A - CORD GUARD 8-85 3707/N1923B MSP-682502-4.A8 682502-4	£1.58	£1.90
8-2 - MOTOR REAR HOUSING 3703 MSP-159301-4 159301-4	£25.20	£30.24
8-2 - BRUSH HOLDER 6X9 6837 MSP-643932-4.A0 643932-4	£2.18	£2.62
9 - BRUSH HOLDER CAP CB-9-14-17/N MSP-643550-8.A23 643550-8	£1.44	£1.73
10C - CARBON BRUSH CB-411 TD0101F/S MSP-191940-4.A23 191940-4	£6.40	£7.68
11A1 - FIELD 110V 3703 MSP-593146-4 593146-4	£19.58	£23.50
11D1 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A23 654100-4	£1.44	£1.73
11D1 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A51 654501-6	£1.44	£1.73
11A1 - RING TERMINAL 9031/9307/DS401 MSP-654100-4.A22 654100-4	£1.44	£1.73
11D1 - FIELD 240V 3703 MSP-593149-8 593149-8	£21.89	£26.27
11A1 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A52 654501-6	£1.44	£1.73
12 - BALL BEARING 627LB/HP1641/903 MSP-211028-5.A16 211028-5	£11.39	£13.67
13 - INSULATION WASHER 627/N1923BD MSP-681614-0.A4 681614-0	£1.44	£1.73
14-2 - PAN HD SCREW M4X70 3901 MSP-911596-5.A0 911596-5	£1.44	£1.73
15A1 - ARMATURE 110V 3703 MSP-511916-9 511916-9	£105.72	£126.86
15D1 - ARMATURE 240V 3703 MSP-511919-3 511919-3	£105.72	£126.86
16 - FAN 52 3703 MSP-241615-6.A1 241615-6	£8.89	£10.67
16-2 - FAN 52 3703 MSP-241615-6.A2 241615-6	£8.89	£10.67
17-3 - BALL BEARING 6002LLUX MSP-211489-9 211489-9	£5.92	£7.11
19 - MOTOR HOUSING 3703 MSP-414567-6 414567-6	£20.30	£24.36
20 - RUBBER PIN 4 SR2600/N1923BD/H MSP-263014-2.A1 263014-2	£1.44	£1.73
21 - SWITCH HOLDER 3705 MSP-410069-0 410069-0	£1.44	£1.73
22A - SWITCH STE206K MSP-651467-1.A1 651467-1	£17.86	£21.43
23B - NOISE SUPPRESSOR BO5000 MSP-645117-8 645117-8	£2.81	£3.37
23A - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A34 645105-5	£2.34	£2.81
24 - SPECIAL THUMB BOLT M5X33 3703 MSP-251890-6 251890-6	£6.08	£7.30
25A - COLLET CONE 6.35 3700B/3708F MSP-763608-8.A6 763608-8	£3.72	£4.46
25A1 - COLLET CONE 6.35 3700B/3708F MSP-763608-8.A11 763608-8	£3.72	£4.46
26 - COLLET NUT 6 3700B/906/3707 MSP-763606-2.A3 763606-2	£3.20	£3.84
27 - SPUR GEAR 16 3703/3901 MSP-226217-9.A0 226217-9	£1.93	£2.32
28 - BASE 3703 MSP-411930-4 411930-4	£25.20	£30.24
29-1 - CHIP DEFLECTOR 3700B/3701/370 MSP-418647-0.A2 418647-0	£1.44	£1.73
30 - BASE PROTECTOR 3703 MSP-410585-2.A1 410585-2	£5.62	£6.74
31 - PAN HD SCREW M4X10 3703 MSP-251308-7.A2 251308-7	£1.44	£1.73
32 - KNUR THUMB SETSCREW M6X25 370 MSP-251815-0.A8 251815-0	£2.41	£2.89
32-1 - KNUR THUMB SETSCREW M6X25 370 MSP-265763-7.A22 265763-7	£2.71	£3.25
33 - WAVE WASHER 6 3703/2414B/NB MSP-253903-9.A15 253903-9	£1.44	£1.73
34 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A174 941151-9	£1.44	£1.73
35-1 - TRIMMER GUIDE 3700B/3707/3707 MSP-317789-6.A1 317789-6	£1.44	£1.73
36-1 - THUMB SET SCREW M6X20 3707/37 MSP-265764-5.A6 265764-5	£1.44	£1.73
37-1 - ROLLER 11 3700B/3707/F/3708/F MSP-324378-0.A5 324378-0	£1.44	£1.73
38-1 - SLOTTED HD SHOULDER SCREW M5 MSP-251471-6.A5 251471-6	£1.44	£1.73
39 - SPADE GRIP NUT M5 MSP-252632-1 252632-1	£5.15	£6.18
40 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A69 941101-4	£1.44	£1.73
41 - HOOK 3700B/3707/F/3708/F/DRT50 MSP-341136-9.A13 341136-9	£1.44	£1.73
42 - COUNTERSUNK SCREW M4X12 W/SP MSP-912116-8.A1 912116-8	£1.44	£1.73
42-1 - COUNTERSUNK SCREW M4X12 W/SP MSP-265135-6.A10 265135-6	£1.44	£1.73
43 - KNUR THUMB SETSCREW M6X25 370 MSP-251815-0.A9 251815-0	£2.41	£2.89
43-1 - KNUR THUMB SETSCREW M6X25 370 MSP-265763-7.A21 265763-7	£2.71	£3.25
44 - WAVE WASHER 6 3703/2414B/NB MSP-253903-9.A16 253903-9	£1.44	£1.73
45 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A175 941151-9	£1.44	£1.73
46-1 - GUIDE HOLDER 3700B/3707/F/08/ MSP-317788-8.A12 317788-8	£1.44	£1.73
47-1 - TRIMMER GUIDE ASSY RT0700C/370 MSP-122703-7.A5 122703-7	£12.67	£15.20
A01 - SQ NECK SETSCREW M6X20 BCS550 MSP-251919-8.A23 251919-8	£1.66	£1.99
A02 - GUIDE PLATE 3707F/3708F MSP-343593-7.A7 343593-7	£1.78	£2.13
A03 - STRAIGHT GUIDE 3707F/3708F MSP-343594-5.A0 343594-5	£6.95	£8.34
A03 - STRAIGHT GUIDE ASSY 3708F/3700 MSP-122391-0.A1 122391-0	£7.53	£9.04
A04 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A176 941151-9	£1.44	£1.73
A05 - WAVE WASHER 6 3703/2414B/NB MSP-253903-9.A17 253903-9	£1.44	£1.73
A06 - WING NUT M6 MSP-934301-3.A0 934301-3	£1.44	£1.73
A07 - TEMPLET GUIDE 3700B/3705/3707 MSP-343577-5.A2 343577-5	£3.01	£3.61
A08 - *SPANNER 10 3700B/3707/08&F MSP-781036-5.A15 781036-5	£2.88	£3.46
A08-1 - WRENCH 10 M3700 MSP-781036-5.A7 781036-5	£2.88	£3.46
A09 - SPANNER 17 37B 63L 9505B/9217S MSP-781037-3.A13 781037-3	£2.48	£2.97
