Makita EK7651H Power Cutter Spare Parts

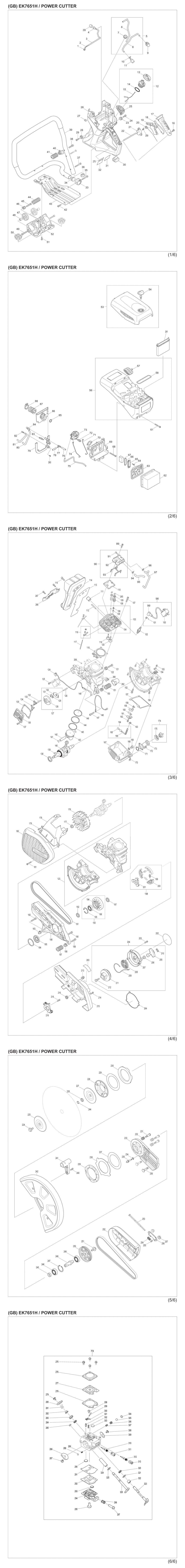

An exploded drawing and spare parts listing for the Makita EK7651H Power Cutter

	Ex VAT	Inc VAT
1 - GROMMET DCS230T/BUC250/EK7650 MSP-421875-8.A5 421875-8	£1.44	£1.73
6 - TUBE 3-120 EK7650H MSP-422074-5.A4 422074-5	£1.44	£1.73
10 - HOSE CLAMP DCS230T/EK7301 MSP-324616-0.A3 324616-0	£1.44	£1.73
16 - TAPPING SCREW M6X20 EK7650H MSP-266475-5.A5 266475-5	£1.44	£1.73
23 - REAR INNER HOLDER EK7650H MSP-452742-6.A2 452742-6	£1.44	£1.73
34 - RUBBER CAP EK7650H MSP-424410-1.A2 424410-1	£1.44	£1.73
35 - TAPPING SCREW 5.5X45 EK7650H MSP-266687-0.A6 266687-0	£1.44	£1.73
38 - H.L. S HD BOLT M6X30 EK7650H MSP-266659-5.A11 266659-5	£1.44	£1.73
41 - COMPRESSION SPRING 16 EK7650H MSP-234214-1.A5 234214-1	£2.34	£2.81
49 - H.L. S HD BOLT M6X35 EK7650H MSP-266660-0.A2 266660-0	£1.44	£1.73
51 - *H.L.S HD BOLT M5X16 EK7650H MSP-266652-9.A11 266652-9	£1.44	£1.73
54 - THUMB SCREW M6X15 EK7650H MSP-266692-7.A2 266692-7	£4.68	£5.62
64 - PT SCREW 3X20 4013/33/93D MSP-266127-8.A2 266127-8	£1.44	£1.73
66 - O RING 32 DA4031/4157KB/5903R MSP-213459-4.A32 213459-4	£2.18	£2.62
76 - TUBE 3-35 EK7650H MSP-422080-0.A4 422080-0	£1.44	£1.73
89-1 - HL SD BOLT M5X25 EA3601F MSP-266852-1.A5 266852-1	£1.44	£1.73
94 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A26 345918-1	£1.44	£1.73
106 - VALVE STEM SEAL EK7650H MSP-424424-0.A3 424424-0	£4.06	£4.87
116 - *ROCKER ARM ASSY BBX7600 MSP-126005-3.A3 126005-3	£15.26	£18.31
130 - CAM GEAR PLATE EK7650H MSP-346434-6.A3 346434-6	£9.98	£11.98
140 - CRANKSHAFT EK7650H MSP-140900-3.A0 140900-3	£189.12	£226.94
141 - RING SPRING 12 EK7650HK/EB765 MSP-233995-4.A7 233995-4	£1.44	£1.73
142 - PISTON PIN EK7650H/EB7650TH MSP-326039-8.A0 326039-8	£2.97	£3.56
143 - PISTON BBX7600/EB7650TH/PM765 MSP-318726-3.A6 318726-3	£22.90	£27.48
144 - *SECOND RING EK7650H MSP-257332-8.A0 257332-8	£20.30	£24.36
145 - *OIL RING EK7650H MSP-257333-6.A1 257333-6	£14.98	£17.97
146 - *TOP RING EK7650H MSP-257331-0.A1 257331-0	£14.98	£17.97
147 - H.L. S HD BOLT M6X30 EK7650H MSP-266659-5.A3 266659-5	£1.44	£1.73
148 - LEAD UNIT EK7650H MSP-638777-3.A1 638777-3	£3.90	£4.68
149 - CONTACT SPRING EK7650 MSP-232268-2.A0 232268-2	£1.44	£1.73
150 - REAR OUTER HOLDER EK7650H MSP-318730-2.A3 318730-2	£4.99	£5.99
151 - COMPRESSION SPRING 16 EK7650H MSP-234214-1.A3 234214-1	£2.34	£2.81
152 - H.L. S HD BOLT M6X30 EK7650H MSP-266659-5.A2 266659-5	£1.44	£1.73
153 - CHECK VALVE ER2650LH/EBH251L MSP-424201-0.A14 424201-0	£1.44	£1.73
154 - GROMMET EK7650H MSP-424406-2.A1 424406-2	£1.44	£1.73
156 - *H.L.S HD BOLT M5X16 EK7650H MSP-266652-9.A0 266652-9	£1.44	£1.73
157 - OIL CASE GASKET EK7650H MSP-452738-7.A1 452738-7	£6.08	£7.30
158 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A21 345918-1	£1.44	£1.73
159 - TUBE 5-55 EK7650H EB5300TH MSP-422084-2.A1 422084-2	£1.44	£1.73
160 - LEAD BULB EK7650H EB5300TH MSP-346398-4.A3 346398-4	£6.40	£7.68
161 - RETAINER PLATE EK7650H MSP-318709-3.A1 318709-3	£4.83	£5.80
162 - *H.L.S HD BOLT M5X16 EK7650H MSP-266652-9.A2 266652-9	£1.44	£1.73
163 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A20 345918-1	£1.44	£1.73
164 - OIL TUBE EK7650H MSP-168655-8.A1 168655-8	£10.30	£12.36
165 - OIL WEIGHT EK7650H MSP-326177-6.A1 326177-6	£3.28	£3.93
166 - OIL TUBE EK7650H MSP-424384-6.A1 424384-6	£12.32	£14.79
167 - OIL CASE EK7650H MSP-318710-8.A0 318710-8	£22.90	£27.48
168 - GASKET EK7650H/EB7650TH/PM765 MSP-346452-4.A3 346452-4	£1.44	£1.73
169 - HEX HD SCREW M8X12/EB7660TH MSP-921412-3.A1 921412-3	£1.44	£1.73
170 - *H.L.S HD BOLT M5X16 EK7650H MSP-266652-9.A1 266652-9	£1.44	£1.73
171 - O-RING 20 EM2651/ER2650/MS248 MSP-213548-5.A2 213548-5	£1.44	£1.73
172 - HLSH BOLT M5X16 WITH WR EK765 MSP-266862-8.A0 266862-8	£1.44	£1.73
173 - OIL PIPE EK7650H MSP-452614-5.A1 452614-5	£15.29	£18.35
174 - OIL CAP EK7650H MSP-140899-2.A1 140899-2	£7.18	£8.61
175 - OIL CAP GASKET EK7650H MSP-424421-6.A1 424421-6	£1.44	£1.73
176 - FRYWHEEL EK7650H MSP-318704-3.A0 318704-3	£44.88	£53.86
177 - FLANGE NUT M10 BBX7600/EK7650 MSP-264054-3.A0 264054-3	£1.44	£1.73
178 - CYLINDER COVER EK7650H MSP-452617-9.A1 452617-9	£15.42	£18.51
179 - *H.L.S HD BOLT M5X16 EK7650H MSP-266652-9.A3 266652-9	£1.44	£1.73
180 - FAN COVER EK7650H MSP-452616-1.A0 452616-1	£30.96	£37.15
181 - H.L. S HD BOLT M5X30 EK7650HH MSP-266655-3.A1 266655-3	£1.44	£1.73
182 - H.L. S HD BOLT M6X30 EK7650H MSP-266659-5.A1 266659-5	£1.44	£1.73
183 - FRONT OUTER HOLDER EK7650H MSP-318728-9.A1 318728-9	£7.02	£8.42
184 - FLAT WASHER 41 EK7650H/EB7650 MSP-267448-1.A2 267448-1	£2.50	£3.00
185 - *OIL SEAL(L) EK7650H/EB7650TH MSP-213598-0.A2 213598-0	£13.10	£15.72
185-1 - OIL SEAL(L) EB7660TH/PB7660.4 MSP-213090-6.A1 213090-6	£5.78	£6.93
186-1 - CUTTING ARM EK7650H MSP-319234-7.A0 319234-7	£31.97	£38.36
187 - COMPRESSION SPRING 16 EK7650H MSP-234214-1.A4 234214-1	£2.34	£2.81
188 - REAR OUTER HOLDER EK7650H MSP-318730-2.A2 318730-2	£4.99	£5.99
189 - H.L. S HD BOLT M6X30 EK7650H MSP-266659-5.A0 266659-5	£1.44	£1.73
190 - H.L. S HD BOLT M6X25 EK7650HH MSP-266658-7.A1 266658-7	£1.44	£1.73
191 - V BELT 5-800 EK7650H MSP-225094-6.A1 225094-6	£29.67	£35.60
192 - SPACER 17 EK7650H MSP-331970-5.A2 331970-5	£7.64	£9.17
193 - CLUTCH DRUM ASSEMBLY EK7650H MSP-125945-2.A0 125945-2	£64.89	£77.87
194 - CLUTCH DRUM EK7650H MSP-165636-3.A1 165636-3	£53.07	£63.68
195 - RETAINING RING R-35 EK7650H MSP-962163-9.A1 962163-9	£1.44	£1.73
196 - BALL BEARING 6003LLU EK7650H MSP-210138-5.A1 210138-5	£12.32	£14.79
197 - SPACER 17 EK7650H MSP-331970-5.A3 331970-5	£7.64	£9.17
198-1 - CLUTCH EK7650H MSP-168834-8.A0 168834-8	£61.25	£73.50
199 - *TENSION SPRING 6 EK7650H MSP-231884-7.A1 231884-7	£12.33	£14.80
200 - CLUTCH SHOE EK7650H MSP-313207-2.A0 313207-2	£20.30	£24.36
201 - CLUTCH HOLDER EK7650H MSP-313208-0.A1 313208-0	£30.24	£36.29
203 - SPARE PART MSP-266792-3.A0 266792-3	£1.44	£1.73
204 - STARTER ASSEMBLY EK7650H MSP-125919-3.A0 125919-3	£71.44	£85.73
205 - *STARTER KNOB EK7650H MSP-424501-8.A1 424501-8	£22.03	£26.44
206 - *ROPE GUIDE EK7650H MSP-332046-1.A1 332046-1	£32.69	£39.23
207 - *STARTER CASE EK7650H MSP-SG00000058.A0 SG00000058	£28.92	£34.71
208 - *SPIRAL SPRING EK7650H/EB7650T MSP-SG00000014.A6 SG00000014	£8.42	£10.11
210 - *ROPE STOPPER EK7650H MSP-SG00000061.A0 SG00000061	£4.50	£5.40
211-1 - REEL EK7650H Y07633 MSP-SG00000015.A0 SG00000015	£6.71	£8.05
212-1 - SET SCREW M6X20 EK7650H MSP-SG00000013.A2 SG00000013	£1.44	£1.73
213 - HOLDER EK7650H MSP-452930-5.A1 452930-5	£1.44	£1.73
214-1 - HL SD BOLT M5X20 EA3601F MSP-266847-4.A5 266847-4	£1.44	£1.73
214-2 - HLBIND BOLT M5X20 EK7650H/51H MSP-266851-3.A1 266851-3	£1.44	£1.73
215-1 - CLUTCH COVER EK7650H MSP-455559-6.A0 455559-6	£20.02	£24.02
216 - HEX LOCK NUT M10-17 EK7650H MSP-264080-2.A0 264080-2	£3.28	£3.93
218 - *H.L.S HD BOLT M5X12 EK7650H MSP-266784-2.A0 266784-2	£1.44	£1.73
218-1 - HL SD BOLT M5X12 EA3601F MSP-266859-7.A5 266859-7	£1.44	£1.73
219-1 - RATCHET EK7650H MSP-144100-7.A0 144100-7	£8.11	£9.73
225-1 - FLANGE 102 EK7650H/EK7301 MSP-224478-5.A0 224478-5	£9.20	£11.04
226 - RING 17 EK7650H MSP-257312-4.A1 257312-4	£1.44	£1.73
227-1 - FLANGE 102 EK7650H/EK7301 MSP-224478-5.A1 224478-5	£9.20	£11.04
228 - PRESSURE RING EK7650H MSP-318746-7.A2 318746-7	£42.05	£50.46
229 - SLIDING DISC EK7650H/EK7301 MSP-442169-8.A5 442169-8	£2.34	£2.81
230 - RUBBER RING/INNER EK7650H/EK73 MSP-424426-6.A2 424426-6	£4.37	£5.24
231 - *H.L.COLLRAR BOLT M6 EK7650H MSP-266689-6.A2 266689-6	£1.44	£1.73
232 - *COMPRESSION SPRING 6 EK7650H MSP-234216-7.A2 234216-7	£1.44	£1.73
233 - CUTTING DEVICE EK7650H MSP-318722-1.A1 318722-1	£26.92	£32.31
234 - O-RING 9 EK7650H MSP-213625-3.A0 213625-3	£1.44	£1.73
235 - LOCK SHAFT EK7650H MSP-326038-0.A1 326038-0	£4.06	£4.87
237 - SLIDING DISC EK7650H/EK7301 MSP-442169-8.A4 442169-8	£2.34	£2.81
238 - IMPACT PLATE EK7650H MSP-346455-8.A0 346455-8	£7.18	£8.61
239 - RUBBER RING/OUTER EK7650H/EK73 MSP-424427-4.A0 424427-4	£4.37	£5.24
240 - SPARE PART MSP-266725-8.A2 266725-8	£1.44	£1.73
241 - GRIP EK7650H/EK7301/PC7414 MSP-452938-9.A0 452938-9	£1.20	£1.44
242-1 - 14 HOOD EK7651H MSP-141042-6.A0 141042-6	£125.11	£150.13
242 - 14 HOOD EK7651H MSP-141042-6.A1 141042-6	£125.11	£150.13
244 - O RING 14 2414B/HP2030/31/32 MSP-213162-7.A3 213162-7	£1.44	£1.73
245 - RING 17 EK7650H MSP-257971-4.A0 257971-4	£1.44	£1.73
247 - RETAINING RING R-40 HM0870/71 MSP-962157-4.A8 962157-4	£1.44	£1.73
248 - SPINDLE EK7650H MSP-326062-3.A0 326062-3	£7.18	£8.61
250 - V PULLEY 5-95.8 EK7650H MSP-222174-9.A0 222174-9	£7.80	£9.36
252 - *BELT COVER EK7650H MSP-452698-3.A1 452698-3	£19.58	£23.50
252-1 - BELT COVER EK7650H MSP-455936-2.A0 455936-2	£24.48	£29.38
253 - TENSIONING SCREW M6 EK7650HH MSP-266691-9.A0 266691-9	£1.44	£1.73
254 - COMPRESSION SPRING 6 EK7650H MSP-234215-9.A0 234215-9	£2.02	£2.43
255 - SQUARE NUT M6 2107F HS7611 MSP-252157-5.A2 252157-5	£1.44	£1.73
256 - PLATE EK7650H MSP-346457-4.A2 346457-4	£3.90	£4.68
257-1 - COLLARED HEX NUT M8 EJ7650H MSP-264055-1.A4 264055-1	£1.44	£1.73
258 - SPONGE SLEEVE BO4555/BO4556 MSP-424023-8.A4 424023-8	£1.44	£1.73
259 - PLATE EK7650H MSP-346554-6.A0 346554-6	£2.65	£3.18
260 - CHECK VALVE ER2550/EBH251L MSP-424316-3.A19 424316-3	£4.06	£4.87
261 - DUST BAG EK7650H0H MSP-166106-5.A0 166106-5	£3.63	£4.36
262 - RUBBER SLEEVE 22 EK7650H0H MSP-424499-9.A1 424499-9	£2.97	£3.56
263 - LABEL/CAUTION EK7650H MSP-800E23-6.A0 800E23-6	£1.44	£1.73
264 - STARTER COVER GASKET EK7650H MSP-346611-0.A1 346611-0	£8.27	£9.92
265 - COTTER BBX7600/EB7650 EB5300TH MSP-331967-4.A1 331967-4	£1.44	£1.73
266 - *MUFFLER GUARD EK7650H MSP-346589-7.A1 346589-7	£33.70	£40.44
267 - H.L.S HD BOLT M5X16 EK7650H MSP-266782-6.A1 266782-6	£1.44	£1.73
268 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A0 325665-0	£1.44	£1.73
269 - BALL EK7650H MSP-331897-9.A1 331897-9	£1.44	£1.73
270 - *LABEL/SERIAL NO EK750 MSP-897179-4.A0 897179-4	£1.44	£1.73
275 - SCREW ASSY EK7650/EK7651 MSP-WJ00096589.A3 WJ00096589	£2.65	£3.18
276 - METERING COVER ASSY EK7650/51 MSP-141943-8.A1 141943-8	£15.13	£18.16
277 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A21 168620-7	£18.72	£22.47
278 - GASKET EH7500/PB250/RST250/RB MSP-442183-4.A1 442183-4	£3.74	£4.49
279 - SCREW EK7650/EK7651 MSP-WJ00096475.A7 WJ00096475	£1.44	£1.73
287 - SCREW EK7650/EK7651 MSP-WJ00096475.A14 WJ00096475	£1.44	£1.73
290-1 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A19 WJ00014070	£1.44	£1.73
291 - DIAPHRAGM PUMP EK7650 MSP-WJ00009589.A1 WJ00009589	£7.64	£9.17
293 - CONICAL SPRING 5-9ER2650 MSP-234183-6.A7 234183-6	£3.28	£3.93
299 - PIN EK7650/EK7651/EB7660TH MSP-WJ00014477.A3 WJ00014477	£1.44	£1.73
300 - LEVER DCS230T/EB7650TH EB7660 MSP-WJ00016648.A1 WJ00016648	£2.18	£2.62
301 - VALVE EK7650/EK7651/EB7660TH MSP-WJ00008282.A7 WJ00008282	£7.49	£8.99
304 - *PLUG-CUP PS32/A3201 MSP-WJ00088229.A5 WJ00088229	£1.44	£1.73
308 - SCREW EK7650/EK7651 MSP-WJ00096475.A6 WJ00096475	£1.44	£1.73
A01 - WRENCH 13-16 FOR 195488-8 EK7 MSP-782236-0.A0 782236-0	£5.33	£6.40
A01 - SCREWDRIVER PS32/EK7650/EA3500 MSP-783012-5.A7 783012-5	£1.20	£1.44
A01 - TOOL KIT EK7650 MSP-195488-8.A0 195488-8	£7.72	£9.27
A02 - OIL BOTTLE SET EK7650/EB7650T MSP-195532-1.A2 195532-1	£9.35	£11.22
A03 - COUPLING SLEEVE FOR 195534-7 MSP-123121-2.A0 123121-2	£1.23	£1.48
A03 - HOLDER EK7650H MSP-452930-5.A2 452930-5	£1.44	£1.73
E01 - CAUTION PLATE EK7650/EB7650TH MSP-898428-2.A1 898428-2	£7.02	£8.42
